DORMER C3064.0 Primax Cutters

Product Code: C3064.0

$53.59$48.72 Ex. GST

Product Code: C3064.0 SKU C3064.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

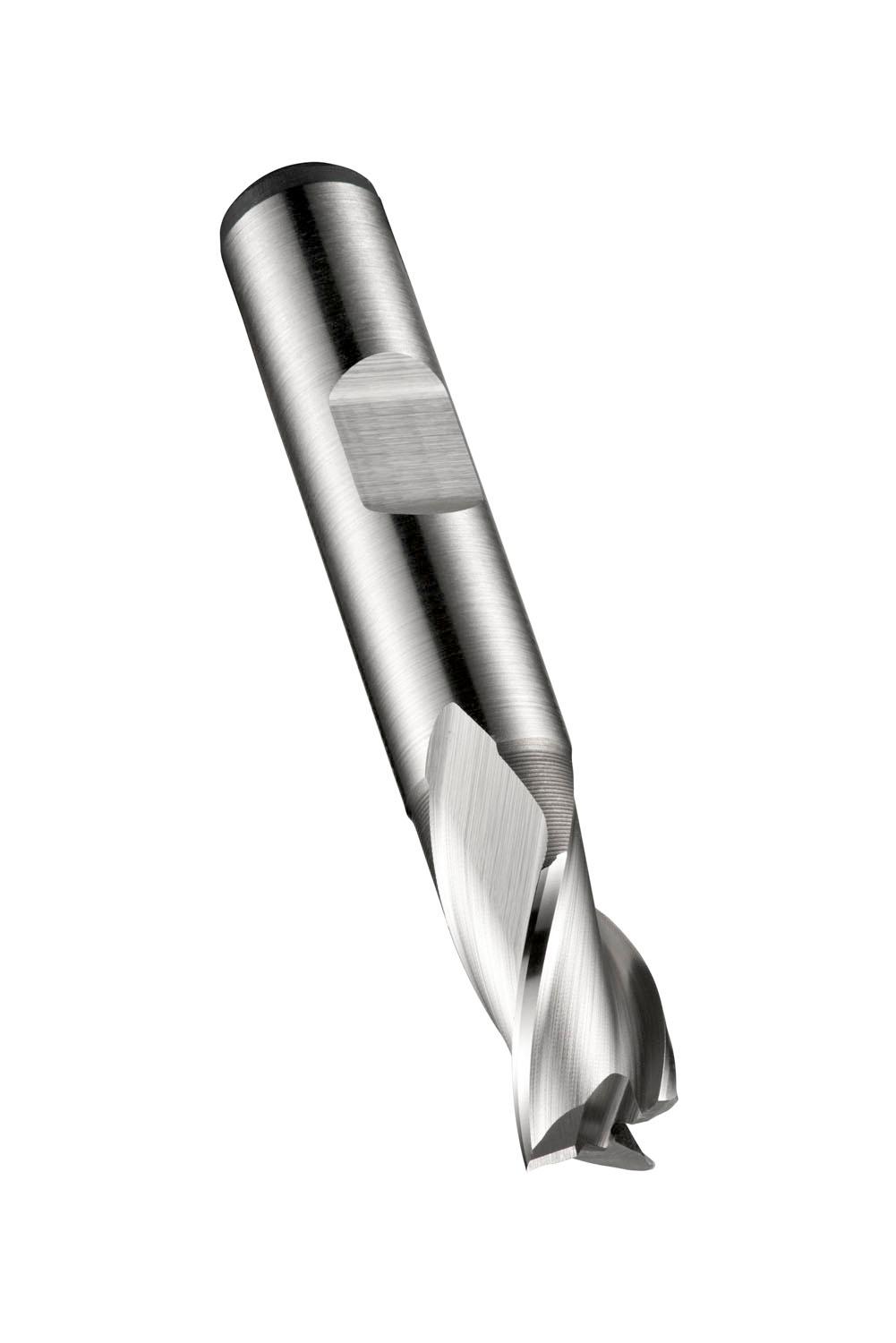

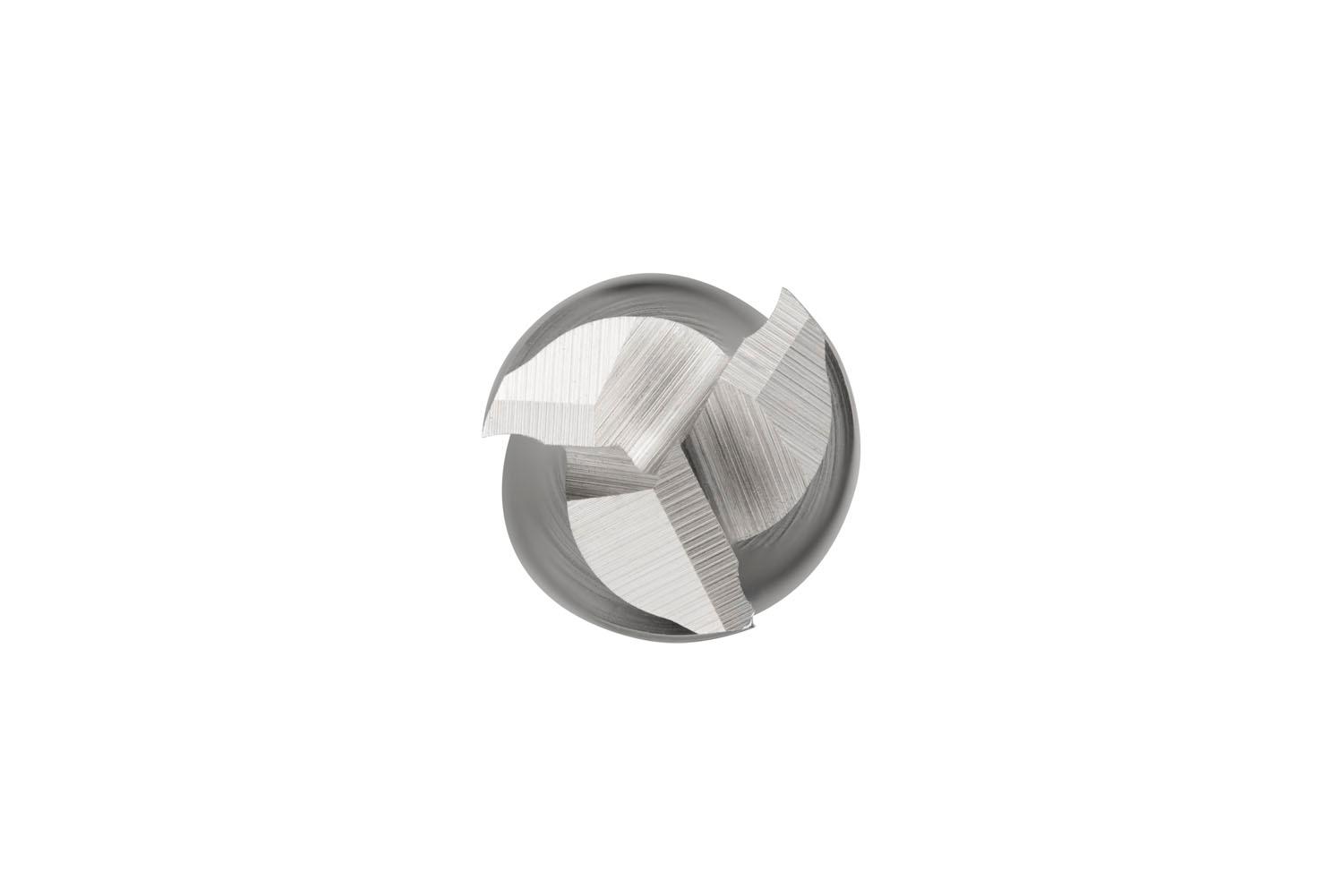

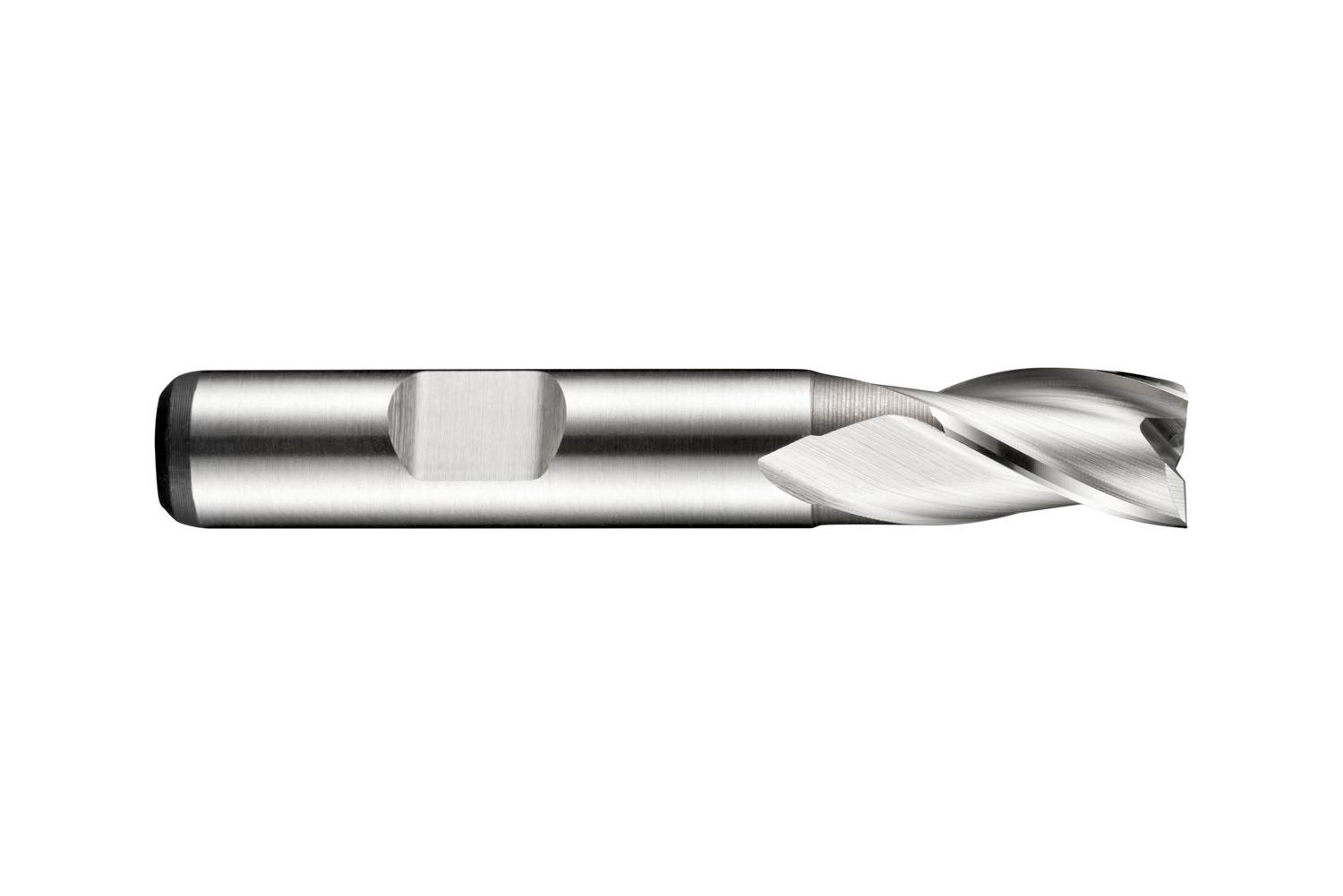

Extra short series slot drill with 3 flutes, diameter 4mm with 7mm length of cut and 51mm overall length, according to DIN 327 D standard with a 6mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight 0.0520 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760572795
Product number (SAP): 86013803
Ordering code ANSI: C3064.0
Gross weight – grams: 12.1

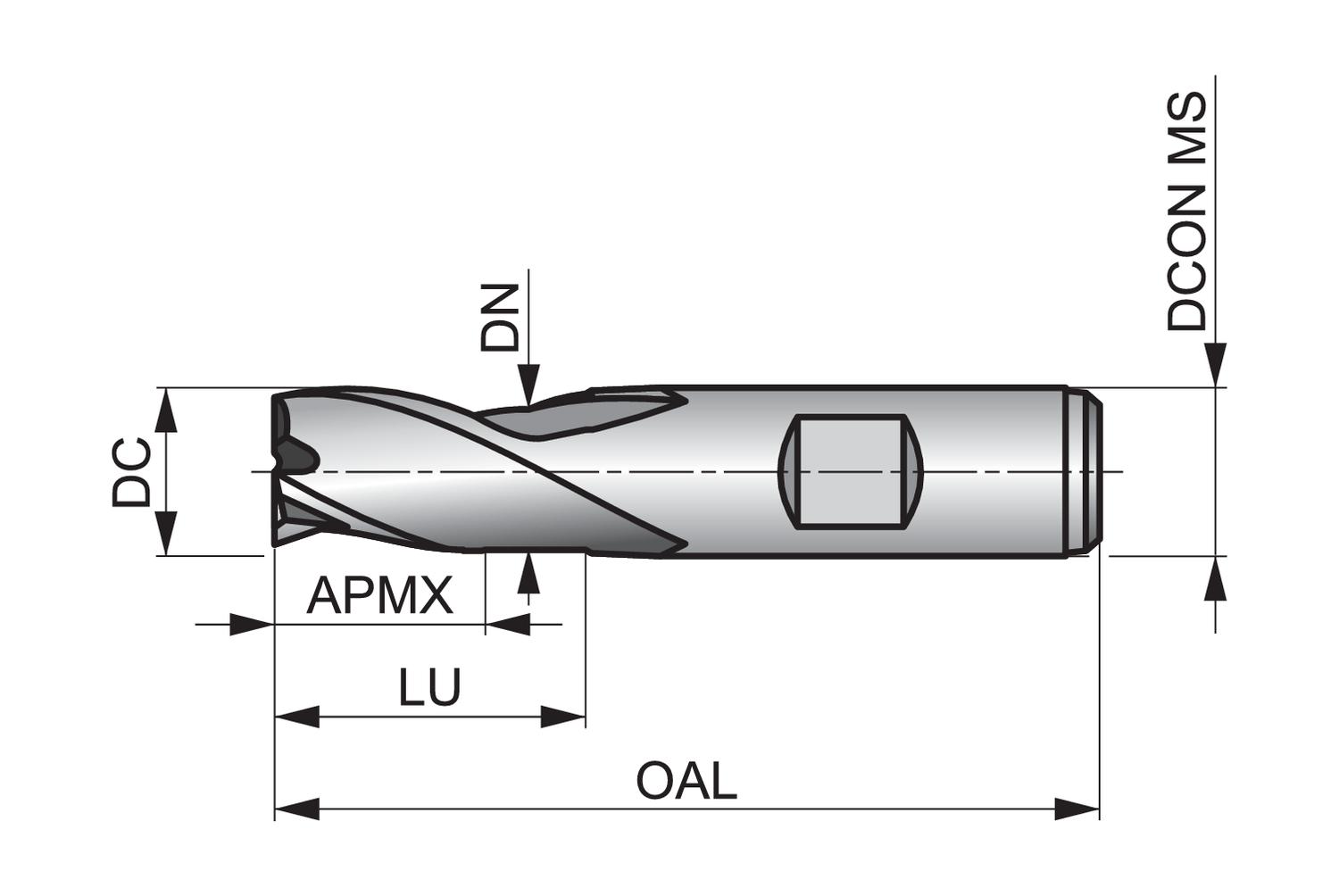

Cutting diameter – millimeter (DC): 4 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 7 mm
Overall length – millimeter (OAL): 51 mm
Flute count (NOF): 3
Neck diameter – millimeter (DN): 4 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C3064.0

Brand

DORMER
