DORMER C3067.0 Primax Cutters

Description

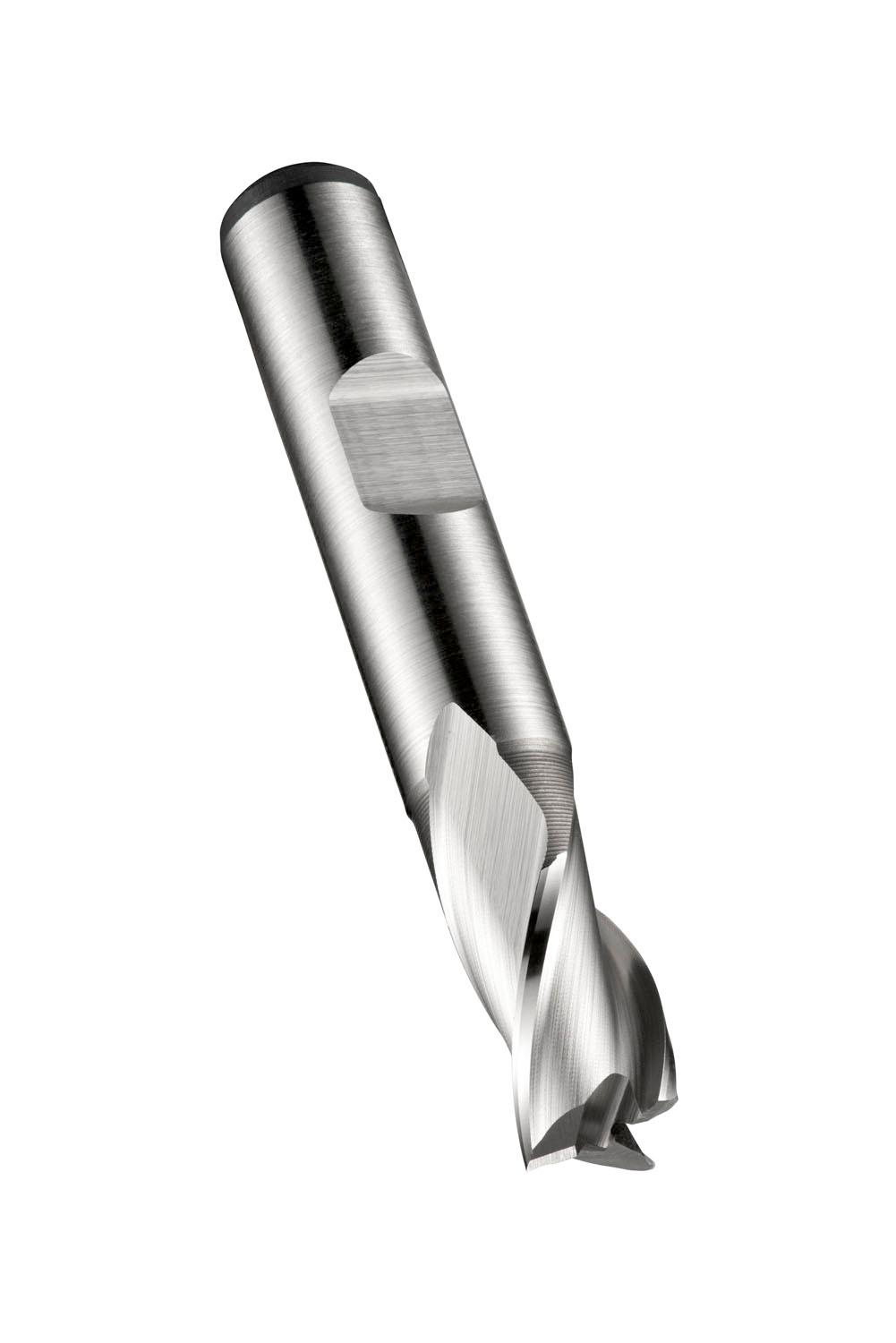

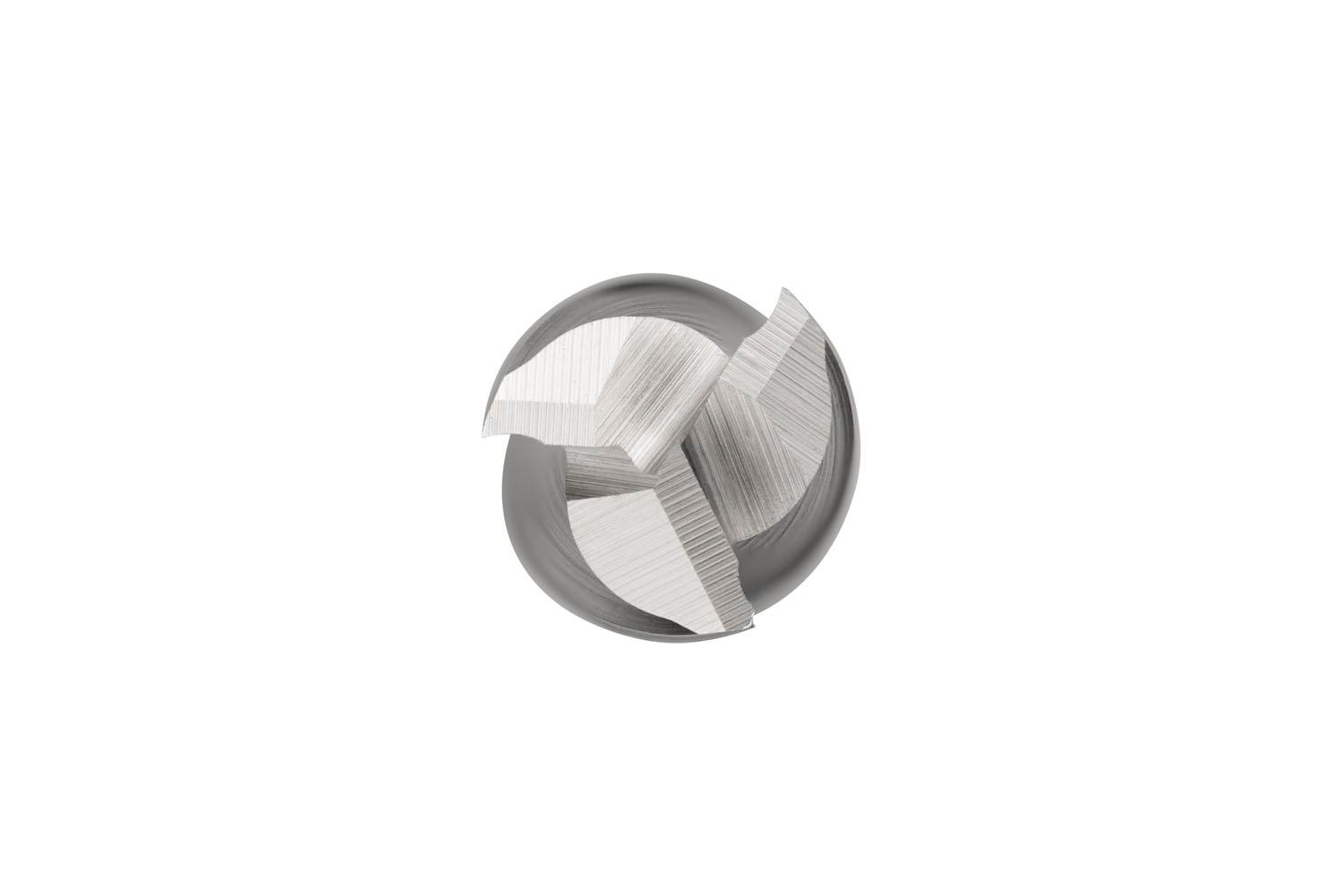

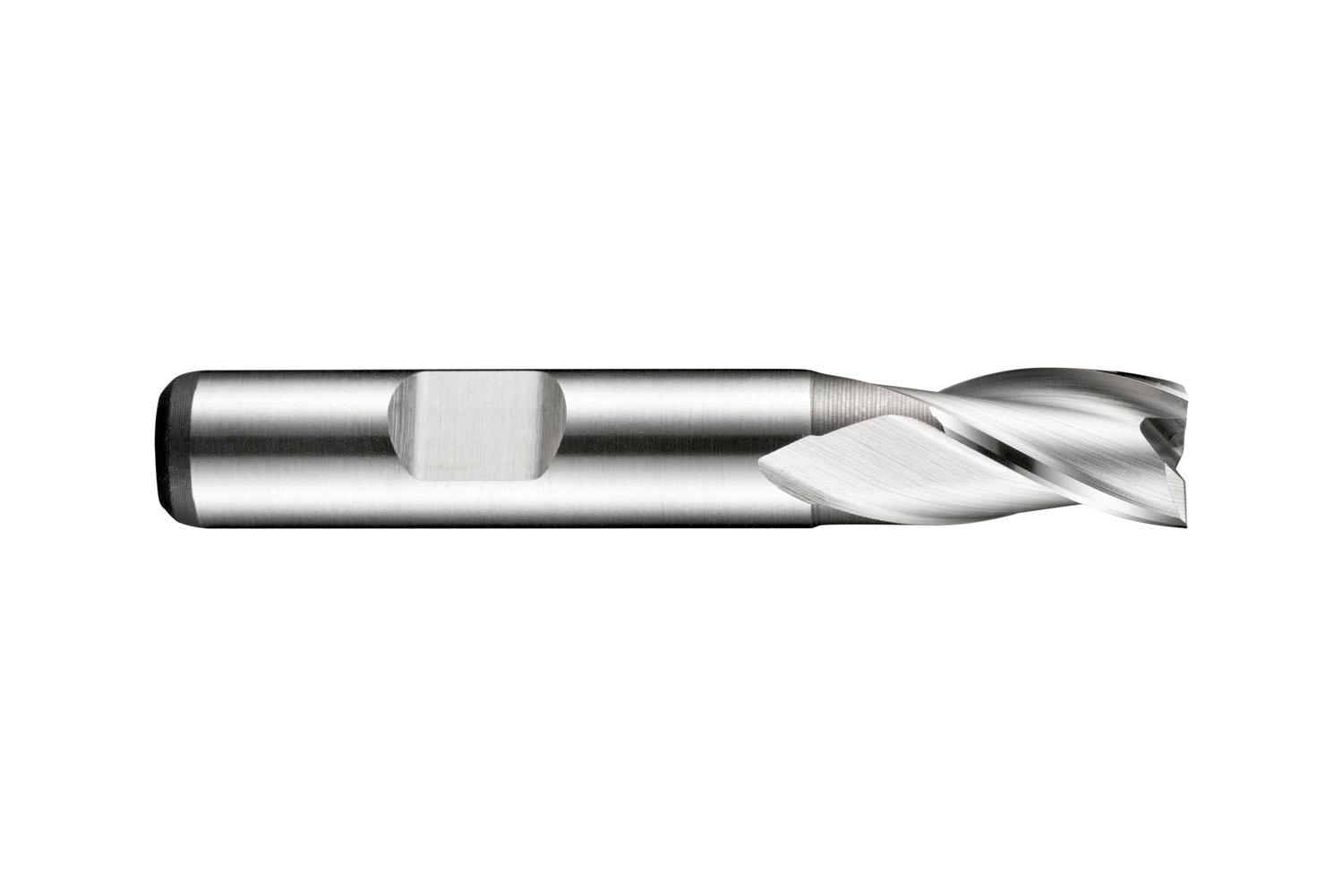

Extra short series slot drill with 3 flutes, diameter 7mm with 10mm length of cut and 60mm overall length, according to DIN 327 D standard with a 10mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight	0.0732 kg
Dimensions
barcode

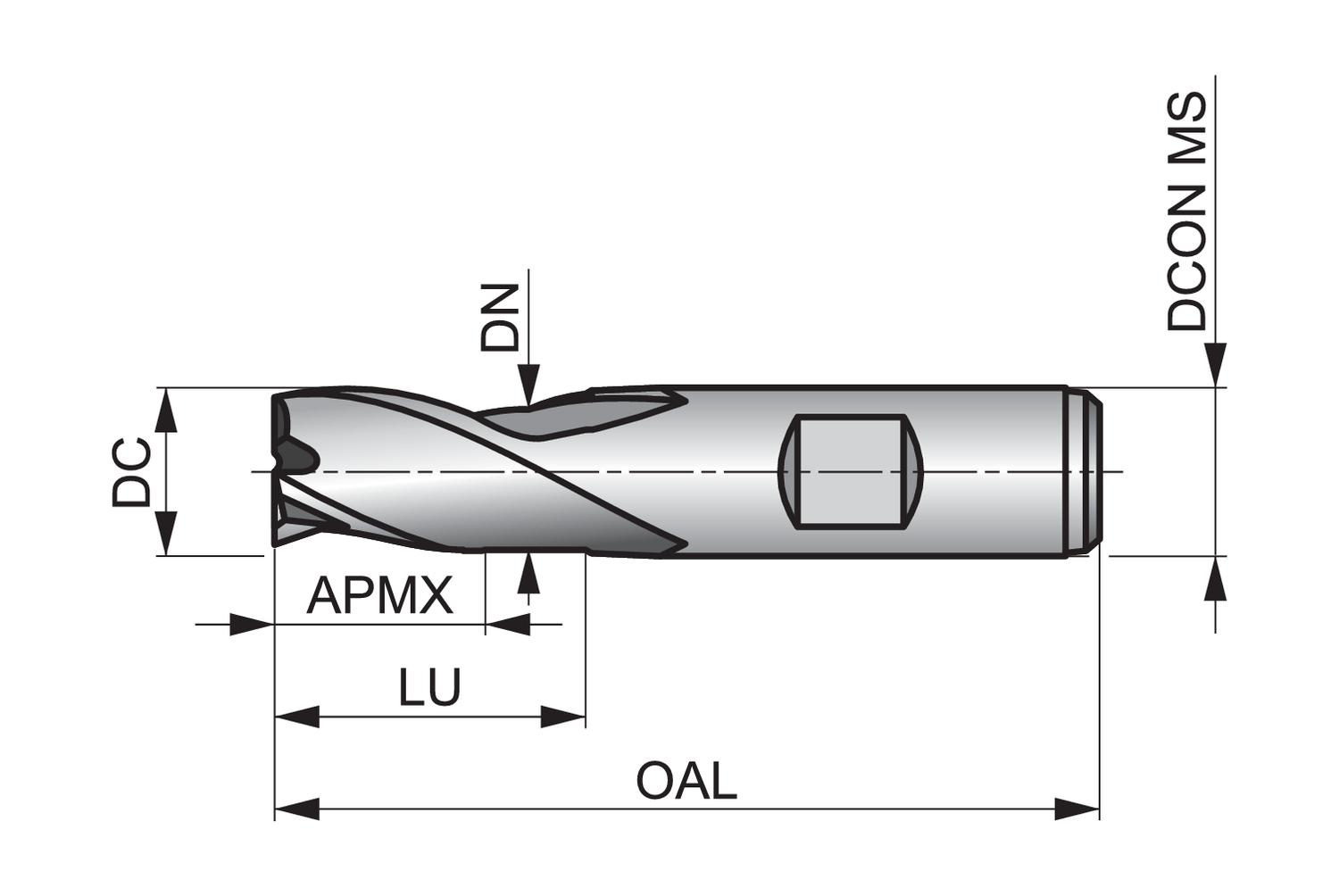

Additional Information	Description: Value EAN number: 7320760572887 Product number (SAP): 86013811 Ordering code ANSI: C3067.0 Gross weight – grams: 33.7 Cutting diameter – millimeter (DC): 7 mm Connection diameter – millimeter (DCON MS): 10 mm Depth of cut maximum – millimeter (APMX): 10 mm Overall length – millimeter (OAL): 60 mm Flute count (NOF): 3 Neck diameter – millimeter (DN): 7 mm Radial rake angle (GAMF): 12 With Neck: Yes ISO: C3067.0

Need Technical Advice?

Description

Additional information

Brand

DORMER
