DORMER C3069.0 Primax Cutters

Product Code: C3069.0

$82.15$74.68 Ex. GST

Product Code: C3069.0 SKU C3069.0 Categories , ,

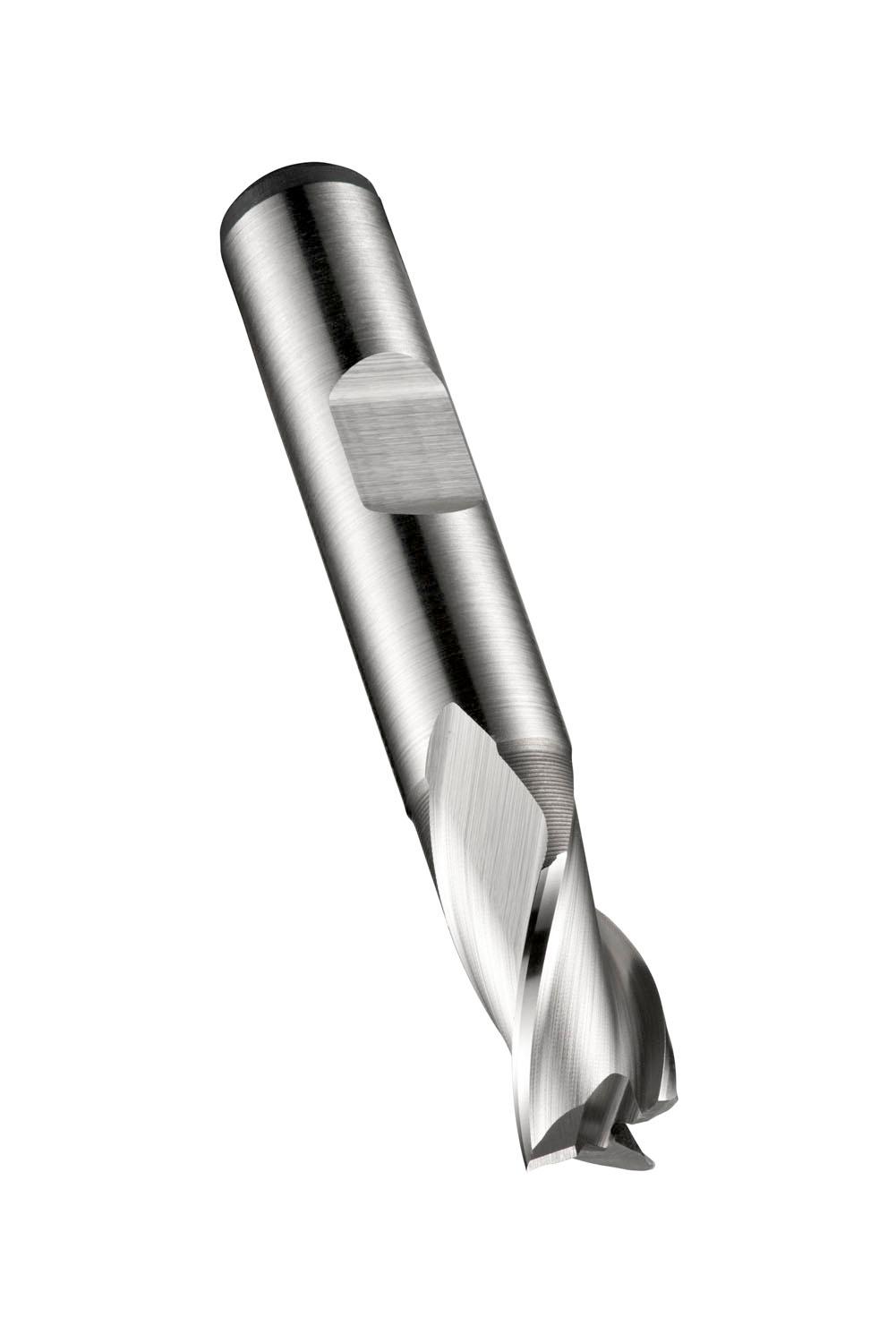

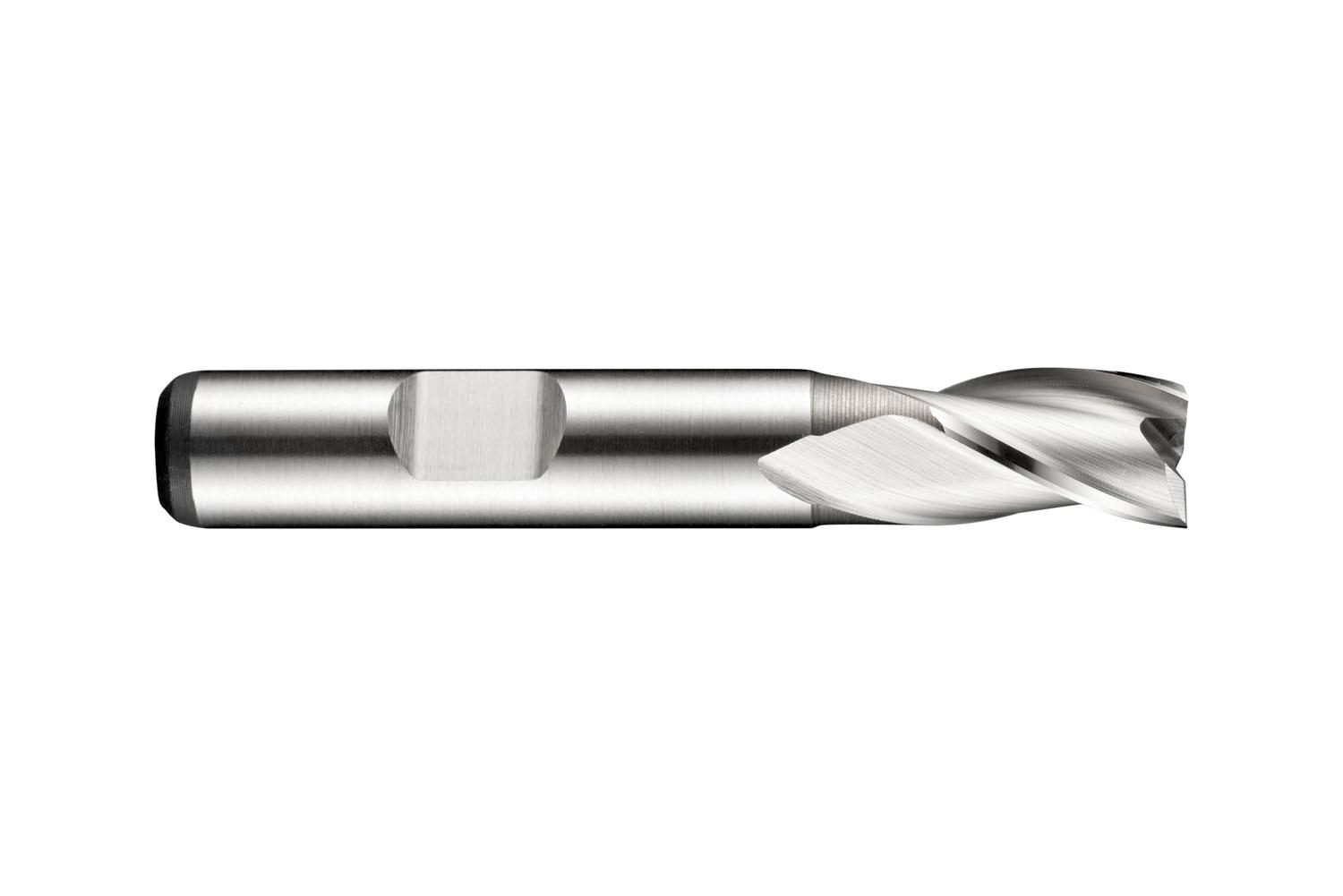

DORMER C3069.0 Primax Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Extra short series slot drill with 3 flutes, diameter 9mm with 11mm length of cut and 61mm overall length, according to DIN 327 D standard with a 10mm Weldon shank, powder metallurgical HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight 0.0798 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760572931
Product number (SAP): 86013816
Ordering code ANSI: C3069.0
Gross weight – grams: 37.7

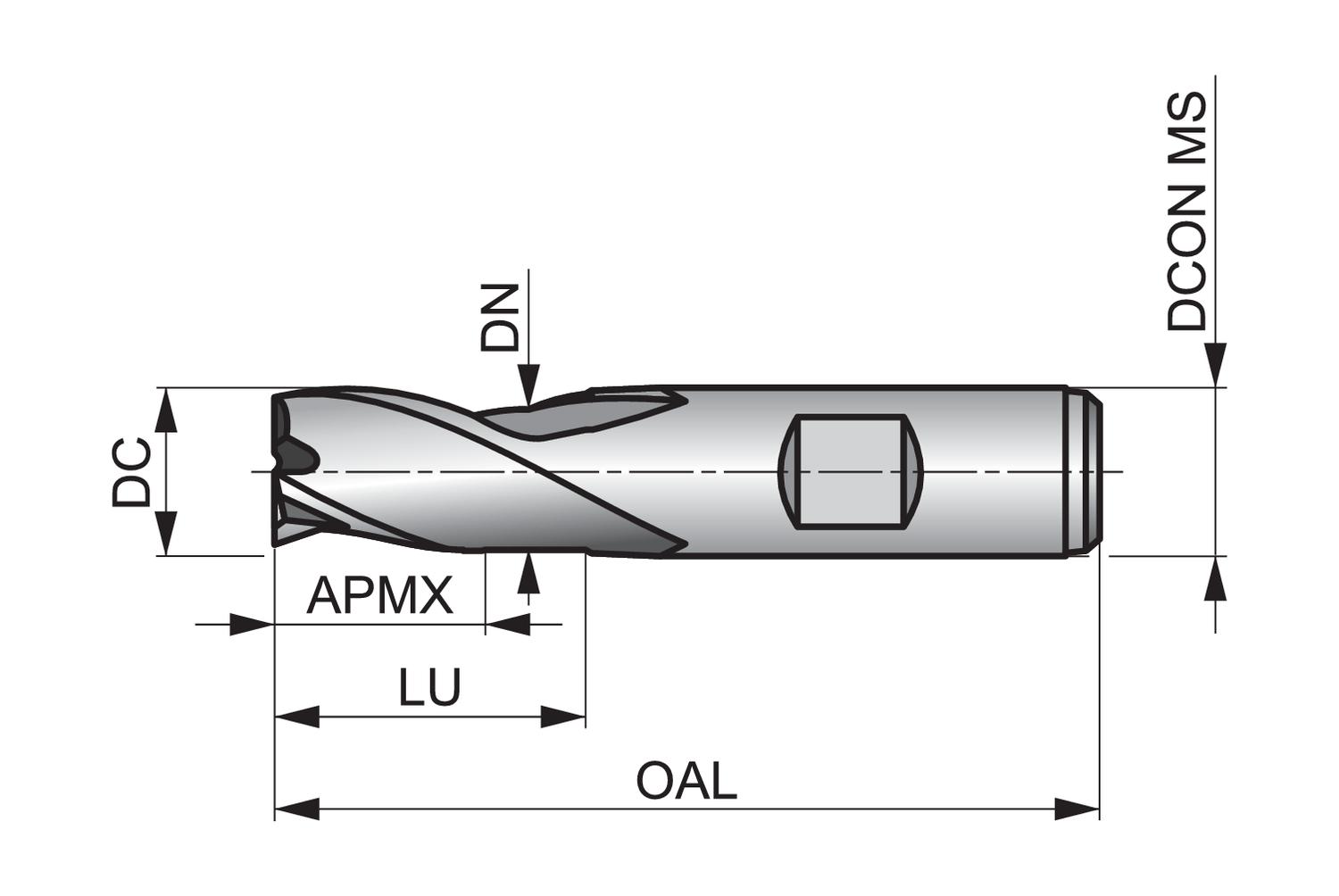

Cutting diameter – millimeter (DC): 9 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 11 mm
Overall length – millimeter (OAL): 61 mm
Flute count (NOF): 3
Neck diameter – millimeter (DN): 9 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C3069.0

Brand

DORMER
