DORMER C34610.0 HSCO Cutters

Product Code: C34610.0

$87.24$79.31 Ex. GST

Product Code: C34610.0 SKU C34610.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

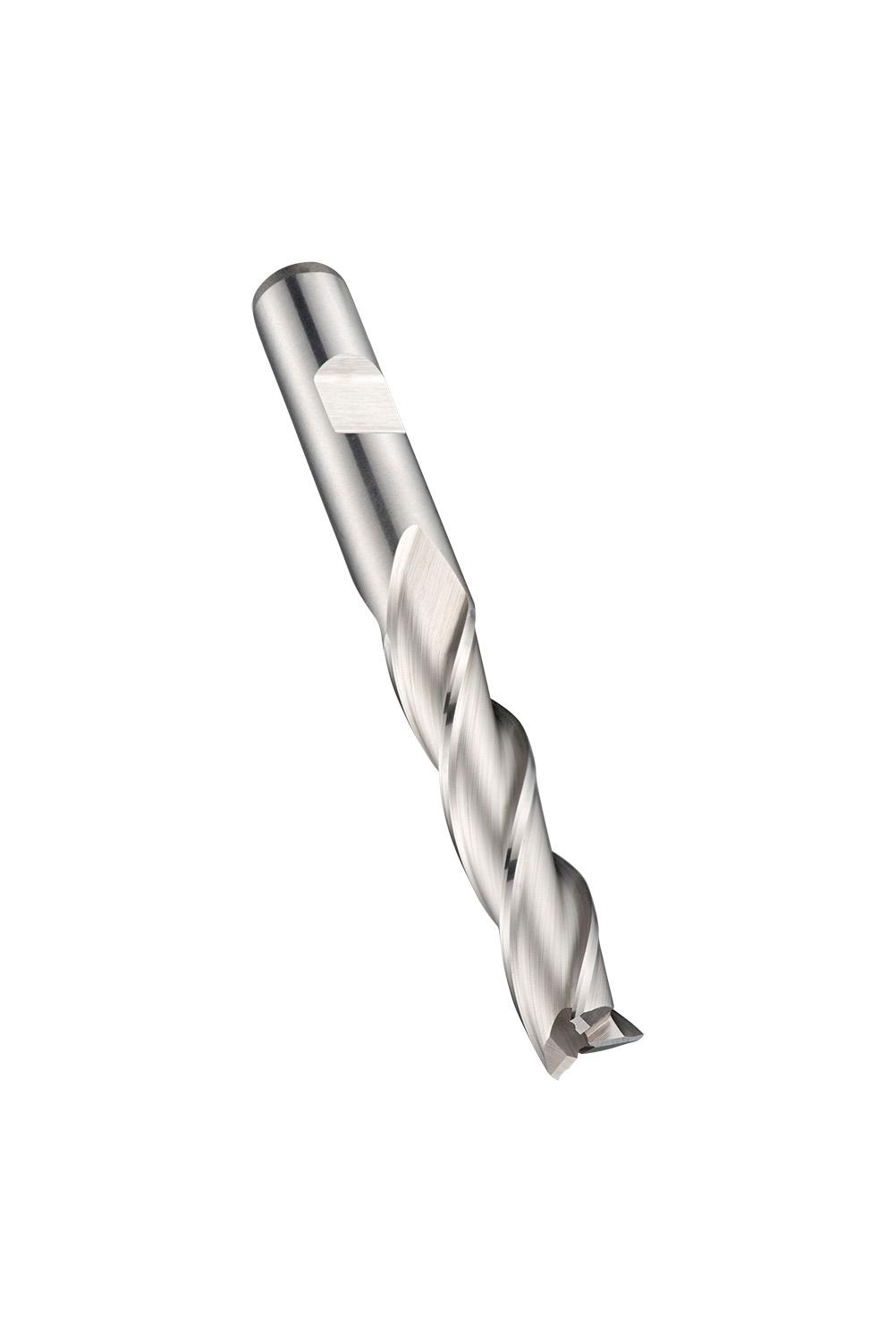

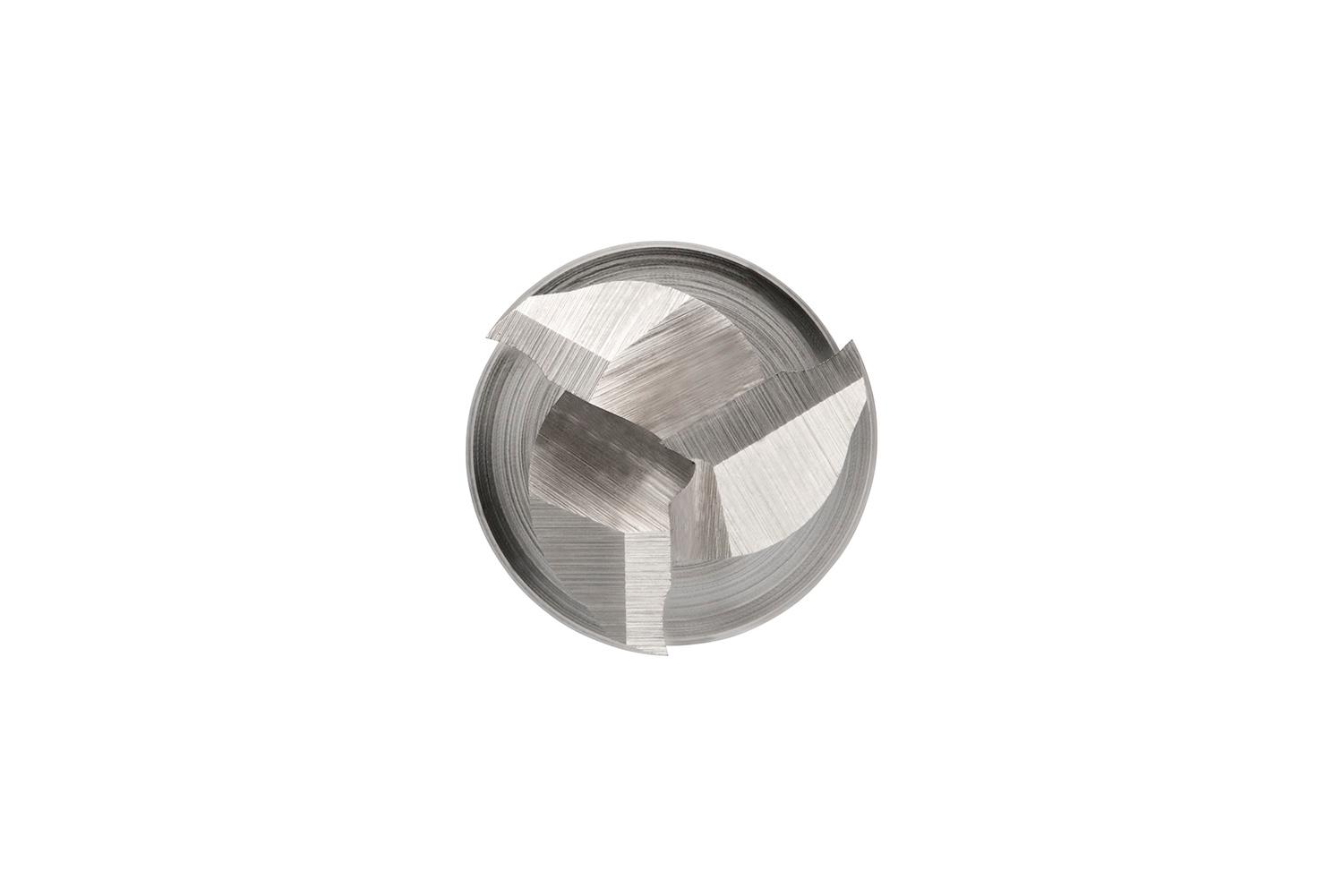

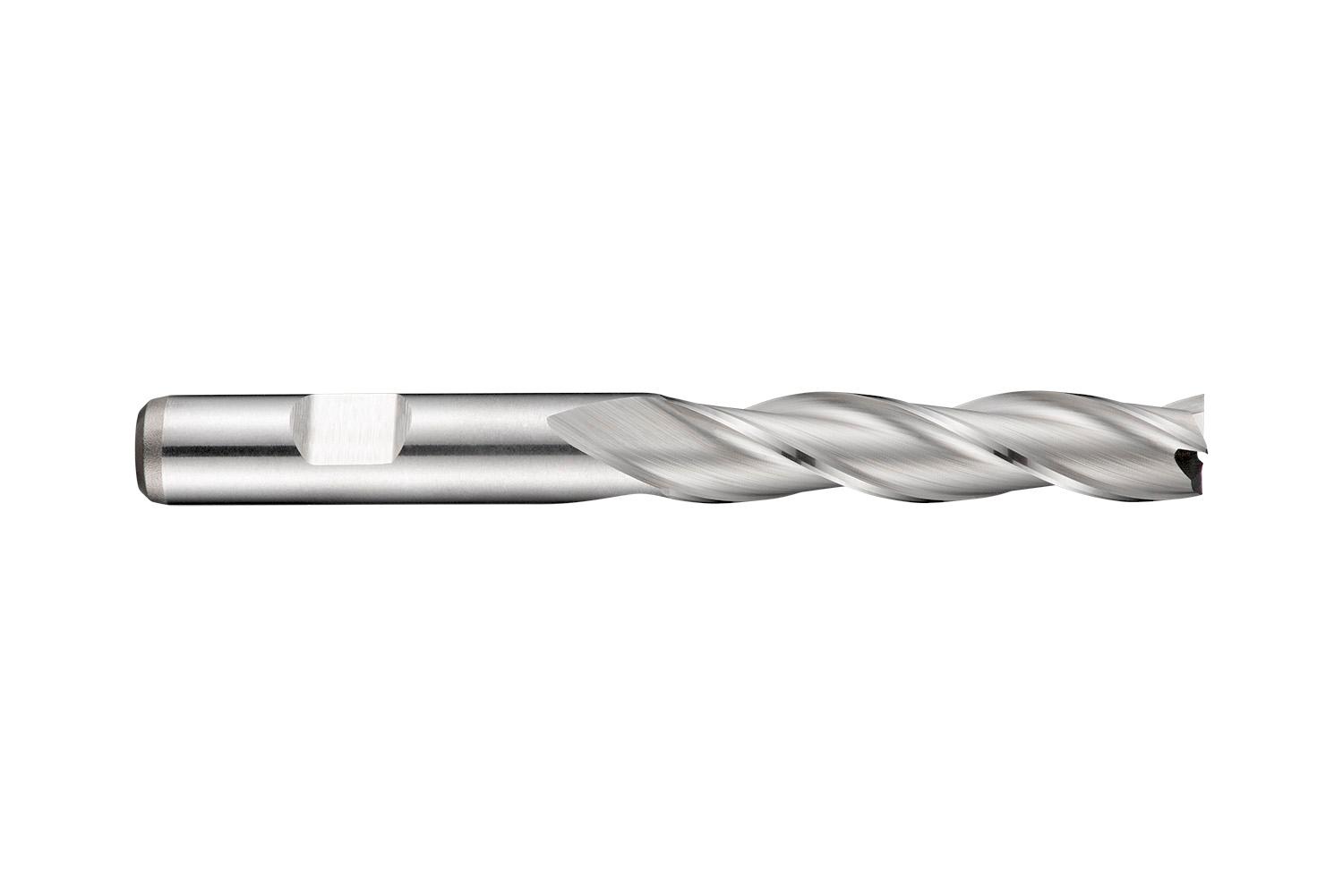

Long series end mill with 3 flutes, diameter 10mm with 45mm length of cut and 95mm overall length, according to DIN 844 L standard with a 10mm Weldon shank, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling and slot milling in free machining steel and copper or copper alloys

Additional information

Weight 0.0847 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760126233
Product number (SAP): 86013848
Ordering code ANSI: C34610.0
Gross weight – grams: 51.3

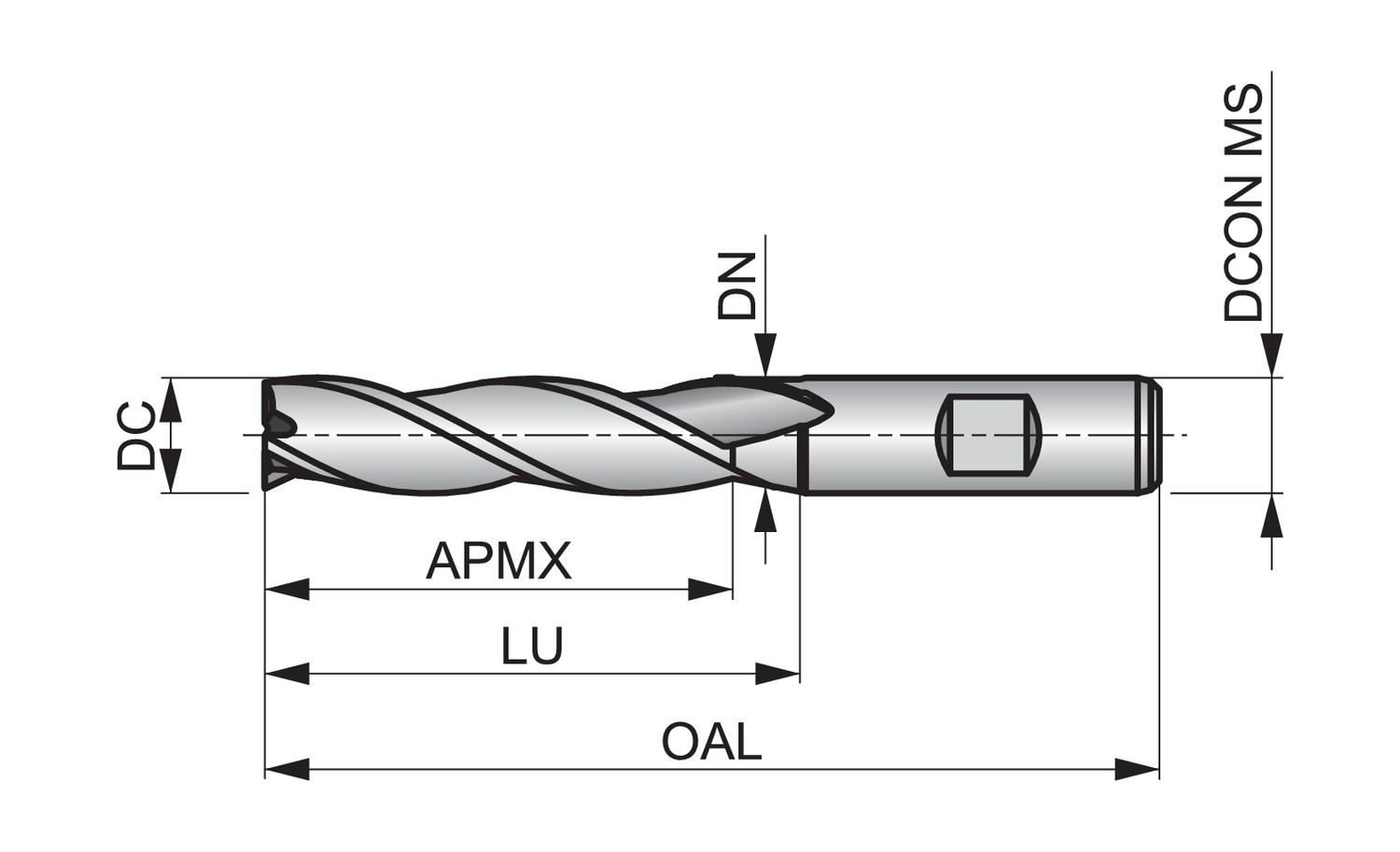

Cutting diameter – millimeter (DC): 10 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 45 mm
Overall length – millimeter (OAL): 95 mm
Flute count (NOF): 3
Radial rake angle (GAMF): 12
ISO: C34610.0

Brand

DORMER
