DORMER C34615.0 HSCO Cutters

Product Code: C34615.0

$152.96$139.05 Ex. GST

Product Code: C34615.0 SKU C34615.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

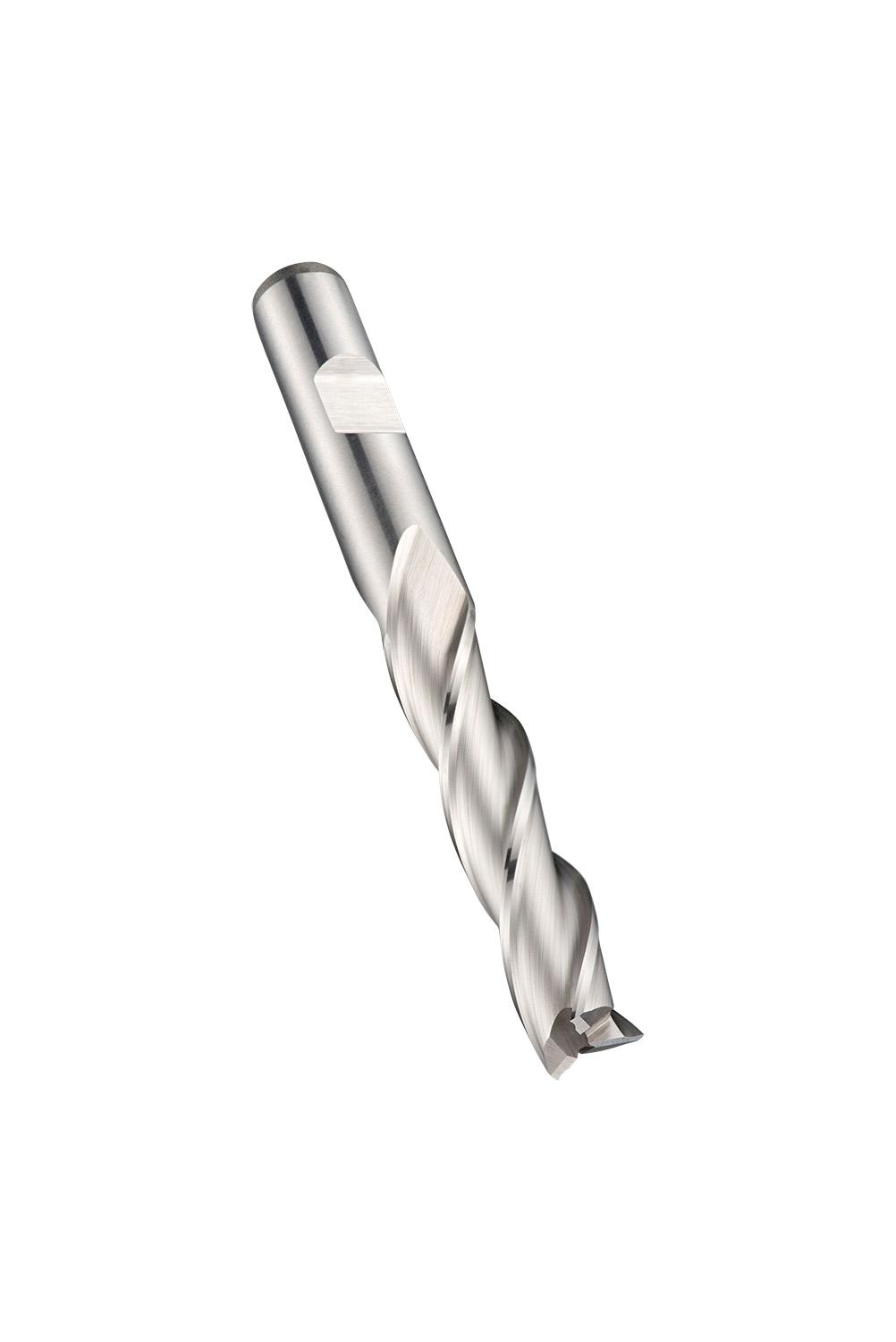

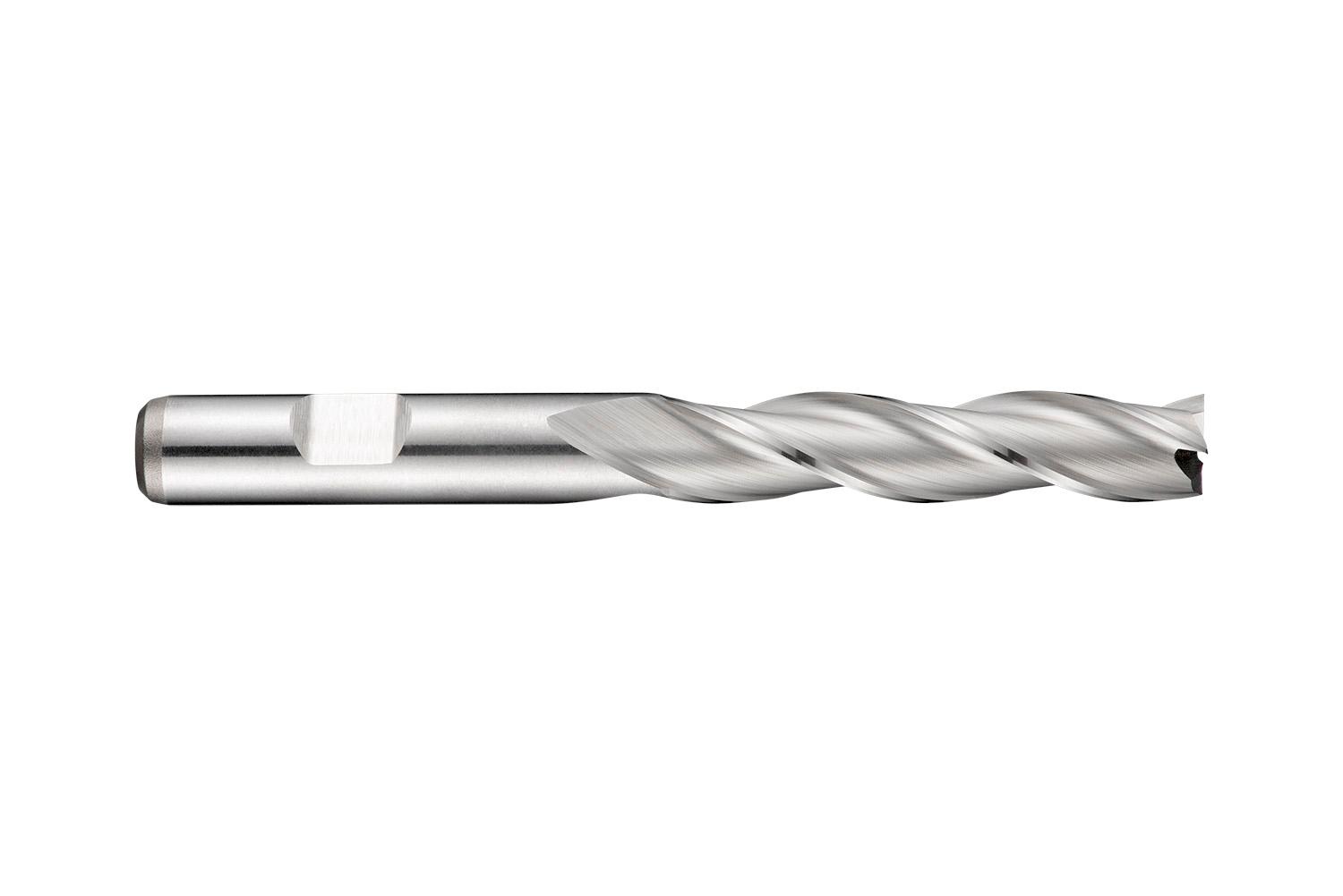

Long series end mill with 3 flutes, diameter 15mm with 53mm length of cut, 110mm overall length and 64.5mm reach with neck relief, according to DIN 844 L standard with a 12mm Weldon shank, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling and slot milling in free machining steel and copper or copper alloys

Additional information

Weight 0.1485 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760126288
Product number (SAP): 86013853
Ordering code ANSI: C34615.0
Gross weight – grams: 100.8

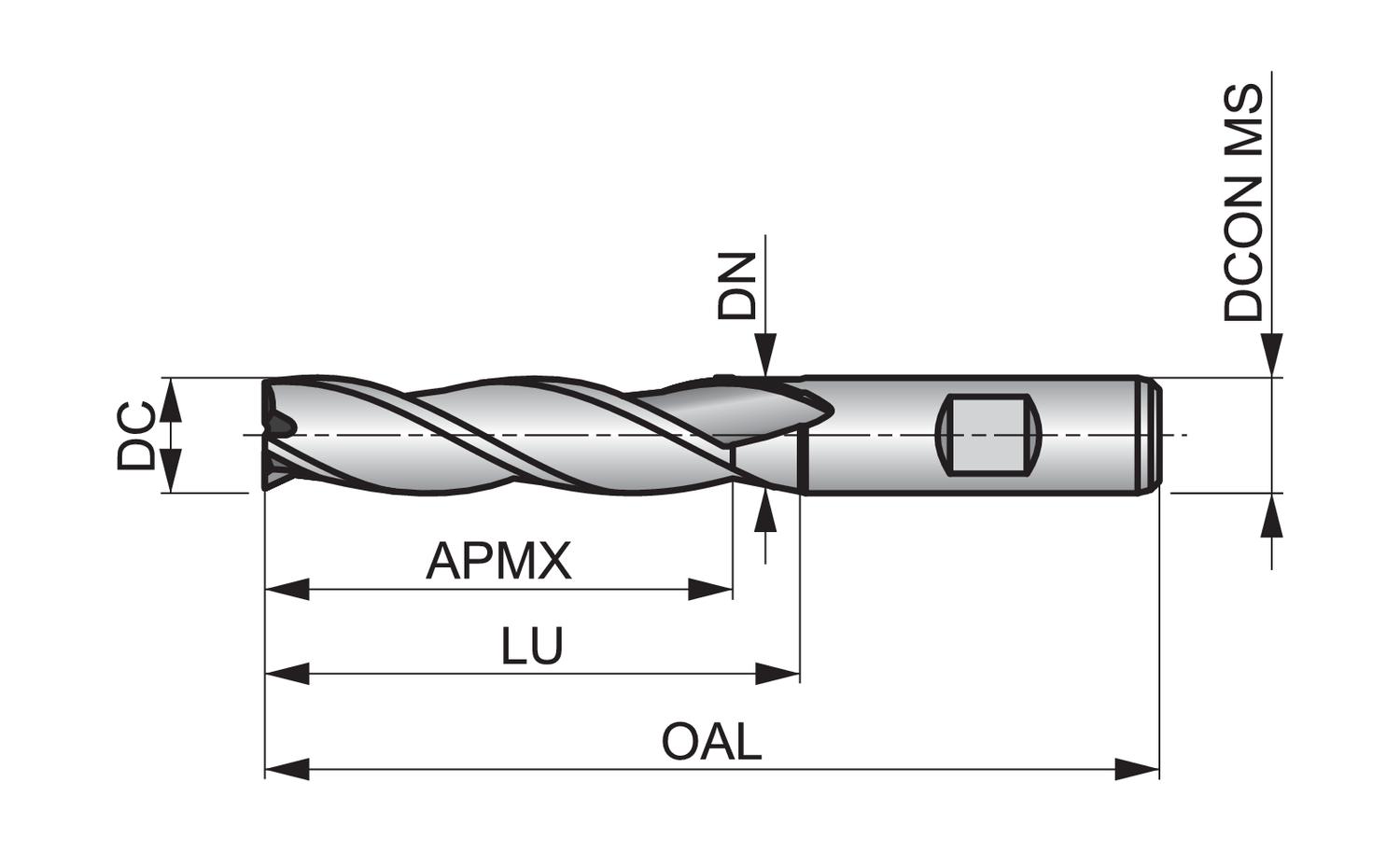

Cutting diameter – millimeter (DC): 15 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 53 mm
Overall length – millimeter (OAL): 110 mm

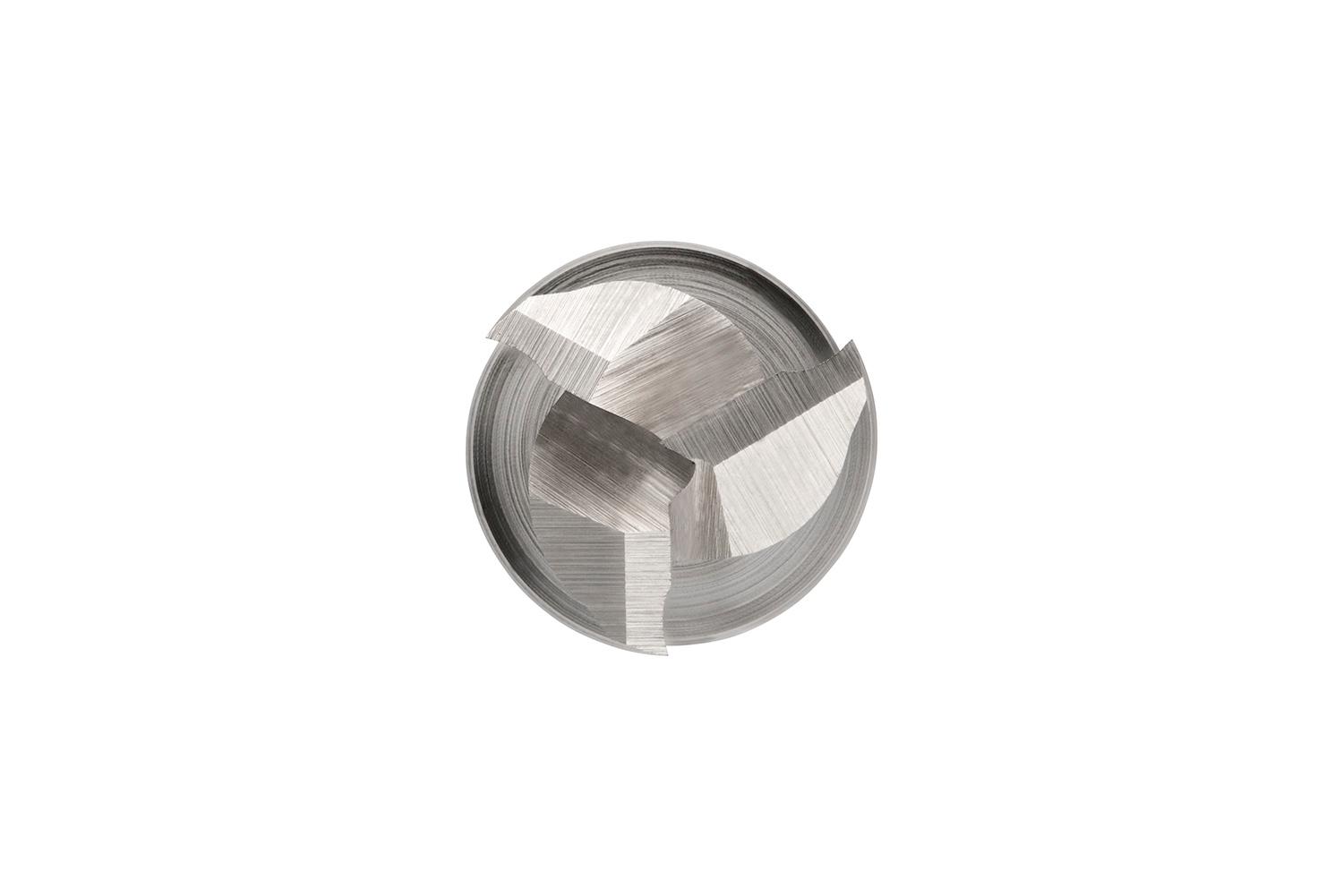

Flute count (NOF): 3
Usable Length – millimeter (LU): 64.5 mm
Neck diameter – millimeter (DN): 11.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C34615.0

Brand

DORMER
