DORMER C3464.0 HSCO Cutters

Product Code: C3464.0

$63.45$57.68 Ex. GST

Product Code: C3464.0 SKU C3464.0 Categories , ,
DORMER C3464.0 HSCO Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

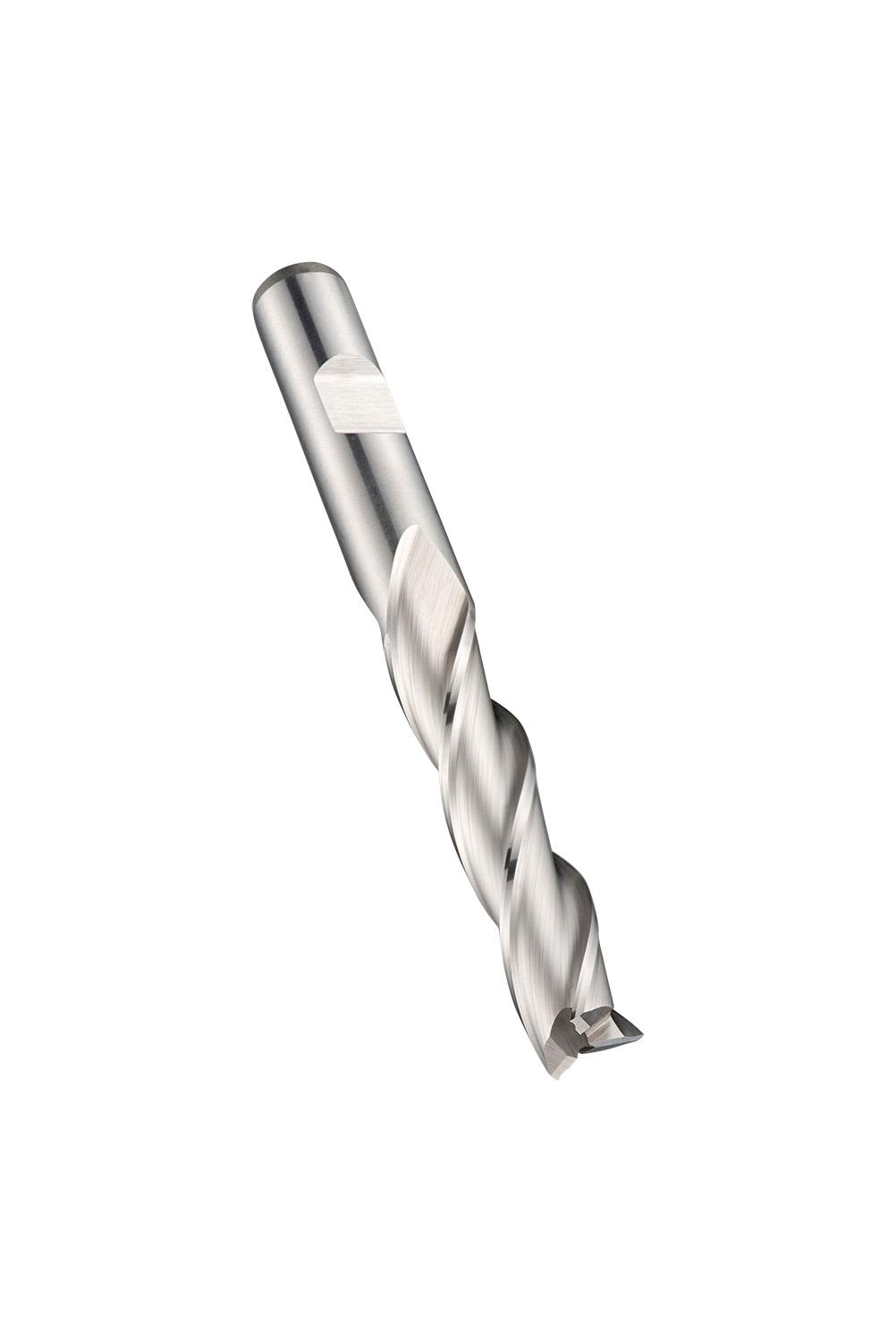

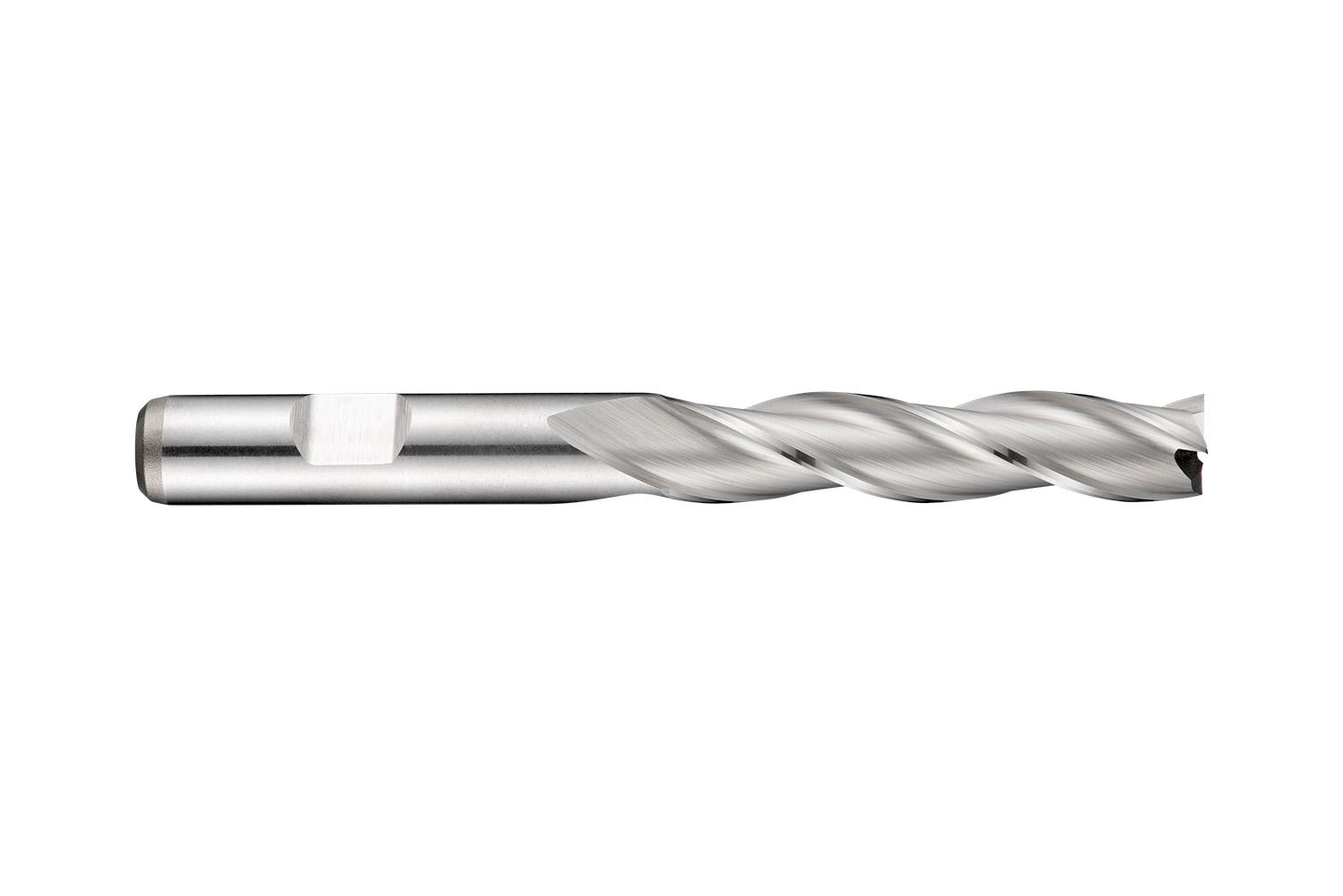

Long series end mill with 3 flutes, diameter 4mm with 19mm length of cut and 63mm overall length, according to DIN 844 L standard with a 6mm Weldon shank, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling and slot milling in free machining steel and copper or copper alloys

Additional information

Weight 0.0616 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760122303
Product number (SAP): 86013858
Ordering code ANSI: C3464.0
Gross weight – grams: 12.9

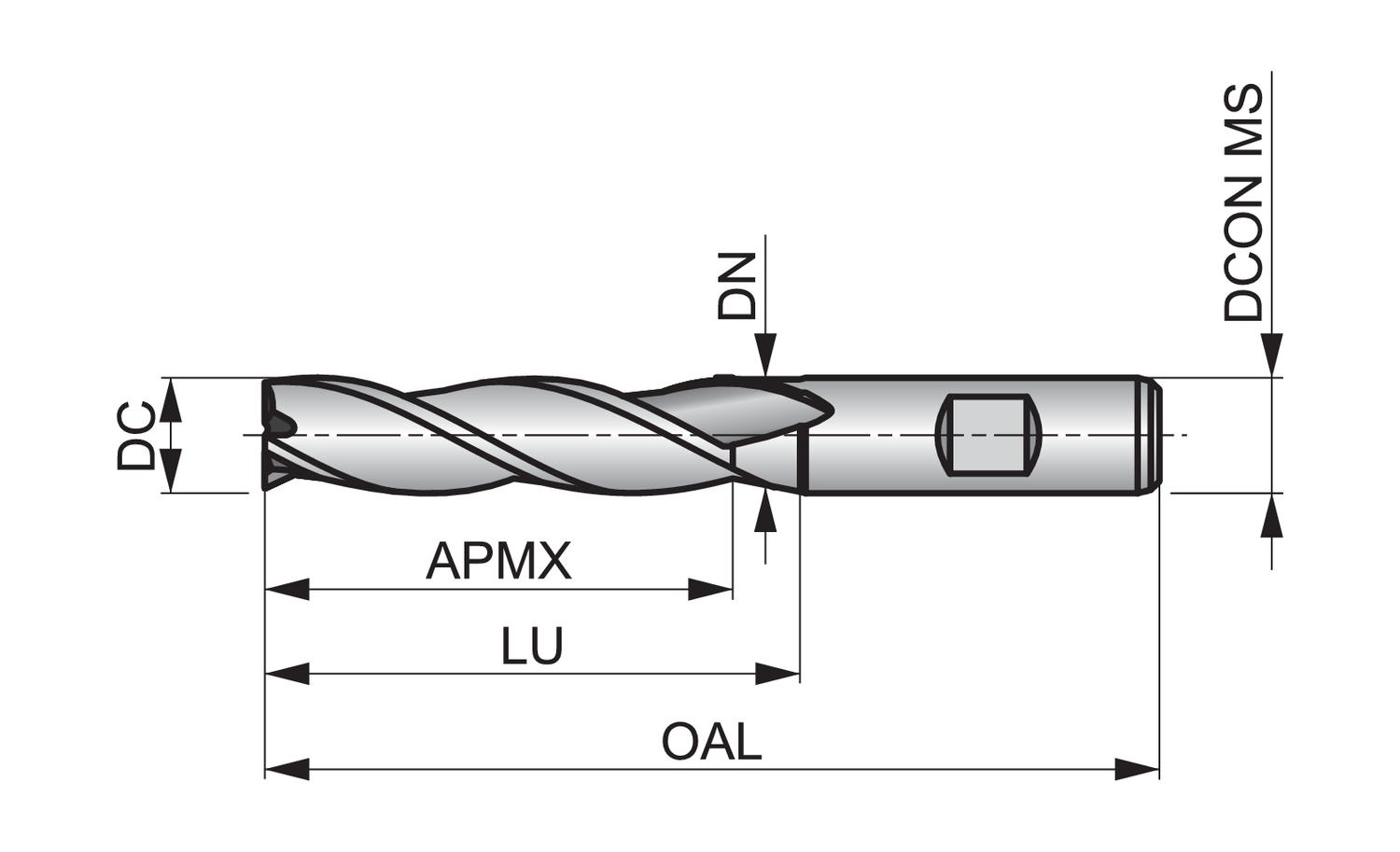

Cutting diameter – millimeter (DC): 4 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 19 mm
Overall length – millimeter (OAL): 63 mm
Flute count (NOF): 3
Neck diameter – millimeter (DN): 4 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C3464.0

Brand

DORMER
