DORMER C3467.0 HSCO Cutters

Product Code: C3467.0

$88.95$80.86 Ex. GST

Product Code: C3467.0 SKU C3467.0 Categories , ,

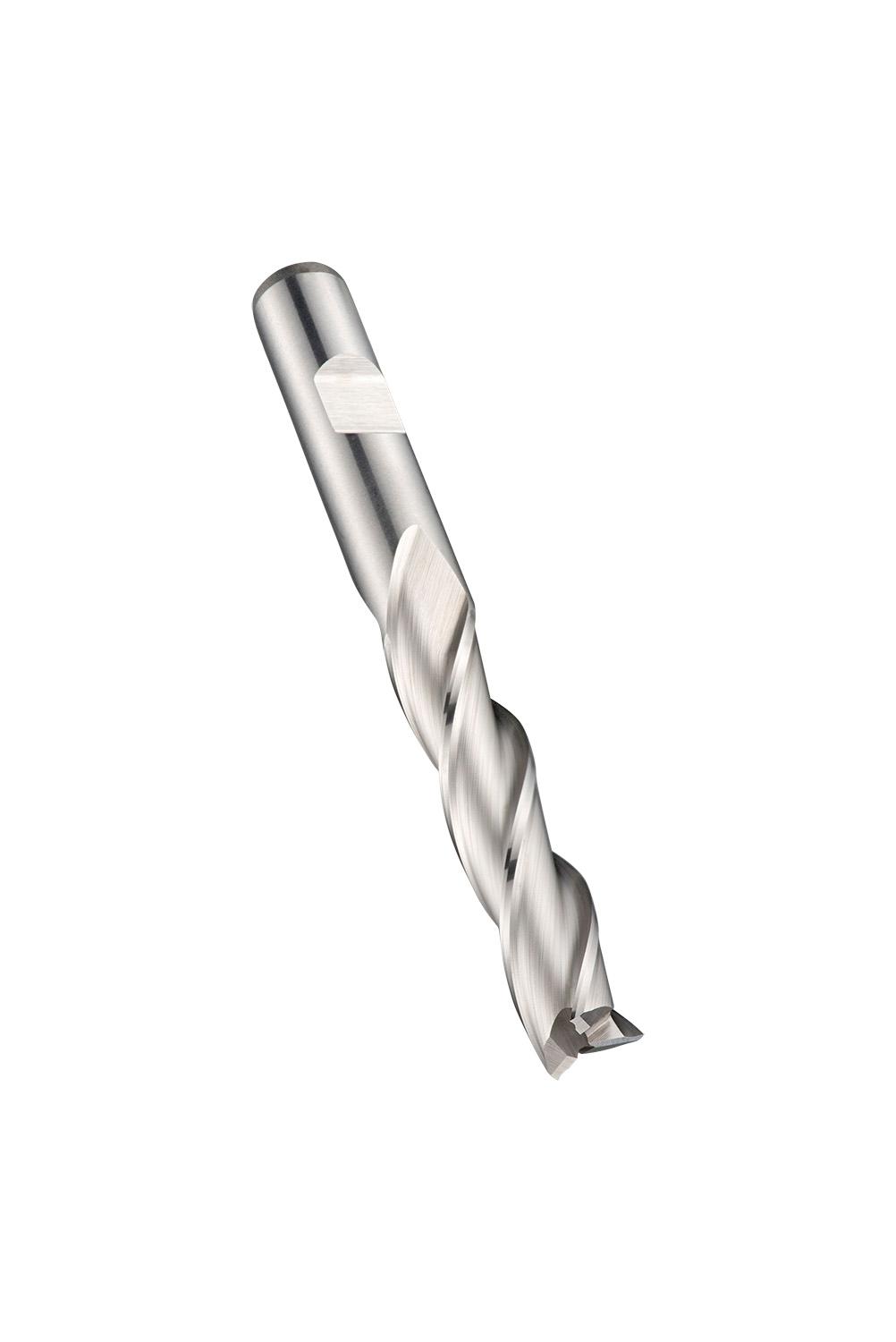

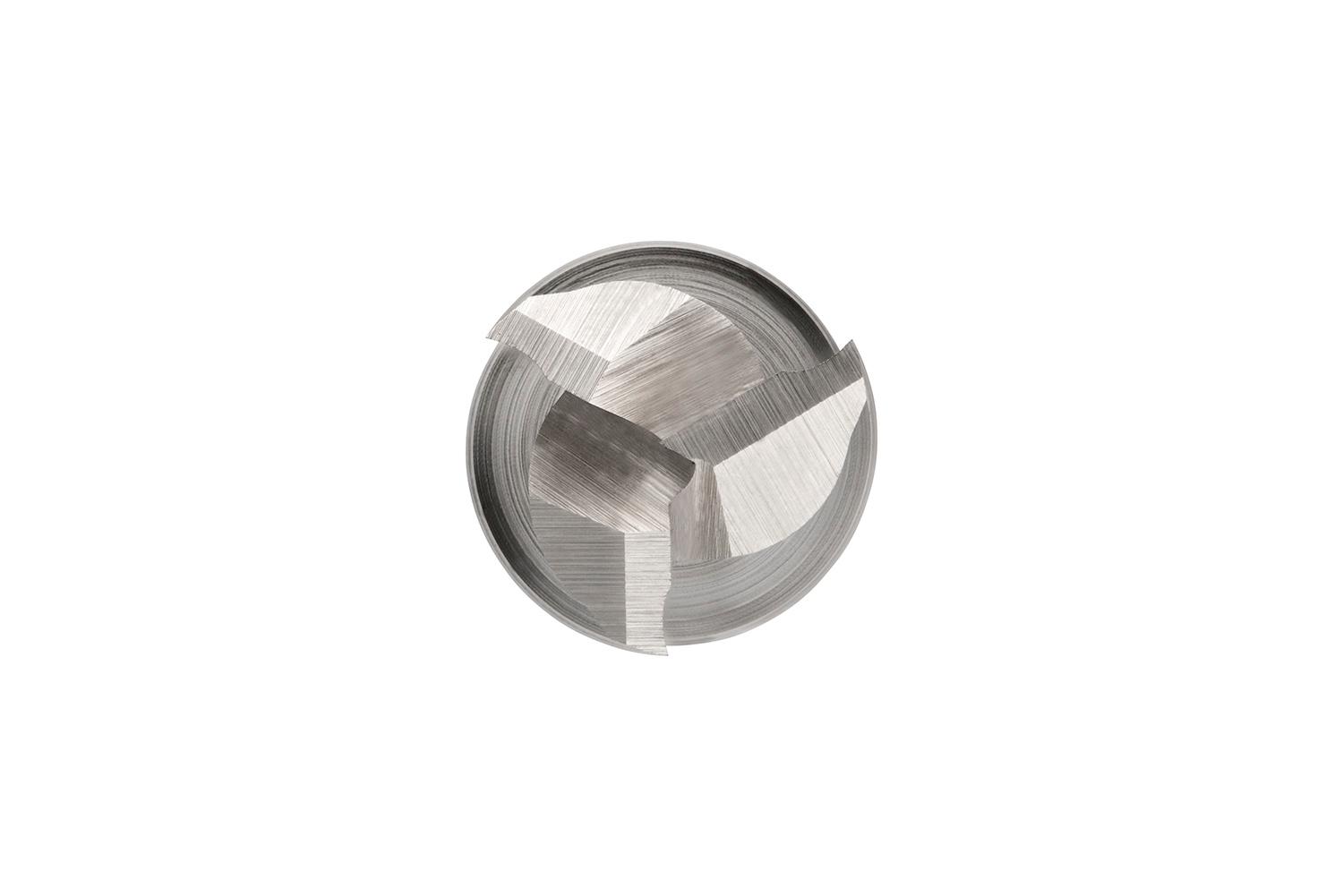

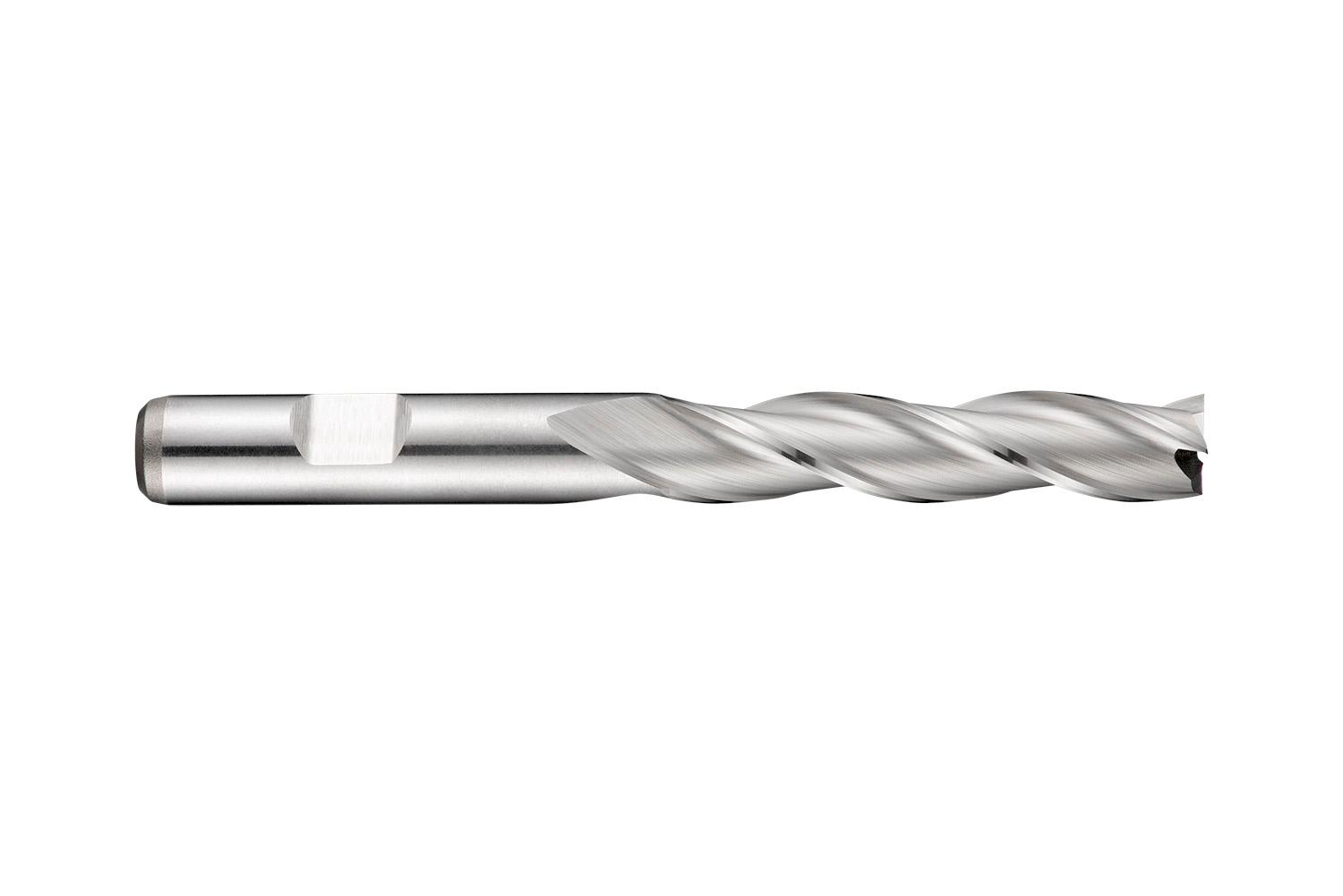

DORMER C3467.0 HSCO Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Long series end mill with 3 flutes, diameter 7mm with 30mm length of cut and 80mm overall length, according to DIN 844 L standard with a 10mm Weldon shank, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling and slot milling in free machining steel and copper or copper alloys

Additional information

Weight 0.0864 kg
Dimensions
barcode
Additional Information

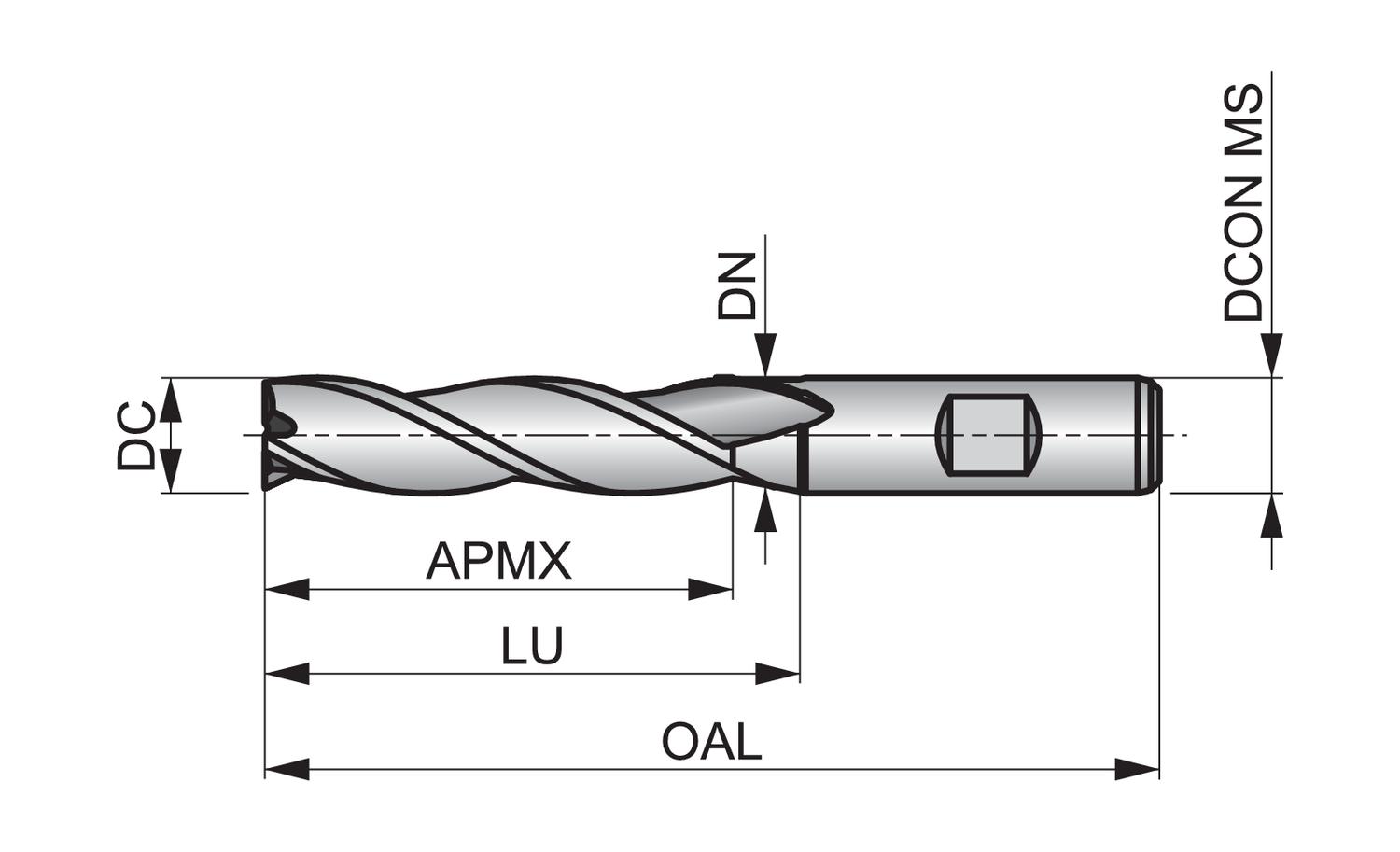

Description: Value
EAN number: 7320760126325
Product number (SAP): 86013861
Ordering code ANSI: C3467.0
Gross weight – grams: 37.7
Cutting diameter – millimeter (DC): 7 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 30 mm
Overall length – millimeter (OAL): 80 mm
Flute count (NOF): 3
Neck diameter – millimeter (DN): 7 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C3467.0

Brand

DORMER
