DORMER C3469.0 HSCO Cutters

Product Code: C3469.0

$96.88$88.07 Ex. GST

Product Code: C3469.0 SKU C3469.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

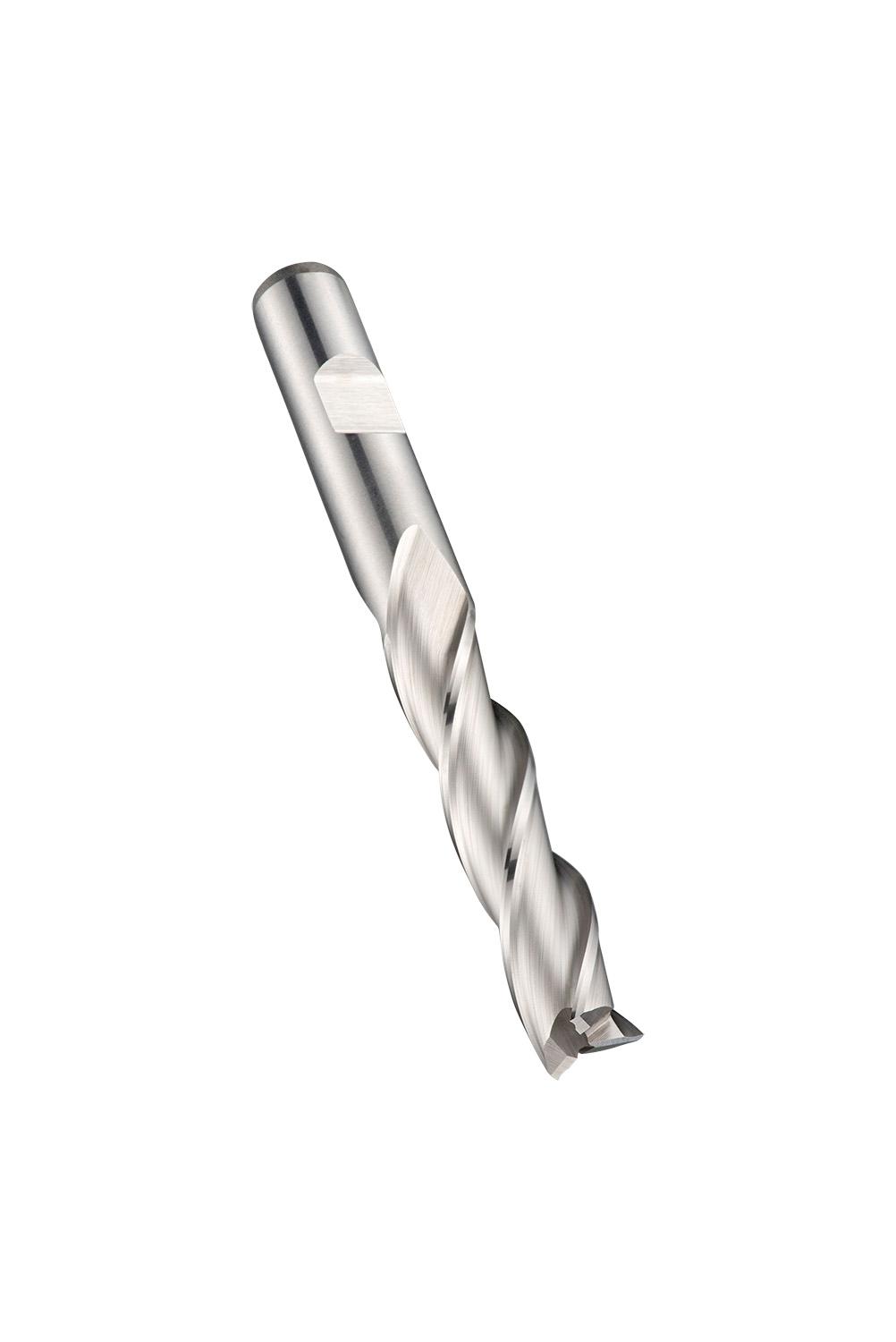

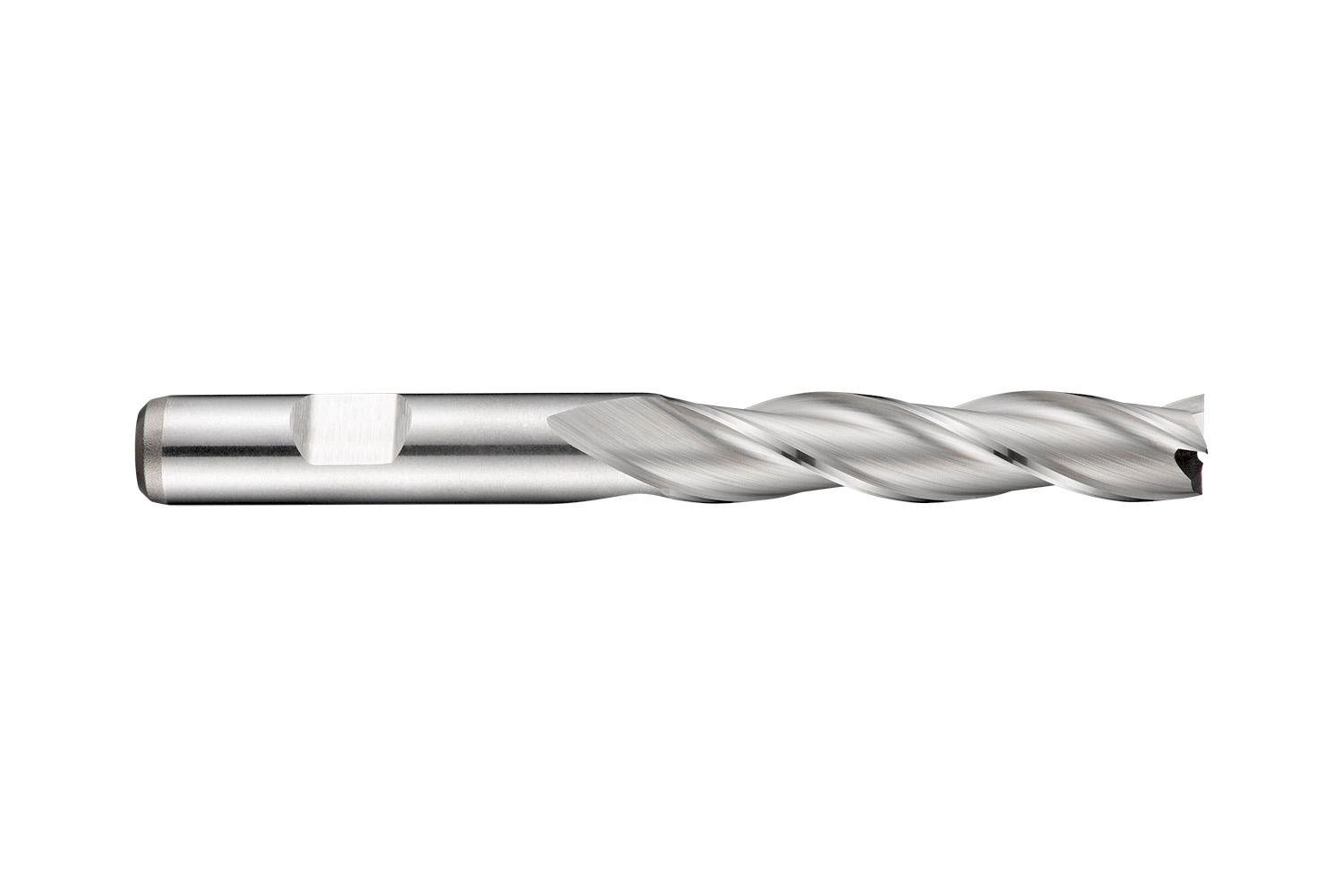

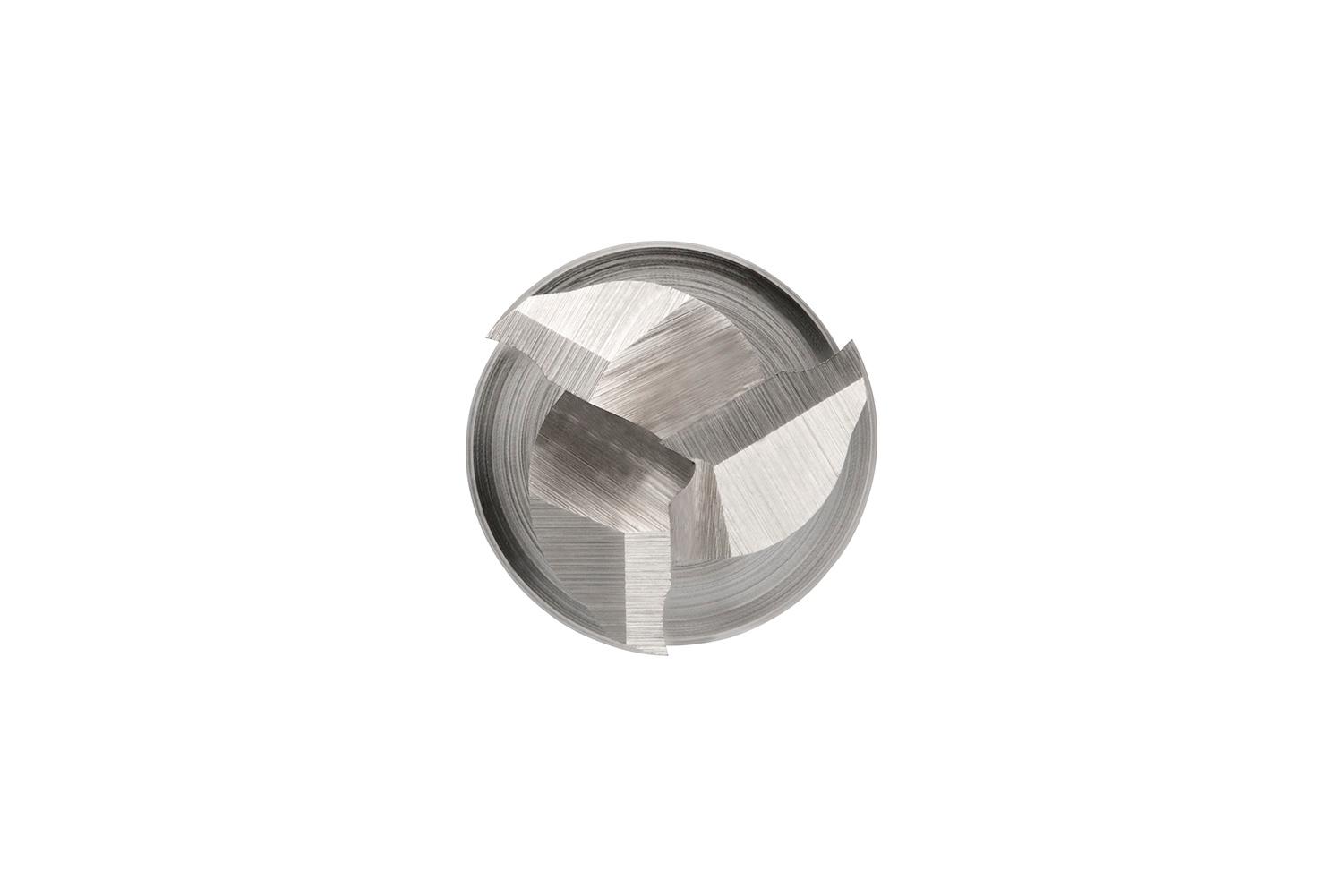

Long series end mill with 3 flutes, diameter 9mm with 38mm length of cut and 88mm overall length, according to DIN 844 L standard with a 10mm Weldon shank, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling and slot milling in free machining steel and copper or copper alloys

Additional information

Weight 0.0941 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760126349
Product number (SAP): 86013863
Ordering code ANSI: C3469.0
Gross weight – grams: 46

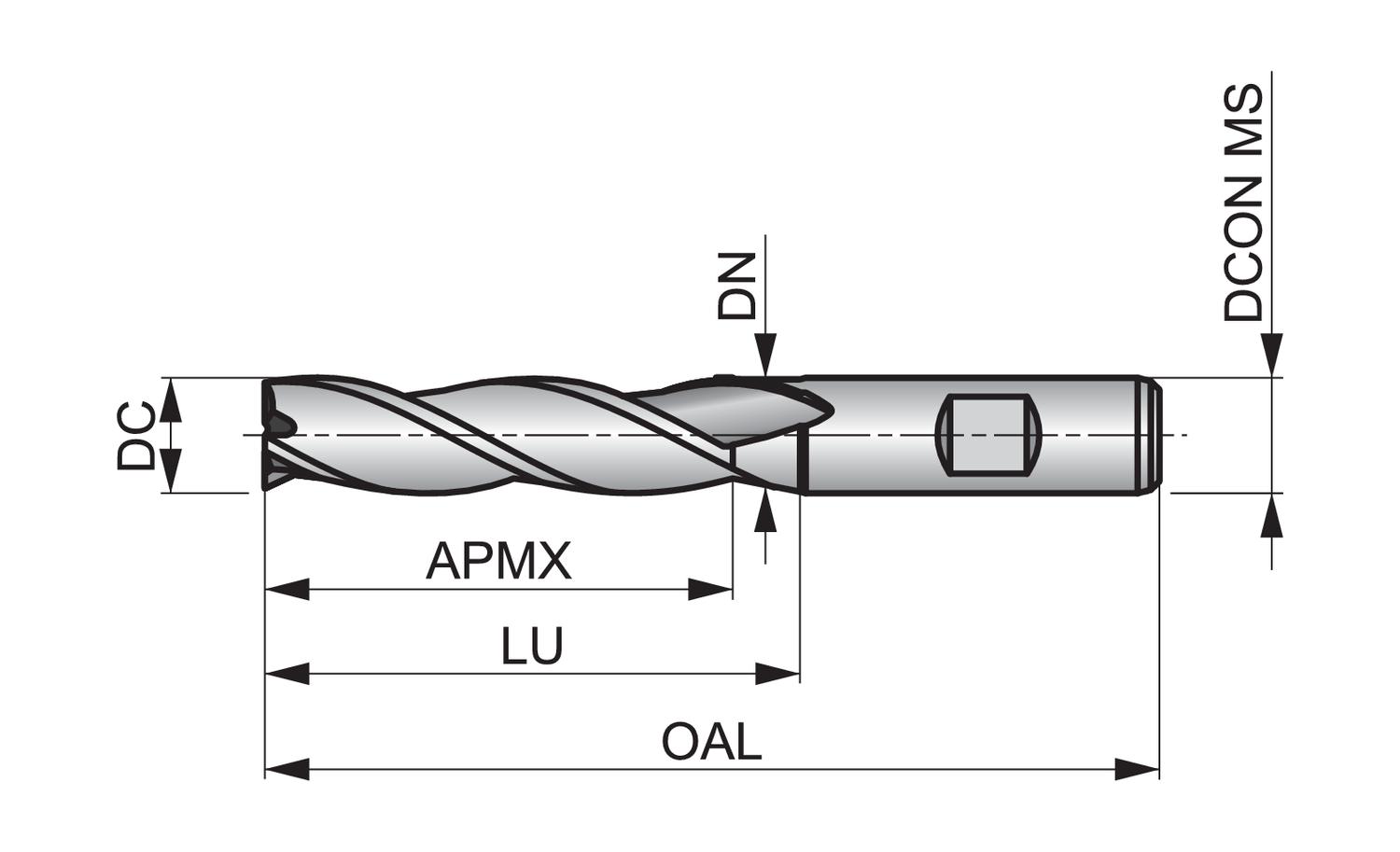

Cutting diameter – millimeter (DC): 9 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 38 mm
Overall length – millimeter (OAL): 88 mm
Flute count (NOF): 3
Neck diameter – millimeter (DN): 9 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C3469.0

Brand

DORMER
