DORMER C3528.0 Primax Cutters

Product Code: C3528.0

$106.50$96.82 Ex. GST

Product Code: C3528.0 SKU C3528.0 Categories , ,
DORMER C3528.0 Primax Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

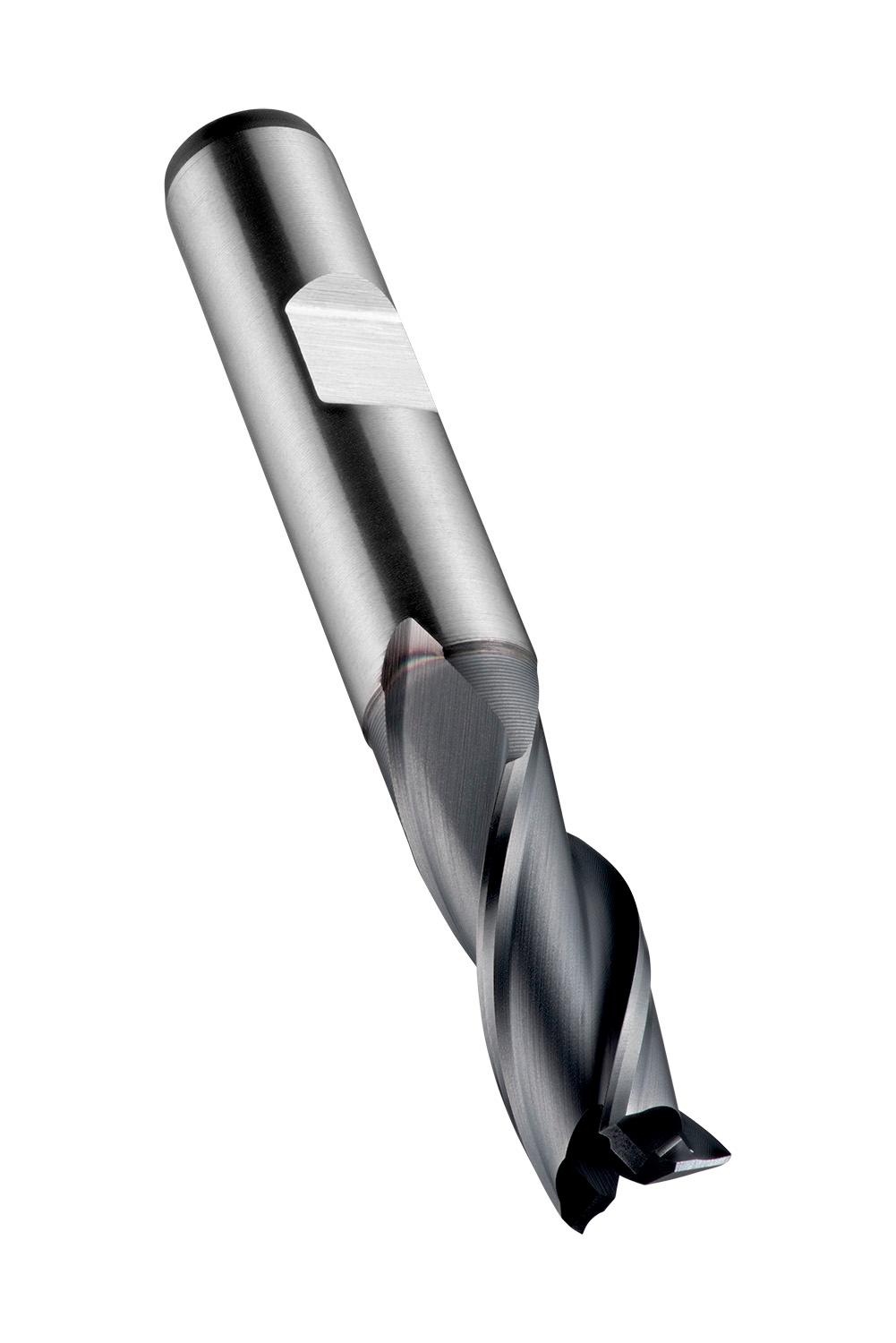

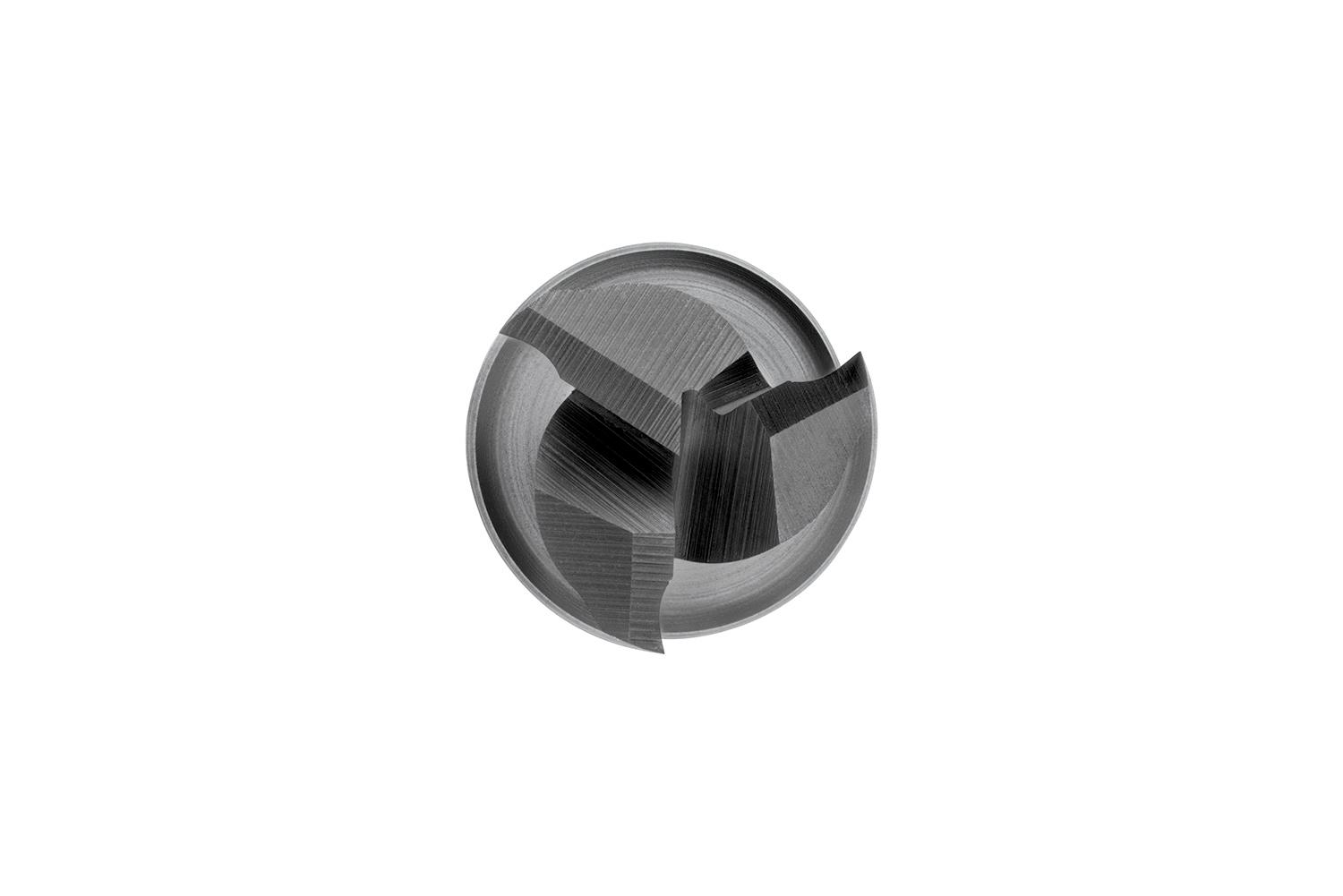

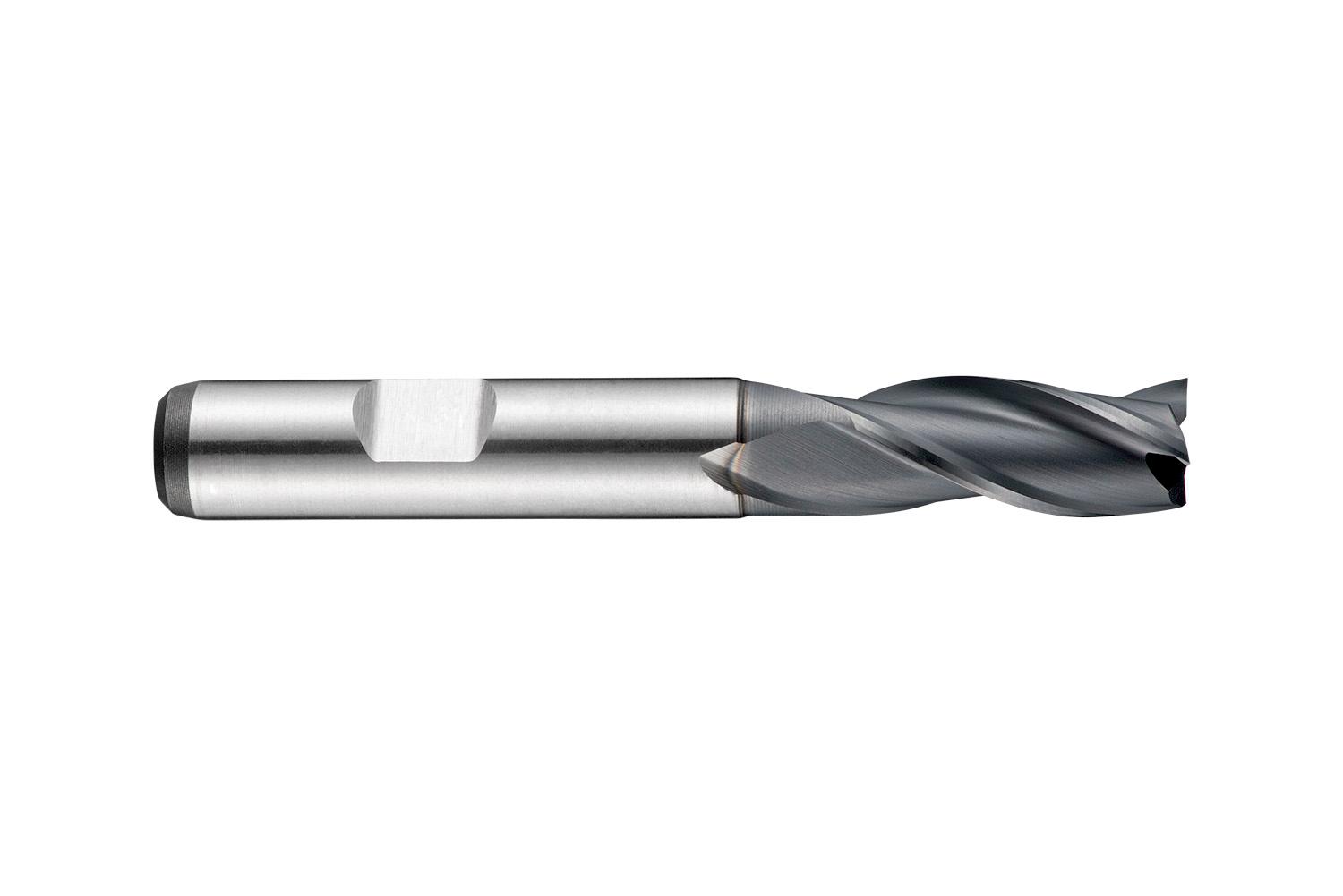

Short series slot drill with 3 flutes, diameter 8mm with 19mm length of cut and 69mm overall length, according to DIN 844 K standard with a 10mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys

Additional information

Weight 0.1034 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760573068
Product number (SAP): 86013874
Ordering code ANSI: C3528.0
Gross weight – grams: 38.2

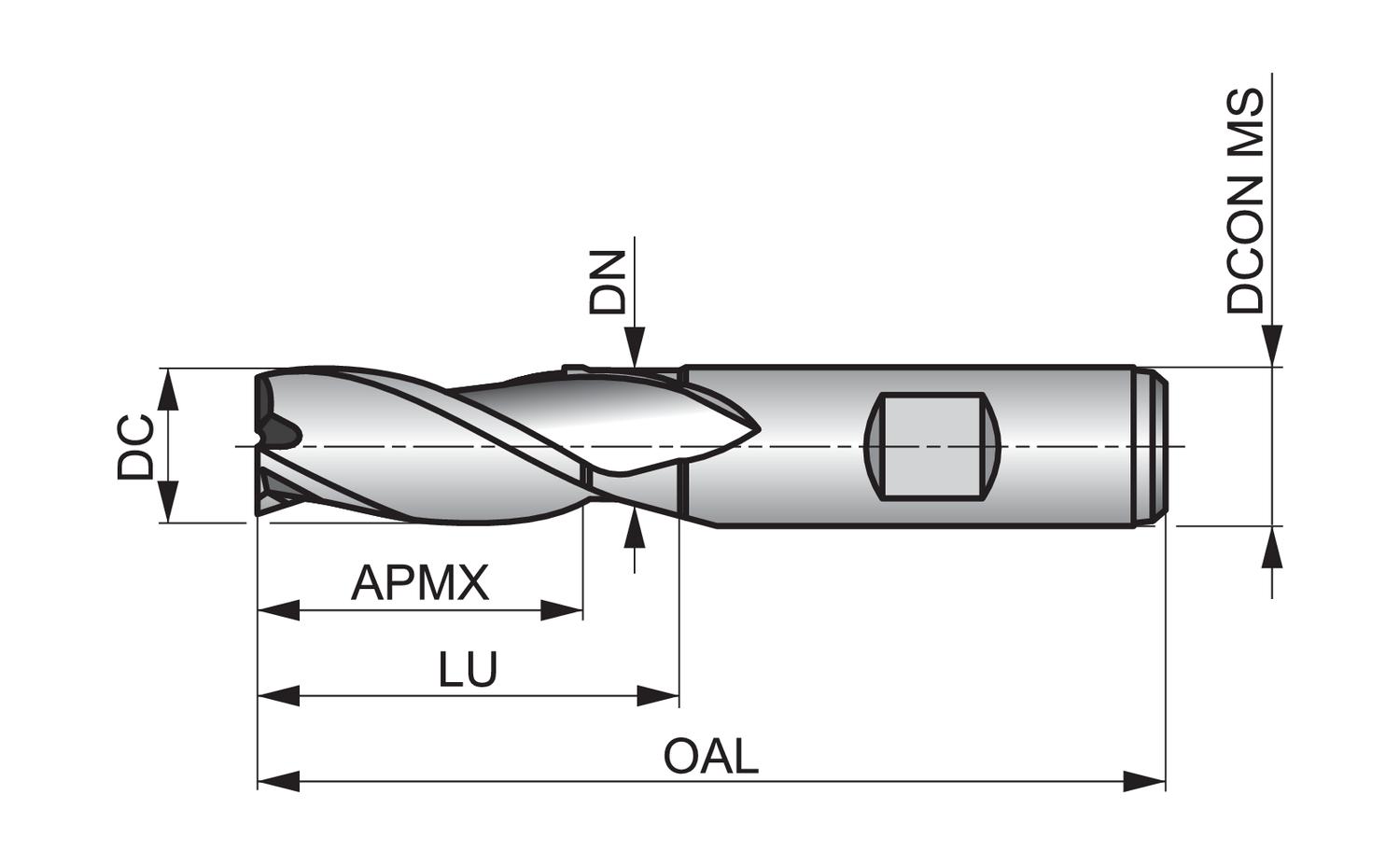

Cutting diameter – millimeter (DC): 8 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 19 mm
Overall length – millimeter (OAL): 69 mm
Flute count (NOF): 3
Neck diameter – millimeter (DN): 8 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C3528.0

Brand

DORMER
