DORMER C35310.0 Primax Cutters

Product Code: C35310.0

$103.68$94.25 Ex. GST

Product Code: C35310.0 SKU C35310.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

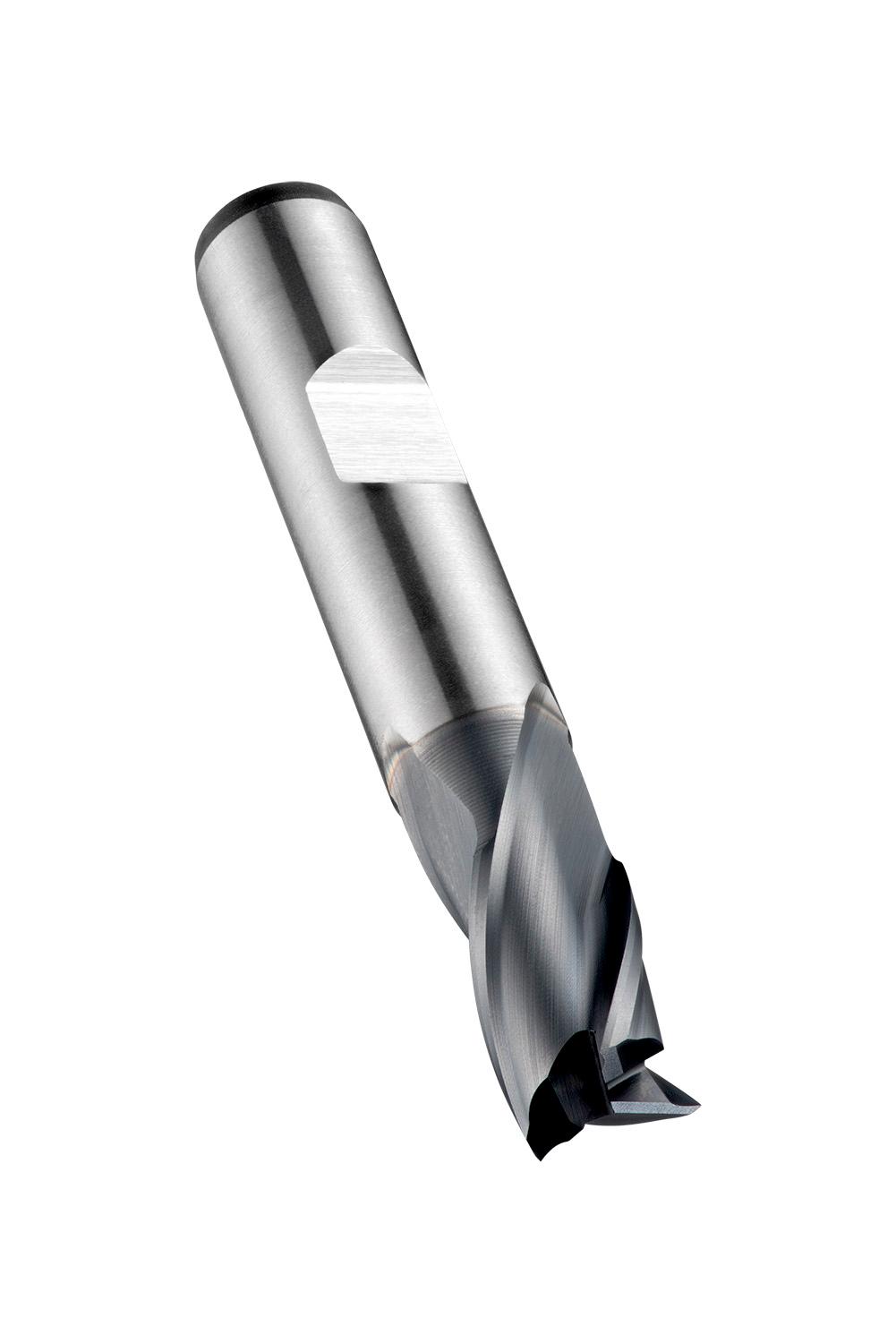

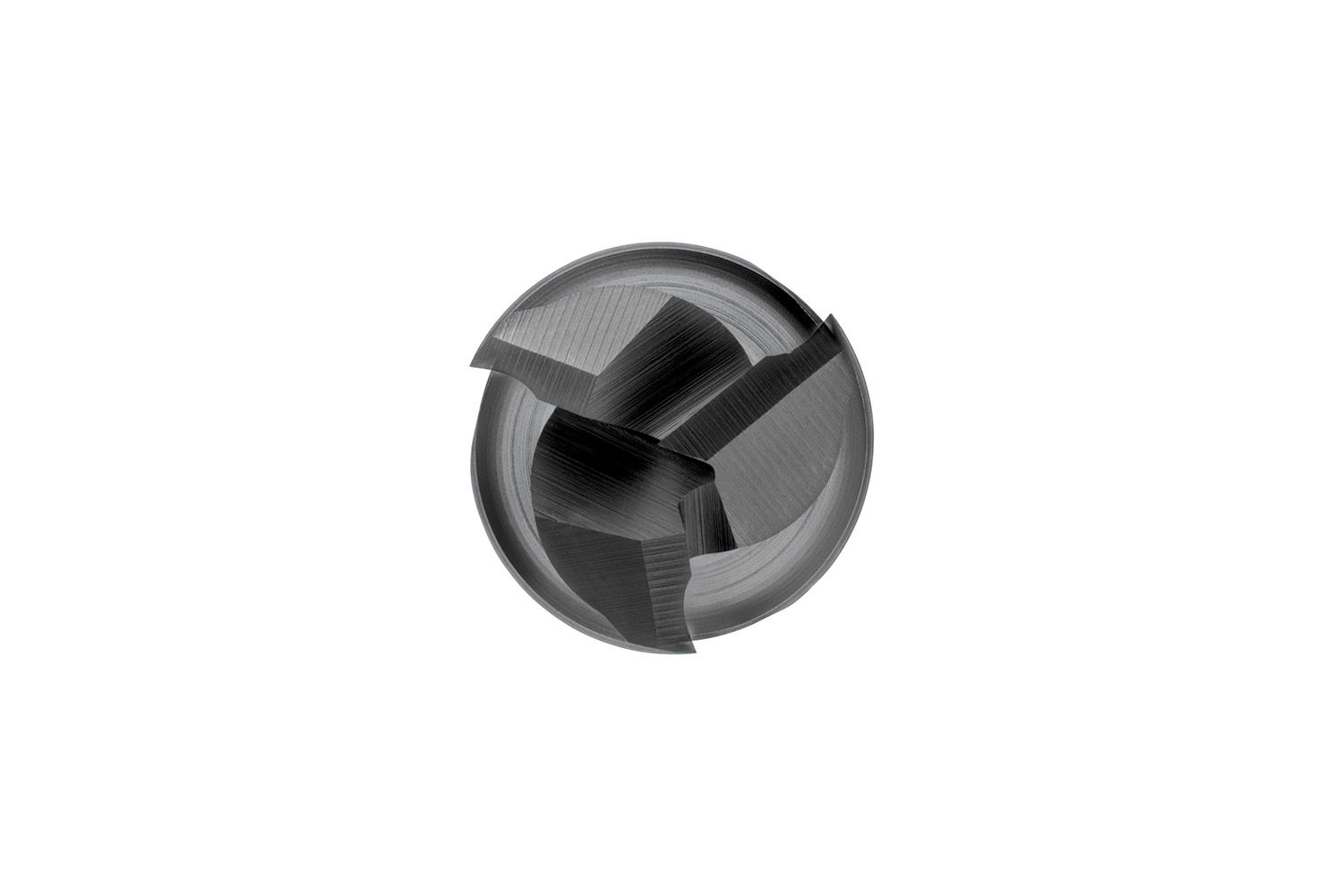

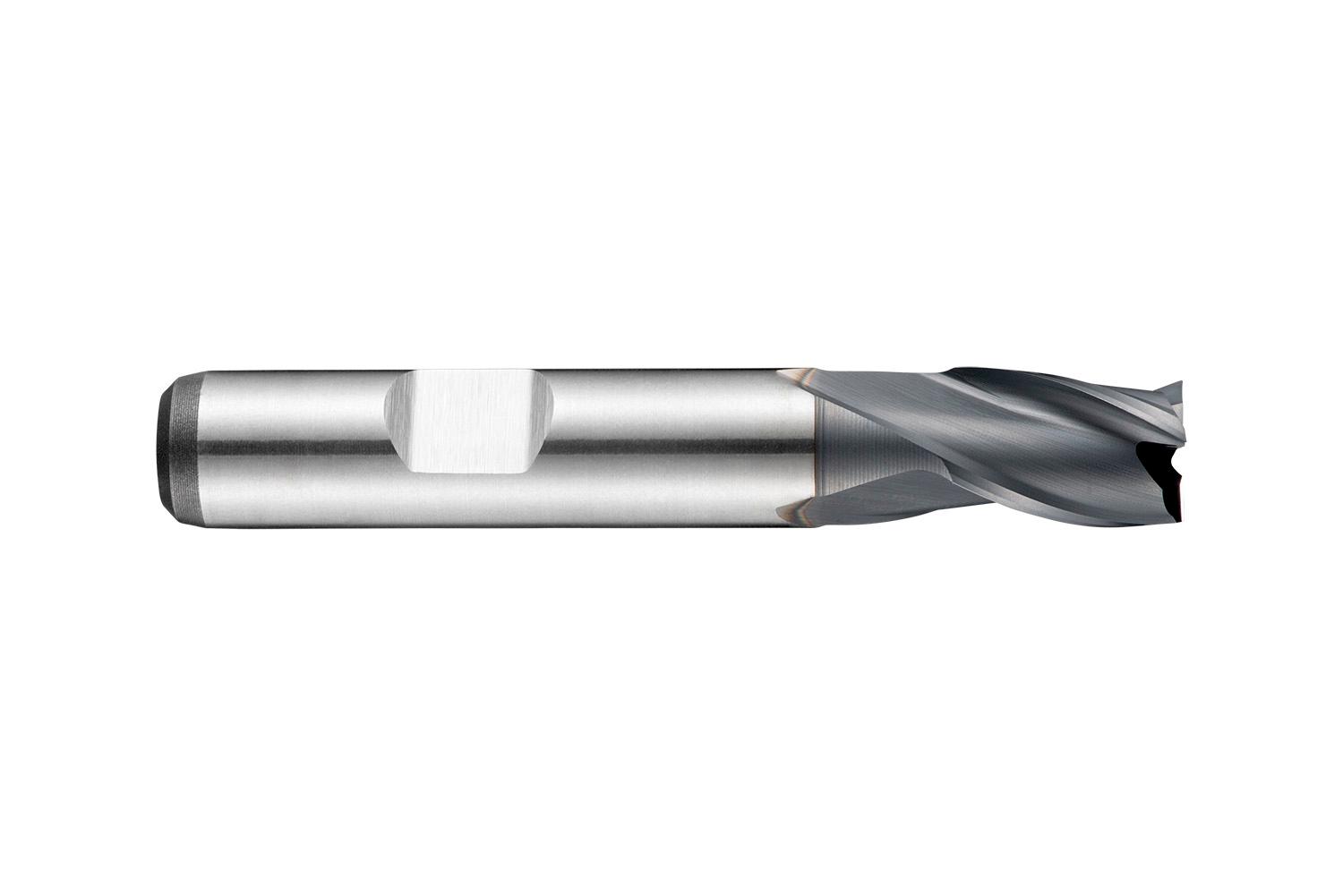

Extra short series slot drill with 3 flutes, diameter 10mm with 13mm length of cut, 63mm overall length and 22.5mm reach with neck relief, according to DIN 327 D standard with a 10mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys

Additional information

Weight 0.1007 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760573075
Product number (SAP): 86013875
Ordering code ANSI: C35310.0
Gross weight – grams: 37.7

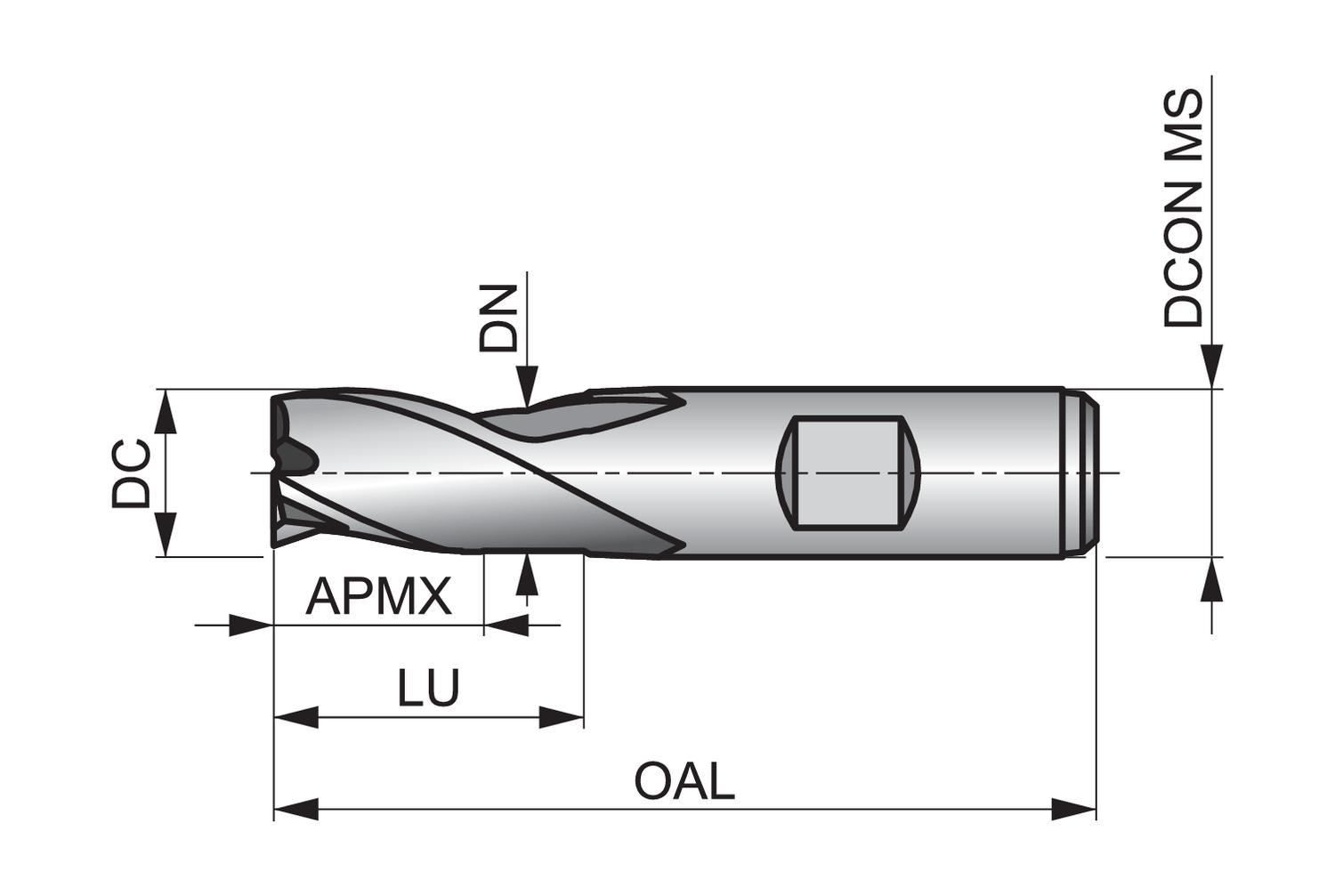

Cutting diameter – millimeter (DC): 10 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 13 mm
Overall length – millimeter (OAL): 63 mm
Flute count (NOF): 3
Usable Length – millimeter (LU): 22.5 mm
Neck diameter – millimeter (DN): 9.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C35310.0

Brand

DORMER
