DORMER C3533.0 Primax Cutters

Product Code: C3533.0

$80.44$73.13 Ex. GST

Product Code: C3533.0 SKU C3533.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

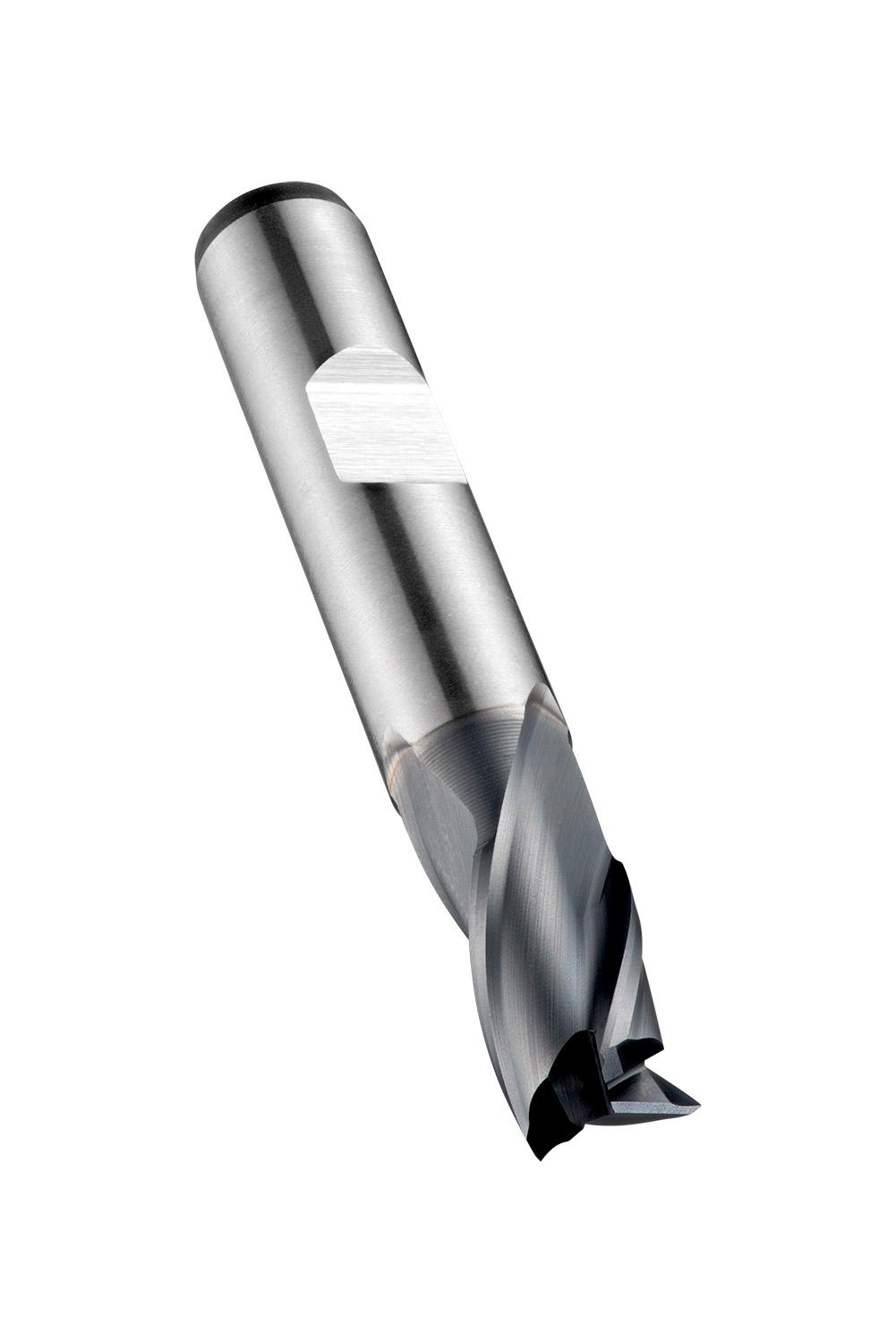

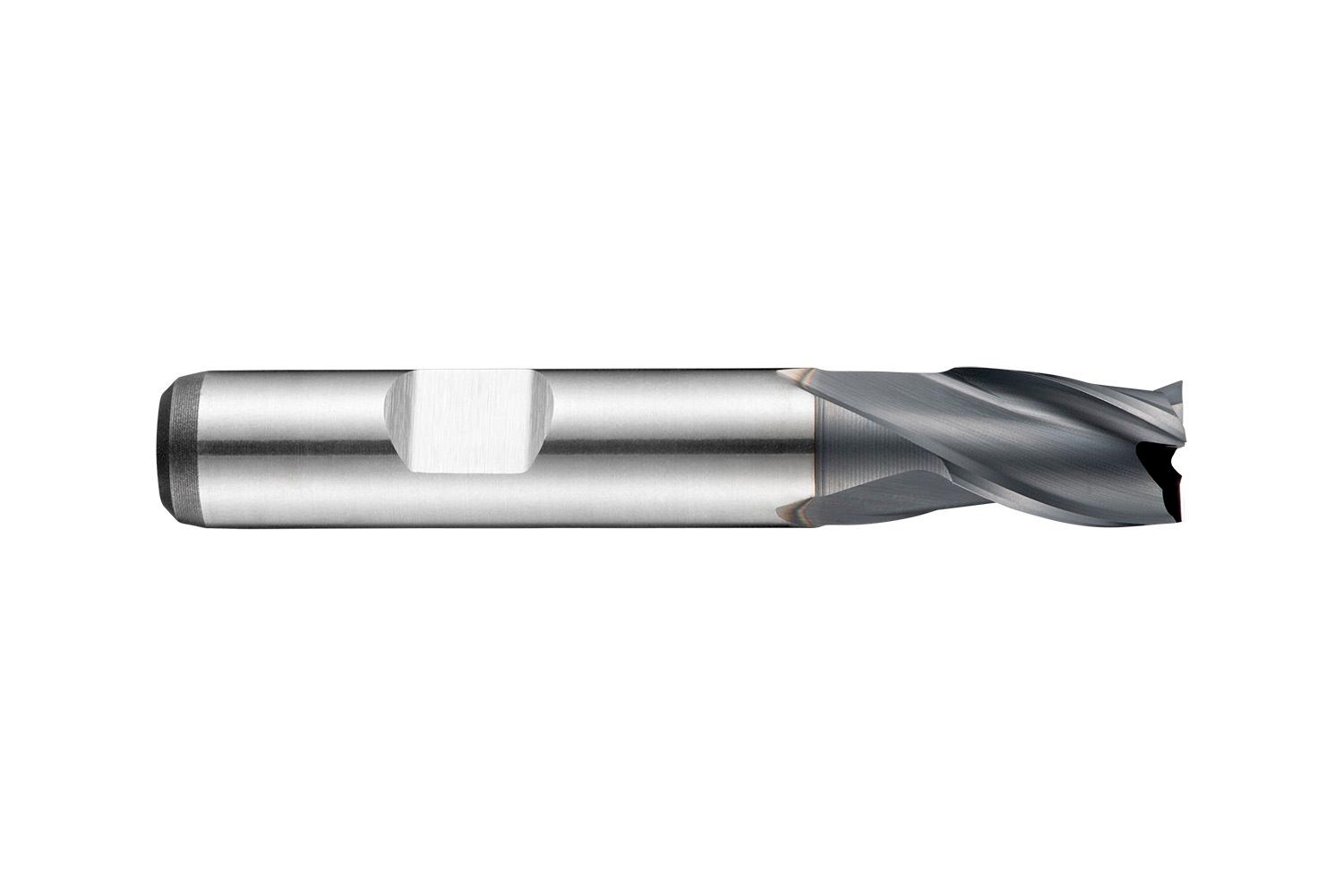

Extra short series slot drill with 3 flutes, diameter 3mm with 5mm length of cut and 49mm overall length, according to DIN 327 D standard with a 6mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys

Additional information

Weight 0.0781 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760573235
Product number (SAP): 86013891
Ordering code ANSI: C3533.0
Gross weight – grams: 11.5

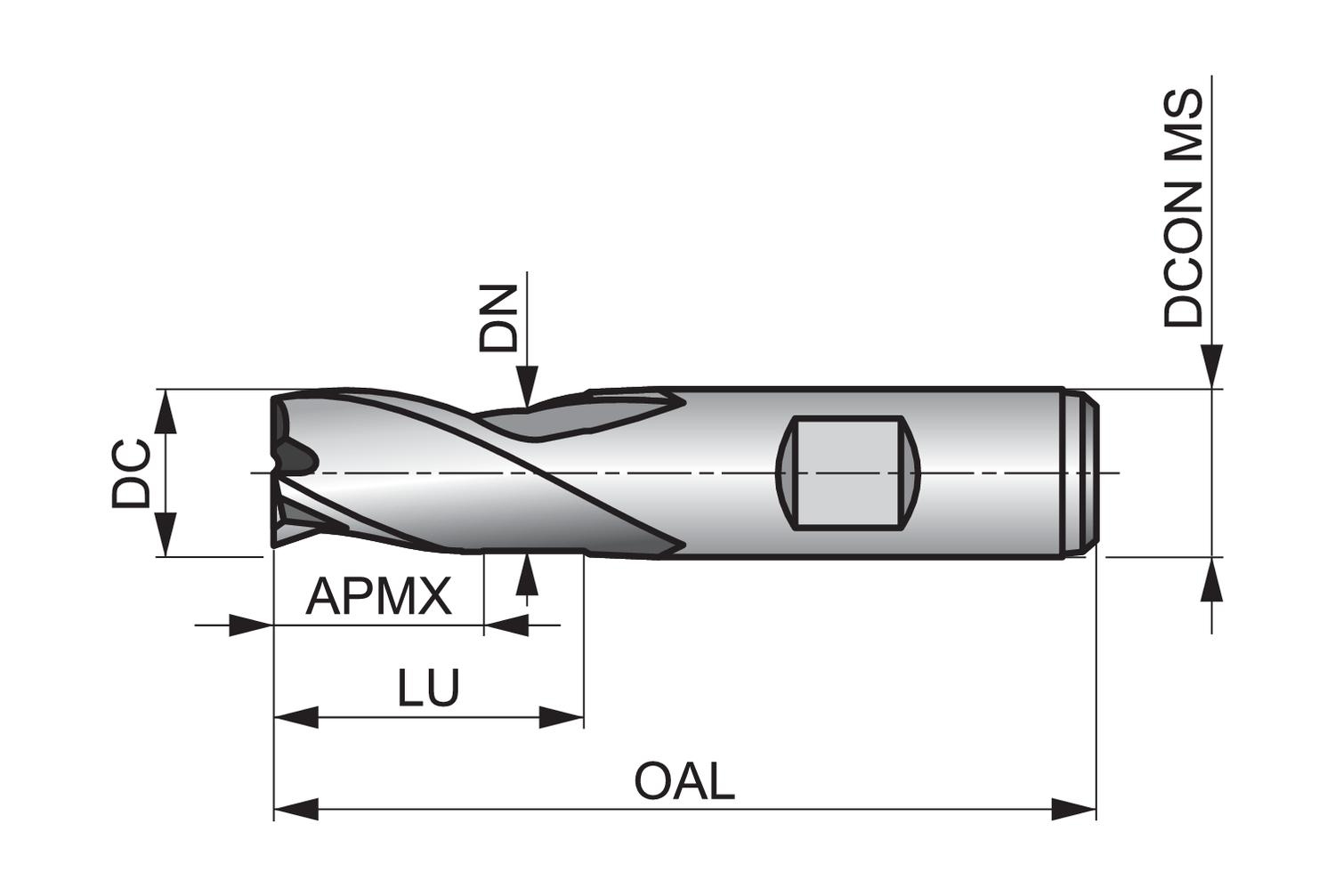

Cutting diameter – millimeter (DC): 3 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 5 mm
Overall length – millimeter (OAL): 49 mm

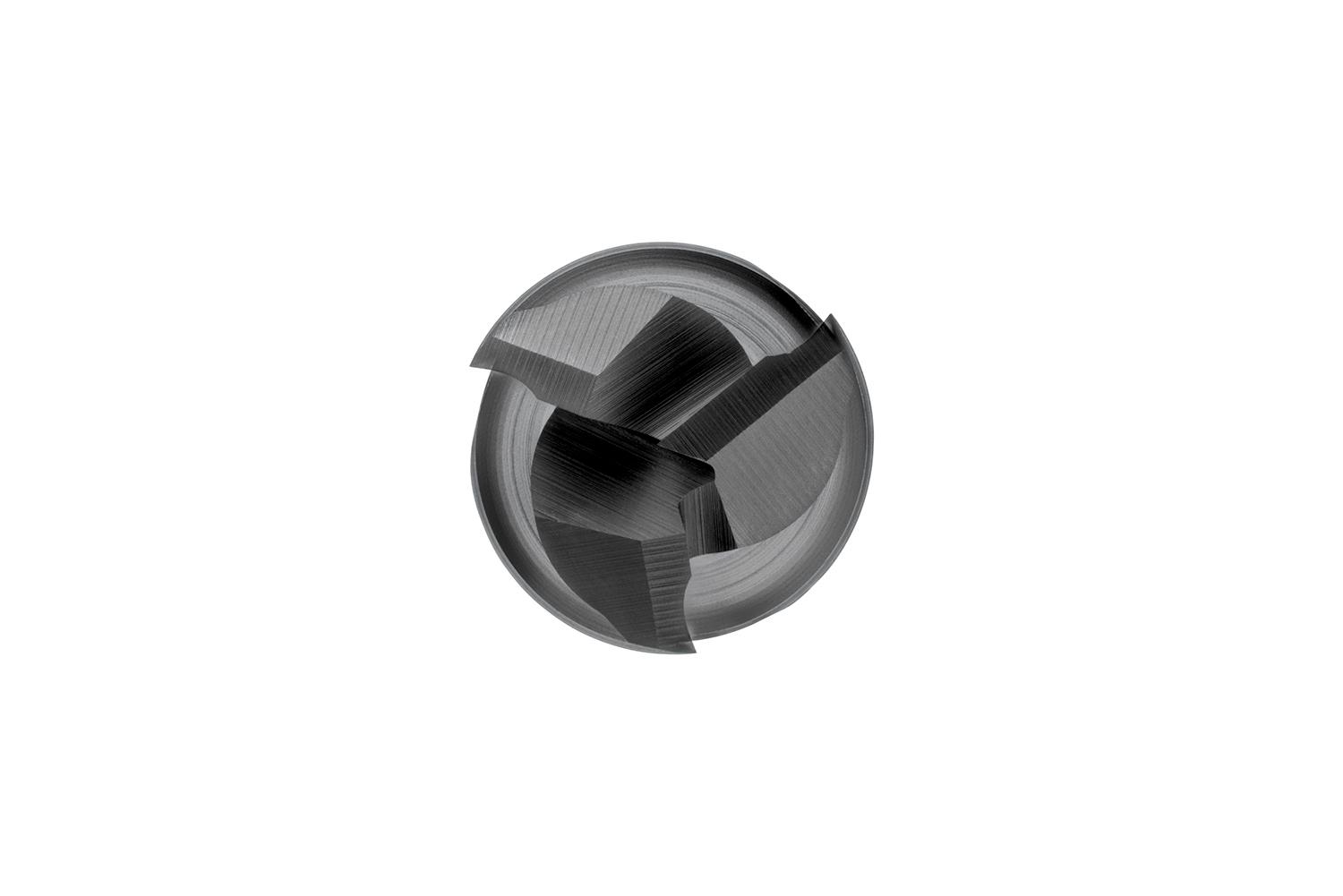

Flute count (NOF): 3
Neck diameter – millimeter (DN): 3 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C3533.0

Brand

DORMER
