DORMER C3536.5 Primax Cutters

Product Code: C3536.5

$110.47$100.43 Ex. GST

Product Code: C3536.5 SKU C3536.5 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

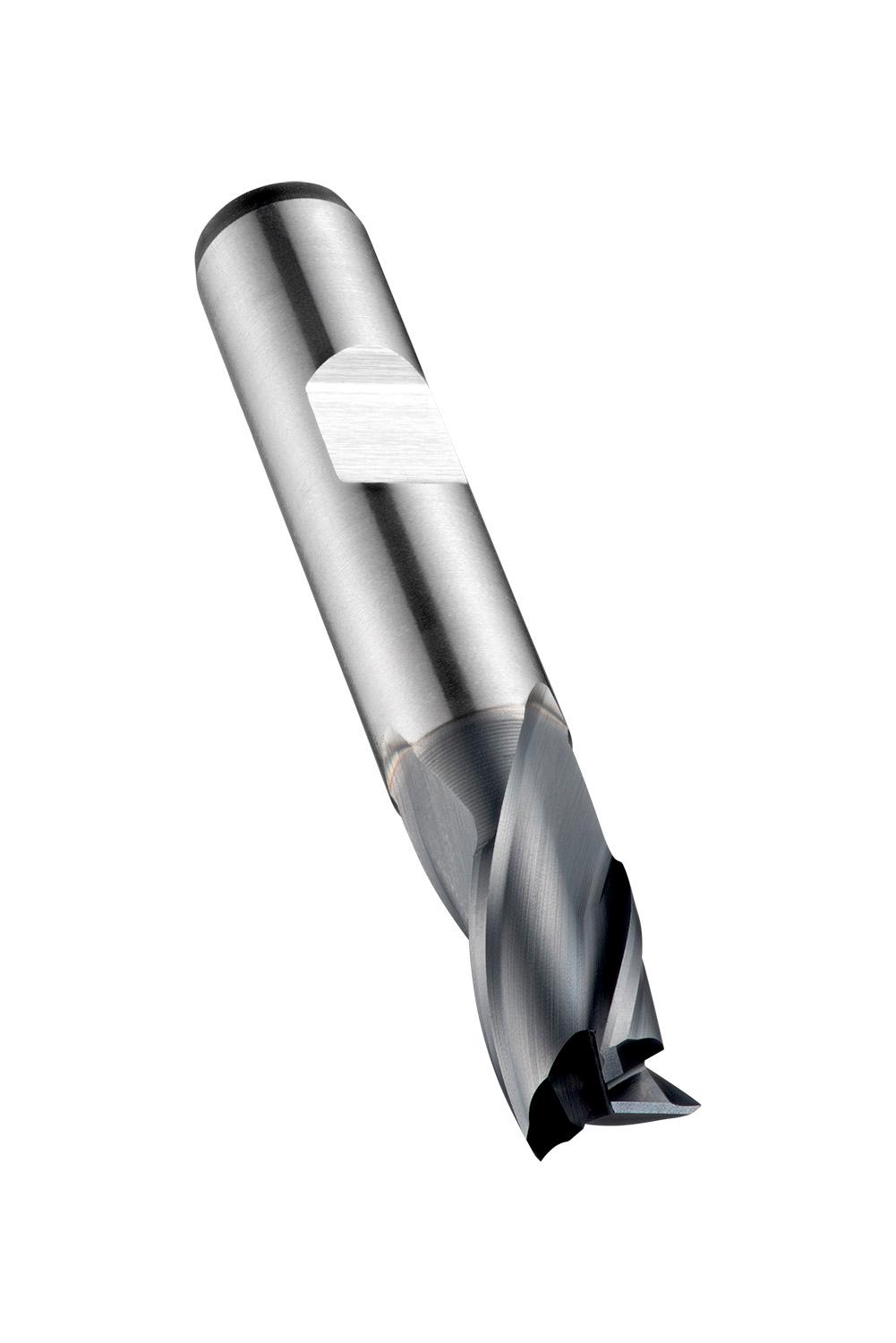

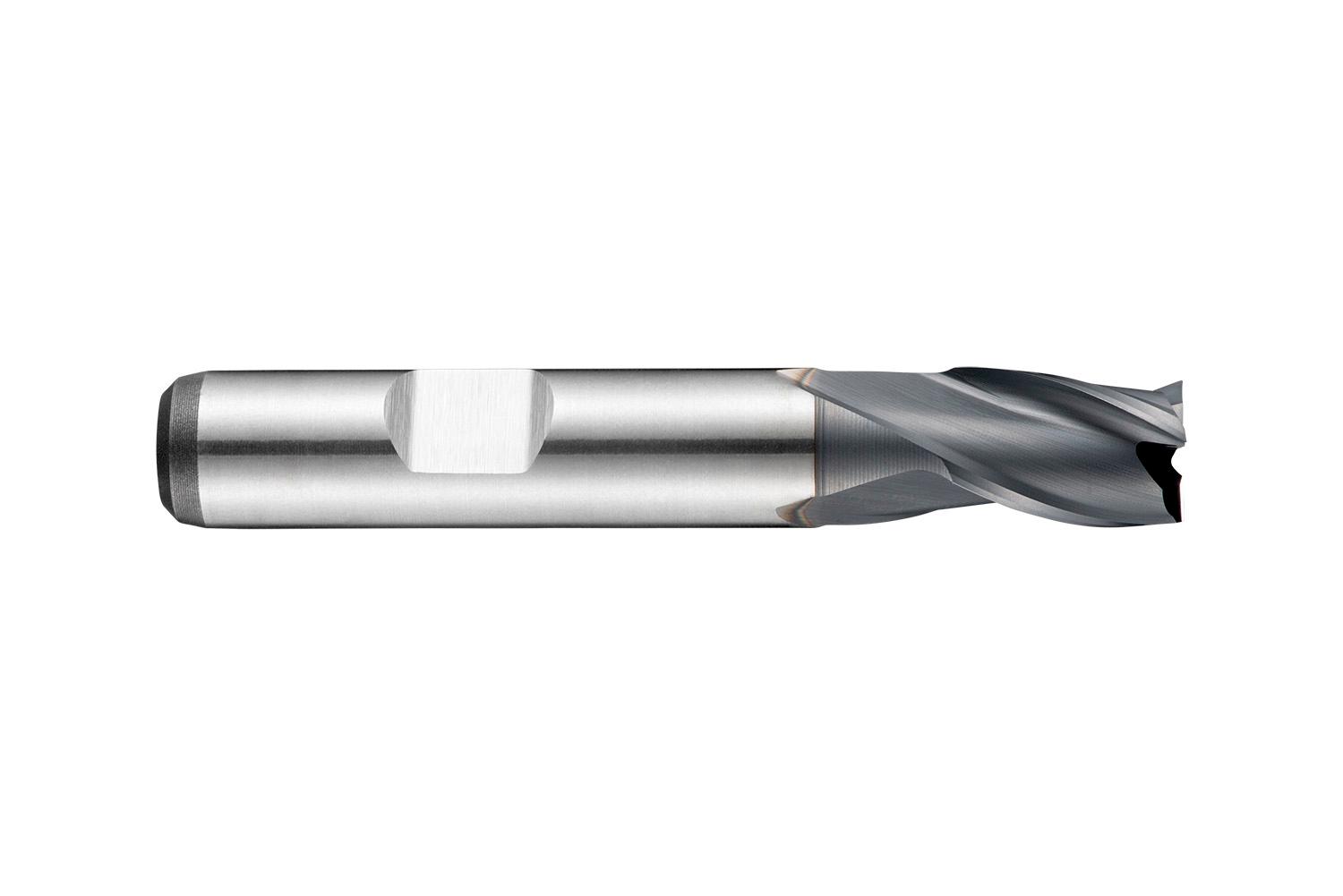

Extra short series slot drill with 3 flutes, diameter 6.5mm with 10mm length of cut and 60mm overall length, according to DIN 327 D standard with a 10mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, cast-iron, copper or copper alloys and titanium or titanium alloys

Additional information

Weight 0.1073 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760573334
Product number (SAP): 86013901
Ordering code ANSI: C3536.5
Gross weight – grams: 32.9

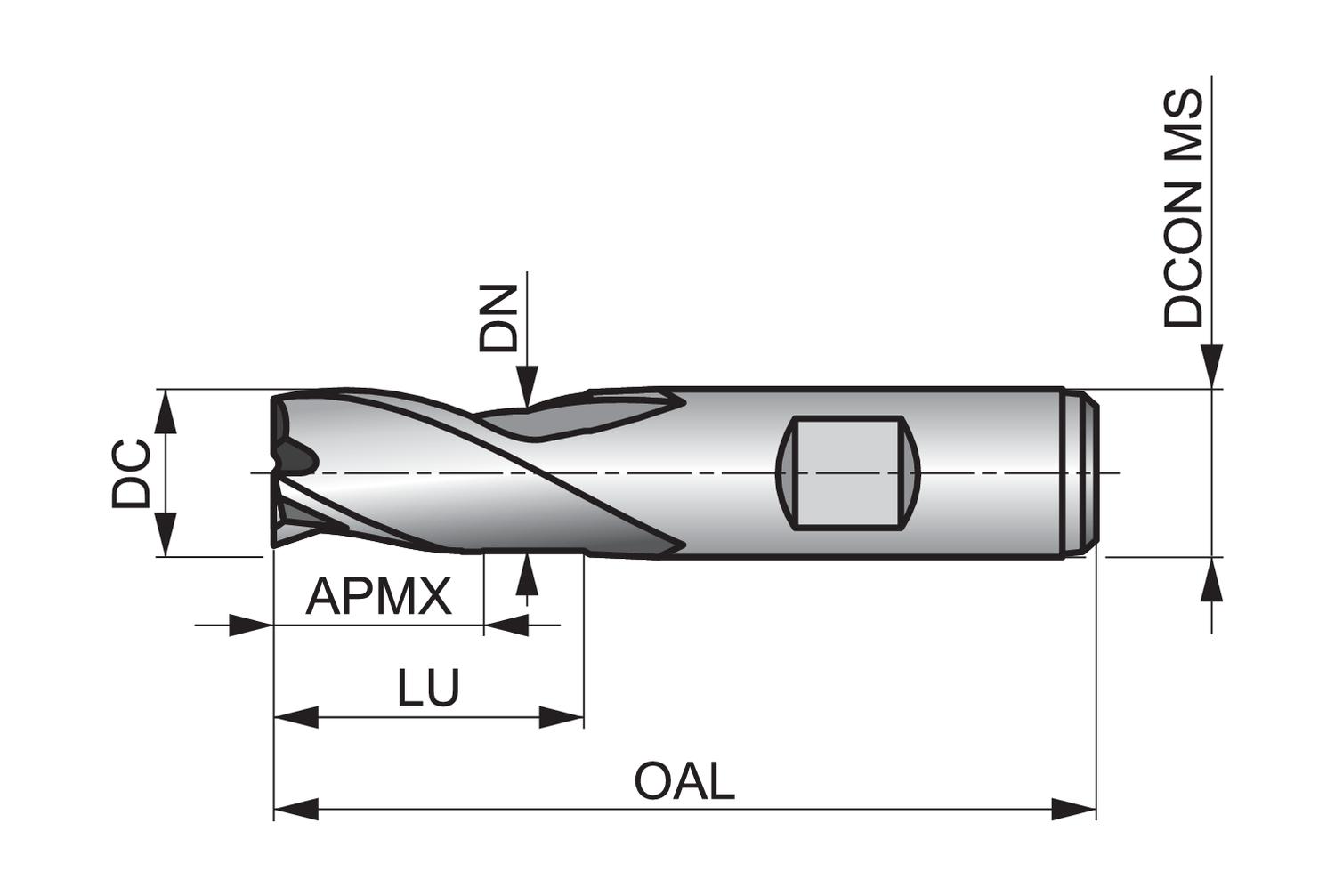

Cutting diameter – millimeter (DC): 6.5 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 10 mm
Overall length – millimeter (OAL): 60 mm

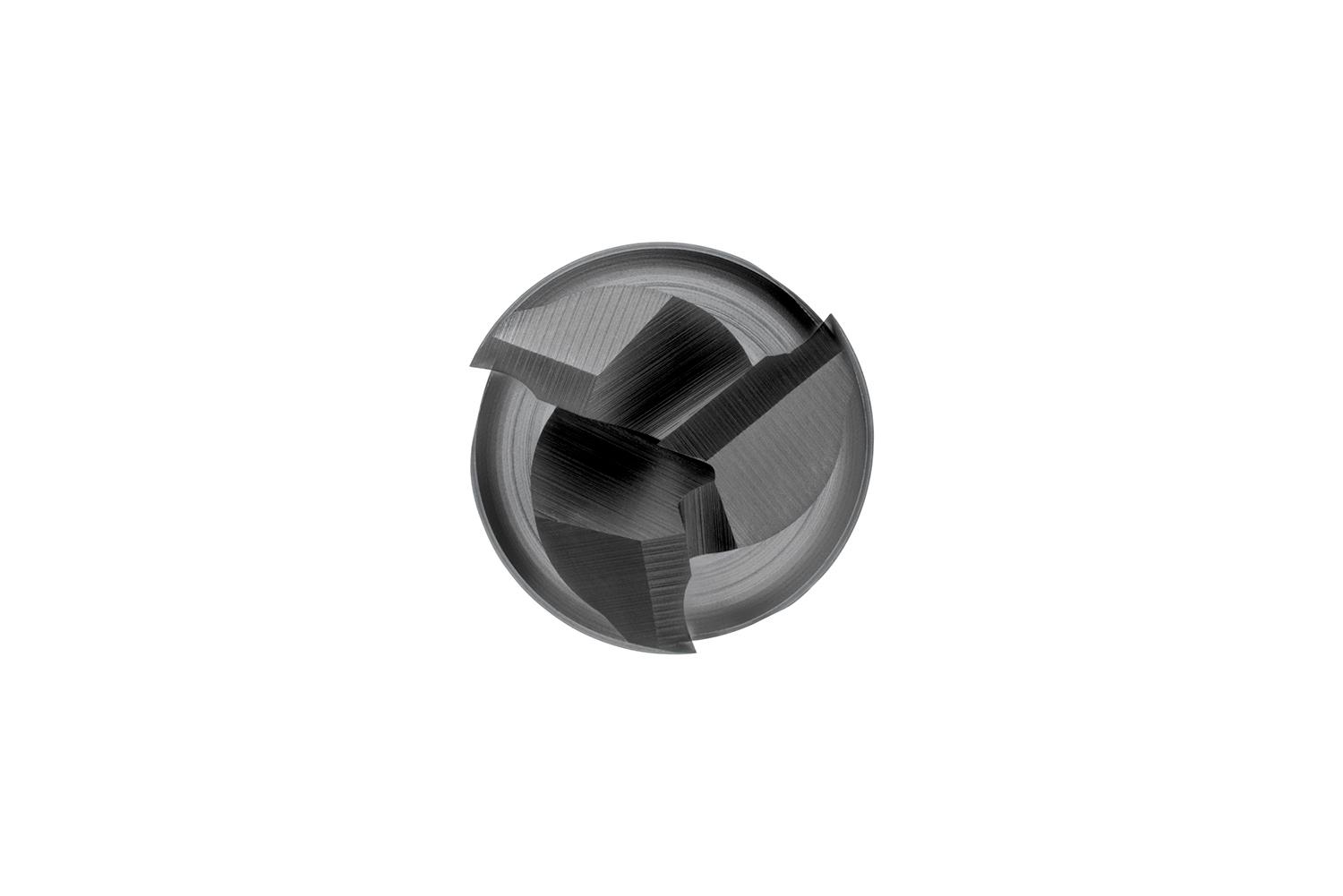

Flute count (NOF): 3
Neck diameter – millimeter (DN): 6.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C3536.5

Brand

DORMER
