DORMER C36714.0 Primax Cutters

Product Code: C36714.0

$151.82$138.02 Ex. GST

Product Code: C36714.0 SKU C36714.0 Categories , ,
DORMER C36714.0 Primax Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

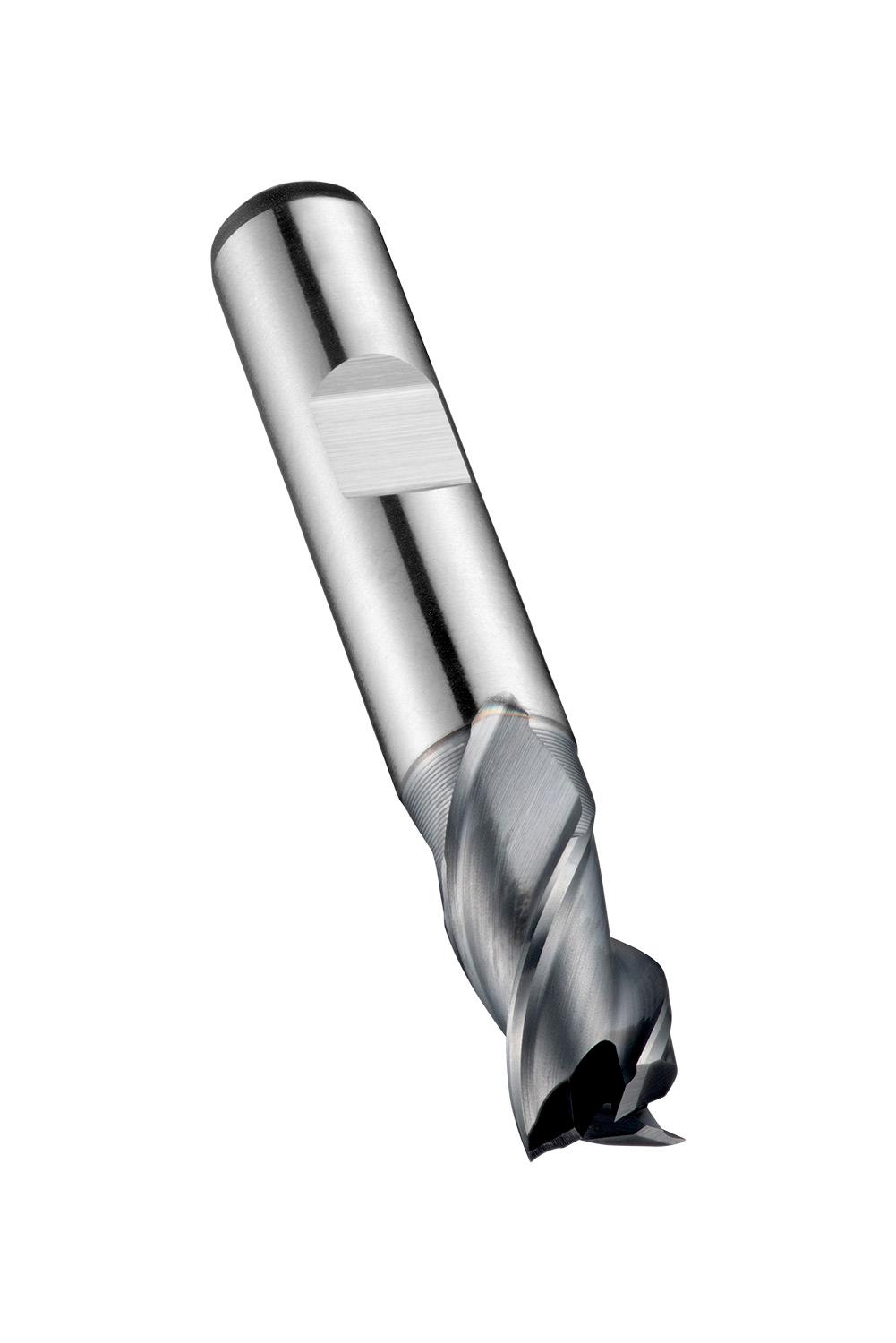

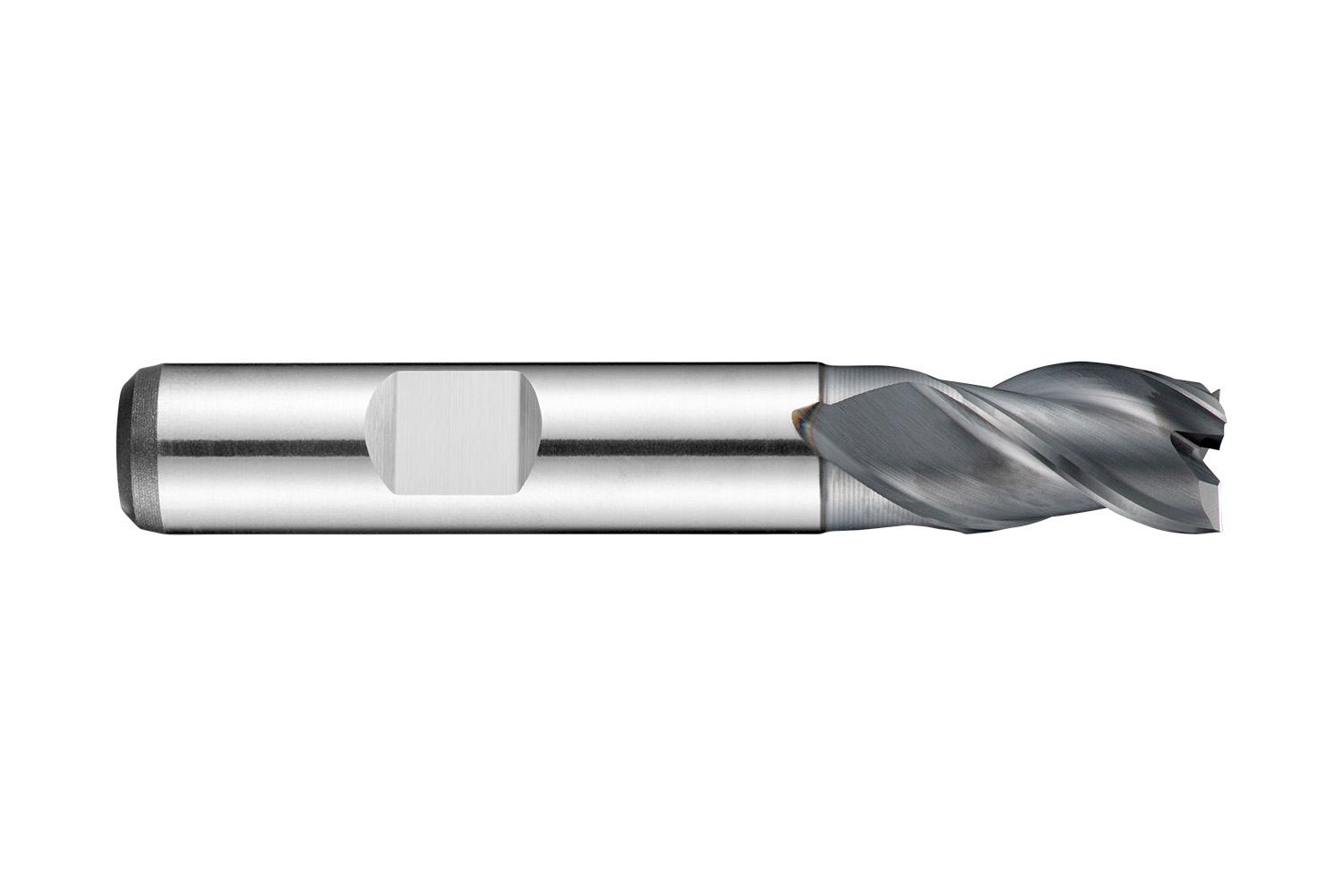

Extra short series slot drill with 3 flutes, diameter 14mm with 16mm length of cut, 73mm overall length and 27.5mm reach with neck relief, according to DIN 327 D standard with a 12mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 40° helix and 15° rake angle for shoulder milling, slot milling and ramping in free machining steel, stainless steel and wrought aluminium

Additional information

Weight 0.1474 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760355305
Product number (SAP): 86013939
Ordering code ANSI: C36714.0
Gross weight – grams: 65.5

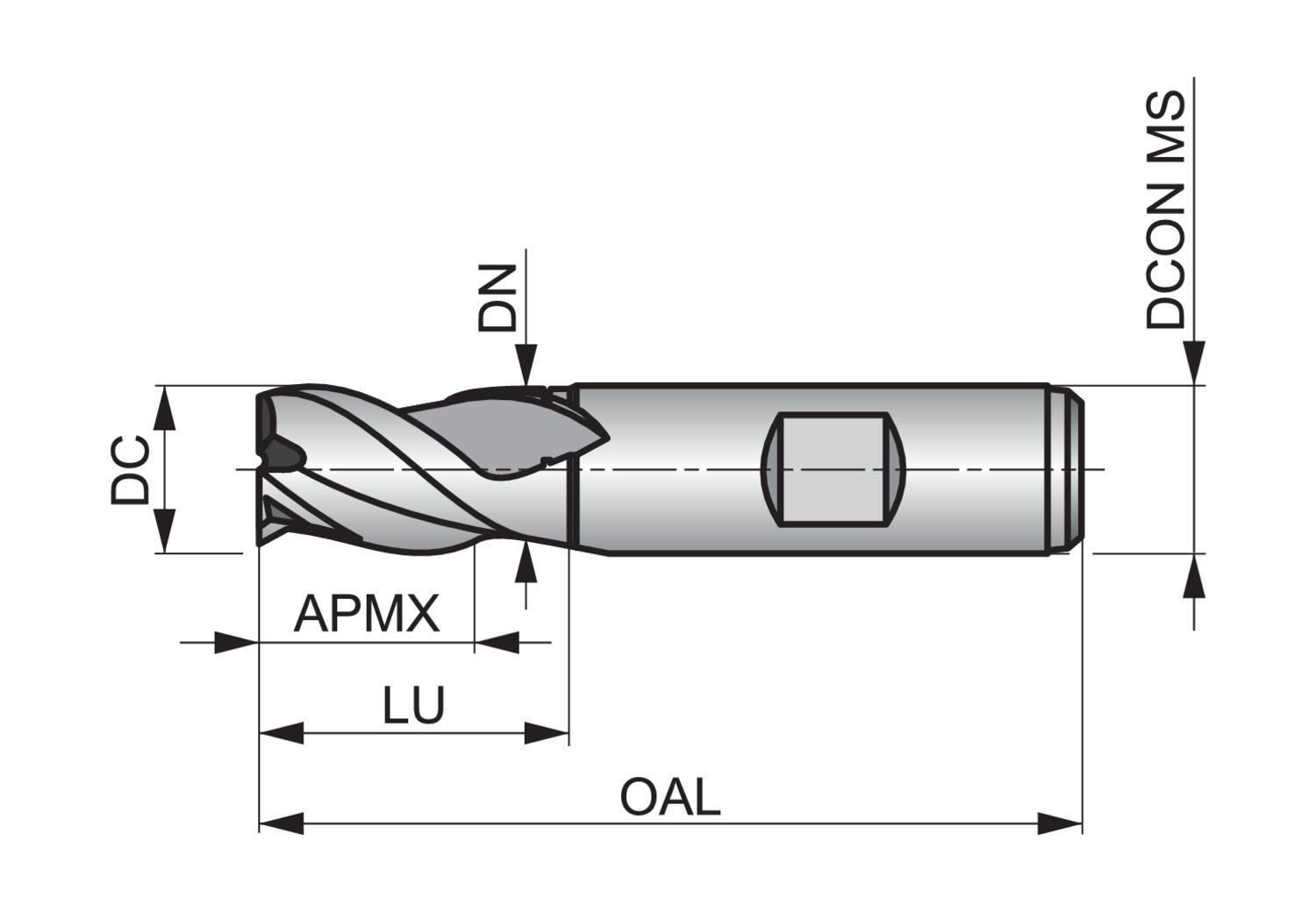

Cutting diameter – millimeter (DC): 14 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 16 mm
Overall length – millimeter (OAL): 73 mm

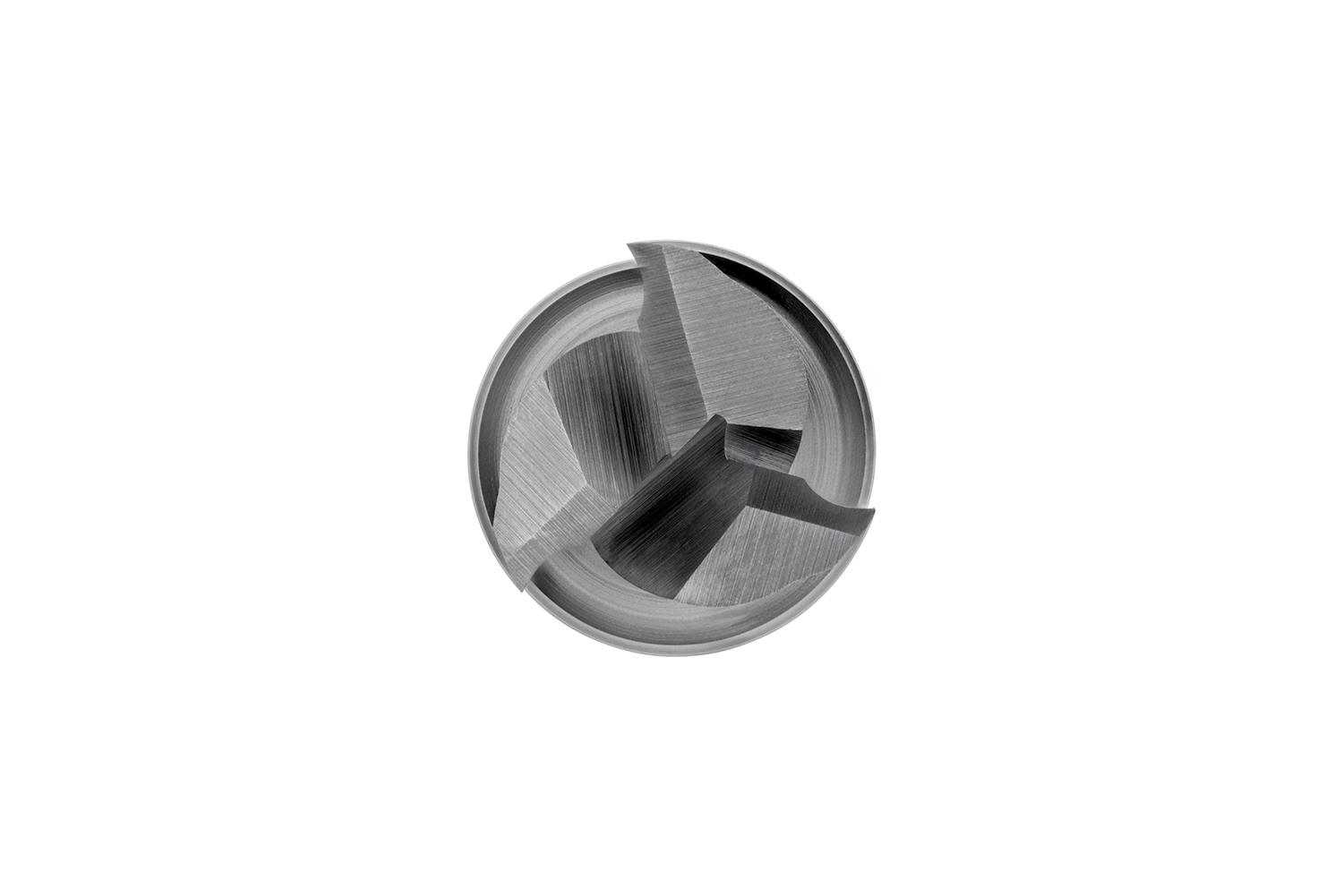

Flute count (NOF): 3
Usable Length – millimeter (LU): 27.5 mm
Neck diameter – millimeter (DN): 11.5 mm
Radial rake angle (GAMF): 15
With Neck: Yes
ISO: C36714.0

Brand

DORMER
