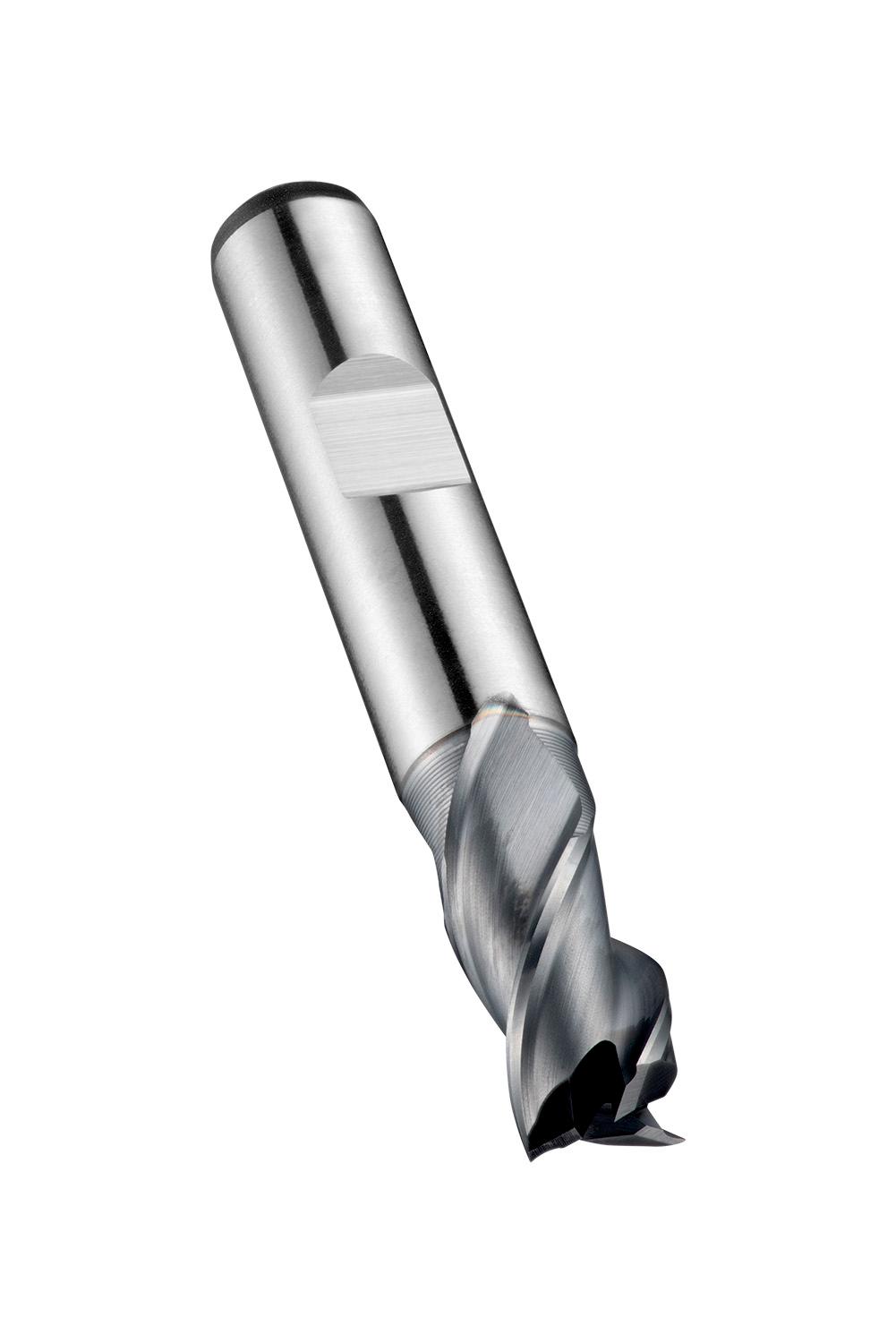

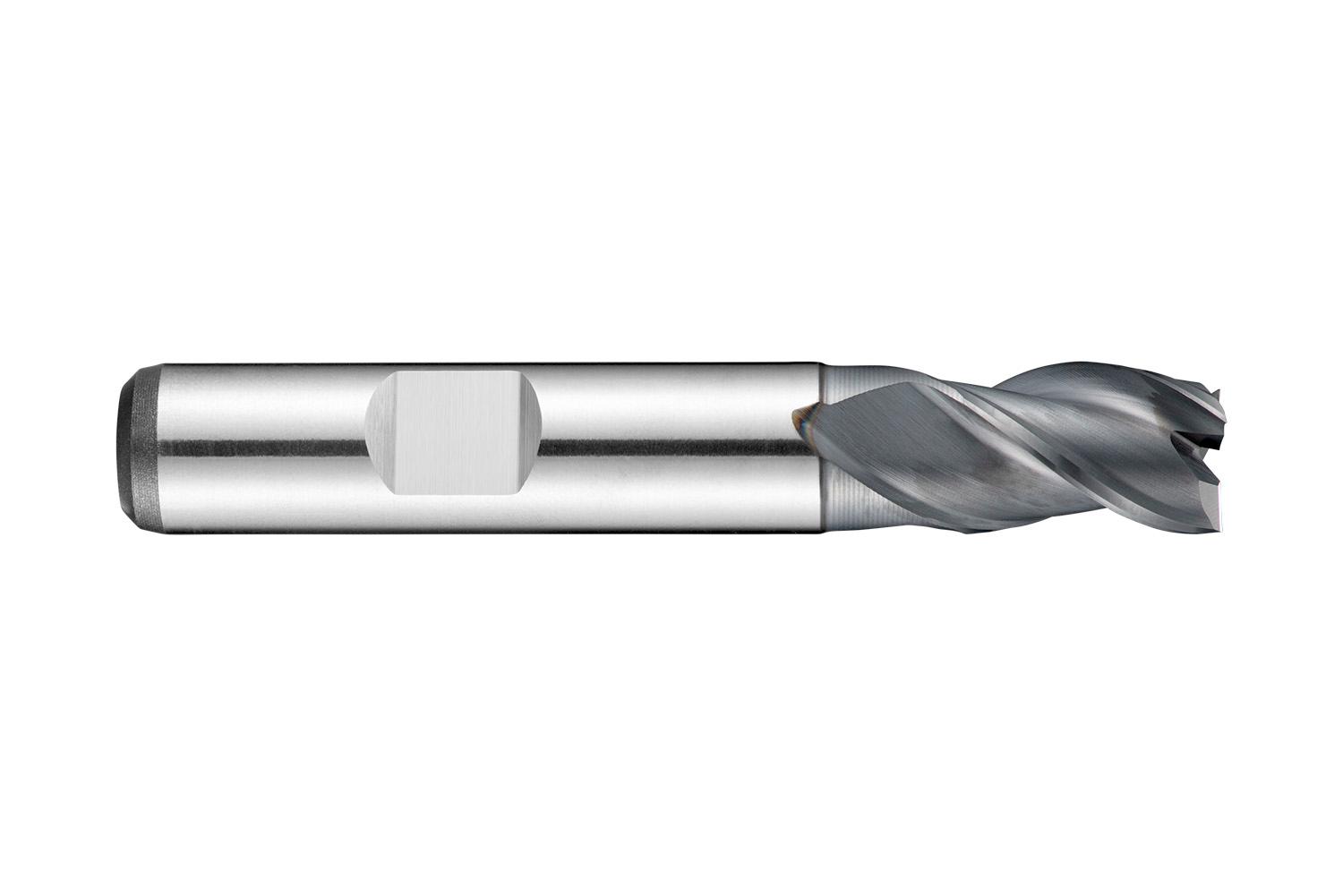

DORMER C36720.0 Primax Cutters

Product Code: C36720.0

$240.20$218.36 Ex. GST

Product Code: C36720.0 SKU C36720.0 Categories , ,
DORMER C36720.0 Primax Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Extra short series slot drill with 3 flutes, diameter 20mm with 22mm length of cut, 88mm overall length and 37.5mm reach with neck relief, according to DIN 327 D standard with a 20mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 40° helix and 15° rake angle for shoulder milling, slot milling and ramping in free machining steel, stainless steel and wrought aluminium

Additional information

Weight 0.2332 kg
Dimensions
barcode
Additional Information

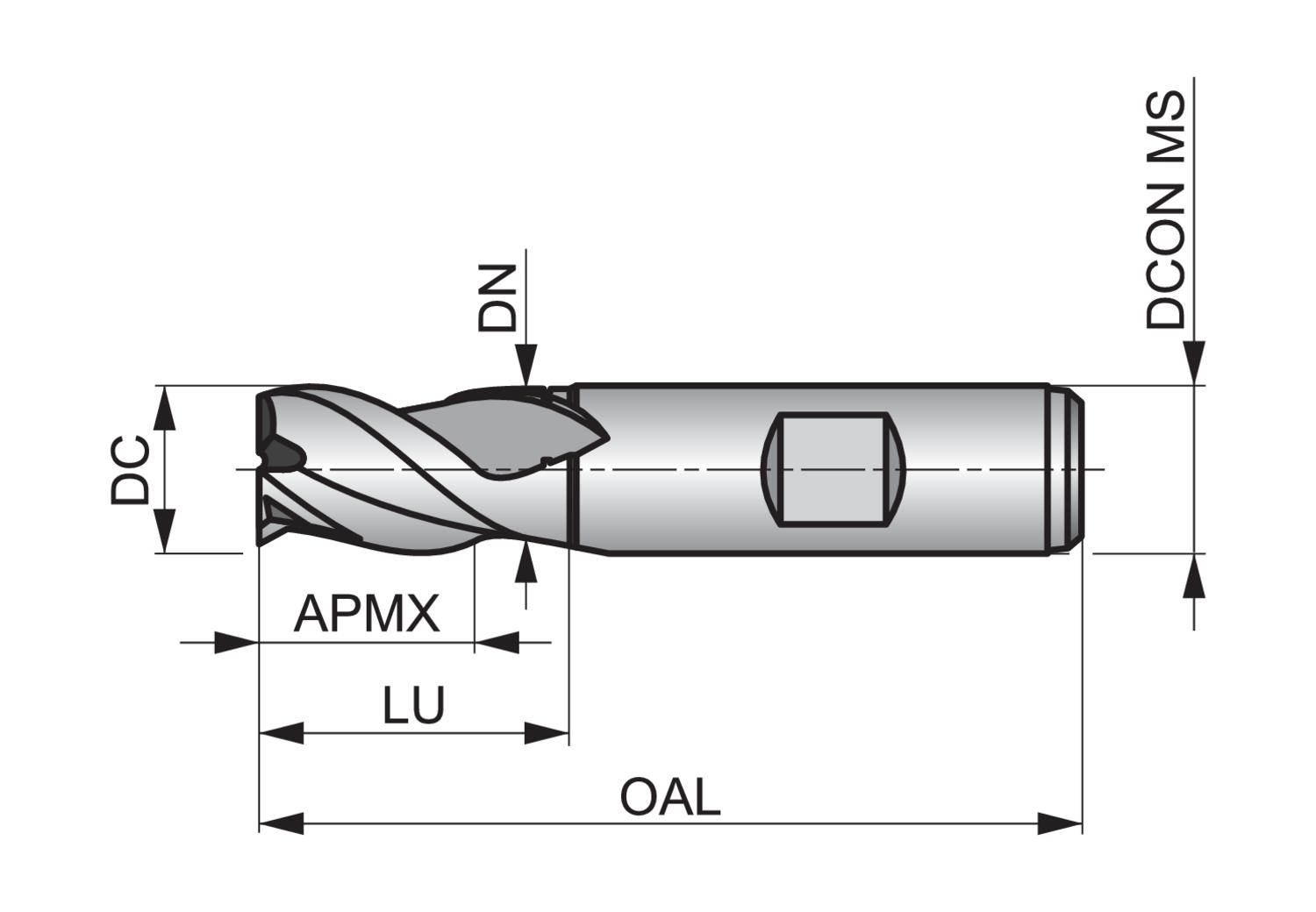

Description: Value
EAN number: 7320760355343
Product number (SAP): 86013944
Ordering code ANSI: C36720.0
Gross weight – grams: 197.9
Cutting diameter – millimeter (DC): 20 mm
Connection diameter – millimeter (DCON MS): 20 mm
Depth of cut maximum – millimeter (APMX): 22 mm
Overall length – millimeter (OAL): 88 mm
Flute count (NOF): 3
Usable Length – millimeter (LU): 37.5 mm
Neck diameter – millimeter (DN): 19.5 mm
Radial rake angle (GAMF): 15
With Neck: Yes
ISO: C36720.0

Brand

DORMER
