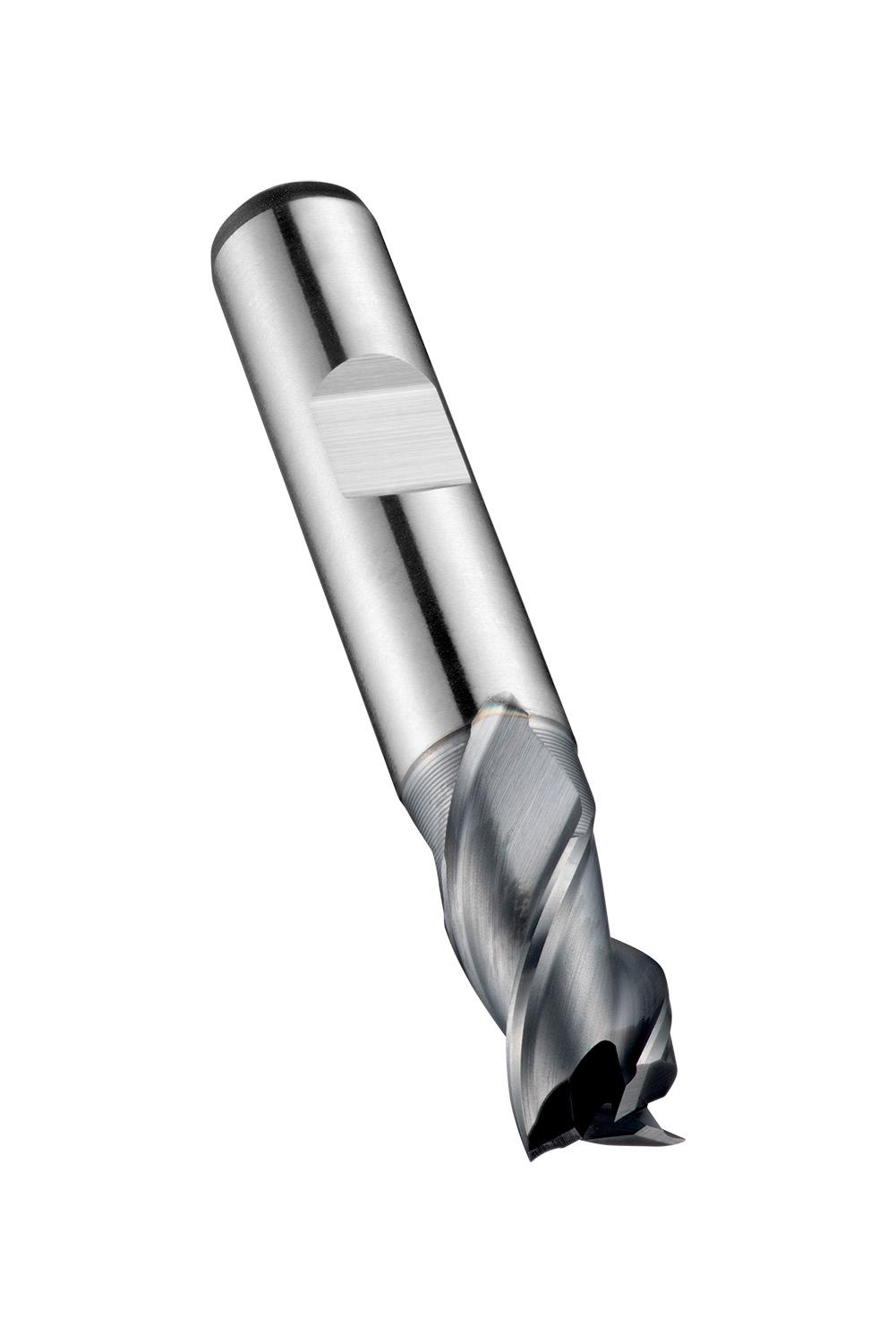

DORMER C3674.0 Primax Cutters

Product Code: C3674.0

$79.31$72.10 Ex. GST

Product Code: C3674.0 SKU C3674.0 Categories , ,
DORMER C3674.0 Primax Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

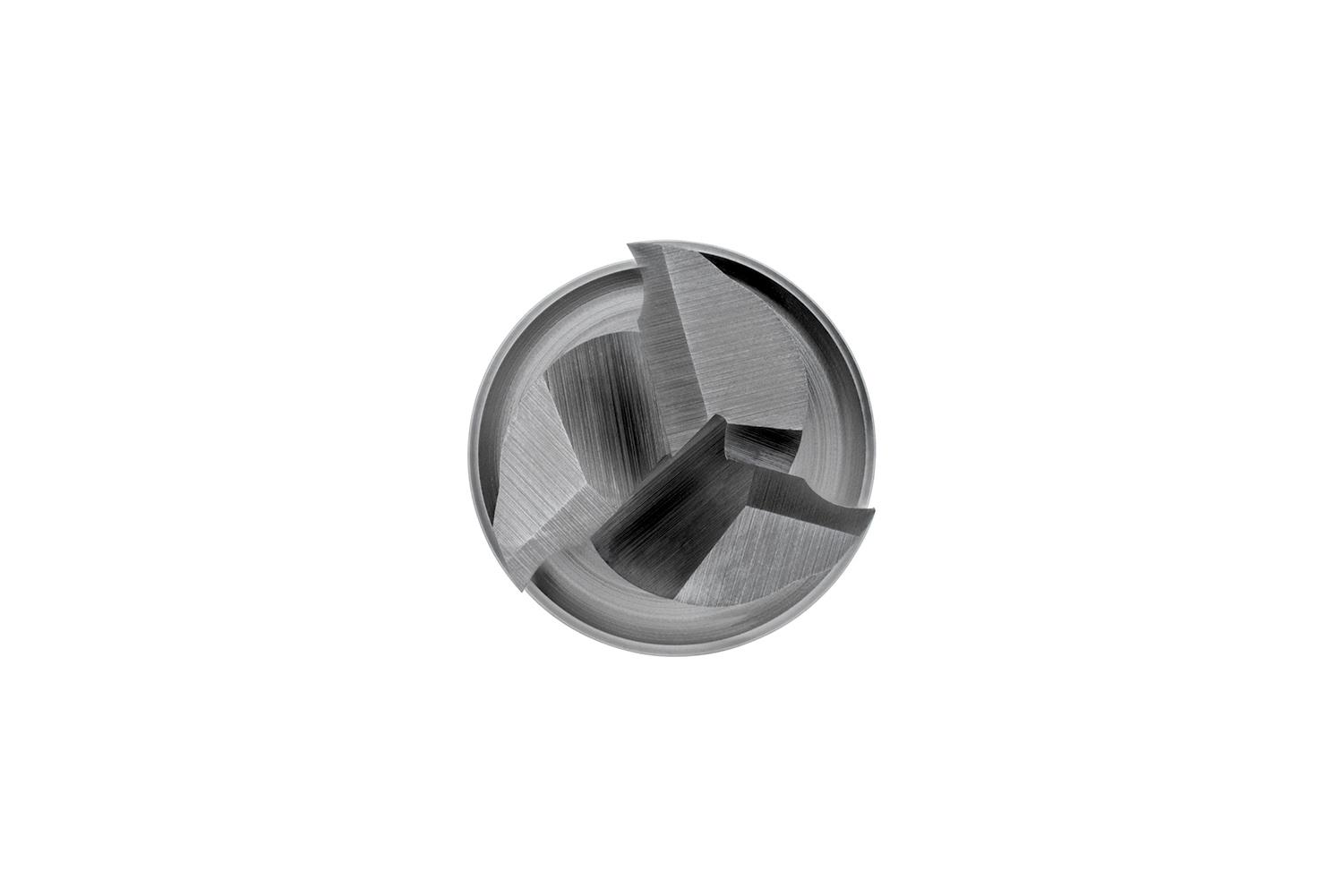

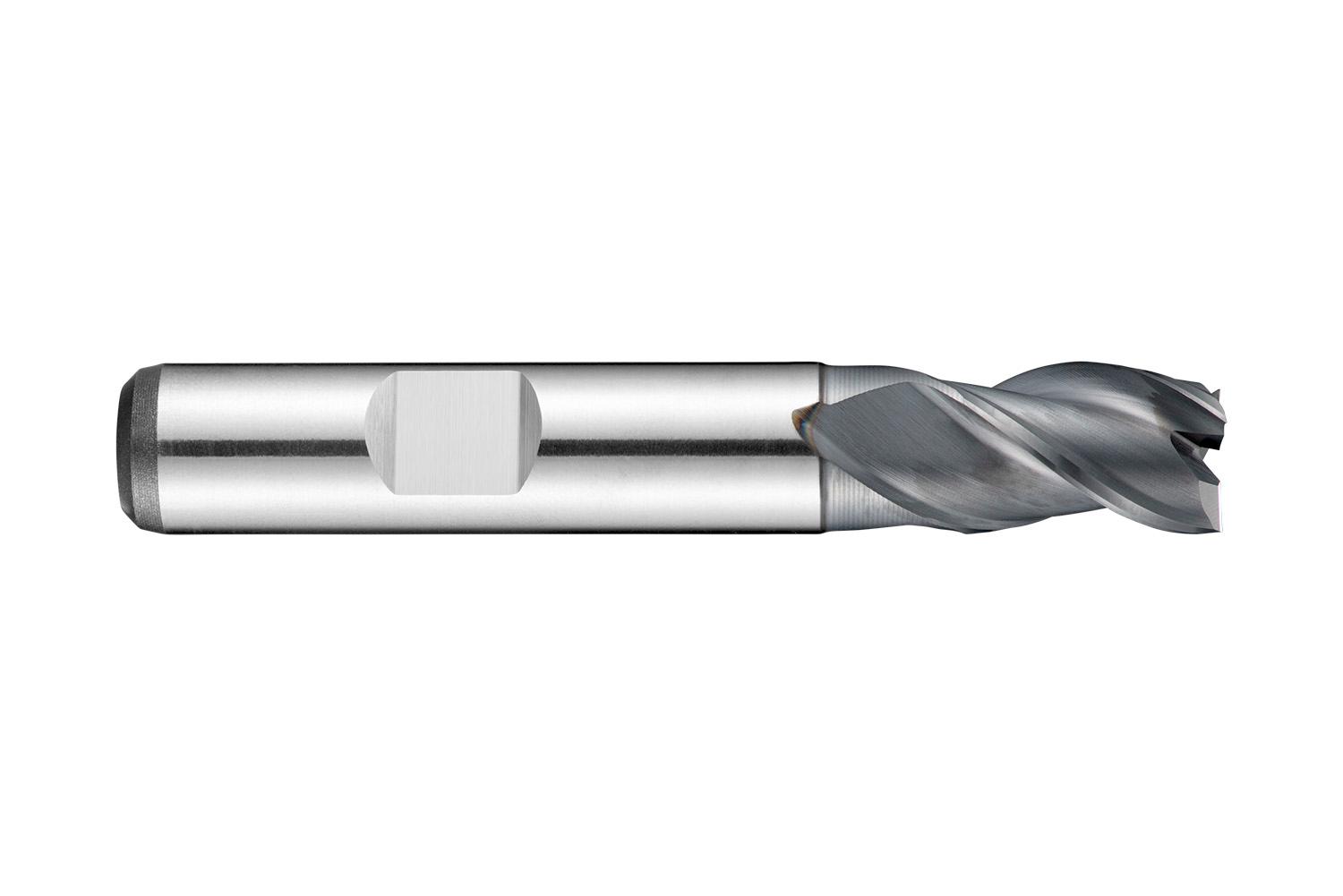

Extra short series slot drill with 3 flutes, diameter 4mm with 7mm length of cut and 51mm overall length, according to DIN 327 D standard with a 6mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 40° helix and 15° rake angle for shoulder milling, slot milling and ramping in free machining steel, stainless steel and wrought aluminium

Additional information

Weight 0.0770 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760355367
Product number (SAP): 86013946
Ordering code ANSI: C3674.0
Gross weight – grams: 12.6

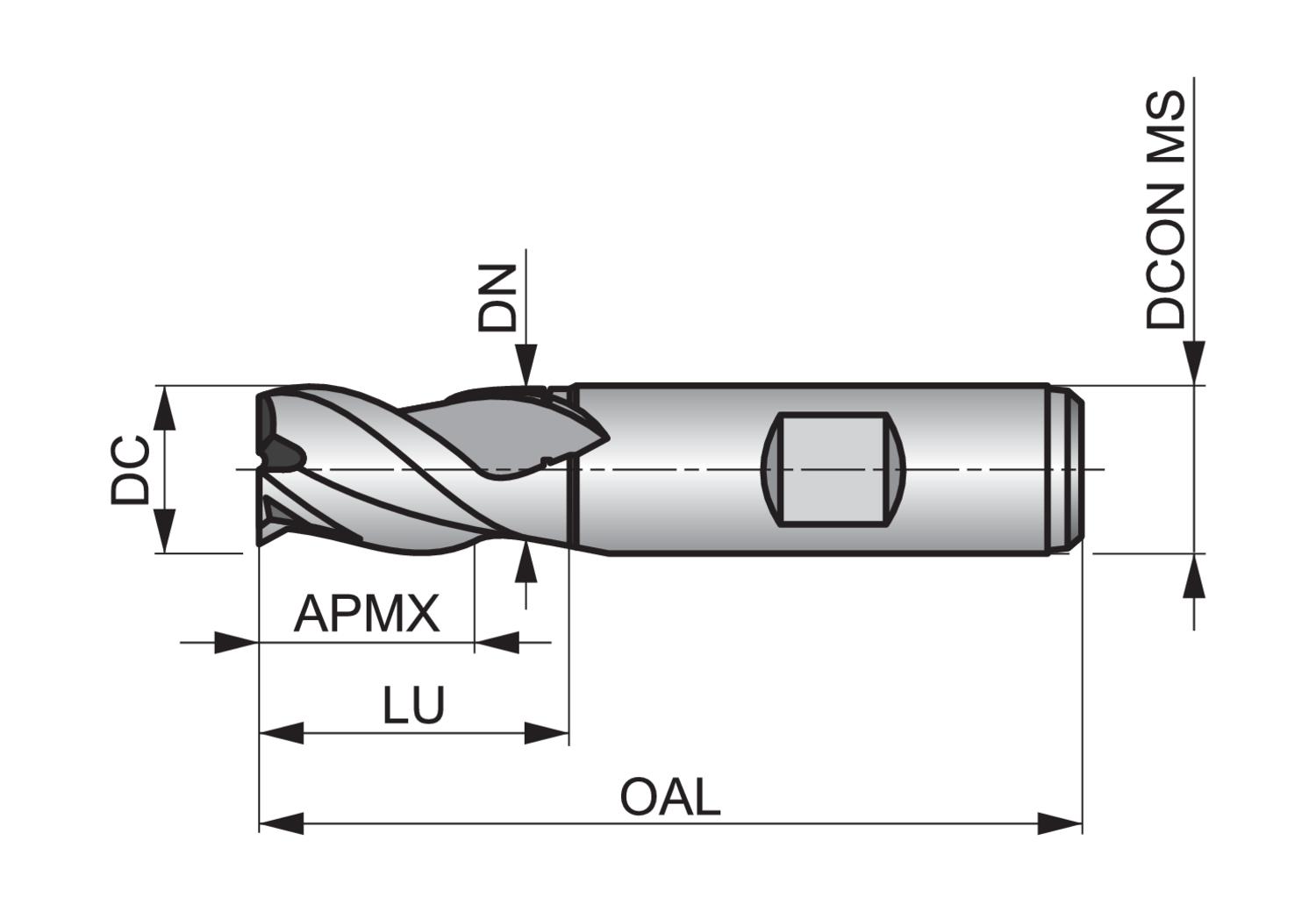

Cutting diameter – millimeter (DC): 4 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 7 mm
Overall length – millimeter (OAL): 51 mm
Flute count (NOF): 3
Neck diameter – millimeter (DN): 4 mm
Radial rake angle (GAMF): 15
With Neck: Yes
ISO: C3674.0

Brand

DORMER
