DORMER C3677.0 Primax Cutters

Product Code: C3677.0

$111.61$101.46 Ex. GST

Product Code: C3677.0 SKU C3677.0 Categories , ,

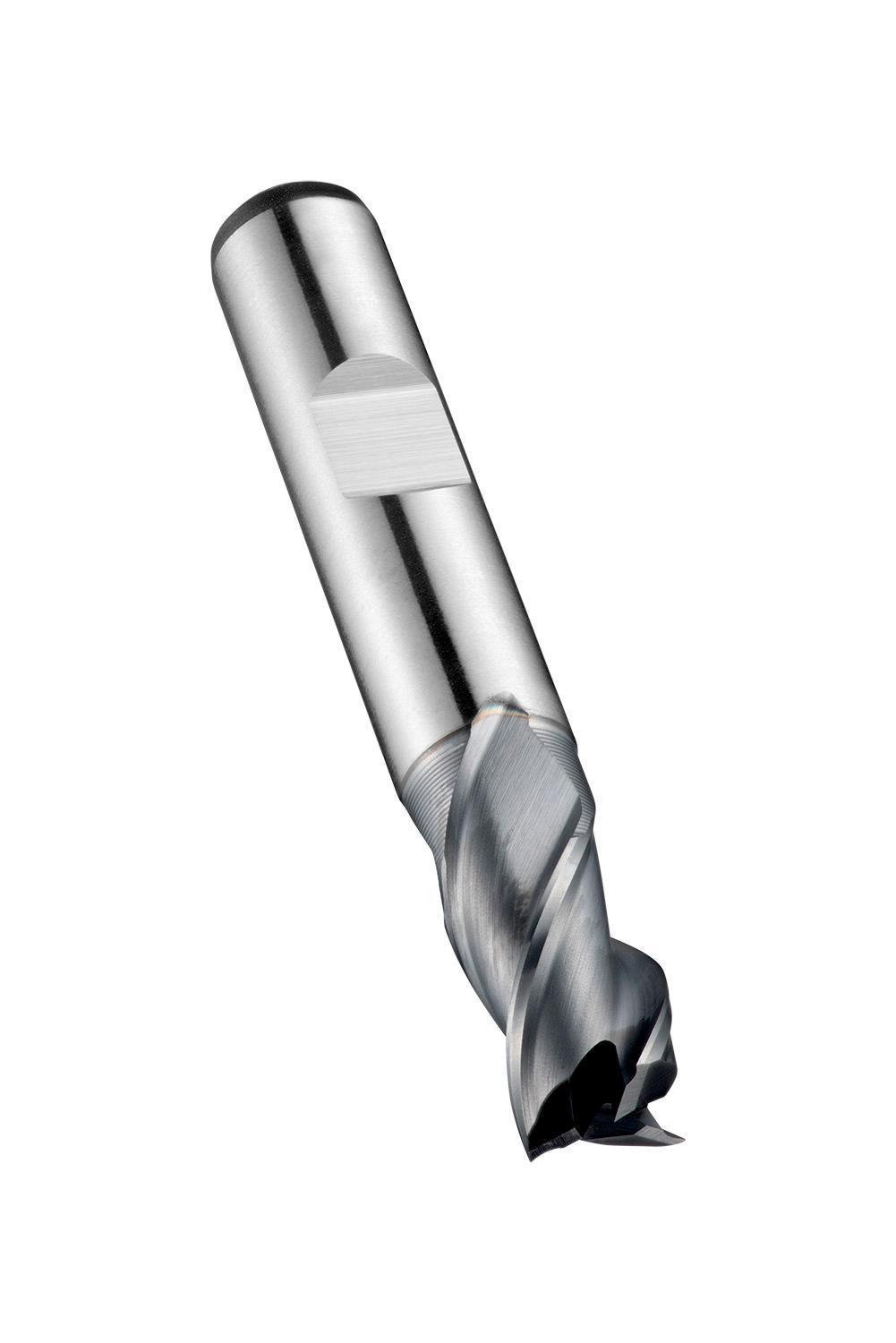

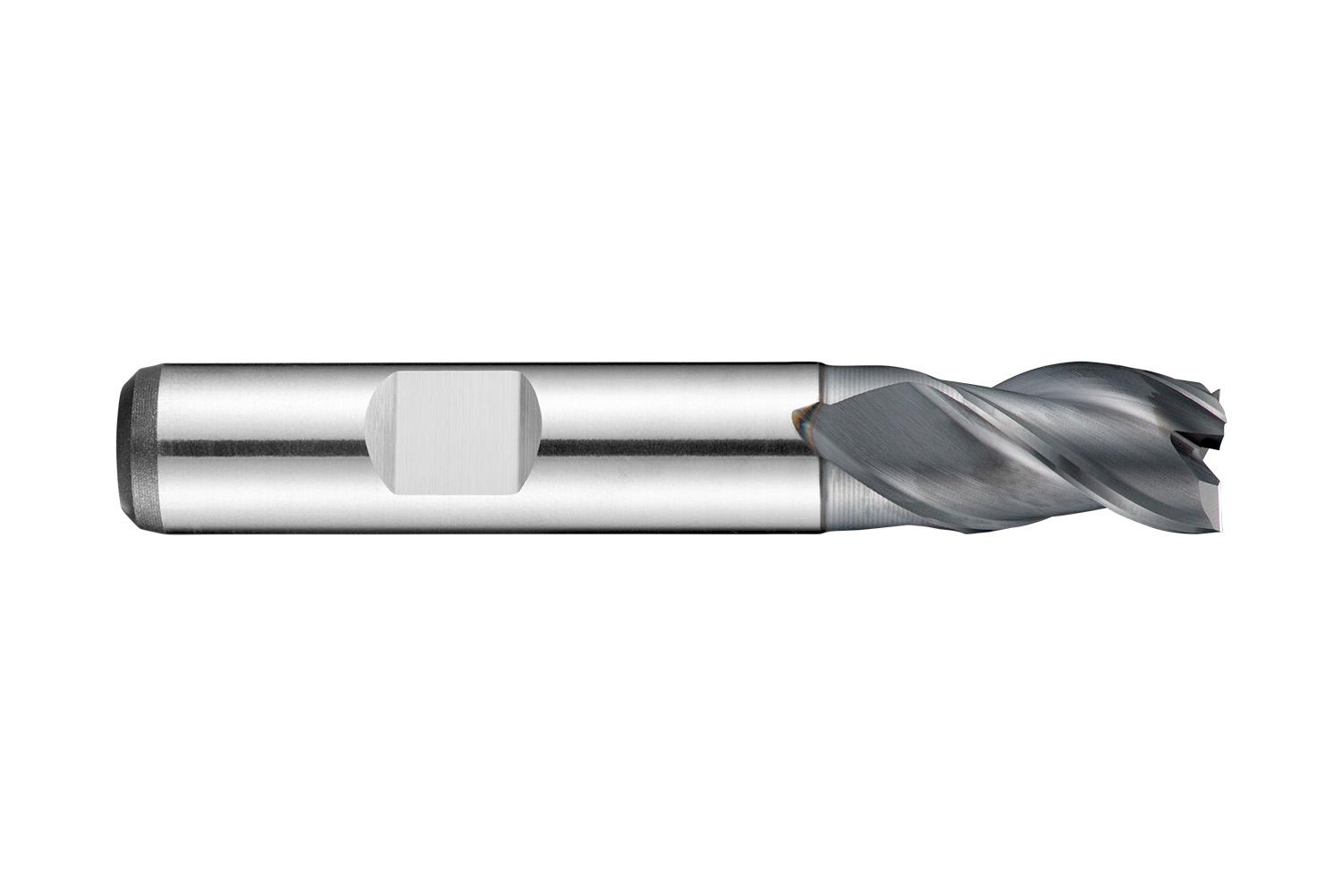

DORMER C3677.0 Primax Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Extra short series slot drill with 3 flutes, diameter 7mm with 10mm length of cut and 60mm overall length, according to DIN 327 D standard with a 10mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 40° helix and 15° rake angle for shoulder milling, slot milling and ramping in free machining steel, stainless steel and wrought aluminium

Additional information

Weight 0.1084 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760355398
Product number (SAP): 86013949
Ordering code ANSI: C3677.0
Gross weight – grams: 34.4

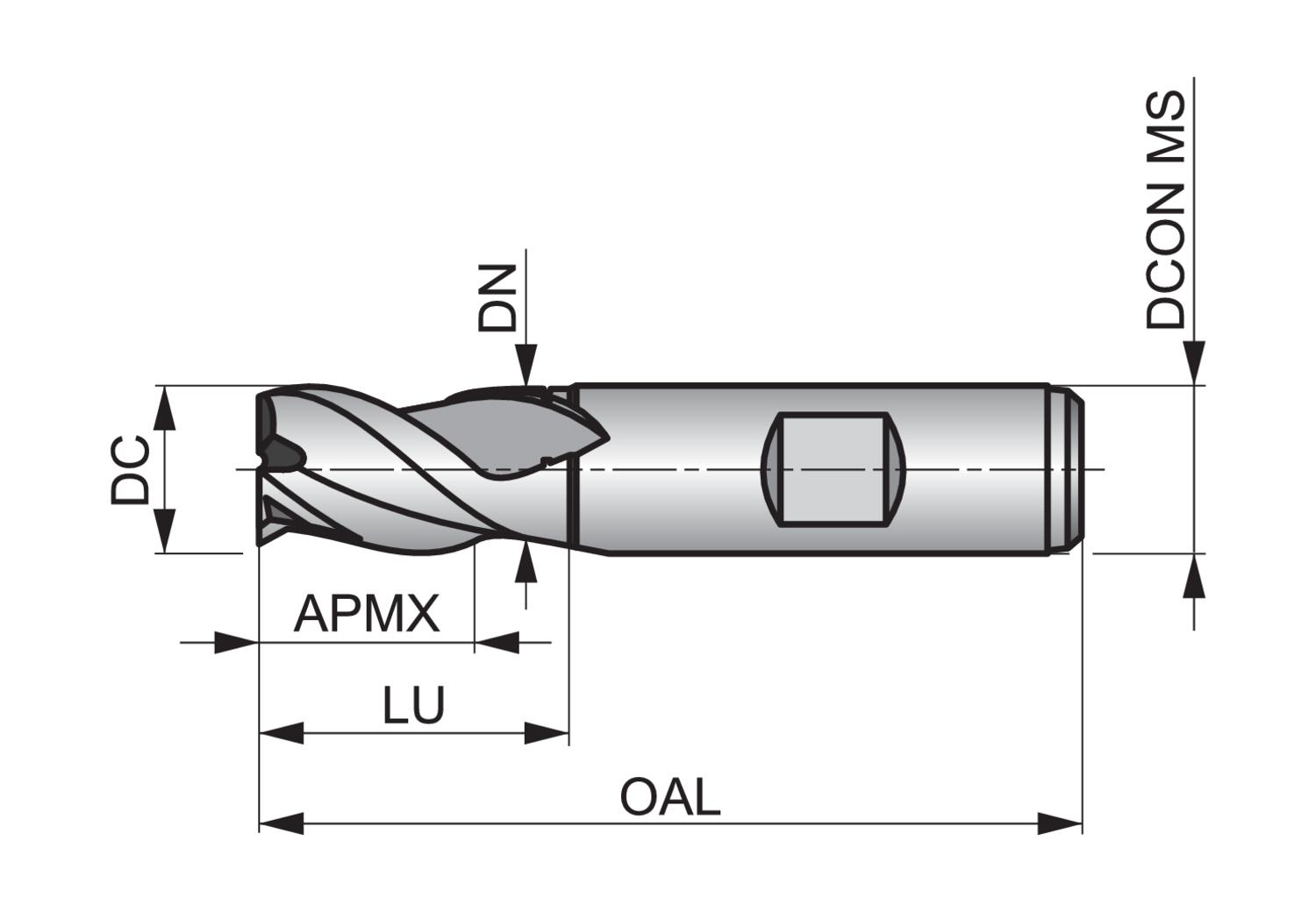

Cutting diameter – millimeter (DC): 7 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 10 mm
Overall length – millimeter (OAL): 60 mm
Flute count (NOF): 3
Neck diameter – millimeter (DN): 7 mm
Radial rake angle (GAMF): 15
With Neck: Yes
ISO: C3677.0

Brand

DORMER
