DORMER C40010.0 HSCO Cutters

Product Code: C40010.0

$92.91$84.46 Ex. GST

Product Code: C40010.0 SKU C40010.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

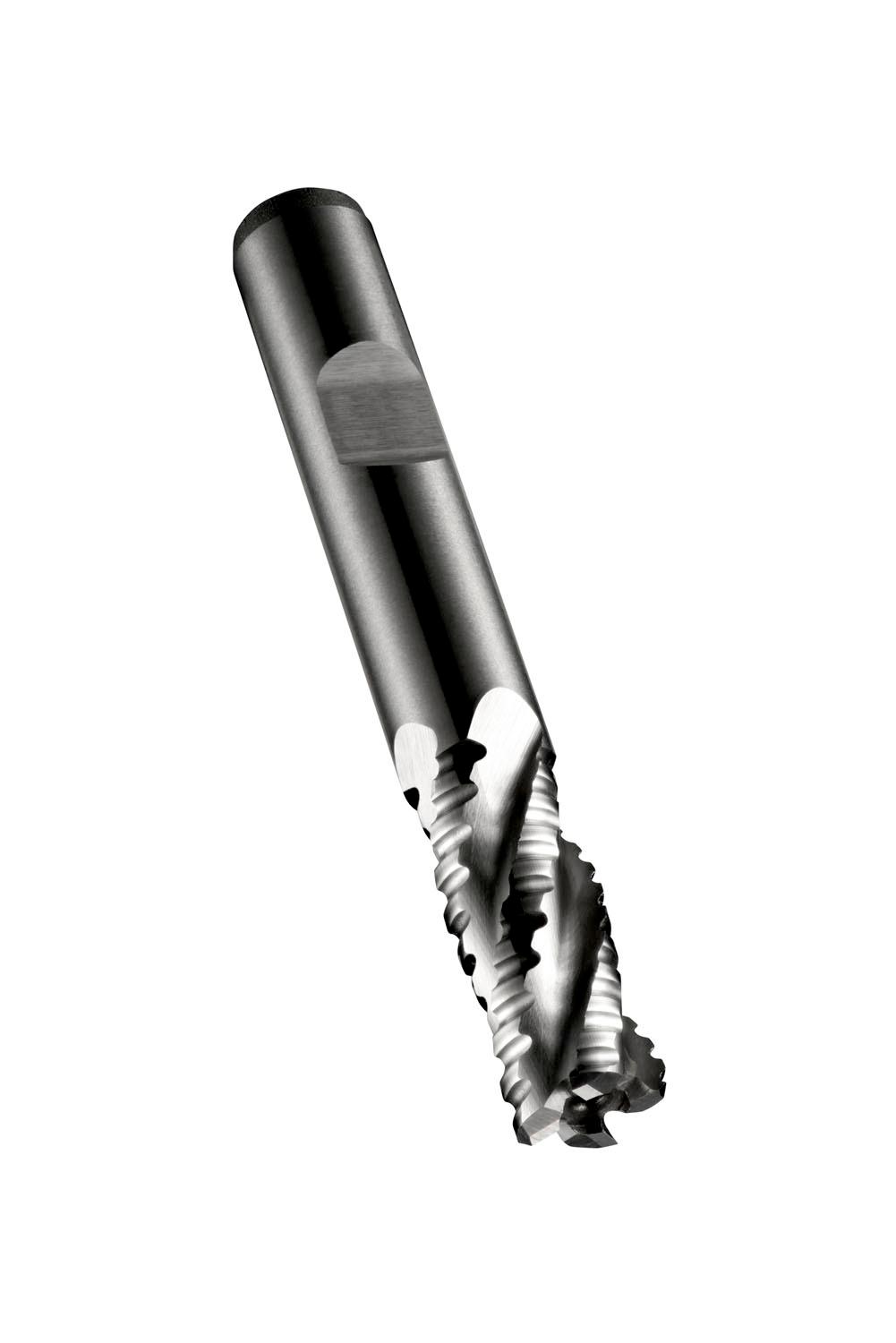

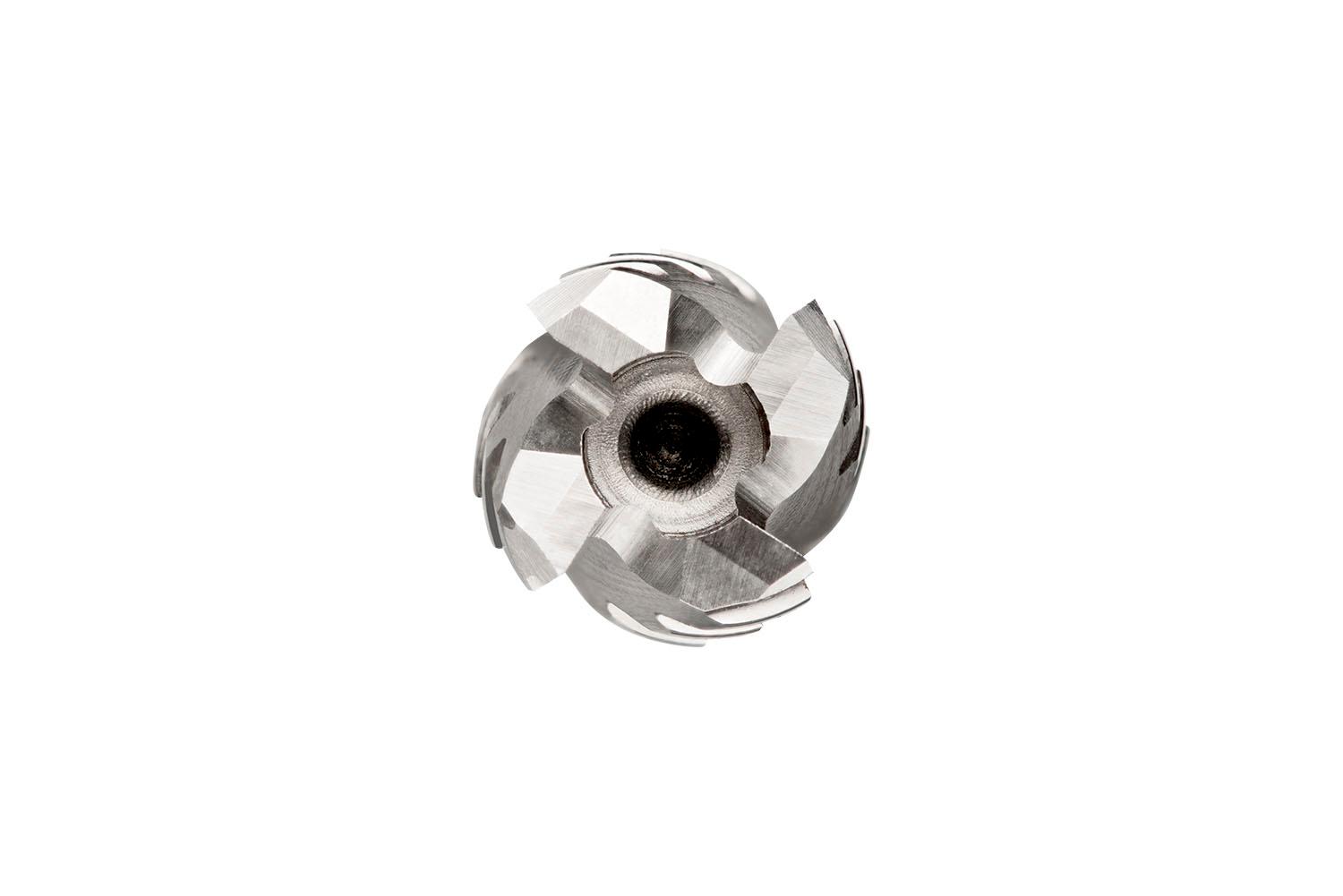

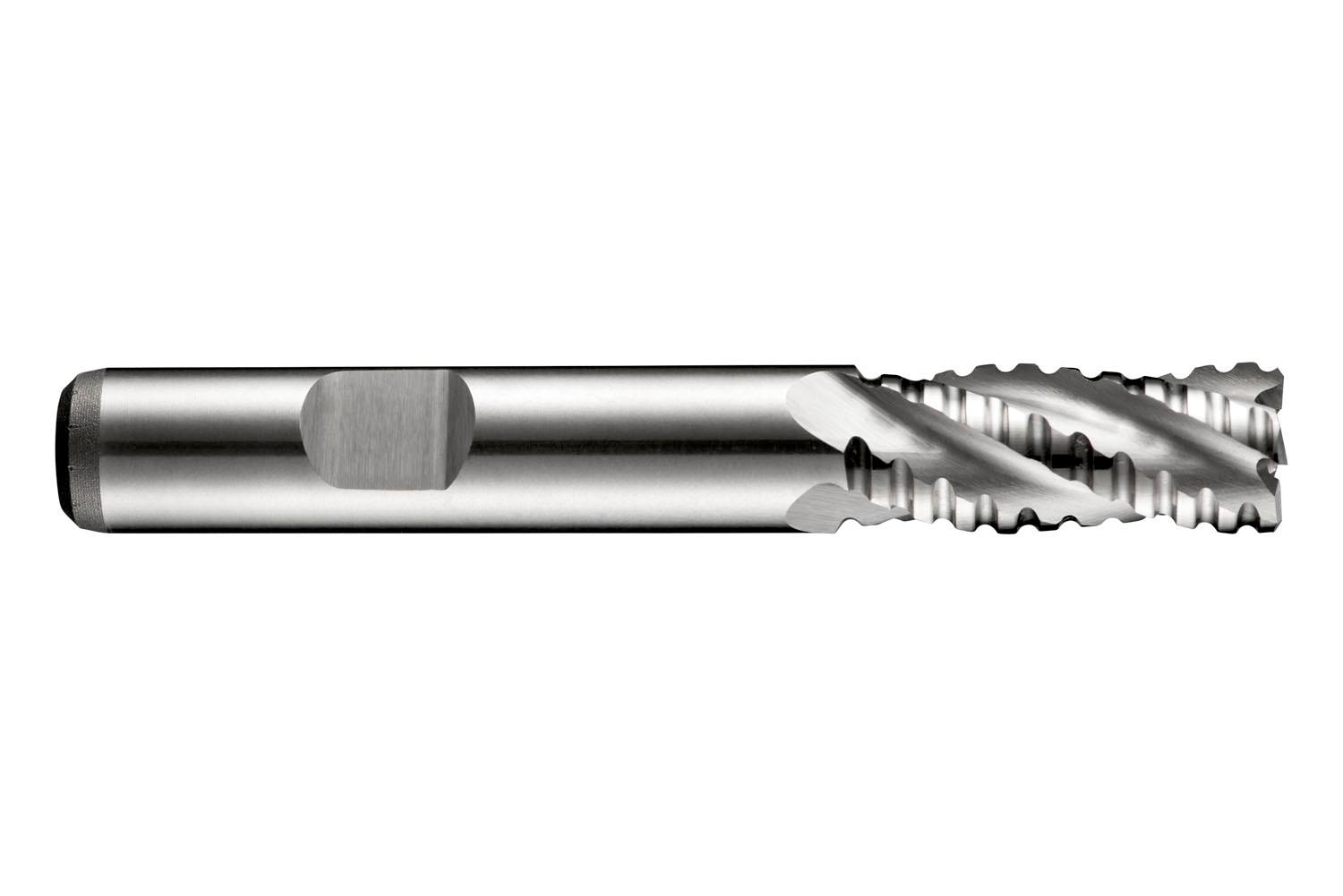

Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 10mm with 22mm length of cut and 72mm overall length, according to DIN 844 K standard with a 10mm Weldon shank, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight 0.0902 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760067888
Product number (SAP): 86013972
Ordering code ANSI: C40010.0
Gross weight – grams: 43.4

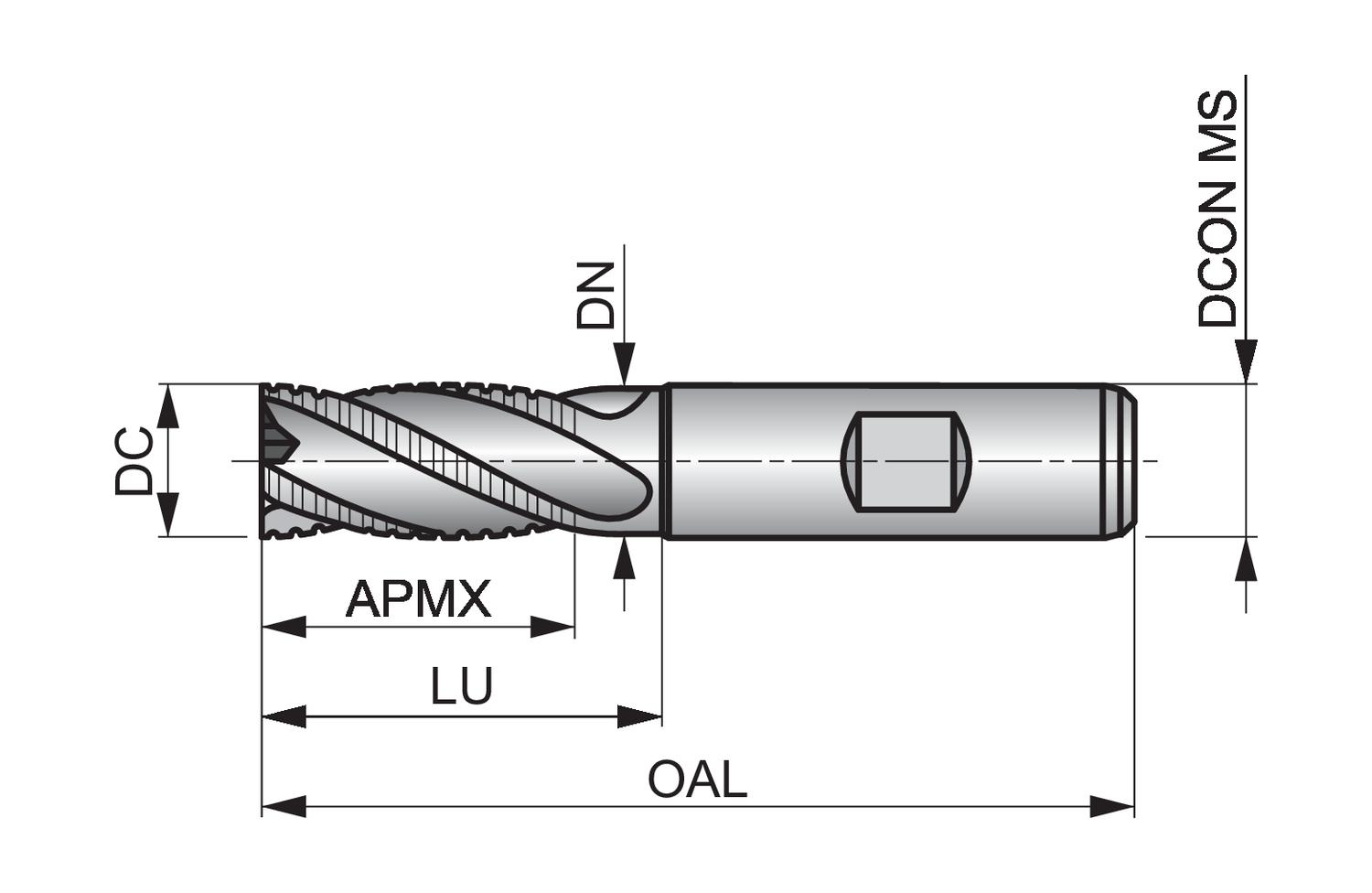

Cutting diameter – millimeter (DC): 10 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 22 mm
Overall length – millimeter (OAL): 72 mm
Flute count (NOF): 4
Radial rake angle (GAMF): 12
ISO: C40010.0

Brand

DORMER
