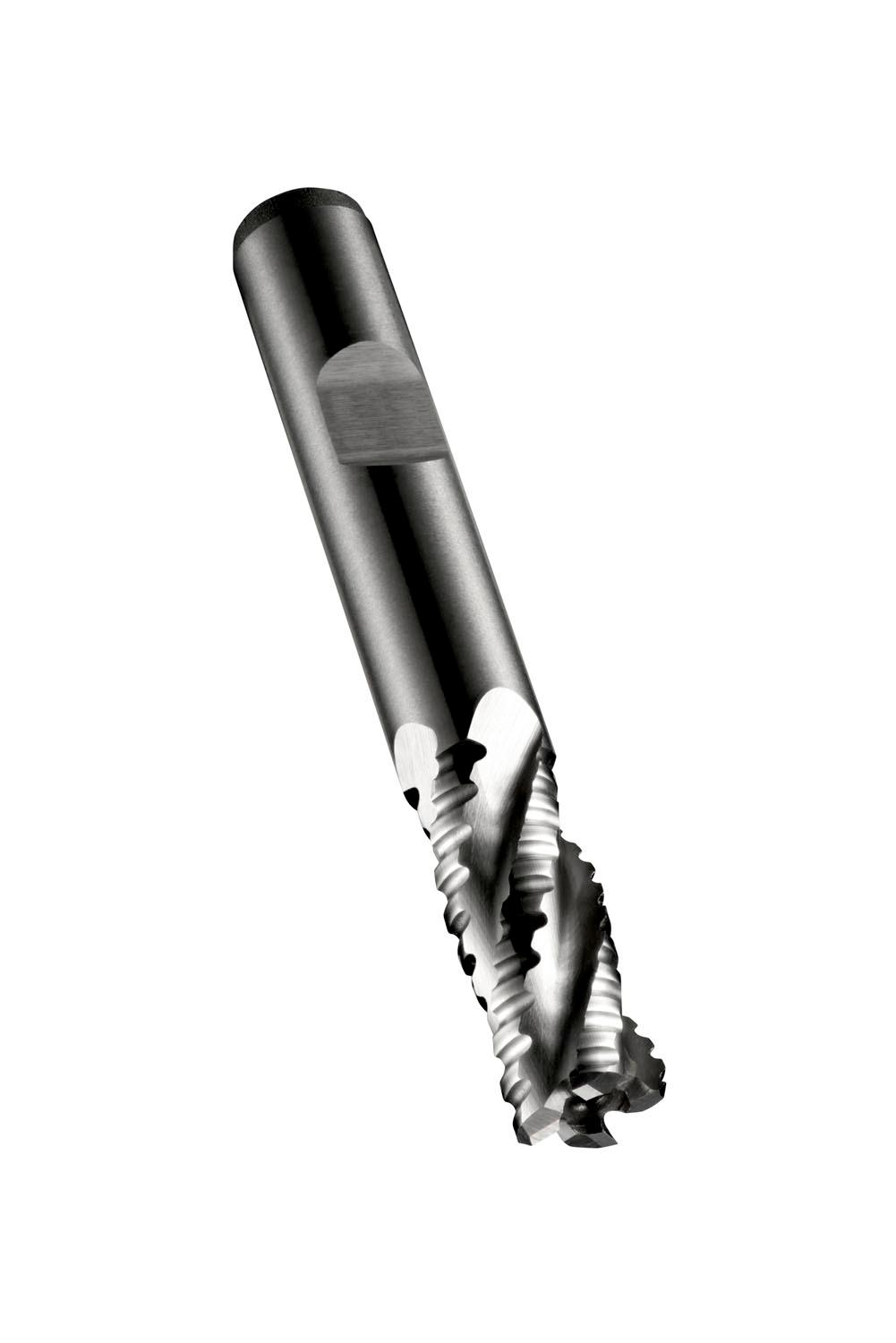

DORMER C40012.0 HSCO Cutters

Product Code: C40012.0

$109.90$99.91 Ex. GST

Product Code: C40012.0 SKU C40012.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

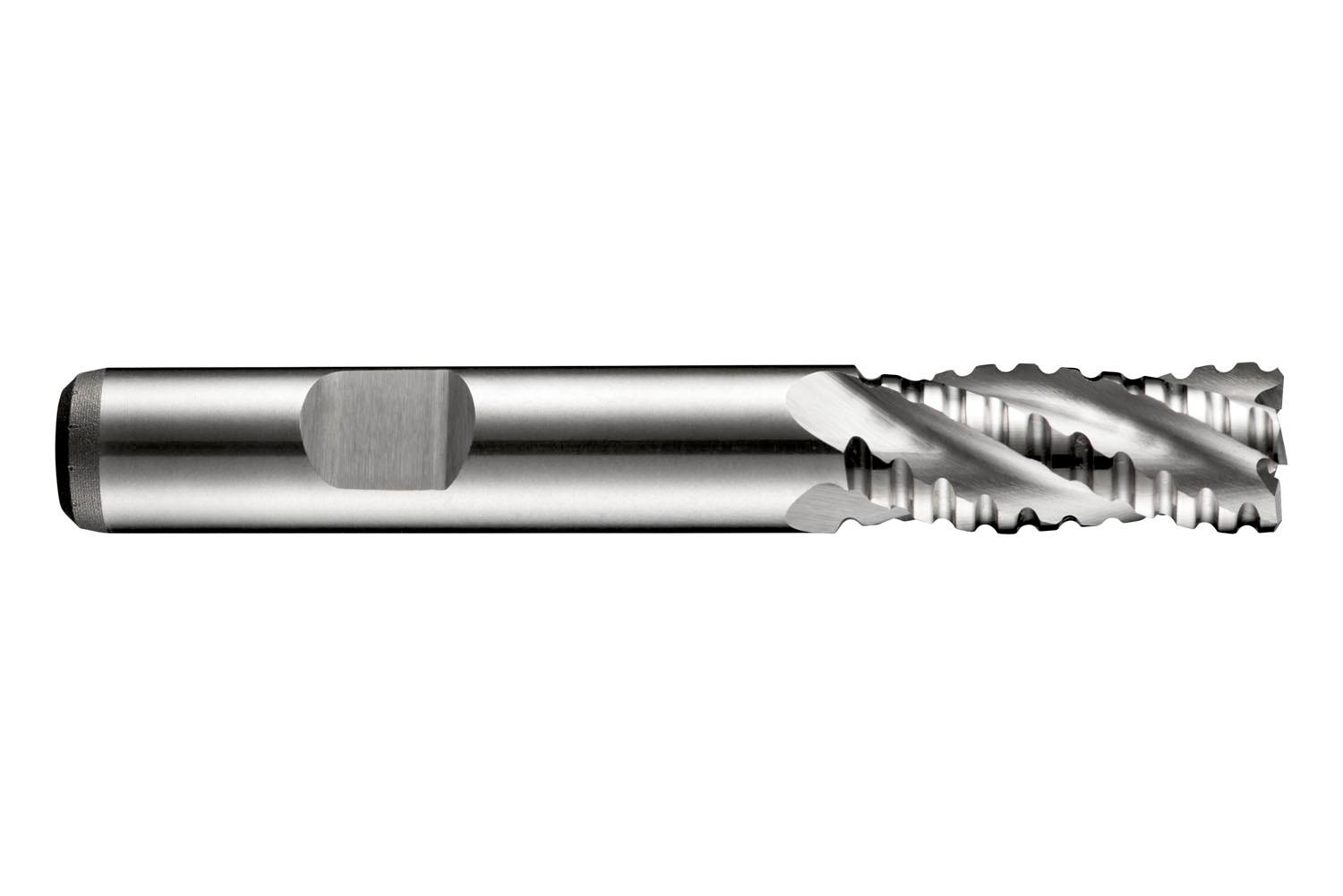

Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 12mm with 26mm length of cut and 83mm overall length, according to DIN 844 K standard with a 12mm Weldon shank, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight 0.1067 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760067901
Product number (SAP): 86013974
Ordering code ANSI: C40012.0
Gross weight – grams: 69

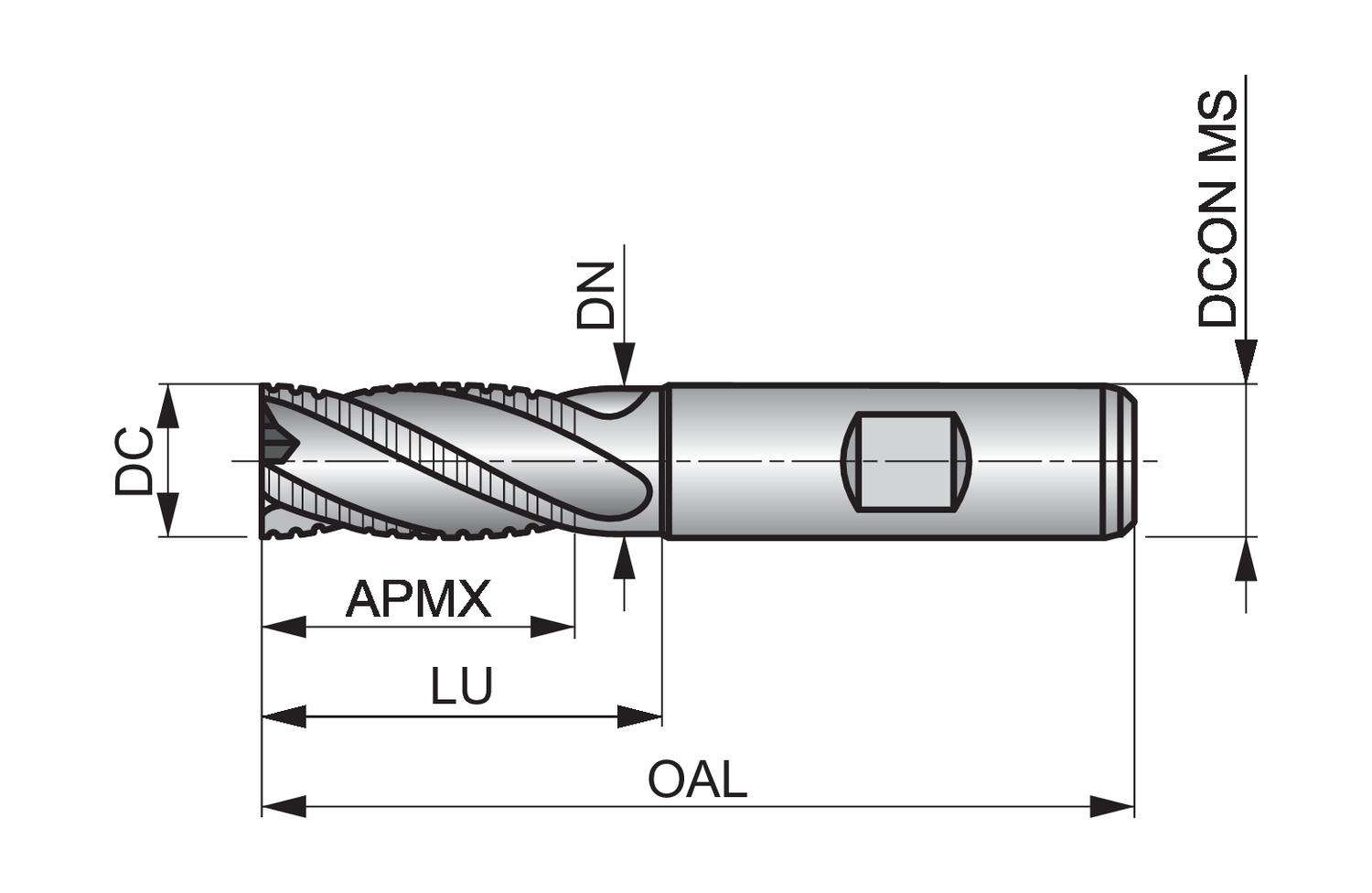

Cutting diameter – millimeter (DC): 12 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 26 mm
Overall length – millimeter (OAL): 83 mm

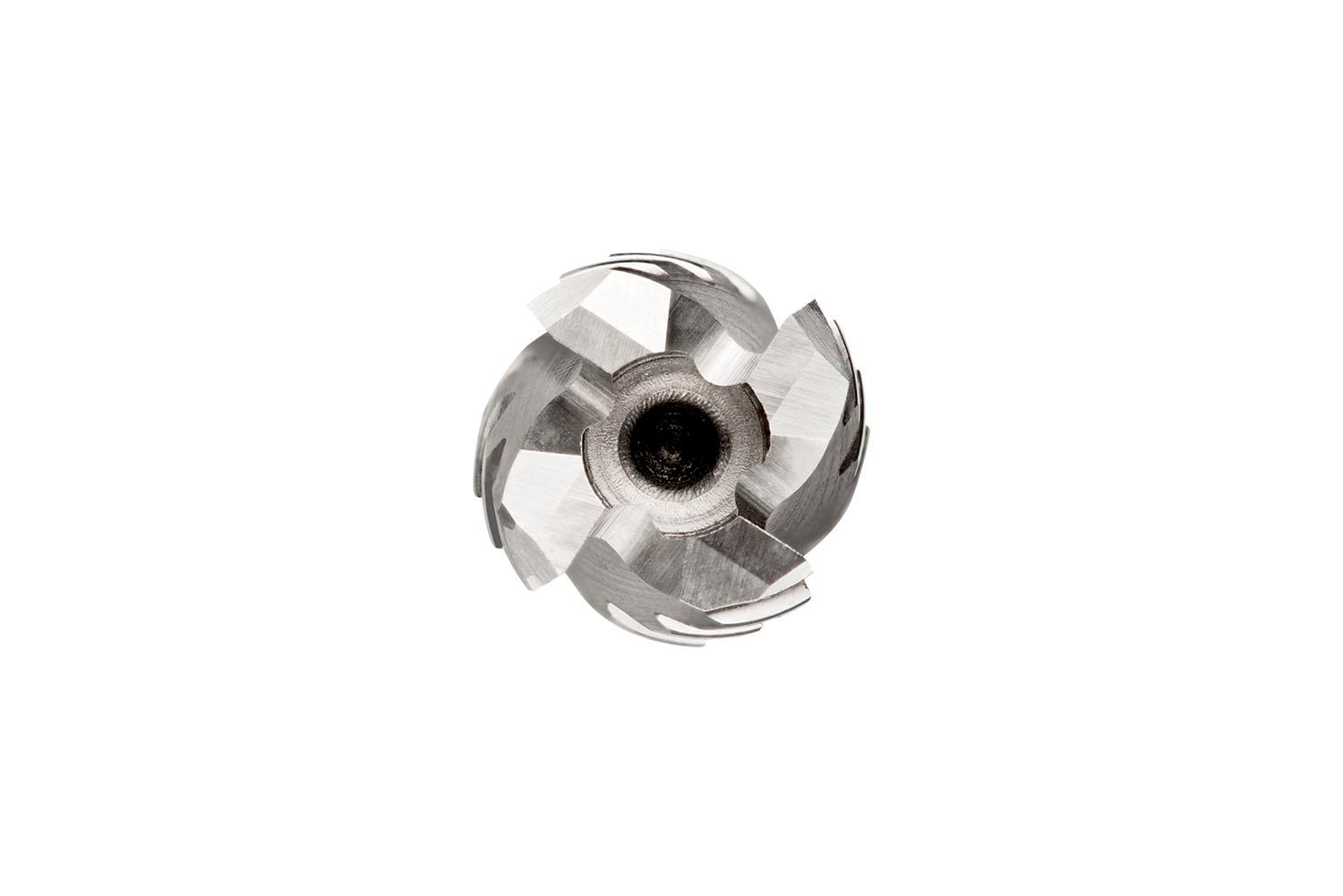

Flute count (NOF): 4
Radial rake angle (GAMF): 12
ISO: C40012.0

Brand

DORMER
