DORMER C40014.0 HSCO Cutters

Product Code: C40014.0

$137.09$124.63 Ex. GST

Product Code: C40014.0 SKU C40014.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

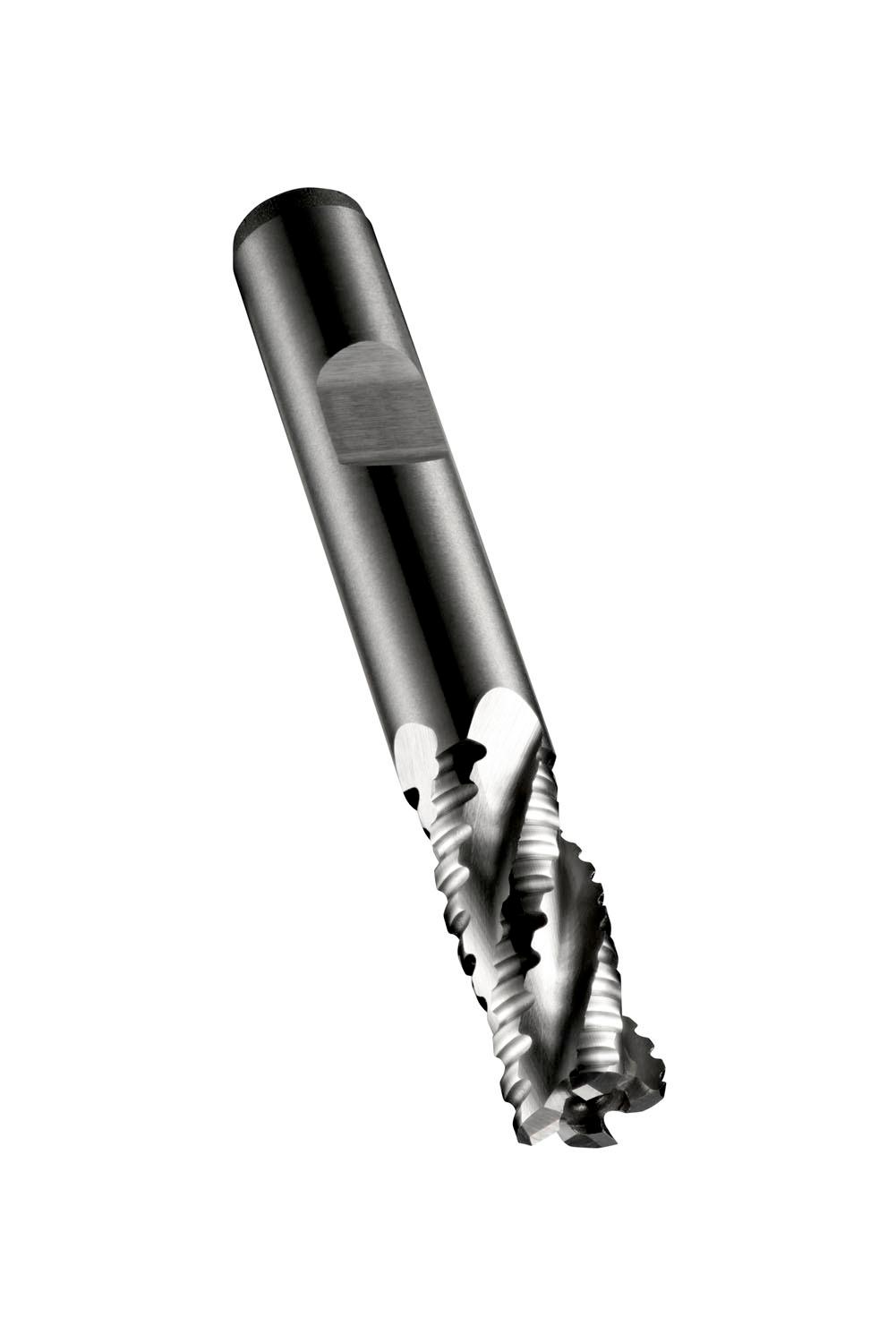

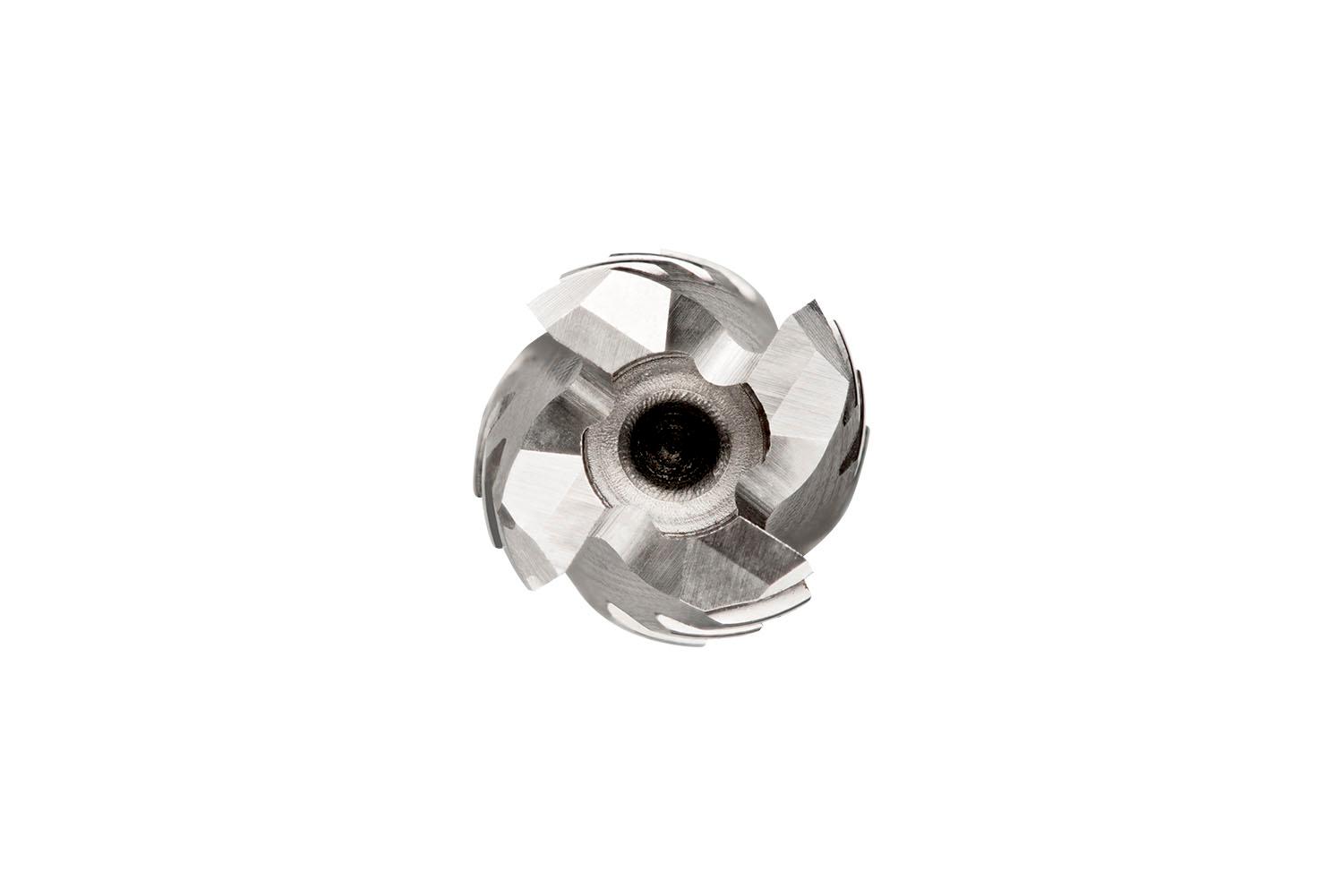

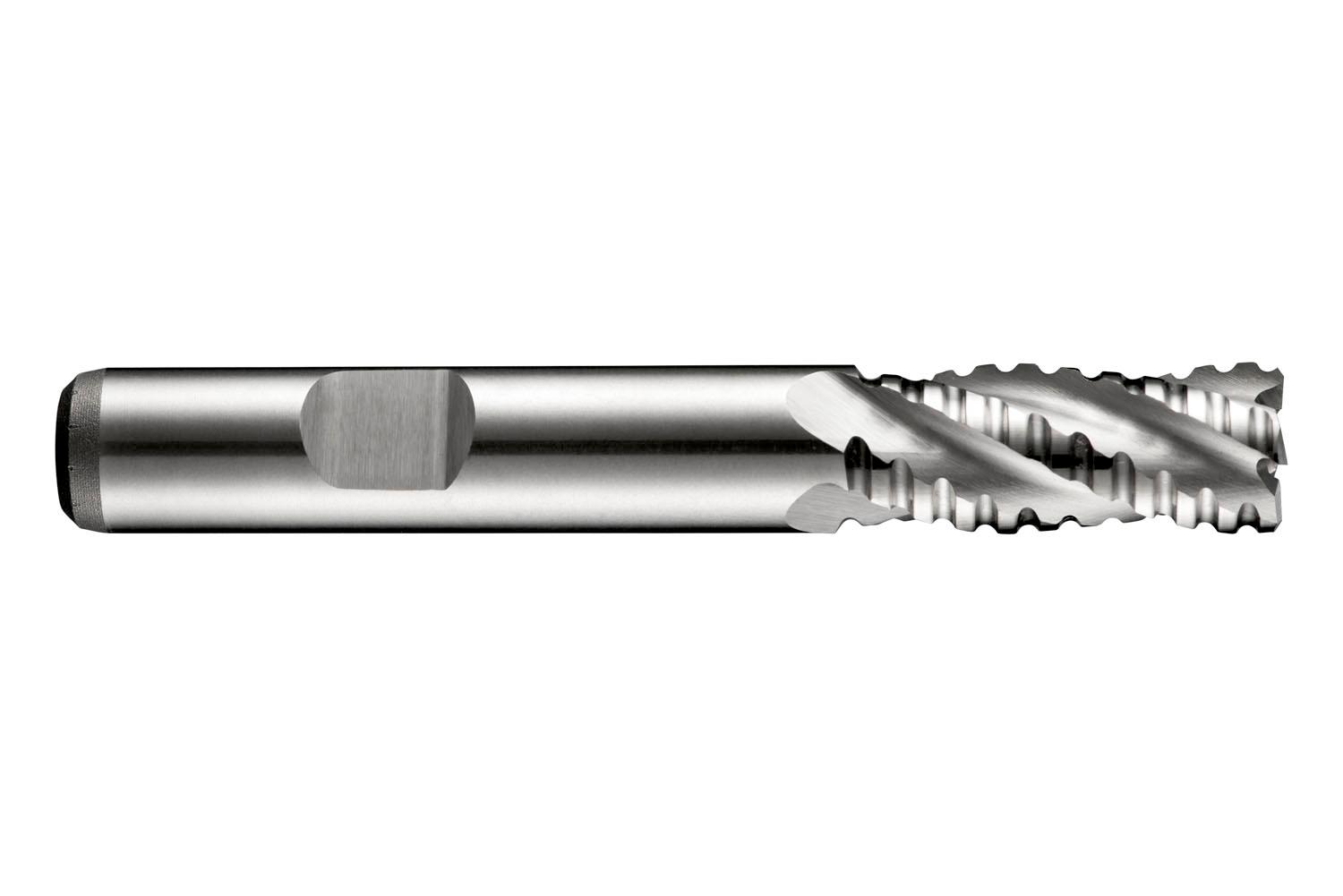

Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 14mm with 26mm length of cut, 83mm overall length and 37.5mm reach with neck relief, according to DIN 844 K standard with a 12mm Weldon shank, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight 0.1331 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760067925
Product number (SAP): 86013976
Ordering code ANSI: C40014.0
Gross weight – grams: 74.1

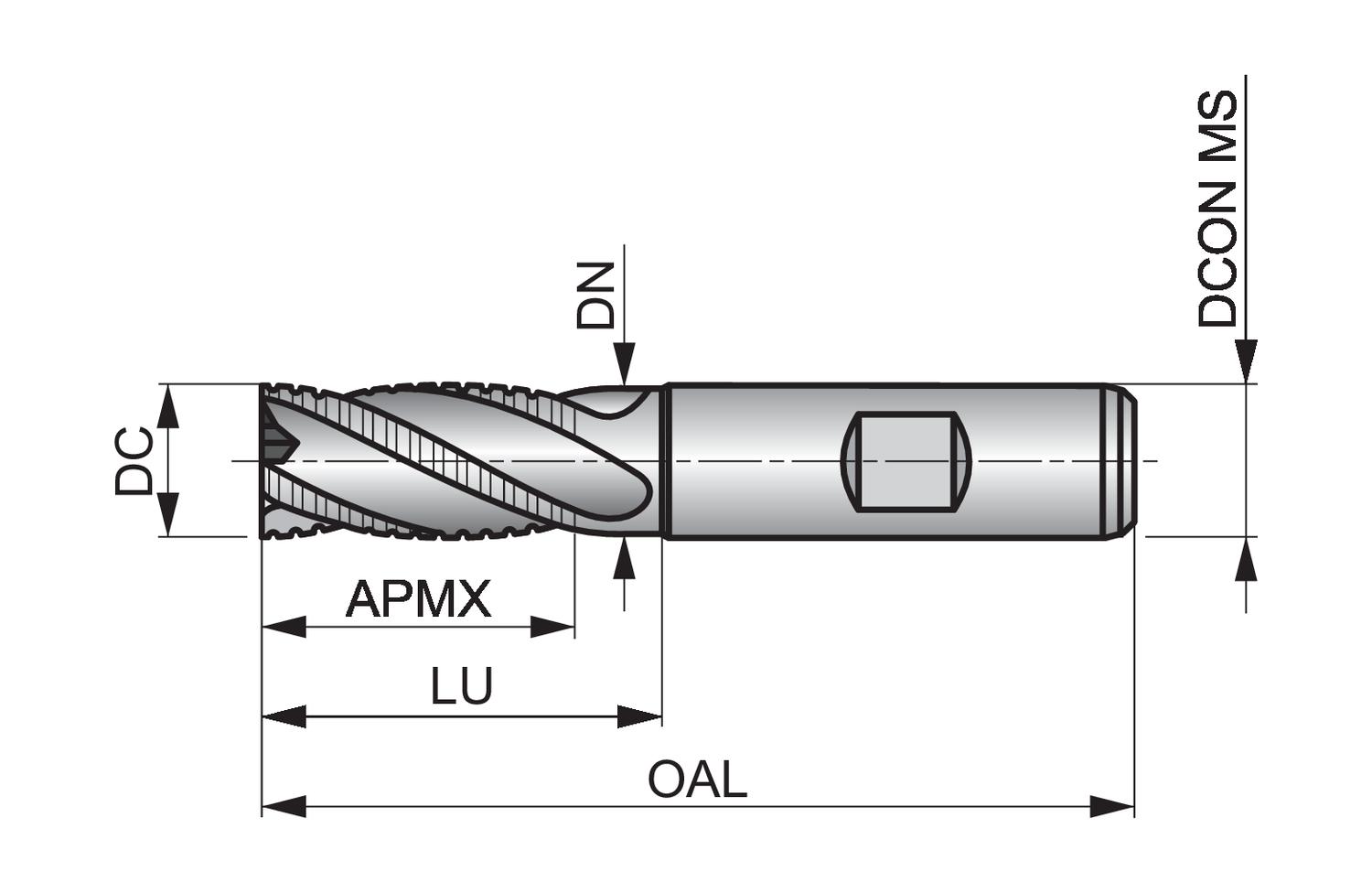

Cutting diameter – millimeter (DC): 14 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 26 mm
Overall length – millimeter (OAL): 83 mm
Flute count (NOF): 4
Usable Length – millimeter (LU): 37.5 mm
Neck diameter – millimeter (DN): 11.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C40014.0

Brand

DORMER
