DORMER C4008.0 HSCO Cutters

Product Code: C4008.0

$84.98$77.25 Ex. GST

Product Code: C4008.0 SKU C4008.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

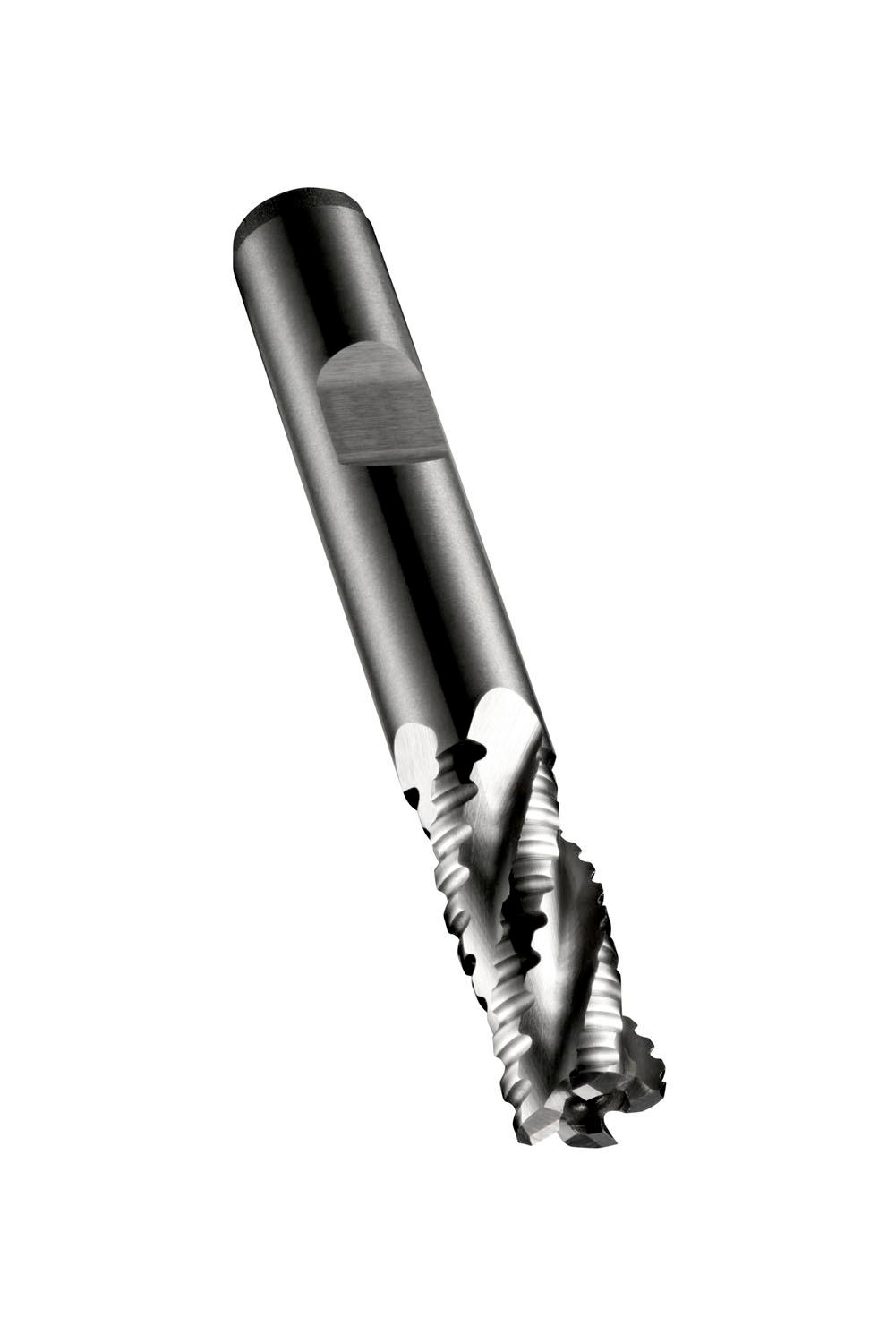

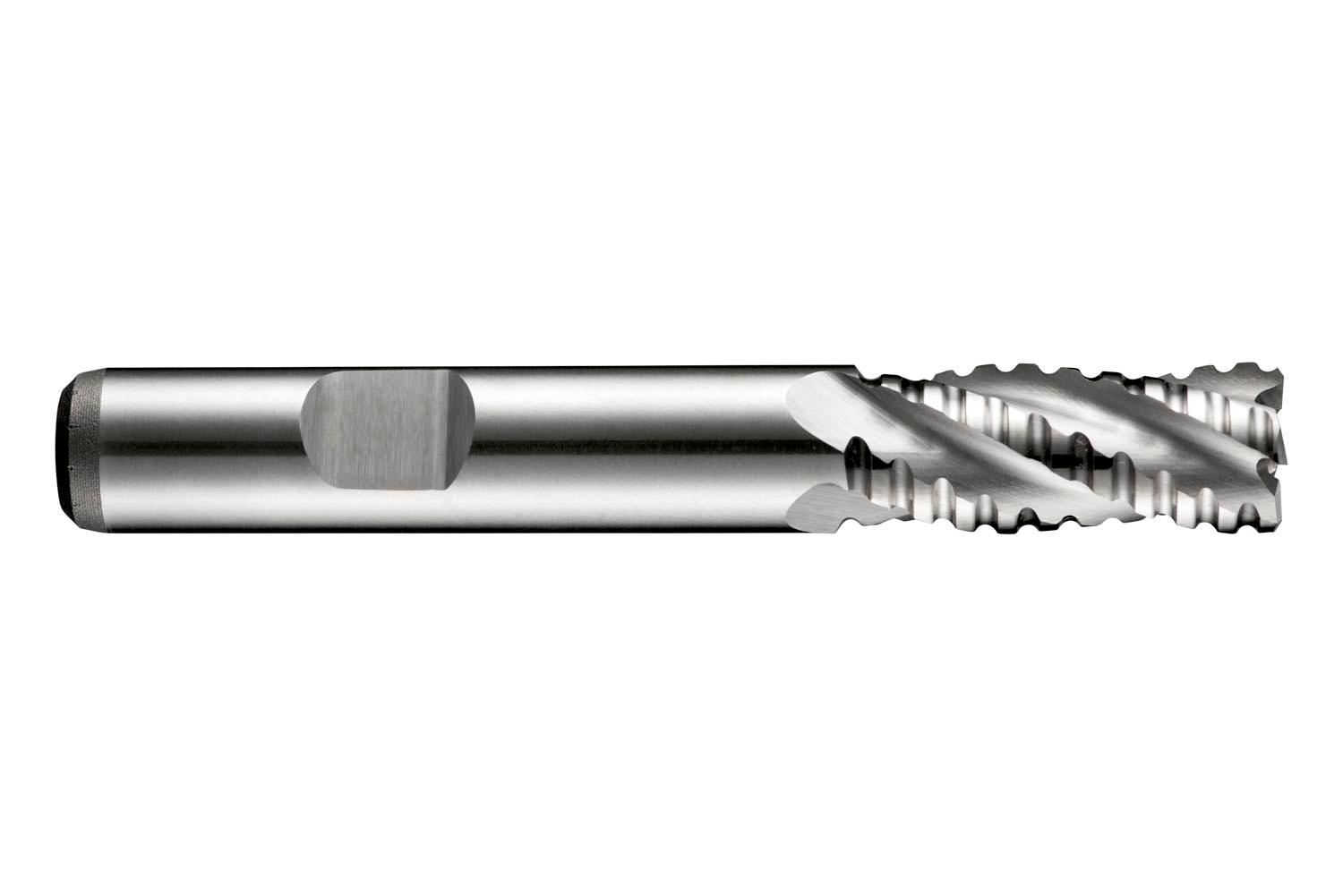

Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 8mm with 19mm length of cut and 69mm overall length, according to DIN 844 K standard with a 10mm Weldon shank, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining and plain carbon steel and copper or copper alloys

Additional information

Weight 0.0825 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760068106
Product number (SAP): 86013993
Ordering code ANSI: C4008.0
Gross weight – grams: 37.9

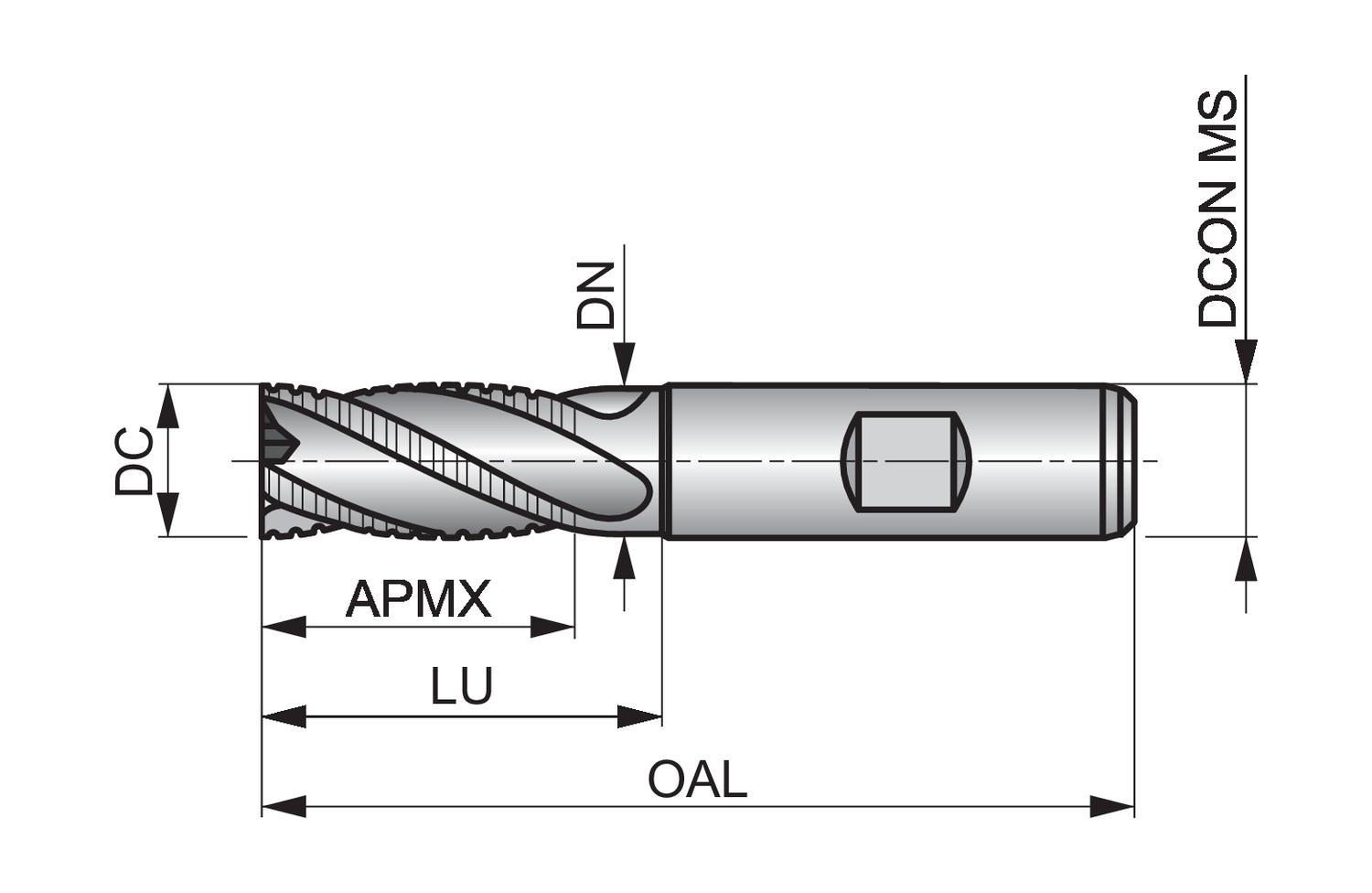

Cutting diameter – millimeter (DC): 8 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 19 mm
Overall length – millimeter (OAL): 69 mm

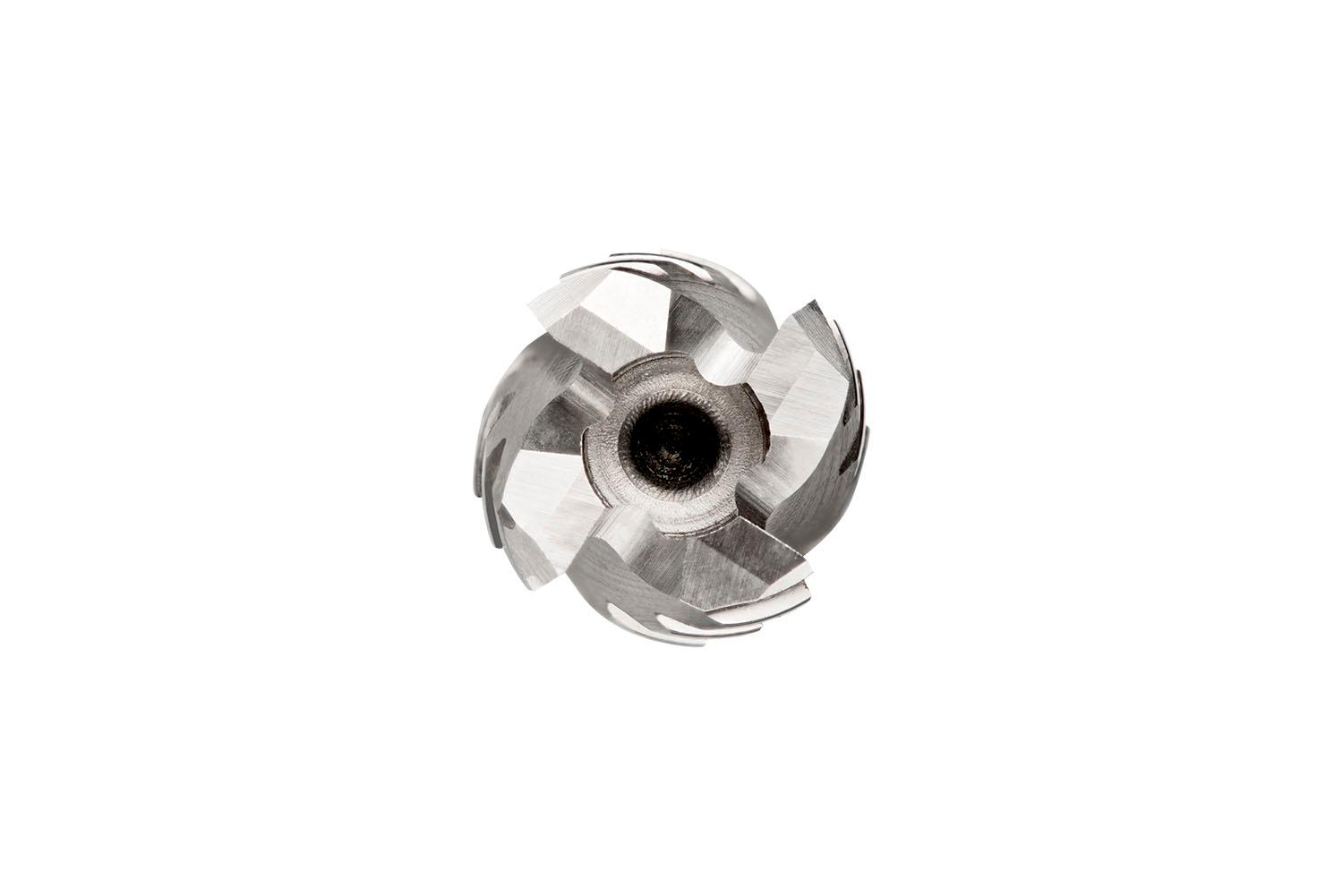

Flute count (NOF): 4
Neck diameter – millimeter (DN): 8 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C4008.0

Brand

DORMER
