DORMER C4076.0 Primax Cutters

Product Code: C4076.0

$79.31$72.10 Ex. GST

Product Code: C4076.0 SKU C4076.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

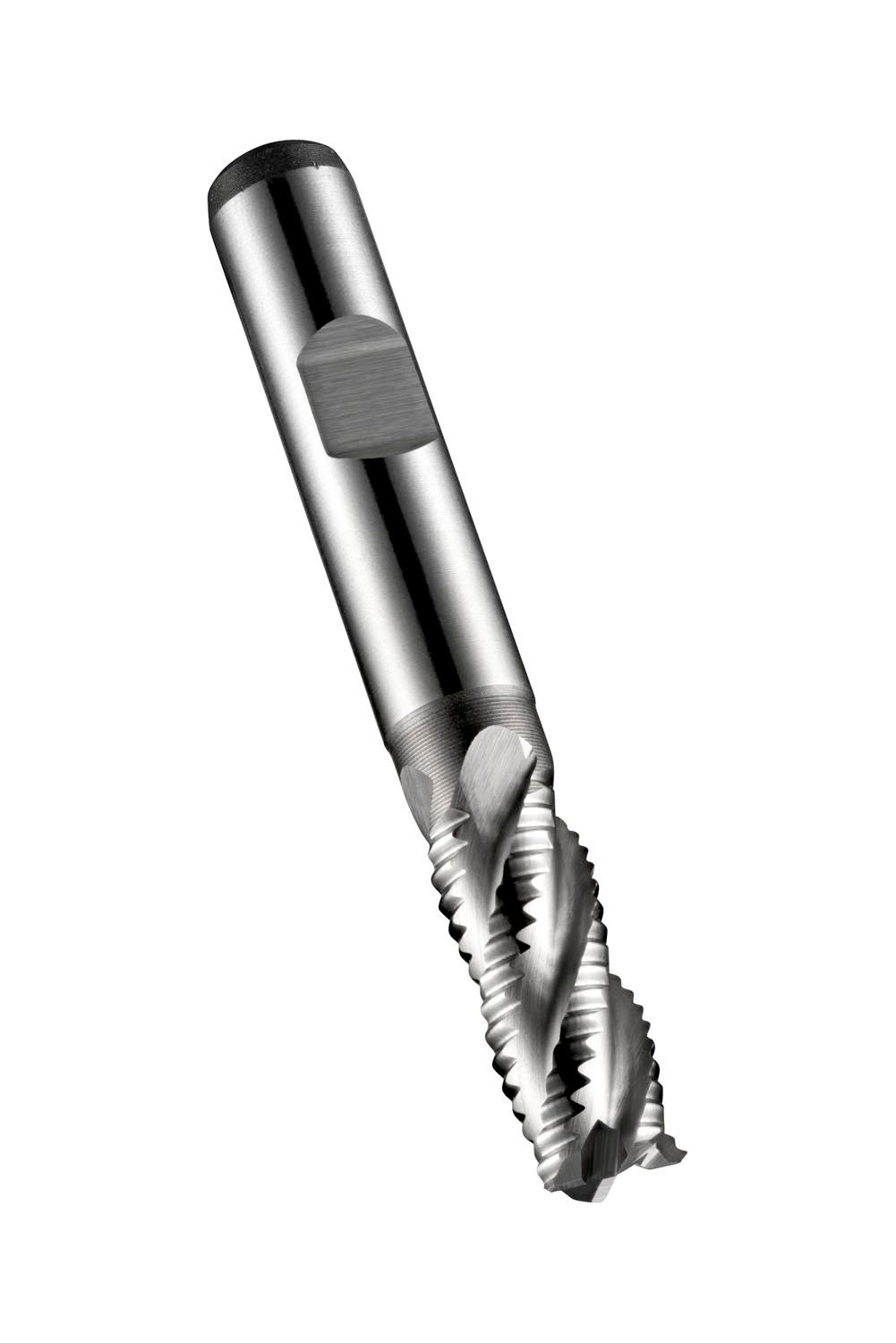

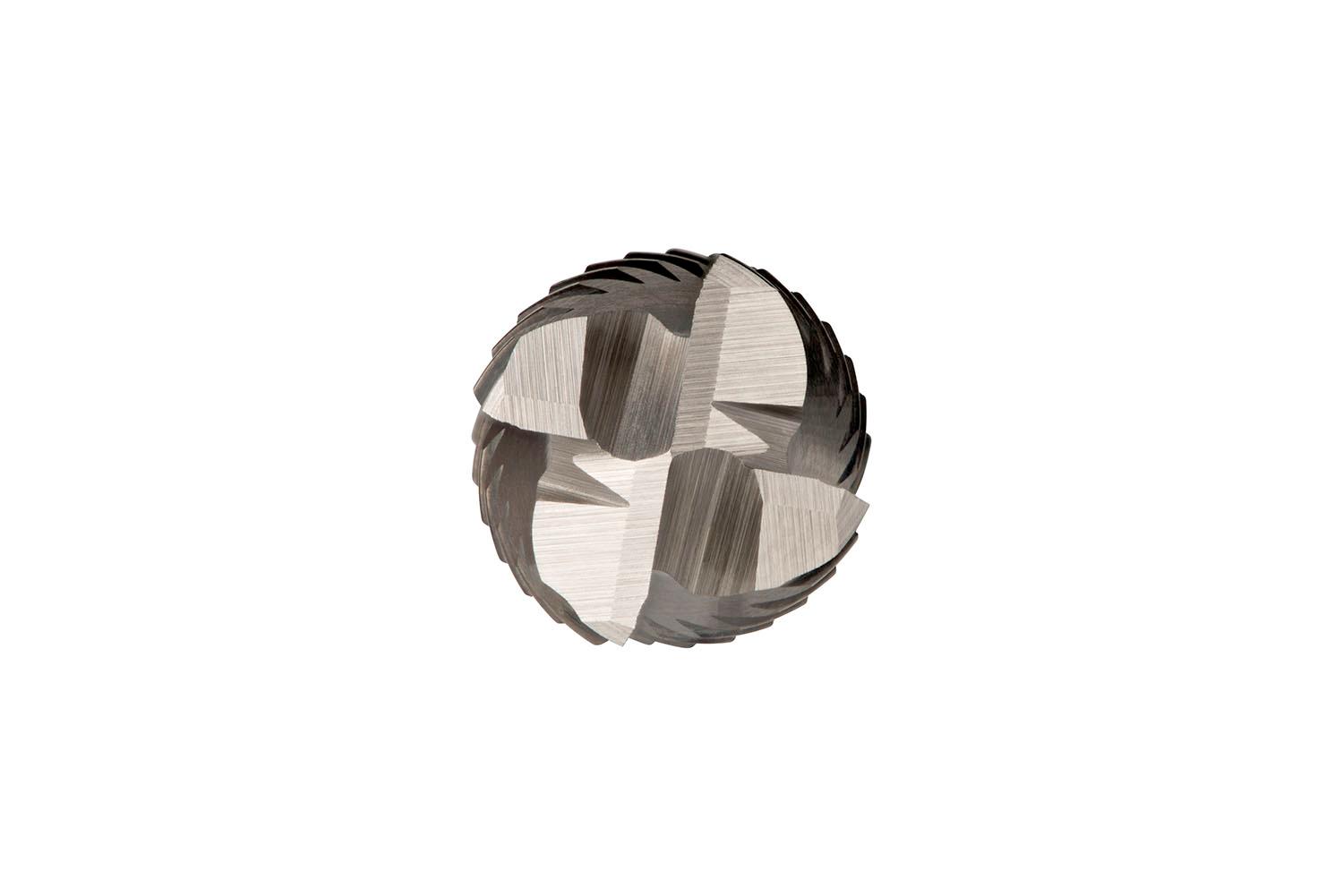

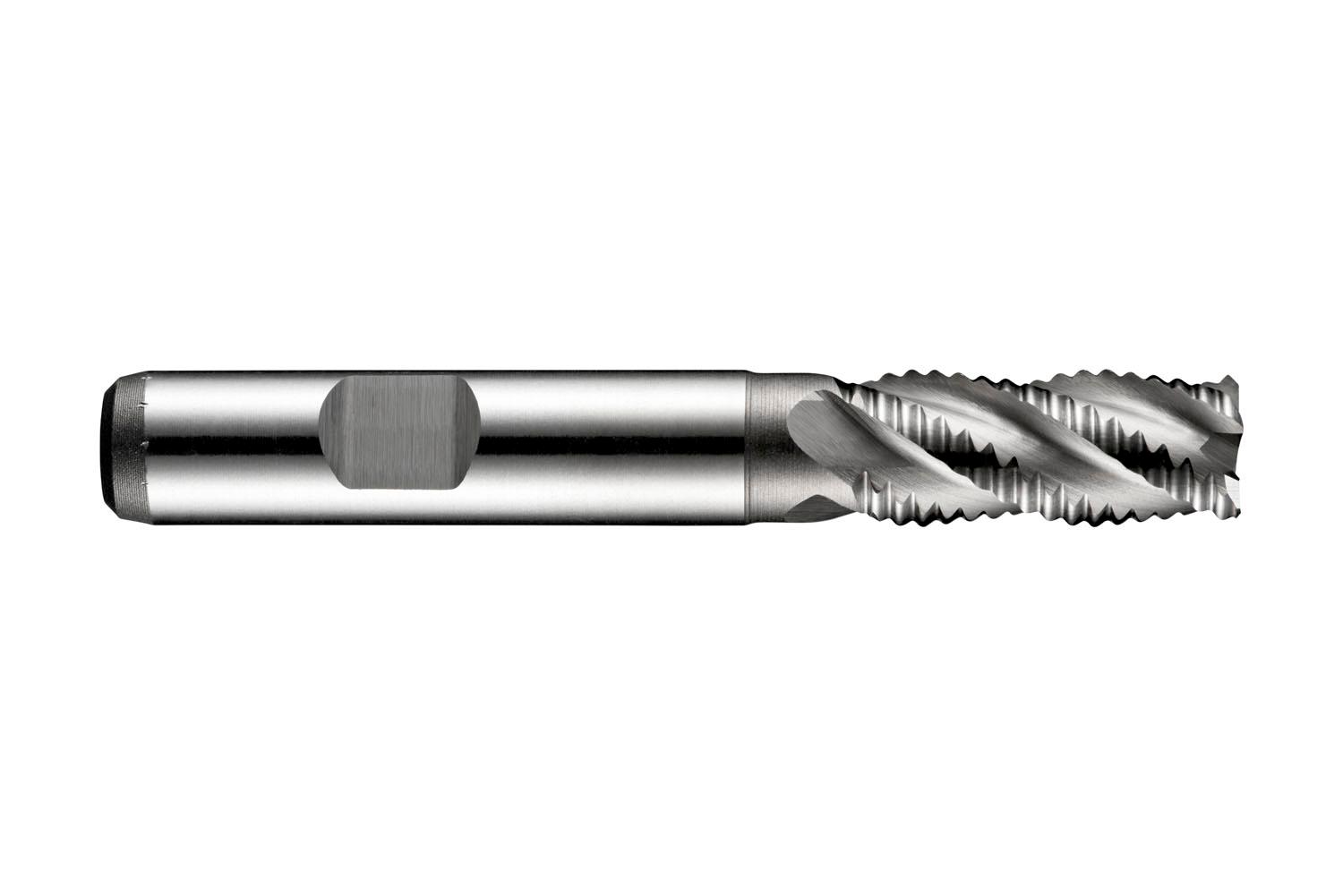

Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 6mm with 13mm length of cut and 57mm overall length, according to DIN 844 K standard with a 6mm Weldon shank, powder metallurgical HSS-E with bright finish, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic, martensitic and super-austenitic, Duplex or precipitation hardening stainless steel, cast-iron, copper or copper alloys and high-temperature alloys

Additional information

Weight 0.0770 kg
Dimensions
barcode
Additional Information

Description: Value

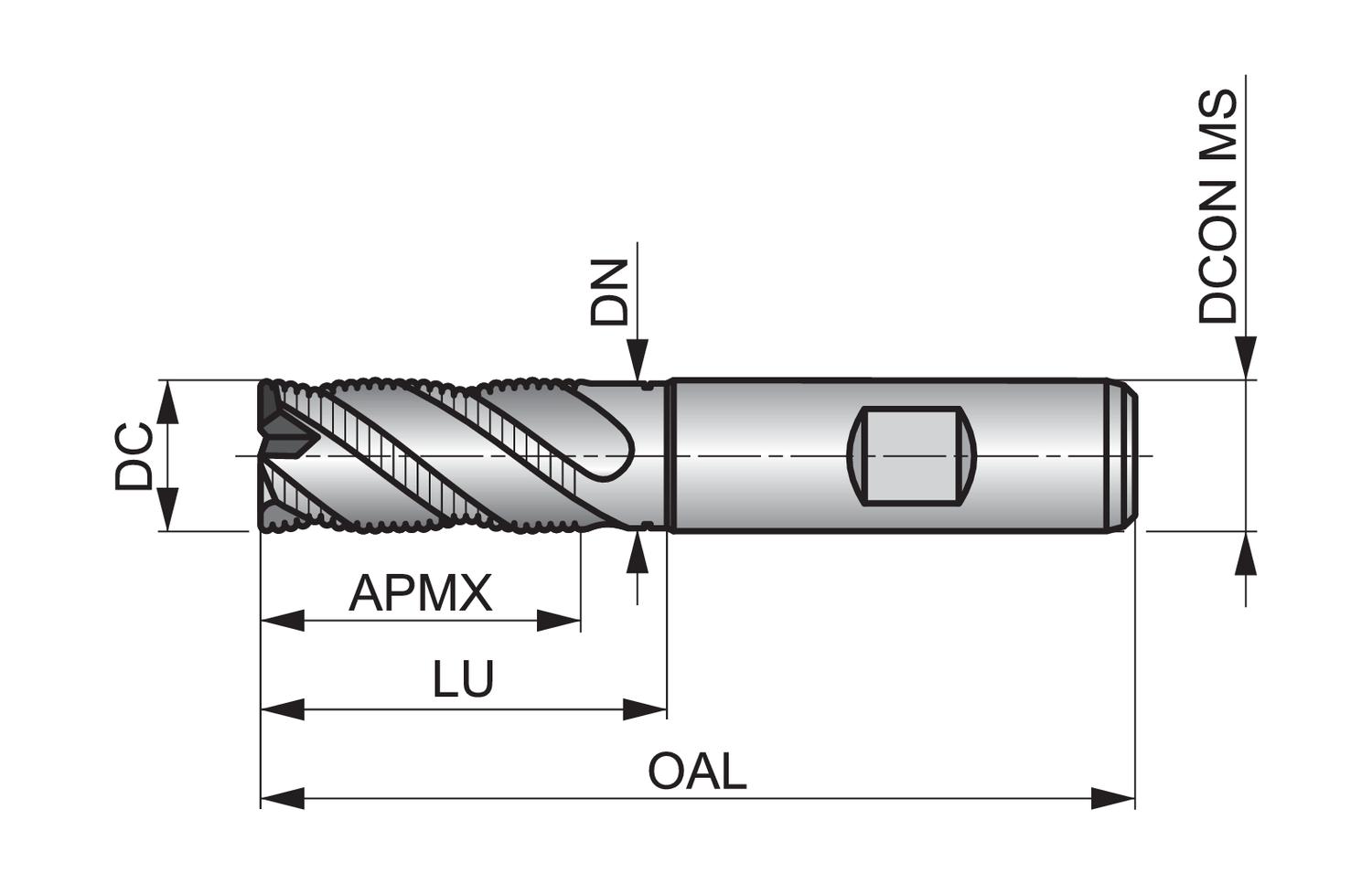

EAN number: 7320760068946 Product number (SAP): 86014025 Ordering code ANSI: C4076.0 Gross weight: 14 g Cutting diameter (DC): 6 mm Connection diameter (DCON MS): 6 mm Depth of cut maximum (APMX): 13 mm Overall length (OAL): 57 mm Flute count (NOF): 4 Radial rake angle (GAMF): 12 ISO: C4076.0

Brand

DORMER
