DORMER C4077.0 Primax Cutters

Product Code: C4077.0

$111.61$101.46 Ex. GST

Product Code: C4077.0 SKU C4077.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

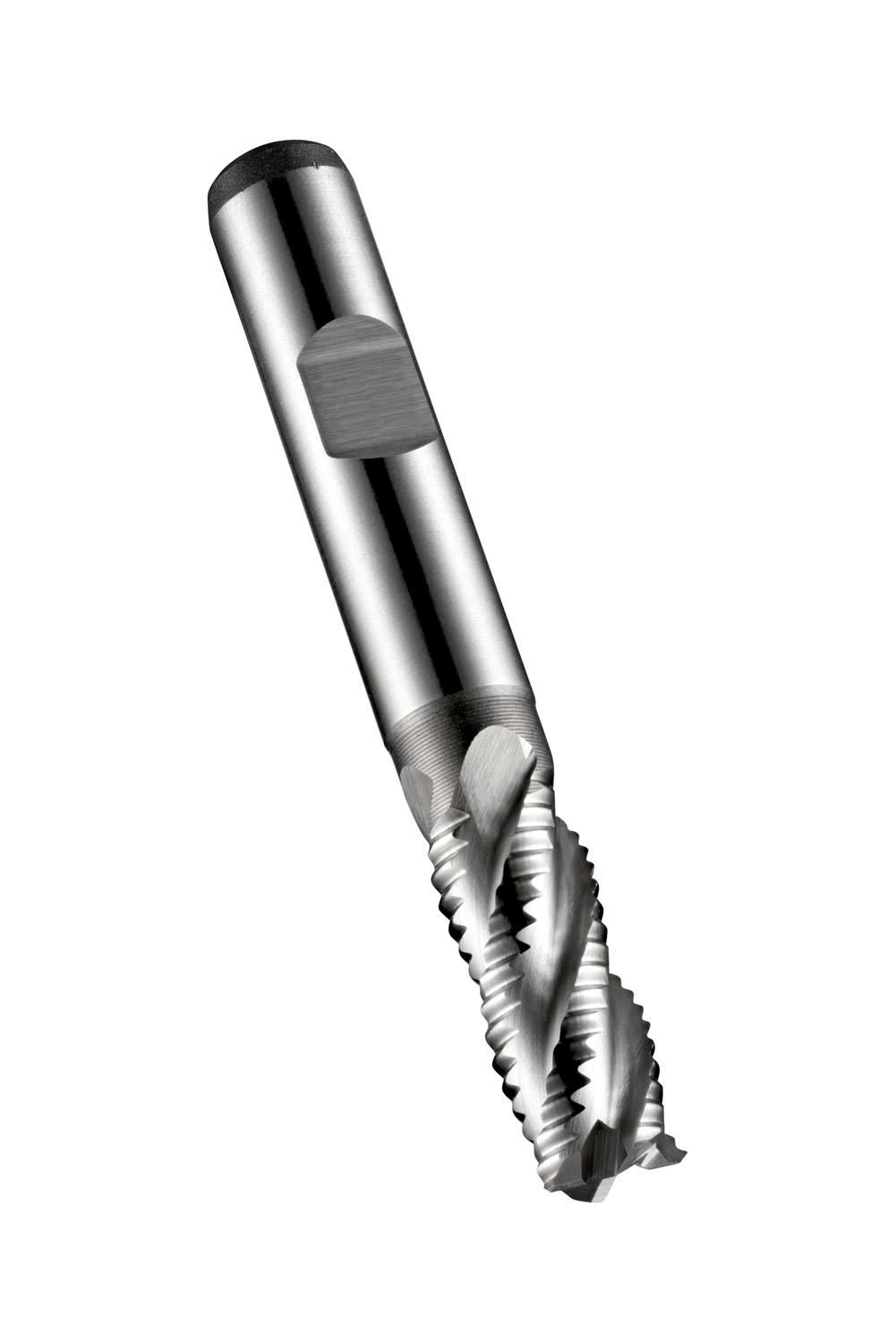

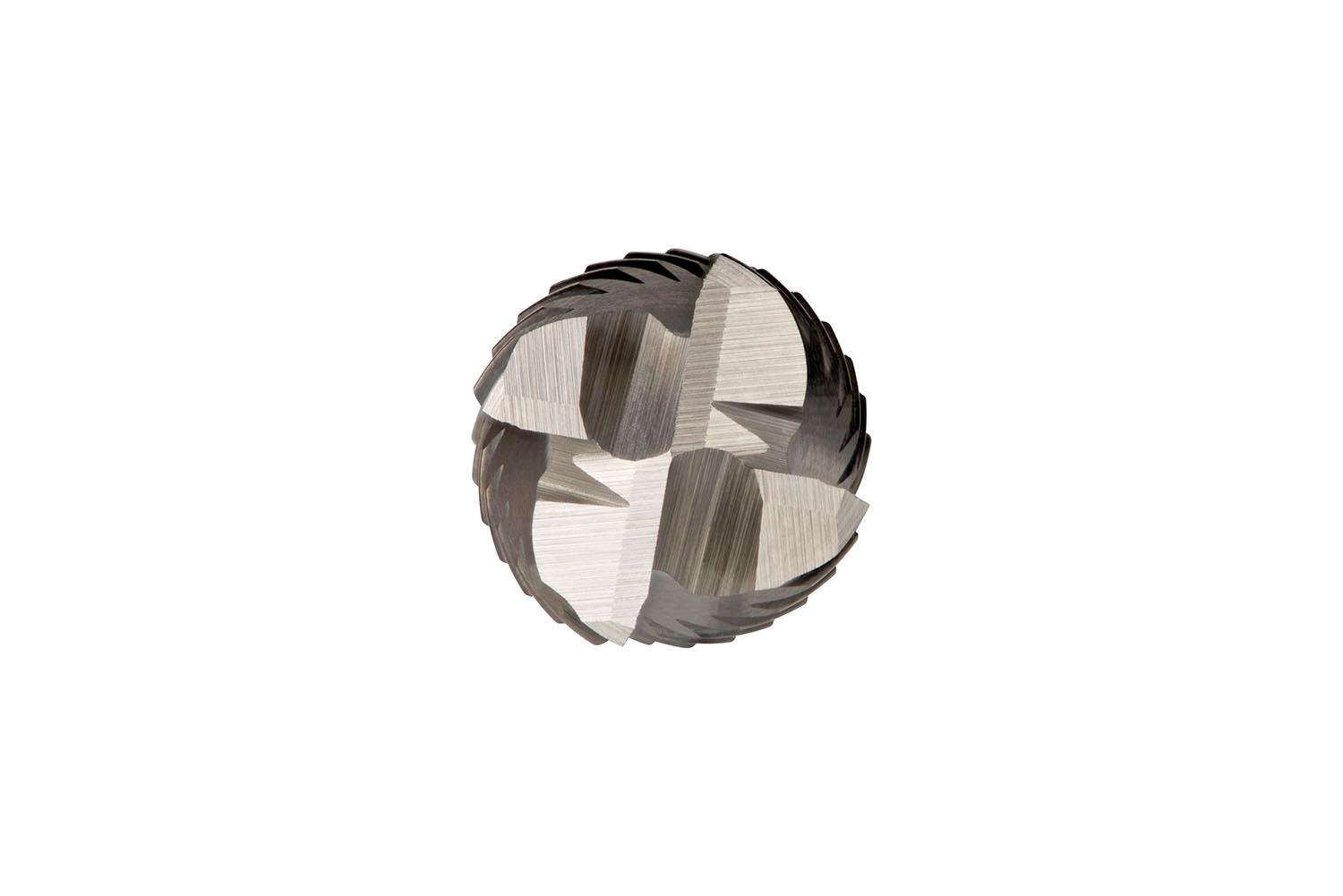

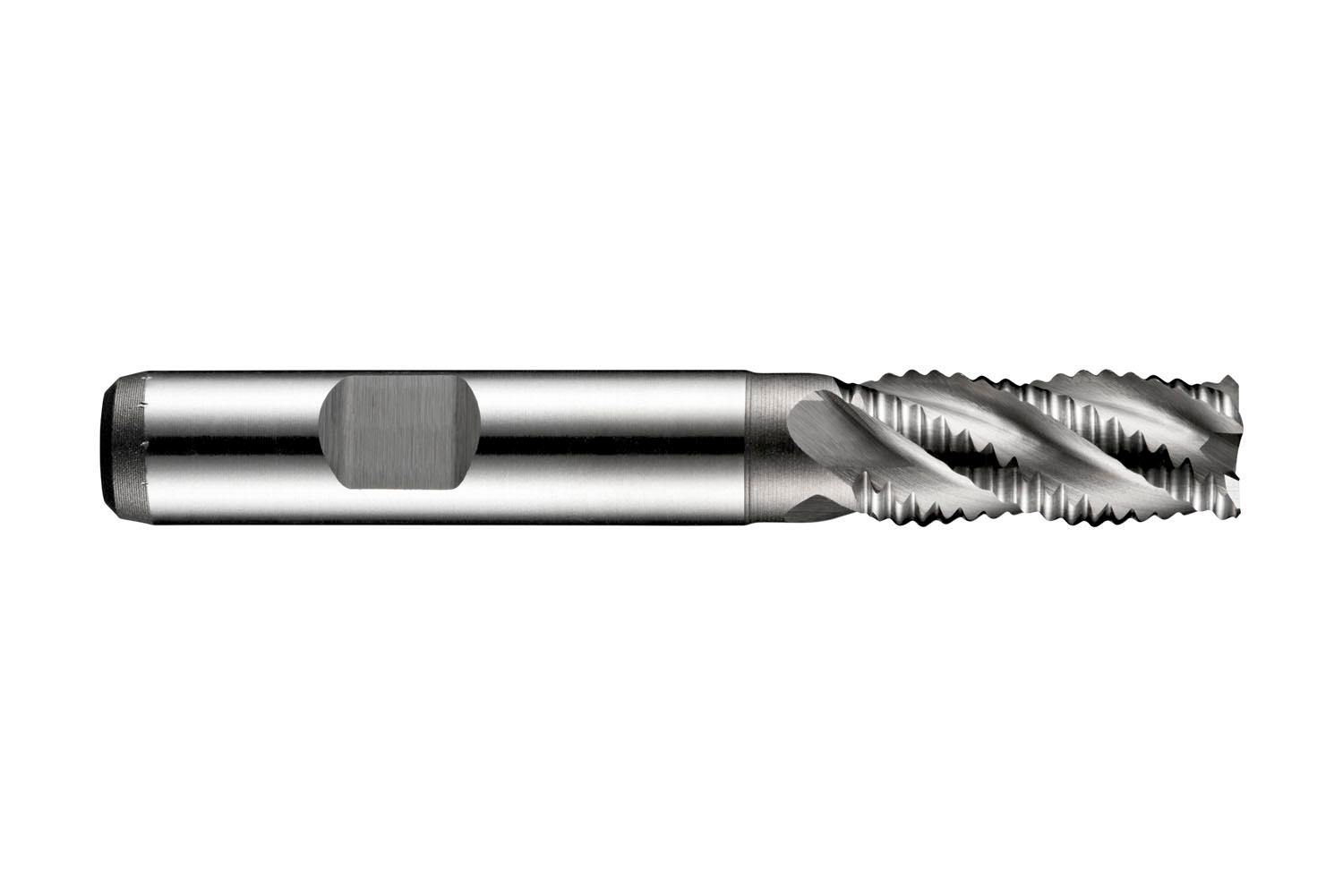

Short series roughing end mill with NRA asymetrical coasre pitch profile and 4 flutes, diameter 7mm with 16mm length of cut and 66mm overall length, according to DIN 844 K standard with a 10mm Weldon shank, powder metallurgical HSS-E with bright finish, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in steel and cast steel, ferritic, martensitic and super-austenitic, Duplex or precipitation hardening stainless steel, cast-iron, copper or copper alloys and high-temperature alloys

Additional information

Weight 0.1084 kg
Dimensions
barcode
Additional Information

Description: Value

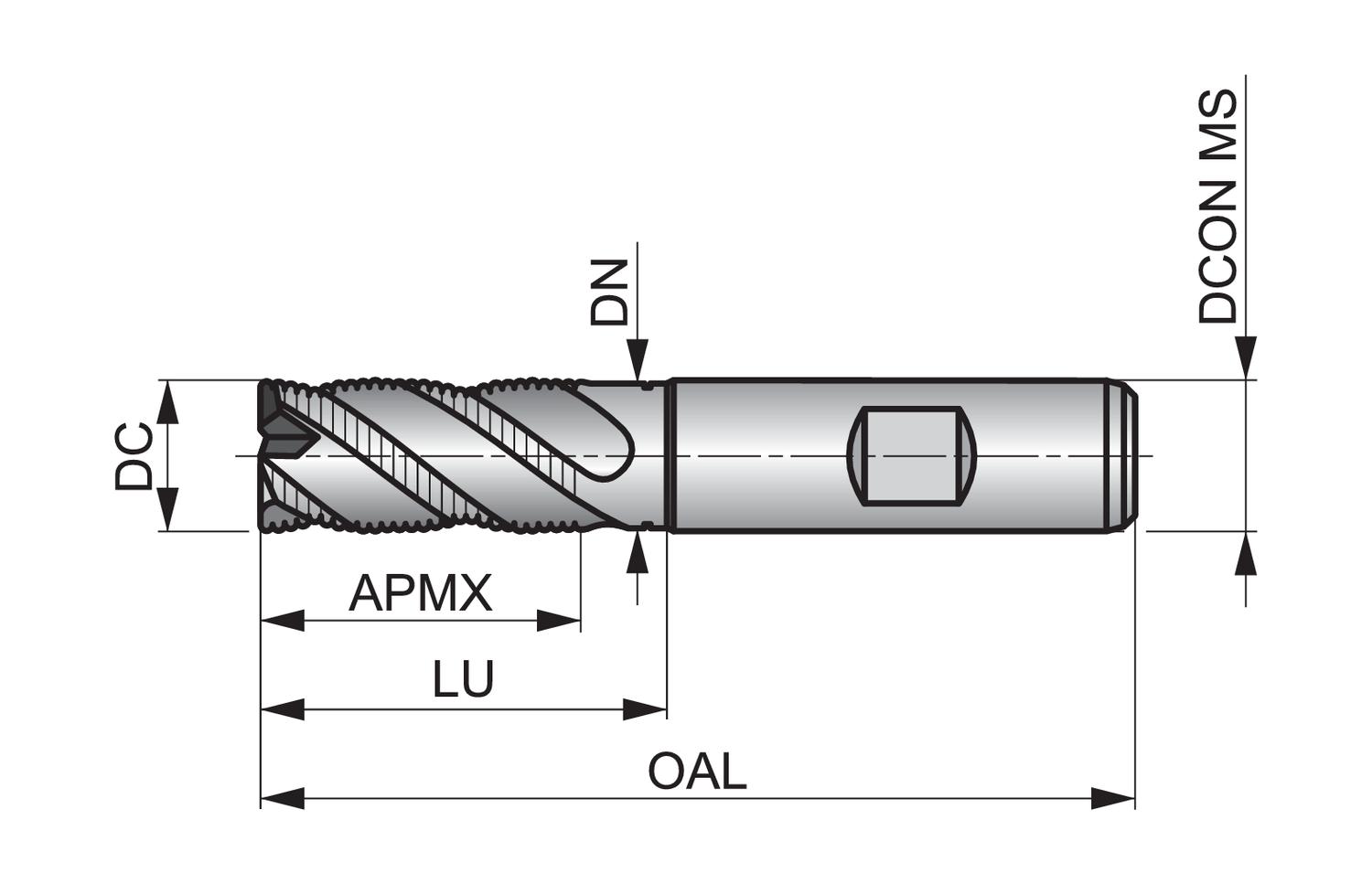

EAN number: 7320760346136 Product number (SAP): 86014026 Ordering code ANSI: C4077.0 Gross weight: 35.7 g Cutting diameter (DC): 7 mm Connection diameter (DCON MS): 10 mm Depth of cut maximum (APMX): 16 mm Overall length (OAL): 66 mm Flute count (NOF): 4 Neck diameter (DN): 7 mm Radial rake angle (GAMF): 12 With Neck: Yes ISO: C4077.0

Brand

DORMER
