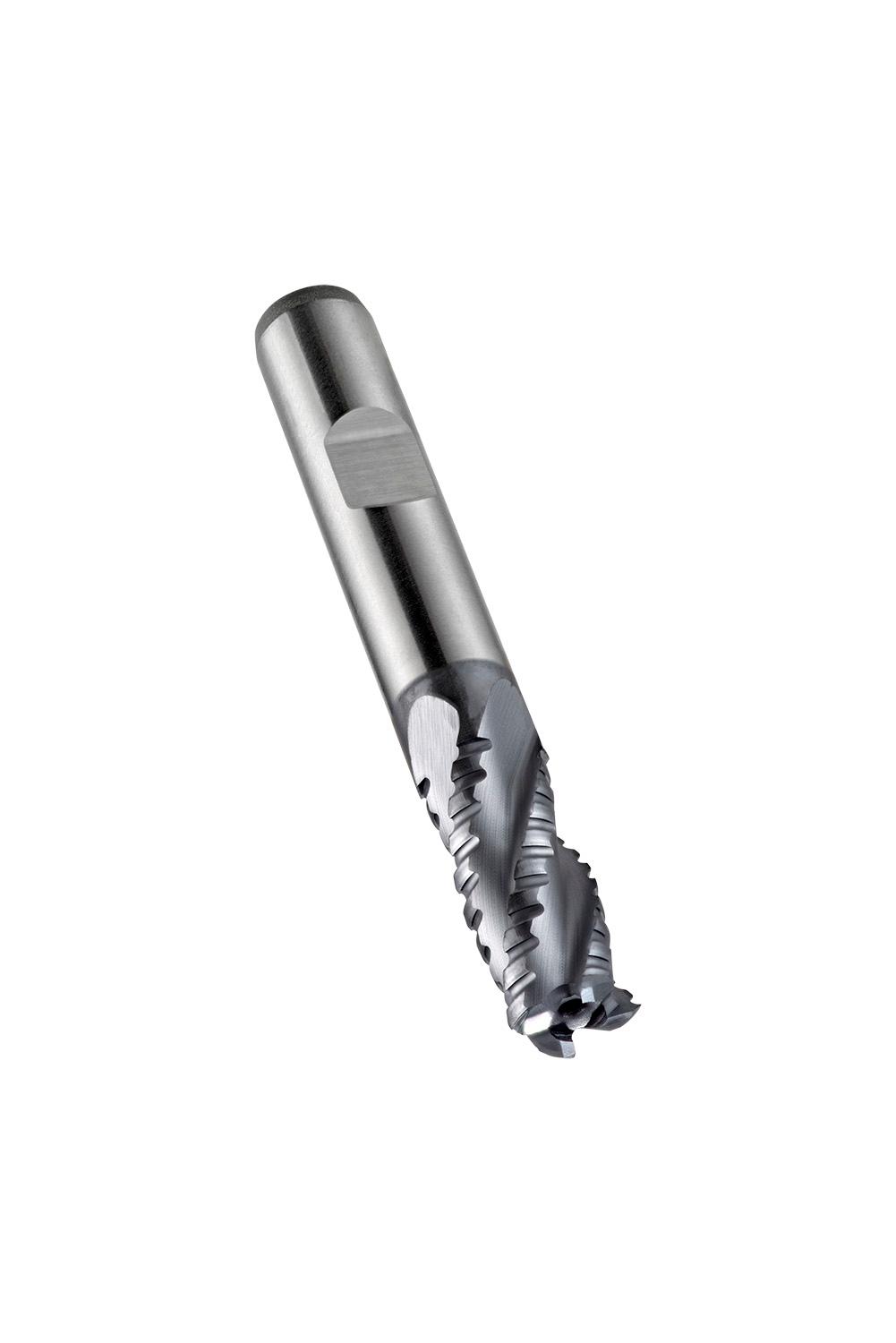

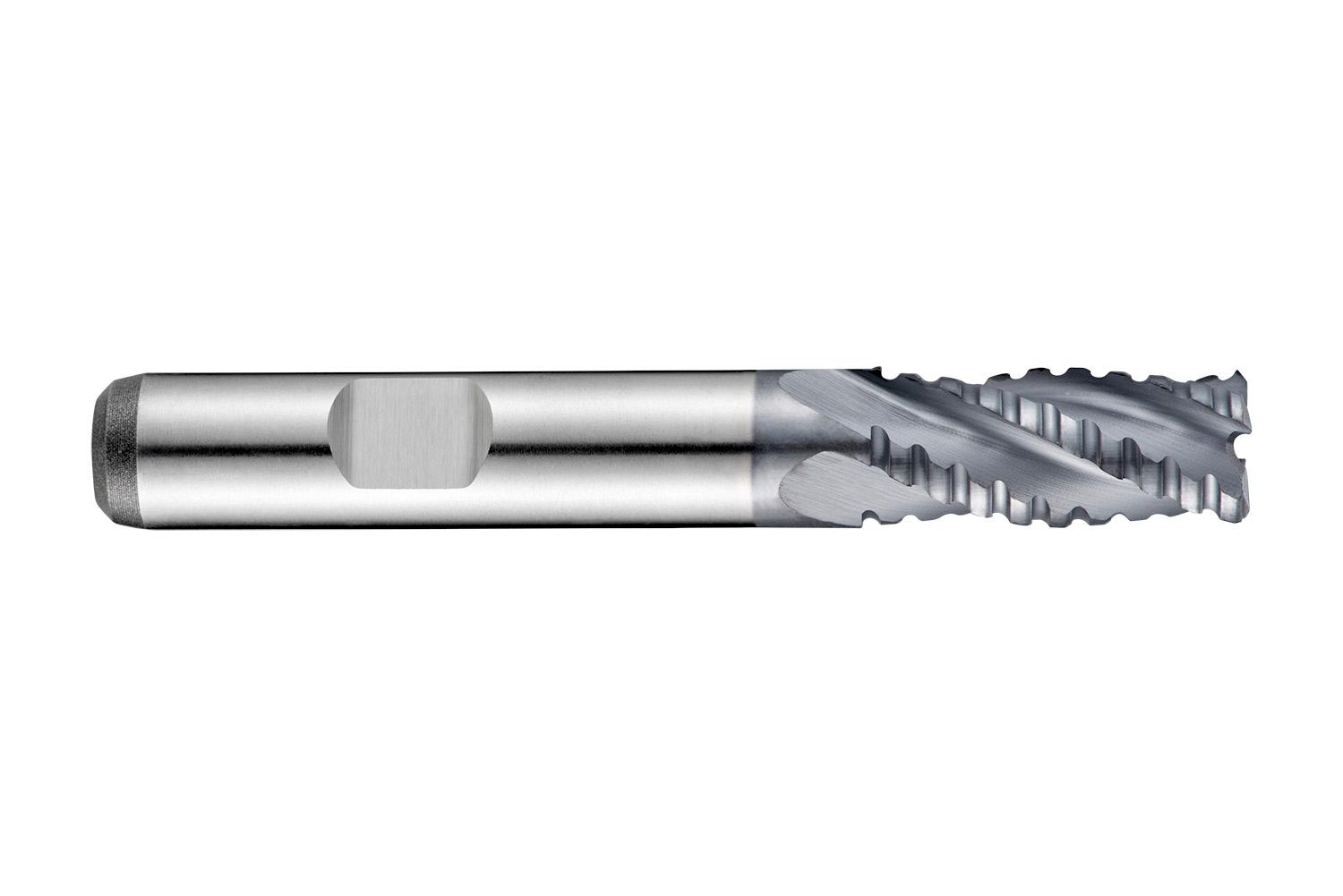

DORMER C41310.0 HSCO Cutters

Product Code: C41310.0

$130.30$118.45 Ex. GST

Product Code: C41310.0 SKU C41310.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

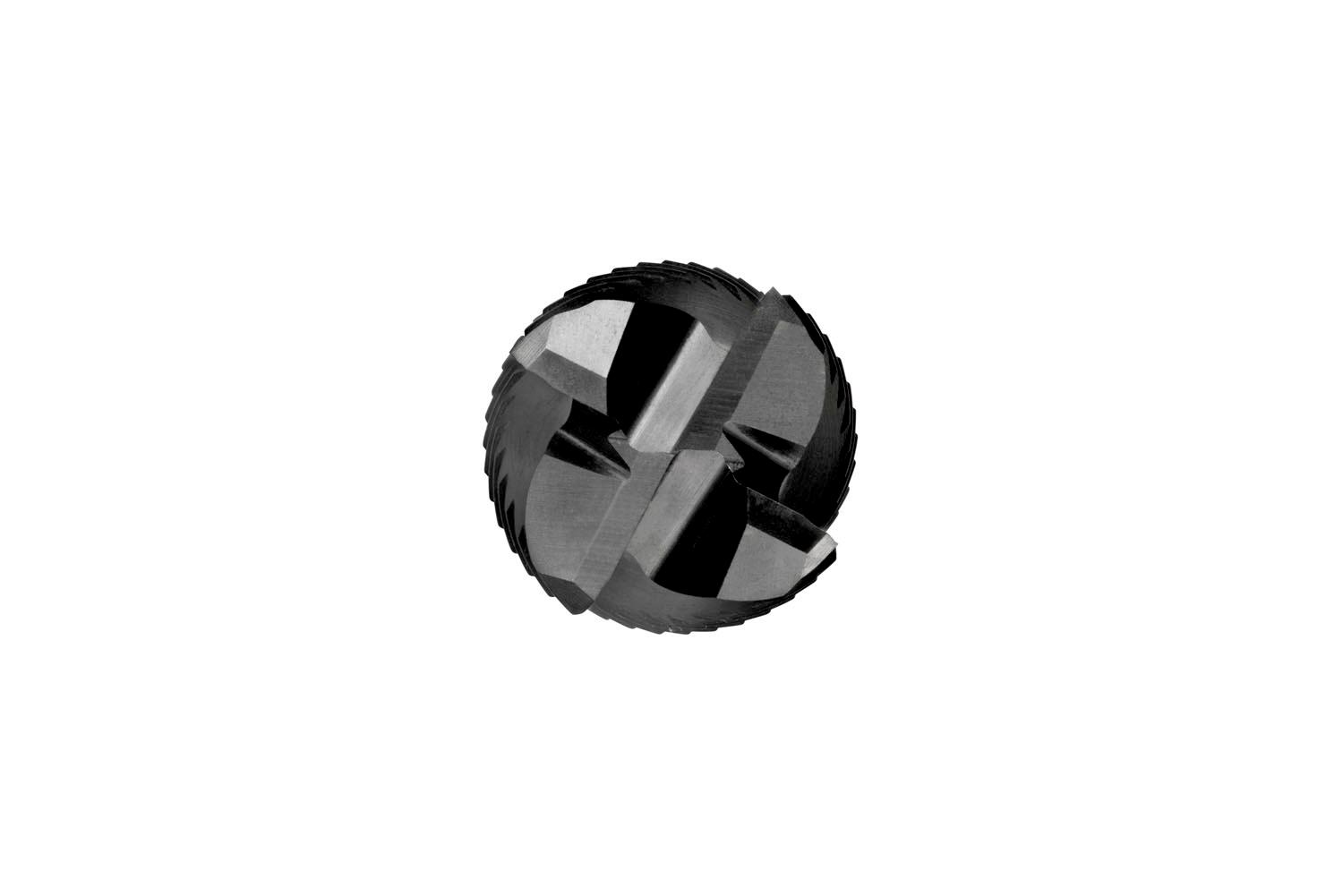

Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 10mm with 22mm length of cut and 72mm overall length, according to DIN 844 K standard with a 10mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys

Additional information

Weight 0.1265 kg
Dimensions
barcode
Additional Information

Description: Value

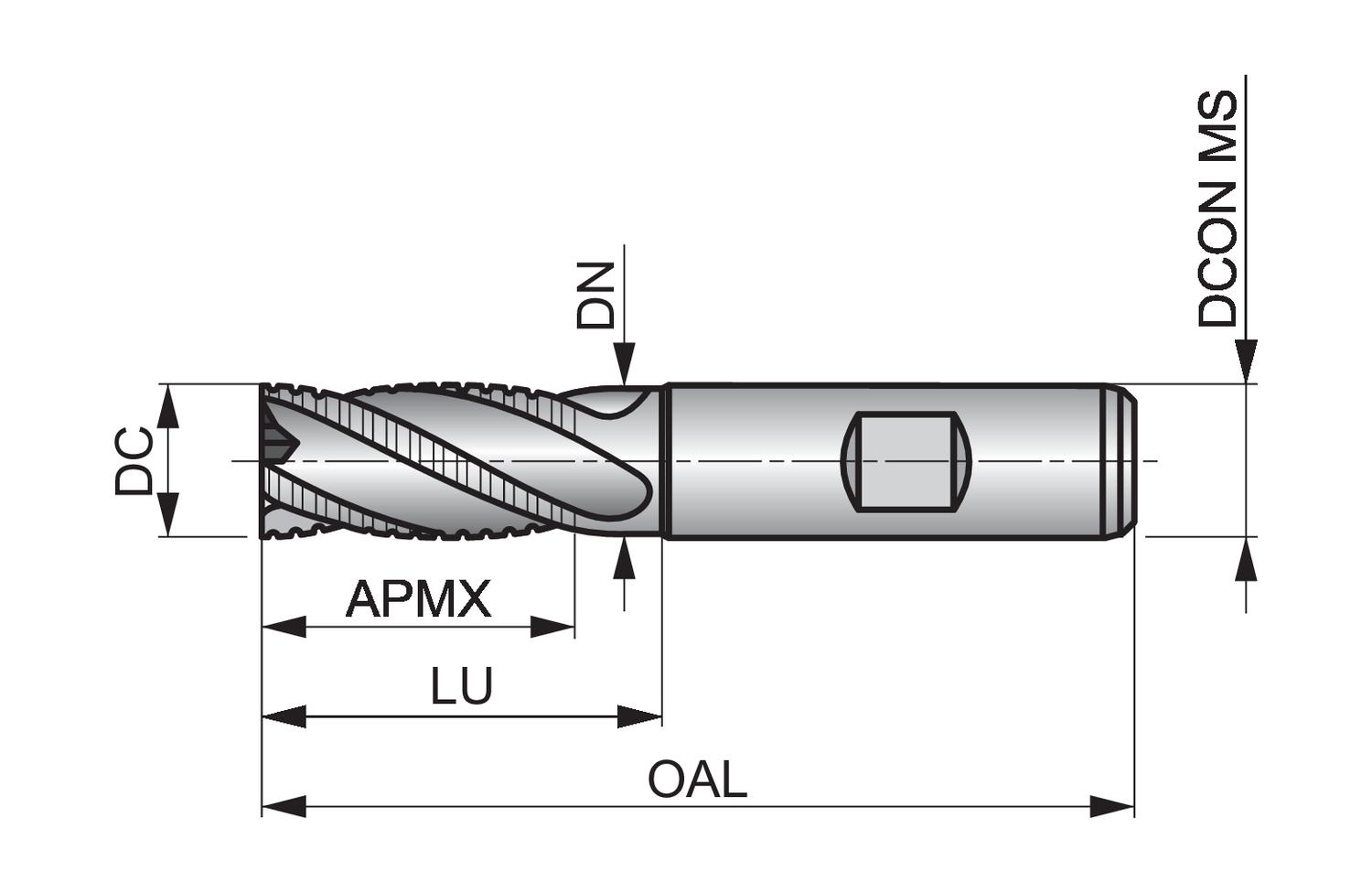

EAN number: 7320760068960 Product number (SAP): 86014029 Ordering code ANSI: C41310.0 Gross weight: 43.7 g Cutting diameter (DC): 10 mm Connection diameter (DCON MS): 10 mm Depth of cut maximum (APMX): 22 mm Overall length (OAL): 72 mm Flute count (NOF): 4 Radial rake angle (GAMF): 12 ISO: C41310.0

Brand

DORMER
