DORMER C41312.0 HSCO Cutters

Product Code: C41312.0

$154.09$140.08 Ex. GST

Product Code: C41312.0 SKU C41312.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 12mm with 26mm length of cut and 83mm overall length, according to DIN 844 K standard with a 12mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys

Additional information

Weight 0.1496 kg
Dimensions
barcode
Additional Information

Description: Value

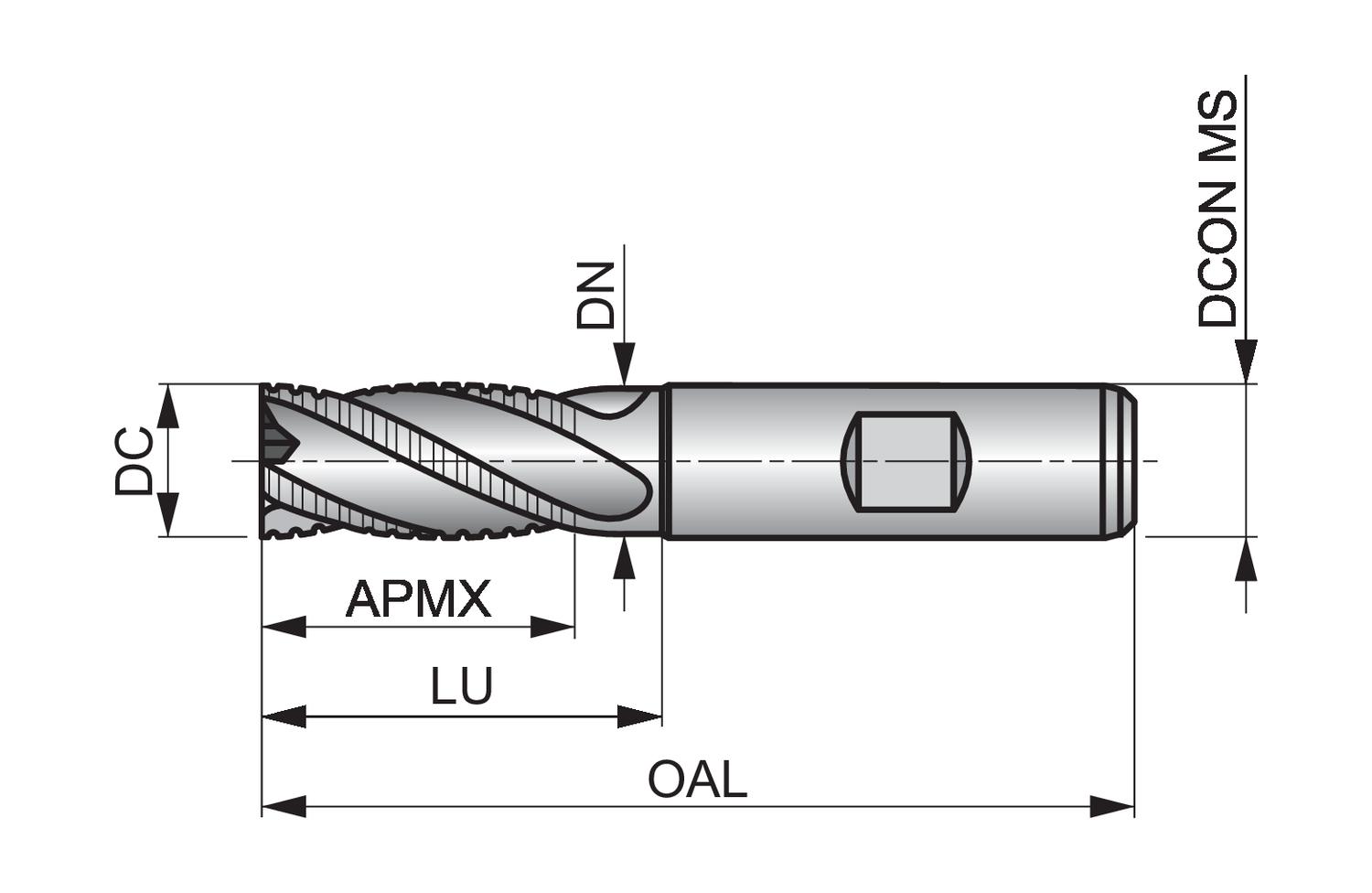

EAN number: 7320760068977 Product number (SAP): 86014030 Ordering code ANSI: C41312.0 Gross weight: 68 g Cutting diameter (DC): 12 mm Connection diameter (DCON MS): 12 mm Depth of cut maximum (APMX): 26 mm Overall length (OAL): 83 mm Flute count (NOF): 4 Radial rake angle (GAMF): 12 ISO: C41312.0

Brand

DORMER
