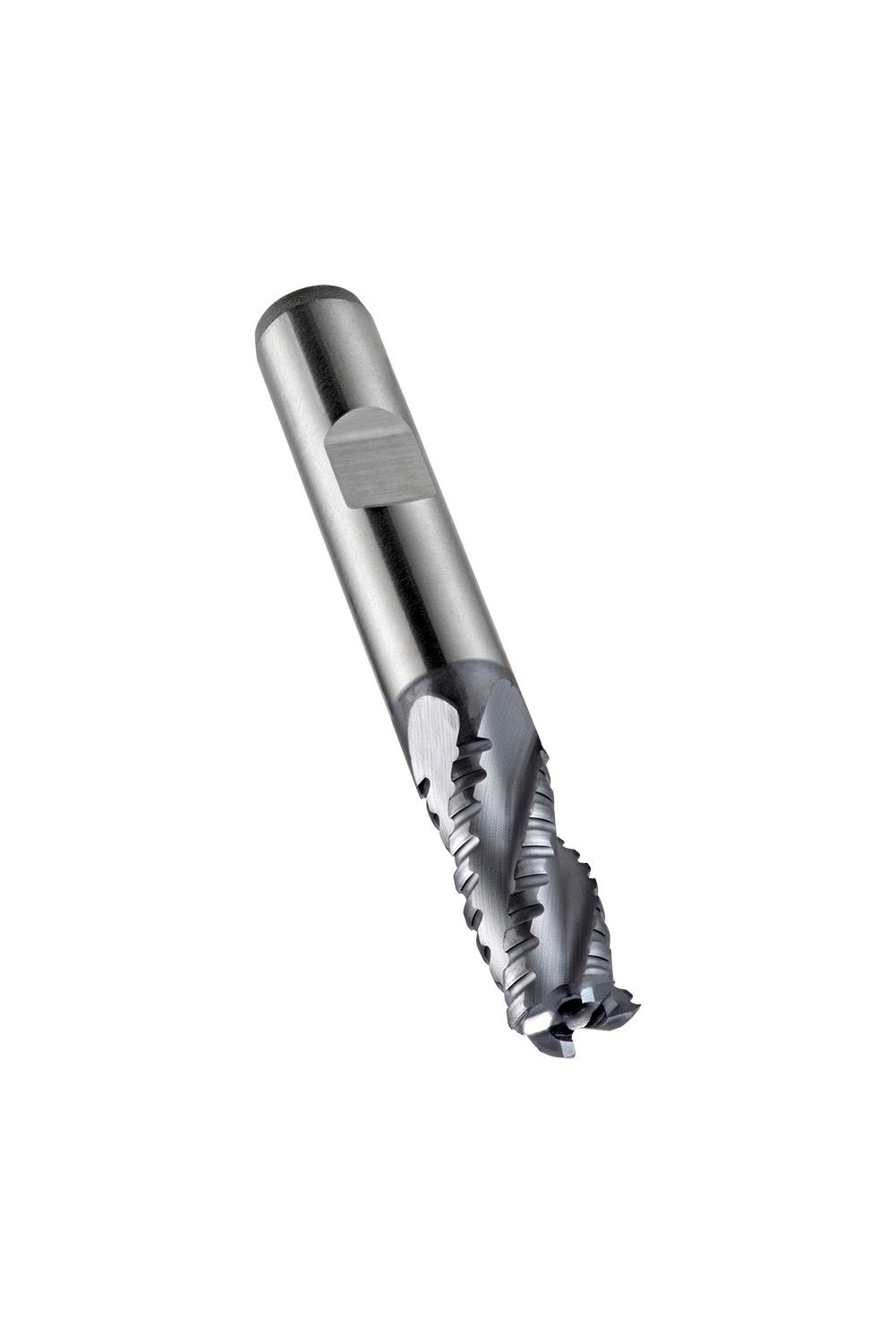

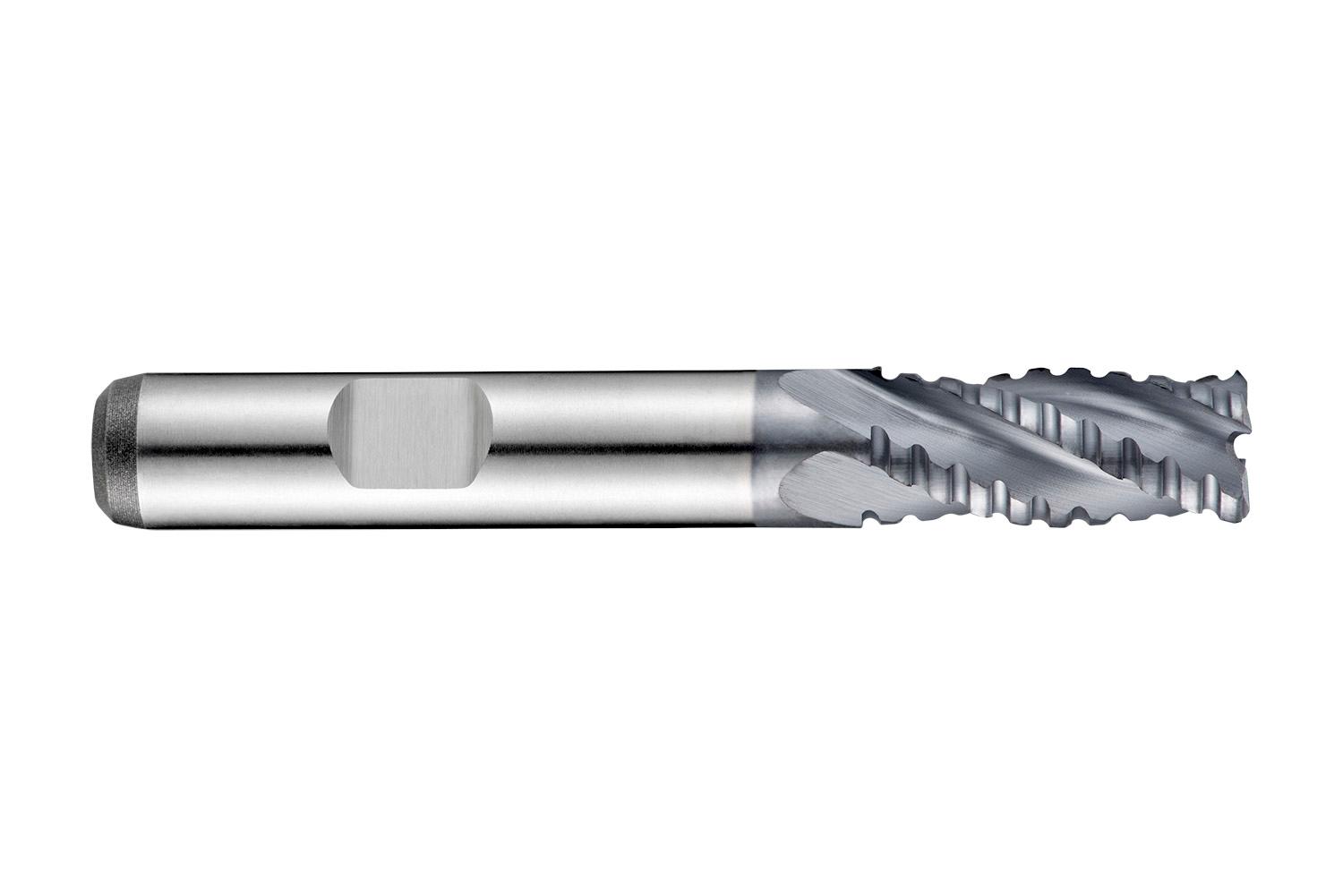

DORMER C4136.0 HSCO Cutters

Product Code: C4136.0

$100.84$91.67 Ex. GST

Product Code: C4136.0 SKU C4136.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 6mm with 13mm length of cut and 57mm overall length, according to DIN 844 K standard with a 6mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys

Additional information

Weight 0.0979 kg
Dimensions
barcode
Additional Information

Description: Value

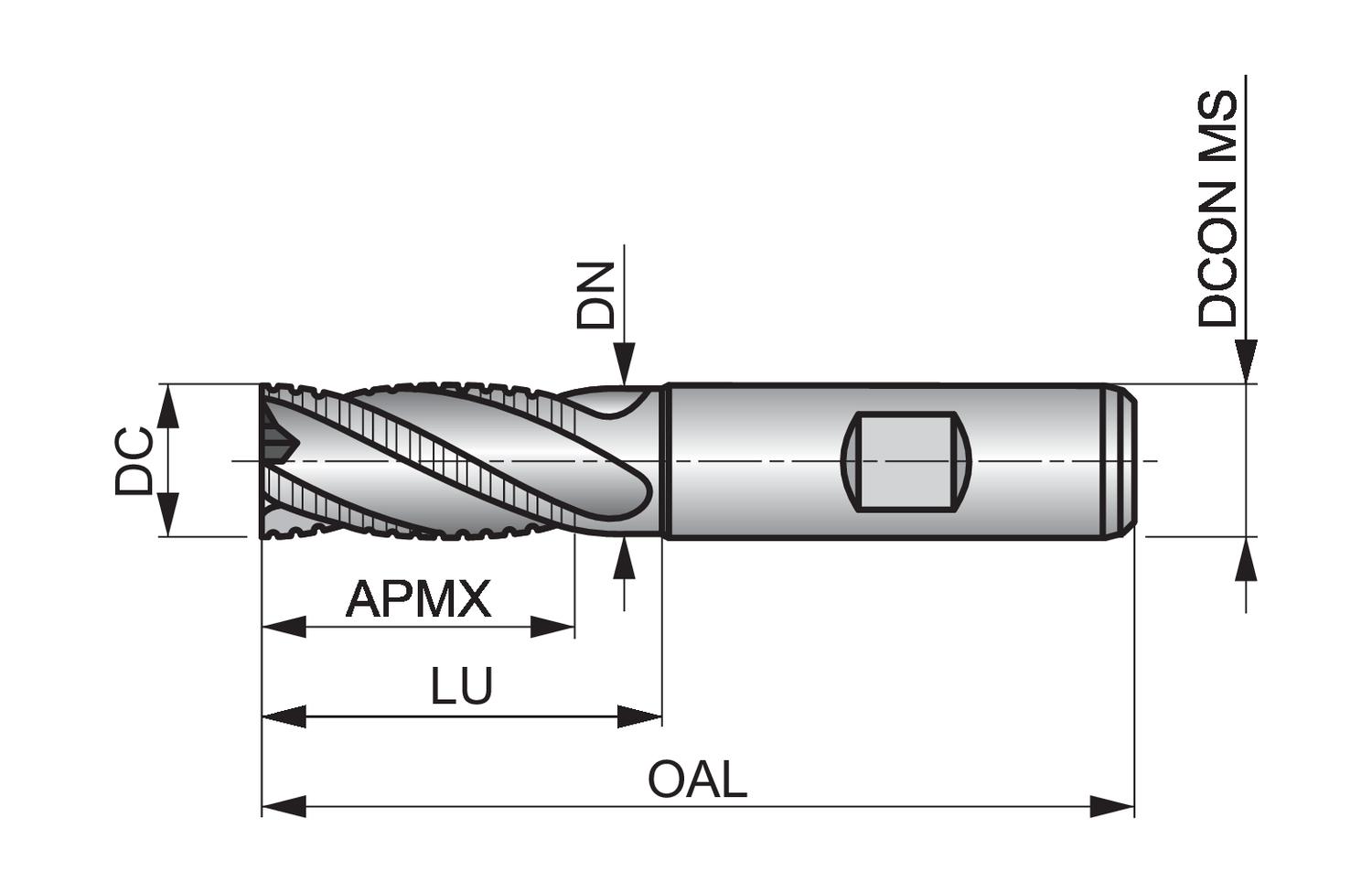

EAN number: 7320760069097 Product number (SAP): 86014040 Ordering code ANSI: C4136.0 Gross weight: 14 g Cutting diameter (DC): 6 mm Connection diameter (DCON MS): 6 mm Depth of cut maximum (APMX): 13 mm Overall length (OAL): 57 mm Flute count (NOF): 4 Neck diameter (DN): 6 mm Radial rake angle (GAMF): 12 With Neck: Yes ISO: C4136.0

Brand

DORMER
