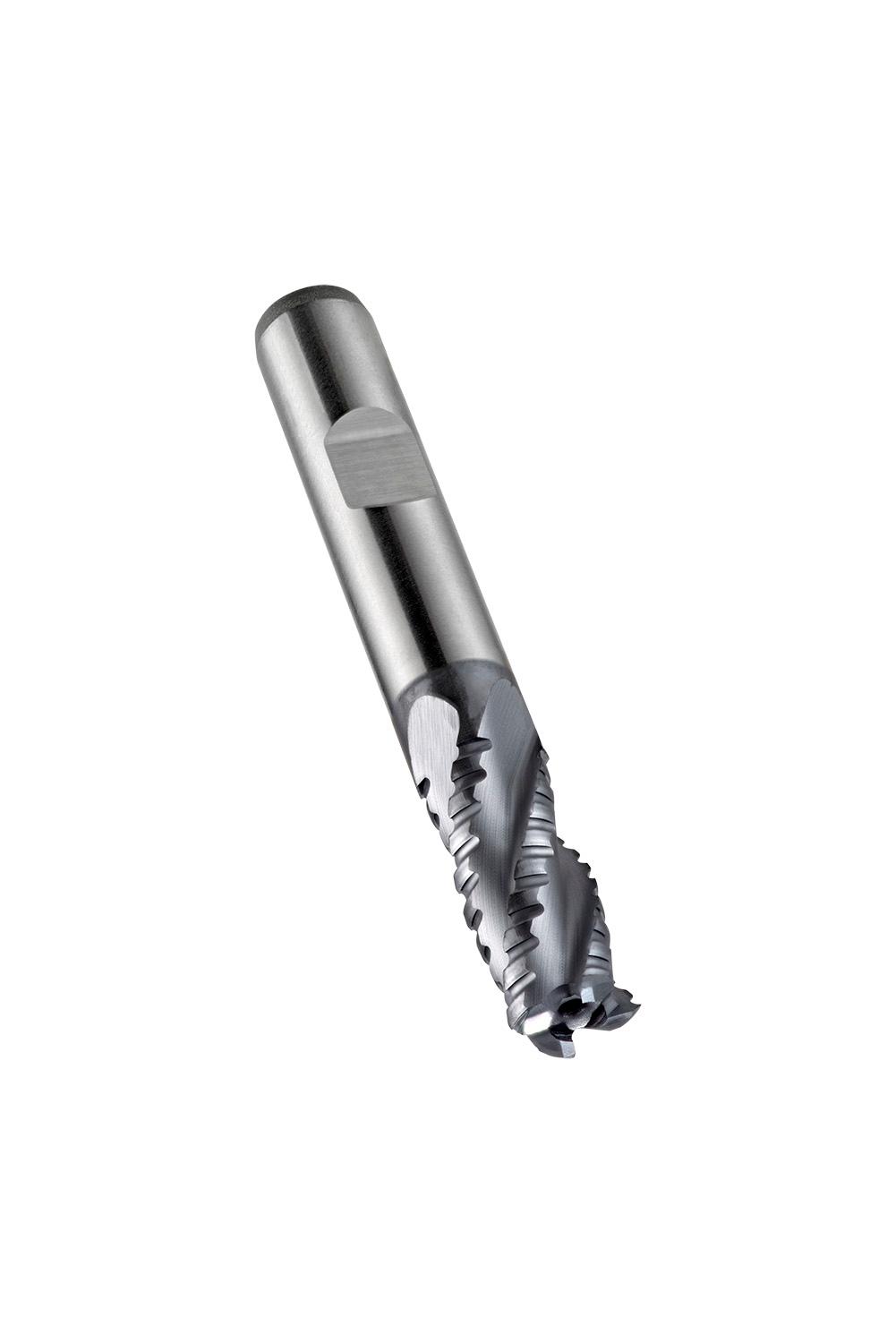

DORMER C4138.0 HSCO Cutters

Product Code: C4138.0

$118.97$108.15 Ex. GST

Product Code: C4138.0 SKU C4138.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

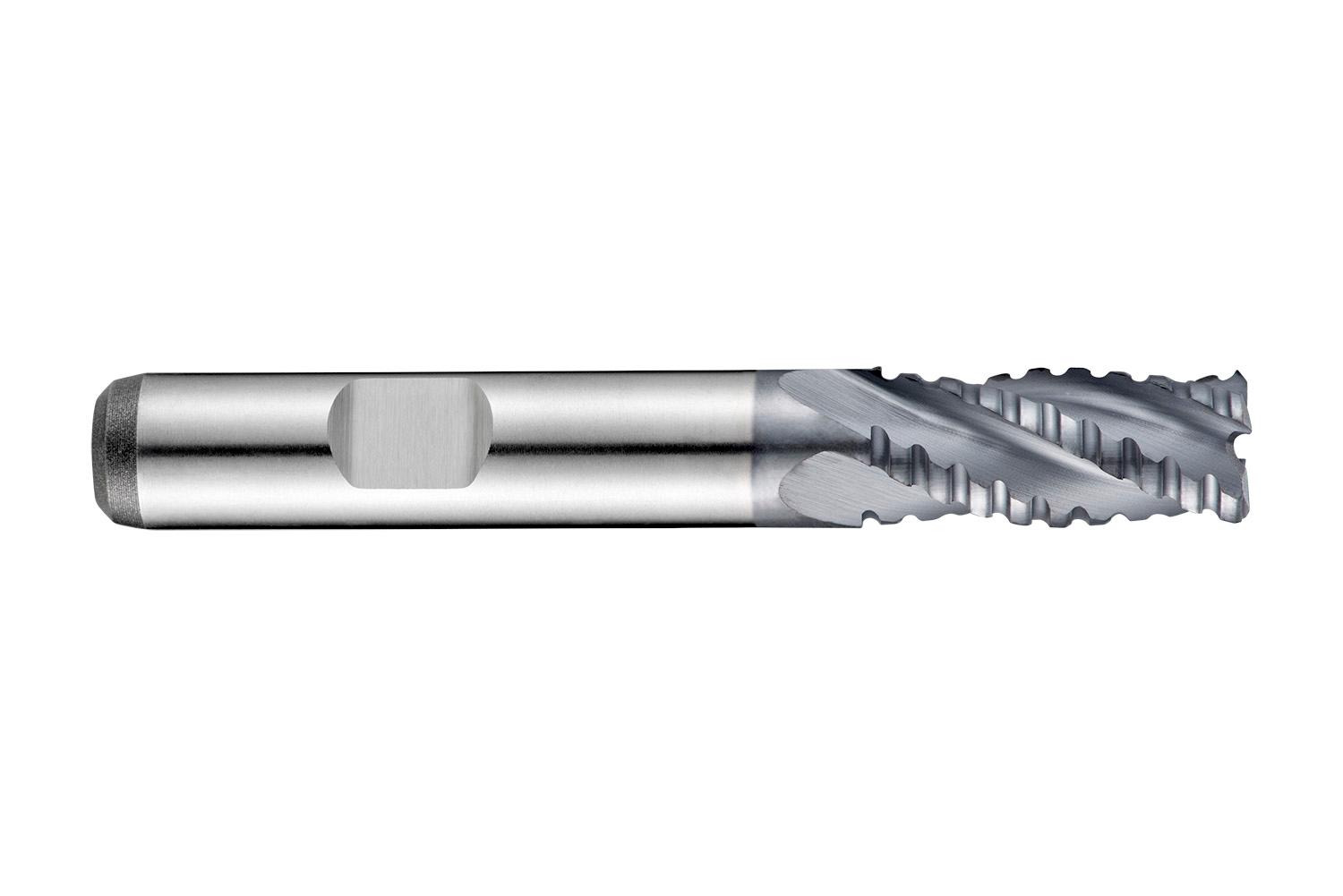

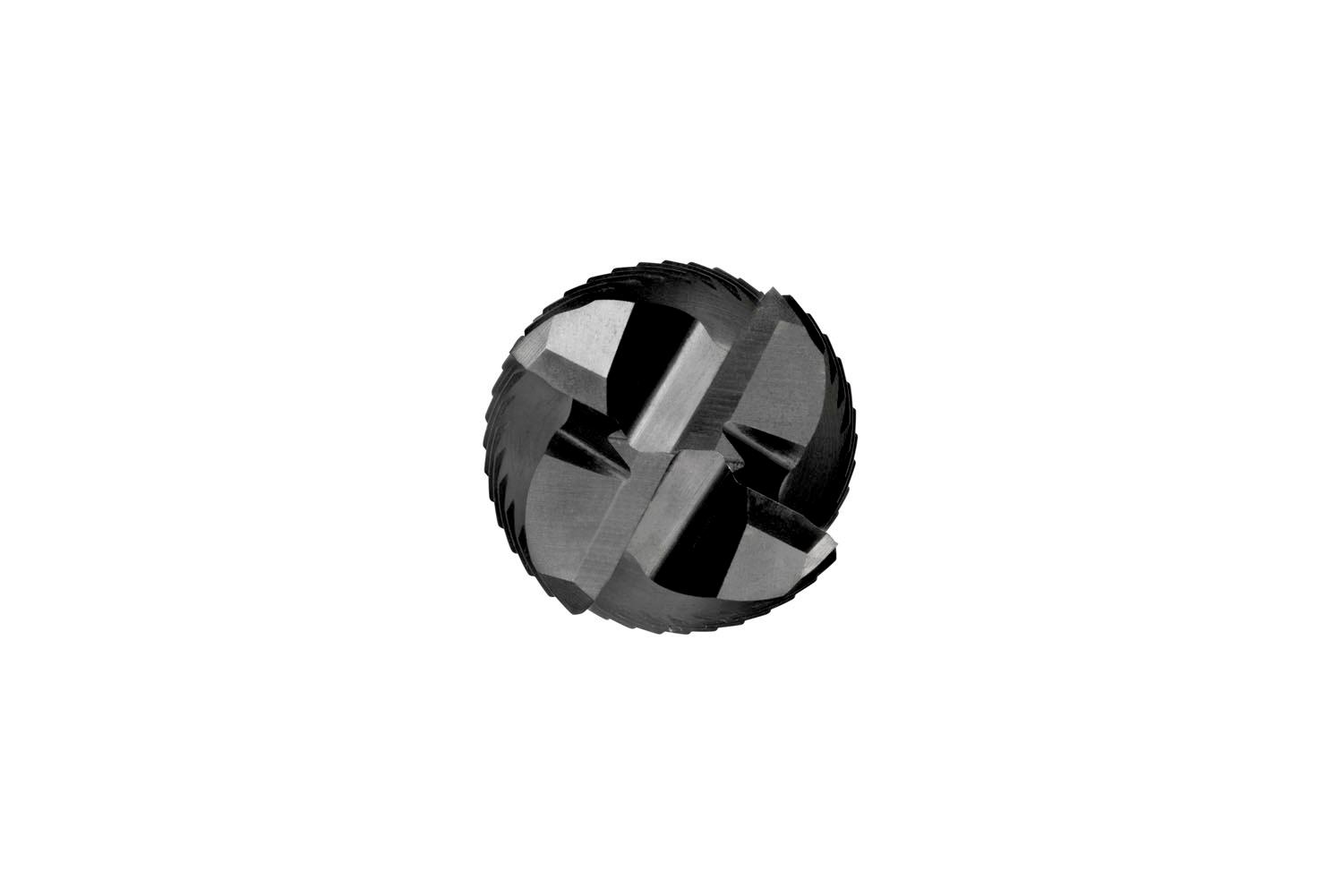

Short series roughing end mill with NF flat coarse pitch profile and 4 flutes, diameter 8mm with 19mm length of cut and 69mm overall length, according to DIN 844 K standard with a 10mm Weldon shank, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for shoulder milling, slot milling and ramping in free machining, plain carbon and alloy steel, cast-iron and copper or copper alloys

Additional information

Weight 0.1155 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760069103
Product number (SAP): 86014041
Ordering code ANSI: C4138.0
Gross weight – grams: 38

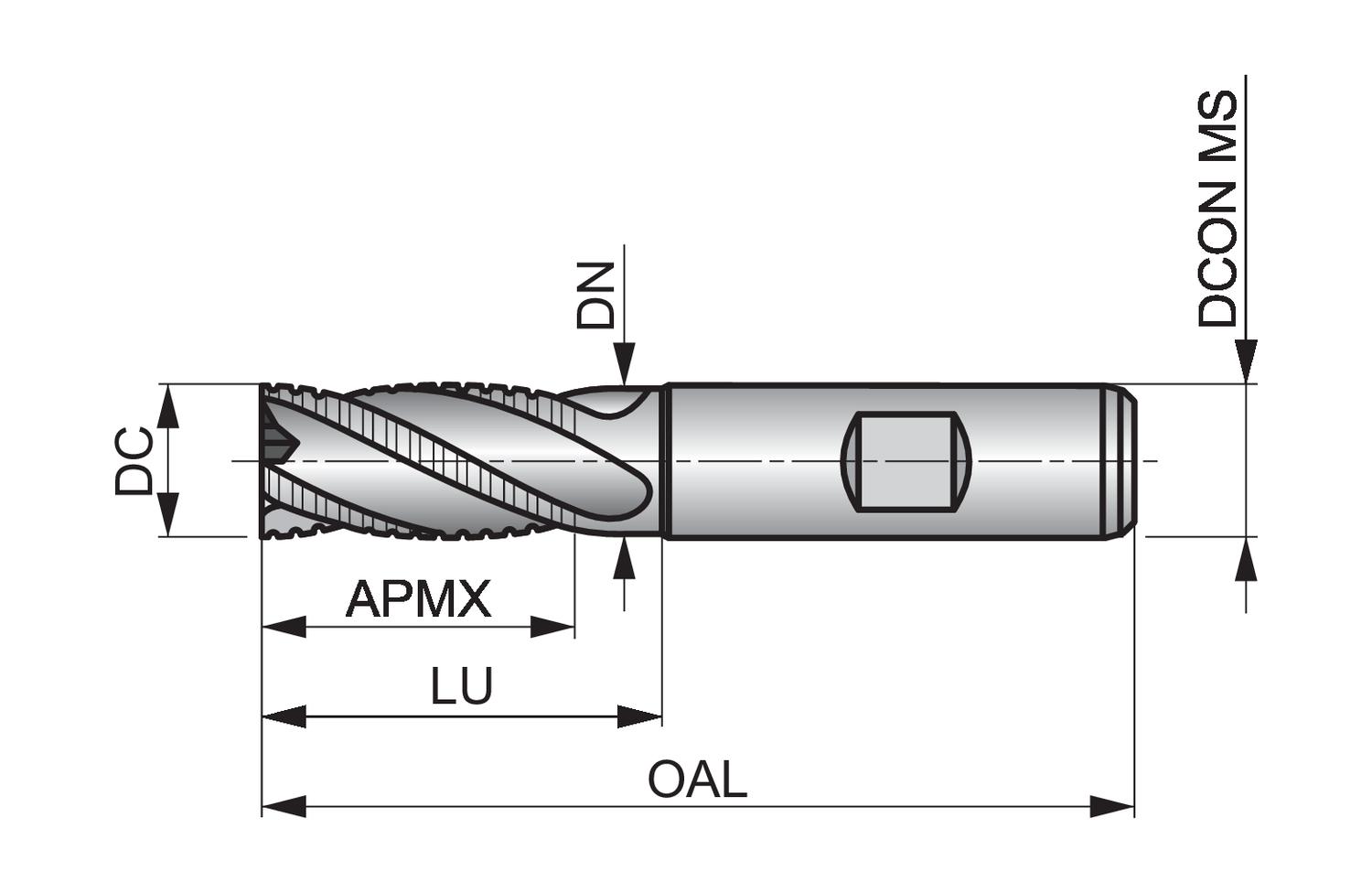

Cutting diameter – millimeter (DC): 8 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 19 mm
Overall length – millimeter (OAL): 69 mm
Flute count (NOF): 4
Neck diameter – millimeter (DN): 8 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C4138.0

Brand

DORMER
