DORMER C42811.0 Primax Cutters

Product Code: C42811.0

$191.48$174.07 Ex. GST

Product Code: C42811.0 SKU C42811.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

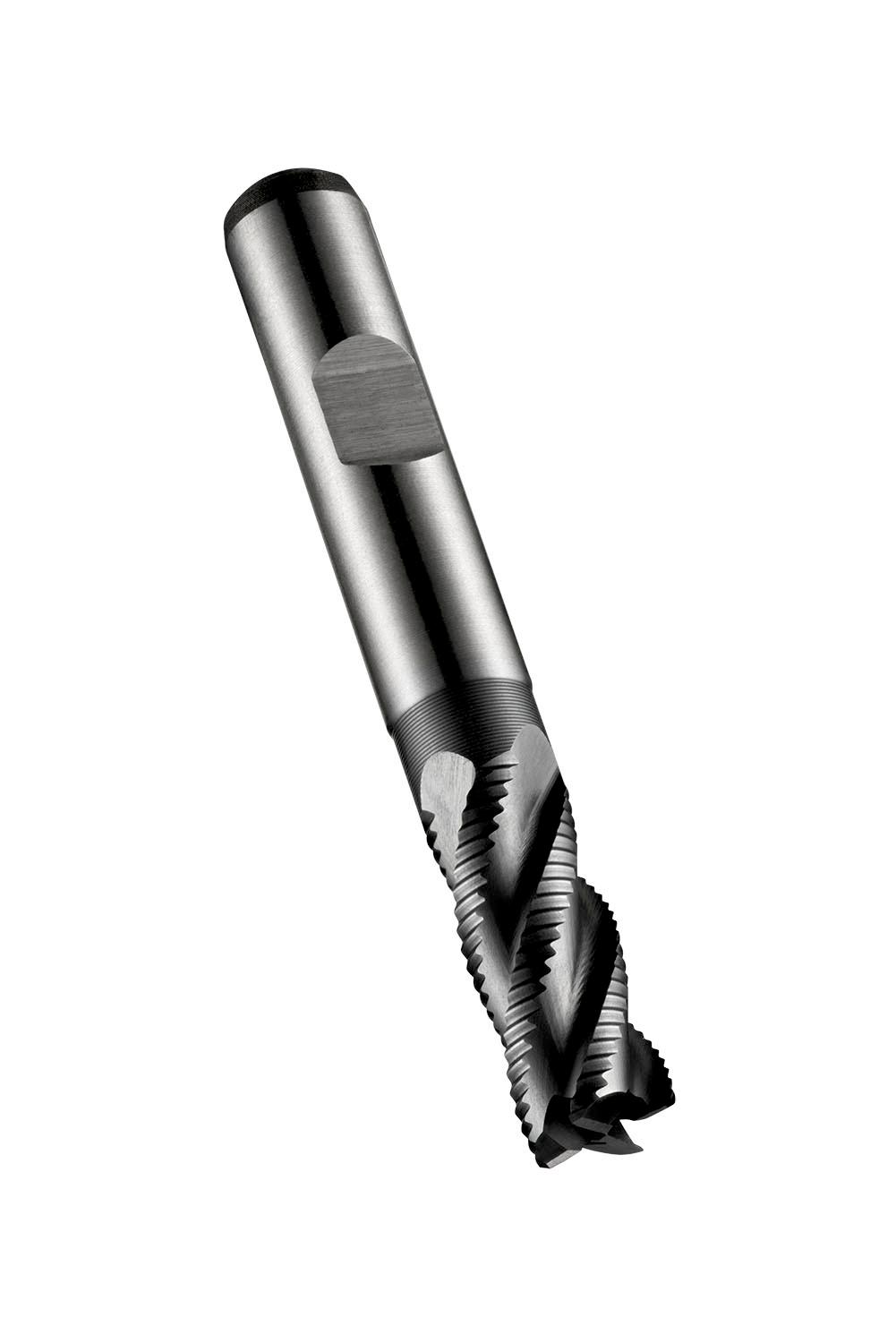

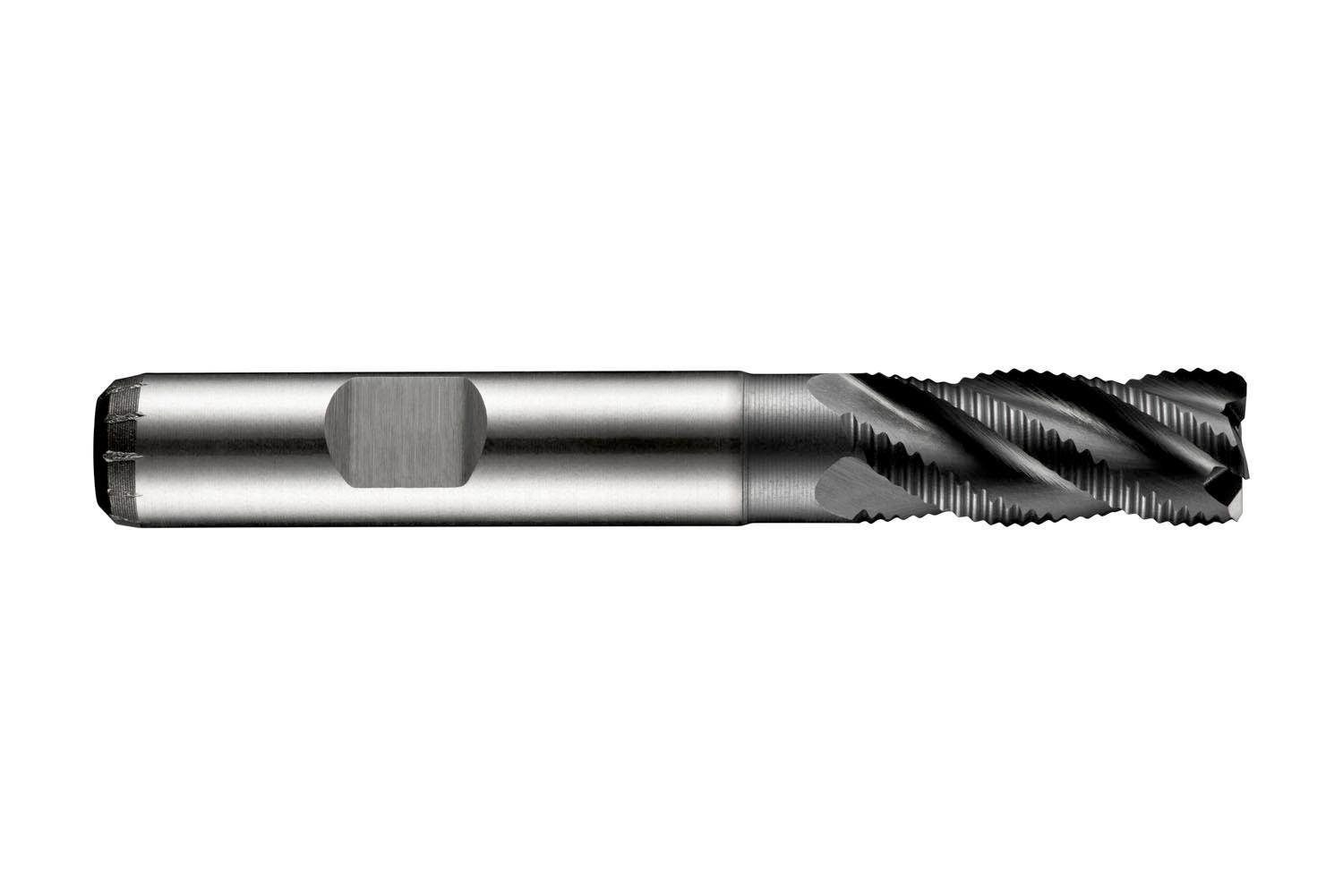

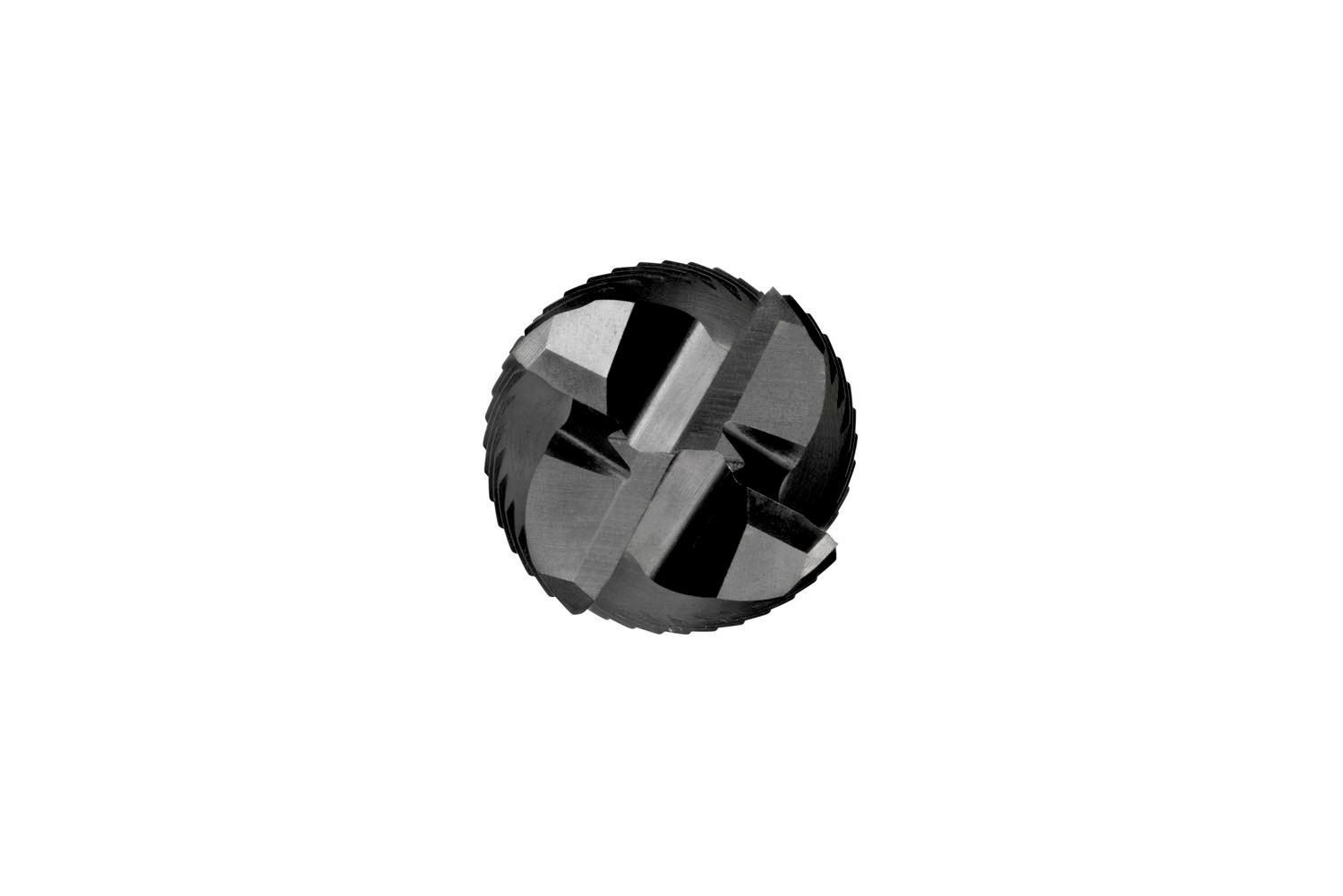

Short series roughing end mill with HRA asymetrical fine pitch profile and 4 flutes, diameter 11mm with 22mm length of cut and 79mm overall length, according to DIN 844 K standard with a 12mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys

Additional information

Weight 0.1859 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760346303
Product number (SAP): 86014056
Ordering code ANSI: C42811.0
Gross weight – grams: 64.2

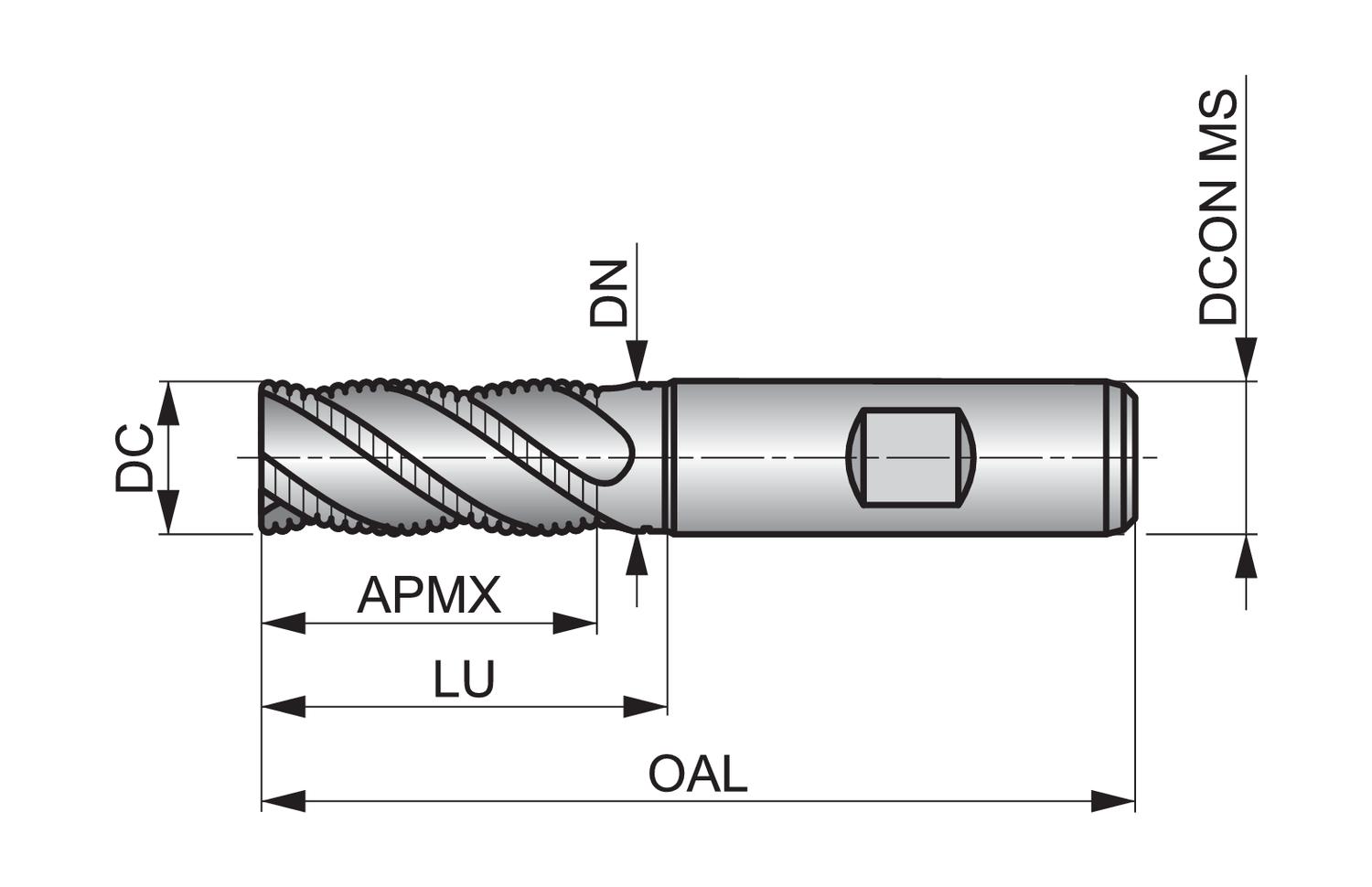

Cutting diameter – millimeter (DC): 11 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 22 mm
Overall length – millimeter (OAL): 79 mm
Flute count (NOF): 4
Neck diameter – millimeter (DN): 11 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C42811.0

Brand

DORMER
