DORMER C42815.0 Primax Cutters

Product Code: C42815.0

$256.06$232.78 Ex. GST

Product Code: C42815.0 SKU C42815.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

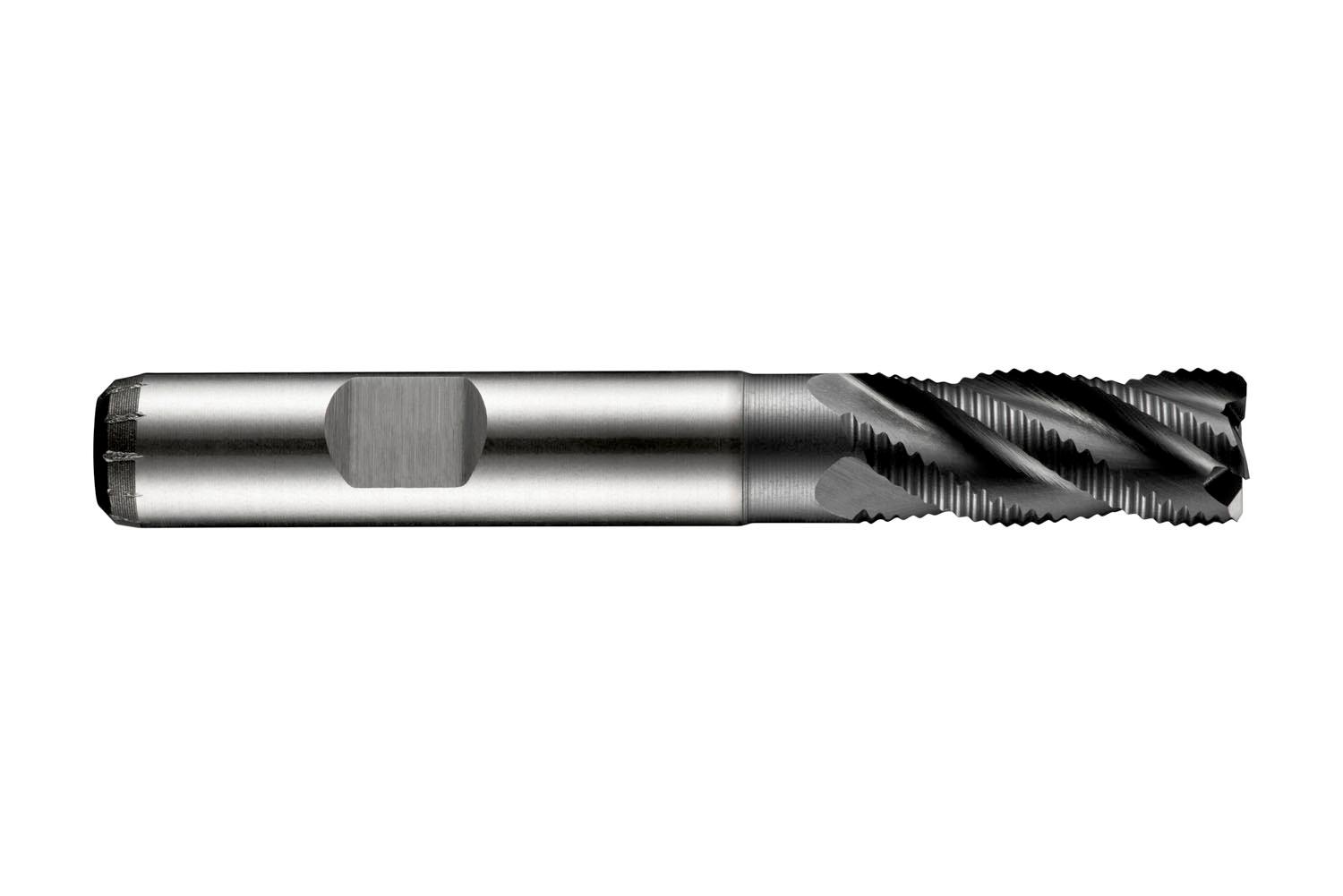

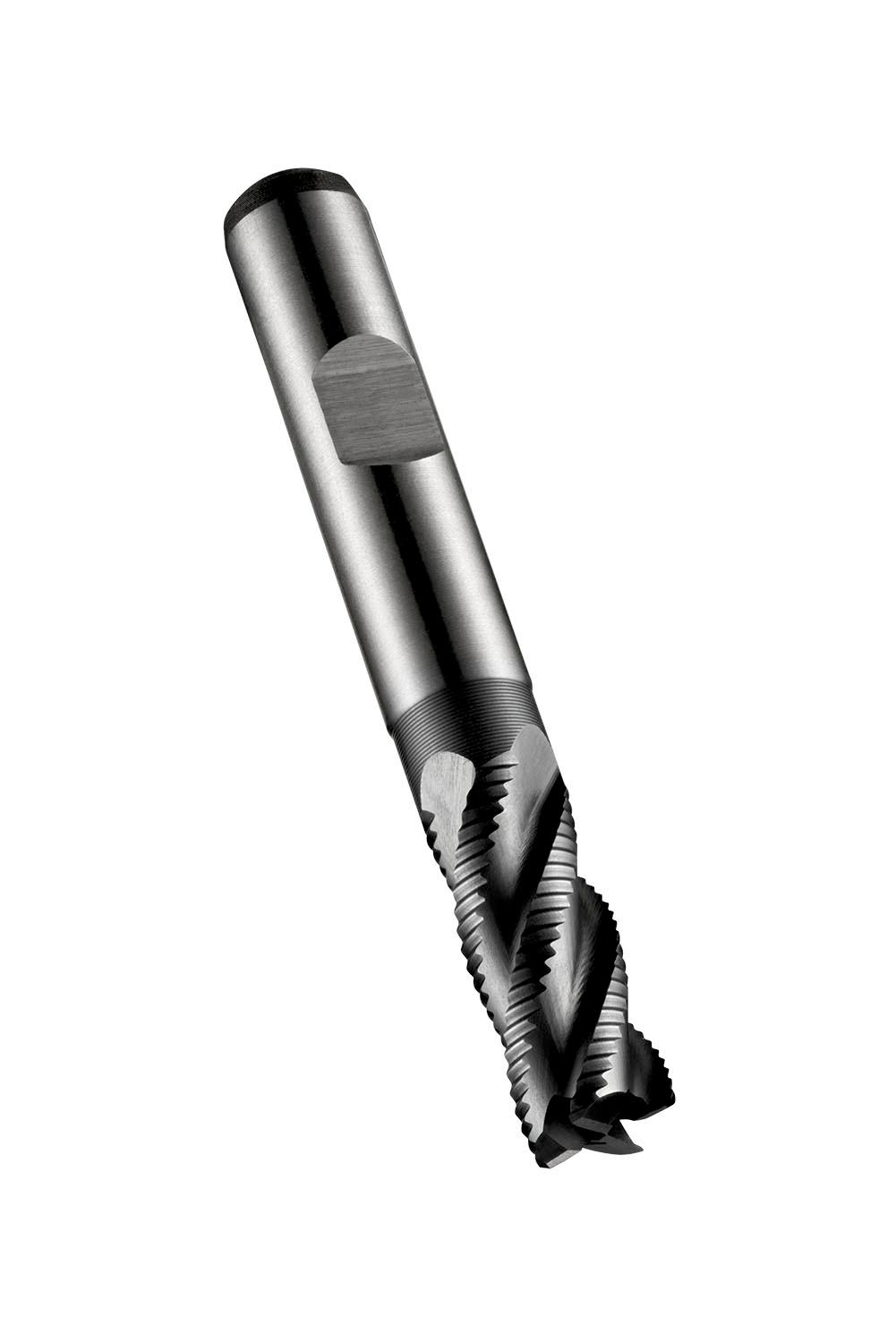

Short series roughing end mill with HRA asymetrical fine pitch profile and 4 flutes, diameter 15mm with 26mm length of cut, 83mm overall length and 37.5mm reach with neck relief, according to DIN 844 K standard with a 12mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys

Additional information

Weight 0.2486 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760346785
Product number (SAP): 86014060
Ordering code ANSI: C42815.0
Gross weight – grams: 80

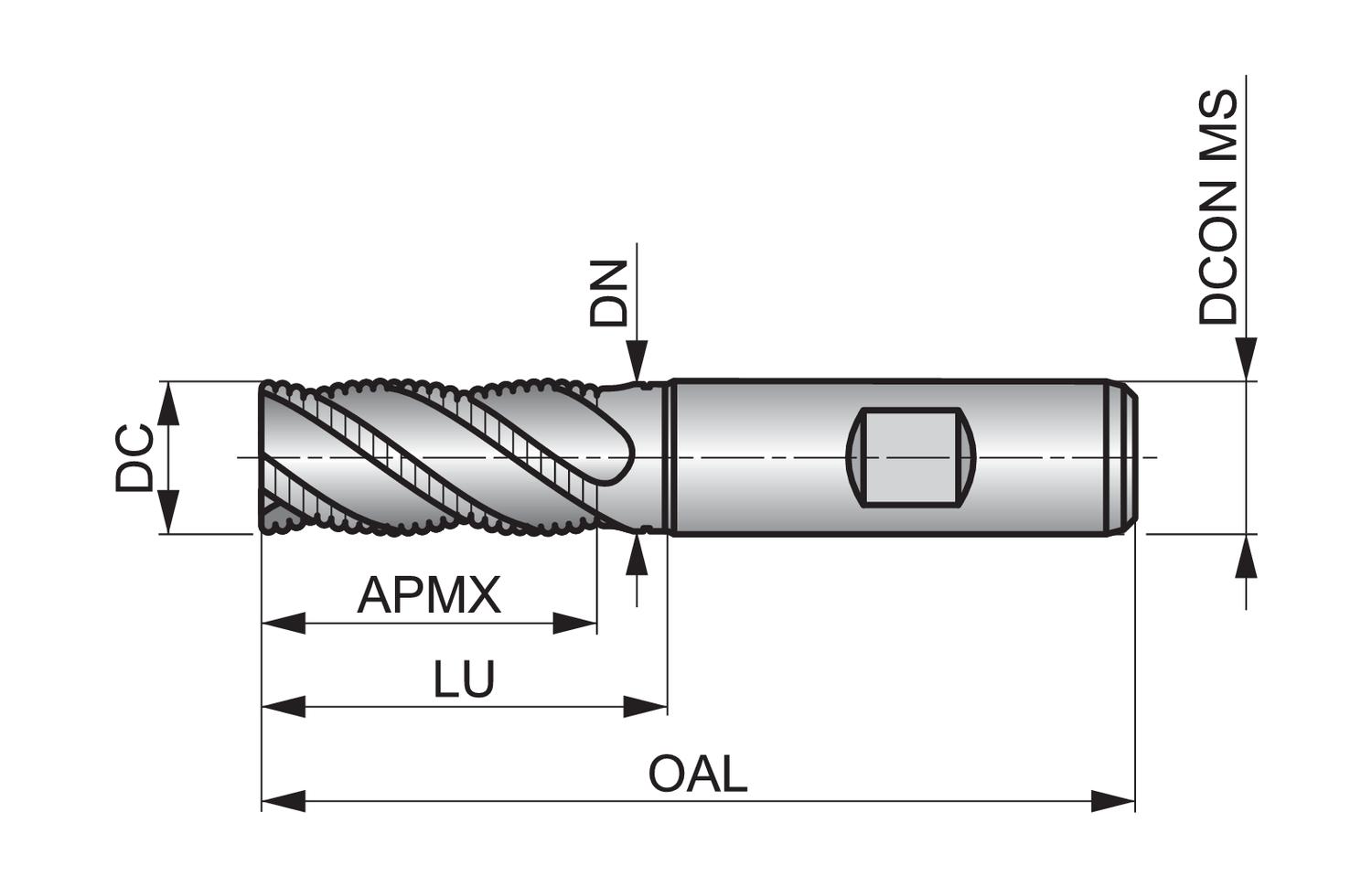

Cutting diameter – millimeter (DC): 15 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 26 mm
Overall length – millimeter (OAL): 83 mm
Flute count (NOF): 4
Usable Length – millimeter (LU): 37.5 mm
Neck diameter – millimeter (DN): 11.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C42815.0

Brand

DORMER
