DORMER C4286.0 Primax Cutters

Product Code: C4286.0

$112.74$102.49 Ex. GST

Product Code: C4286.0 SKU C4286.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short series roughing end mill with HRA asymetrical fine pitch profile and 4 flutes, diameter 6mm with 13mm length of cut and 57mm overall length, according to DIN 844 K standard with a 6mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling, slot milling and ramping in alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys

Additional information

Weight 0.1095 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760070116
Product number (SAP): 86014071
Ordering code ANSI: C4286.0
Gross weight – grams: 14

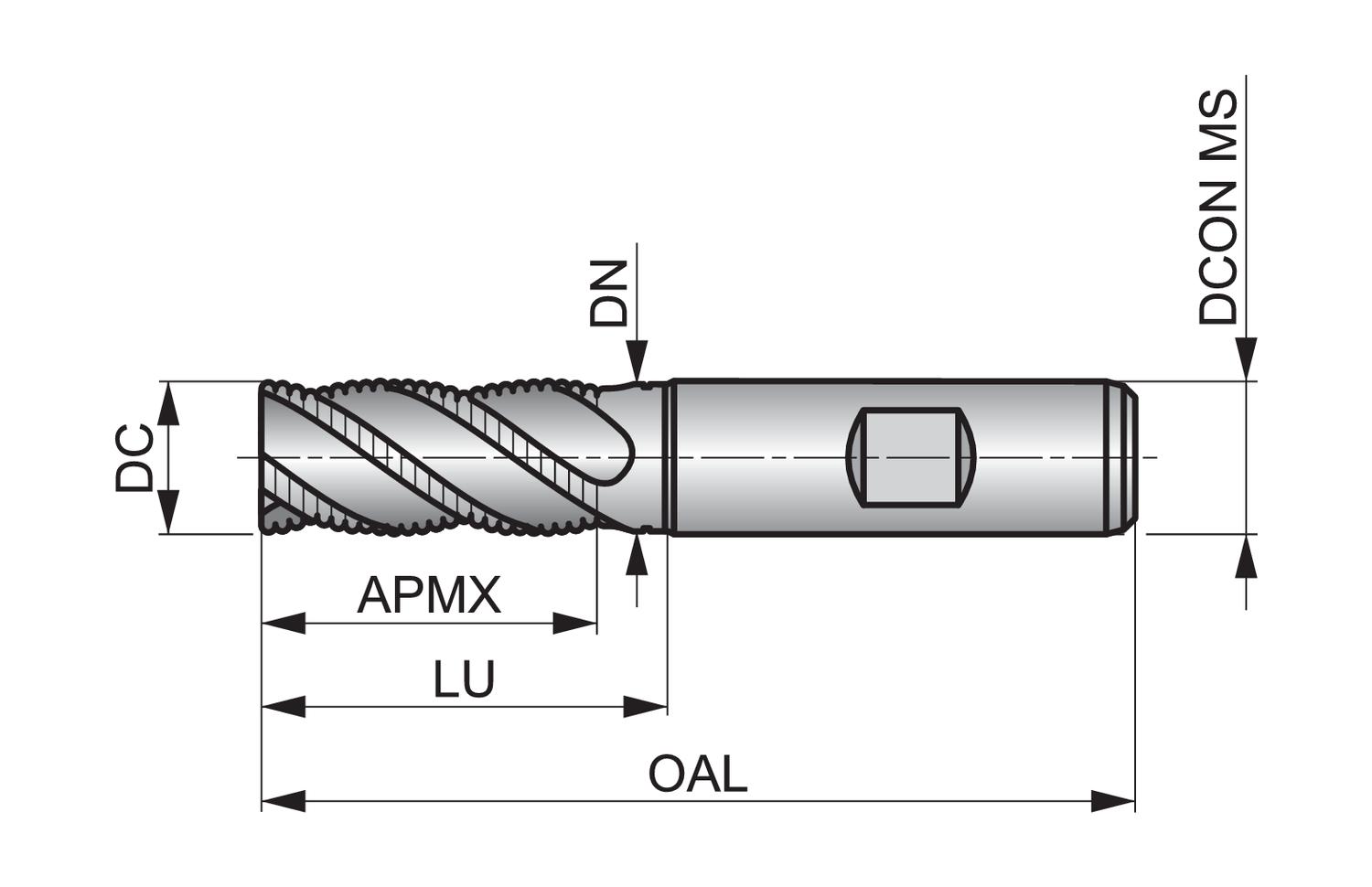

Cutting diameter – millimeter (DC): 6 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 13 mm
Overall length – millimeter (OAL): 57 mm
Flute count (NOF): 4
Radial rake angle (GAMF): 12
ISO: C4286.0

Brand

DORMER
