DORMER C4926.0 Primax Cutters

Product Code: C4926.0

$138.23$125.66 Ex. GST

Product Code: C4926.0 SKU C4926.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

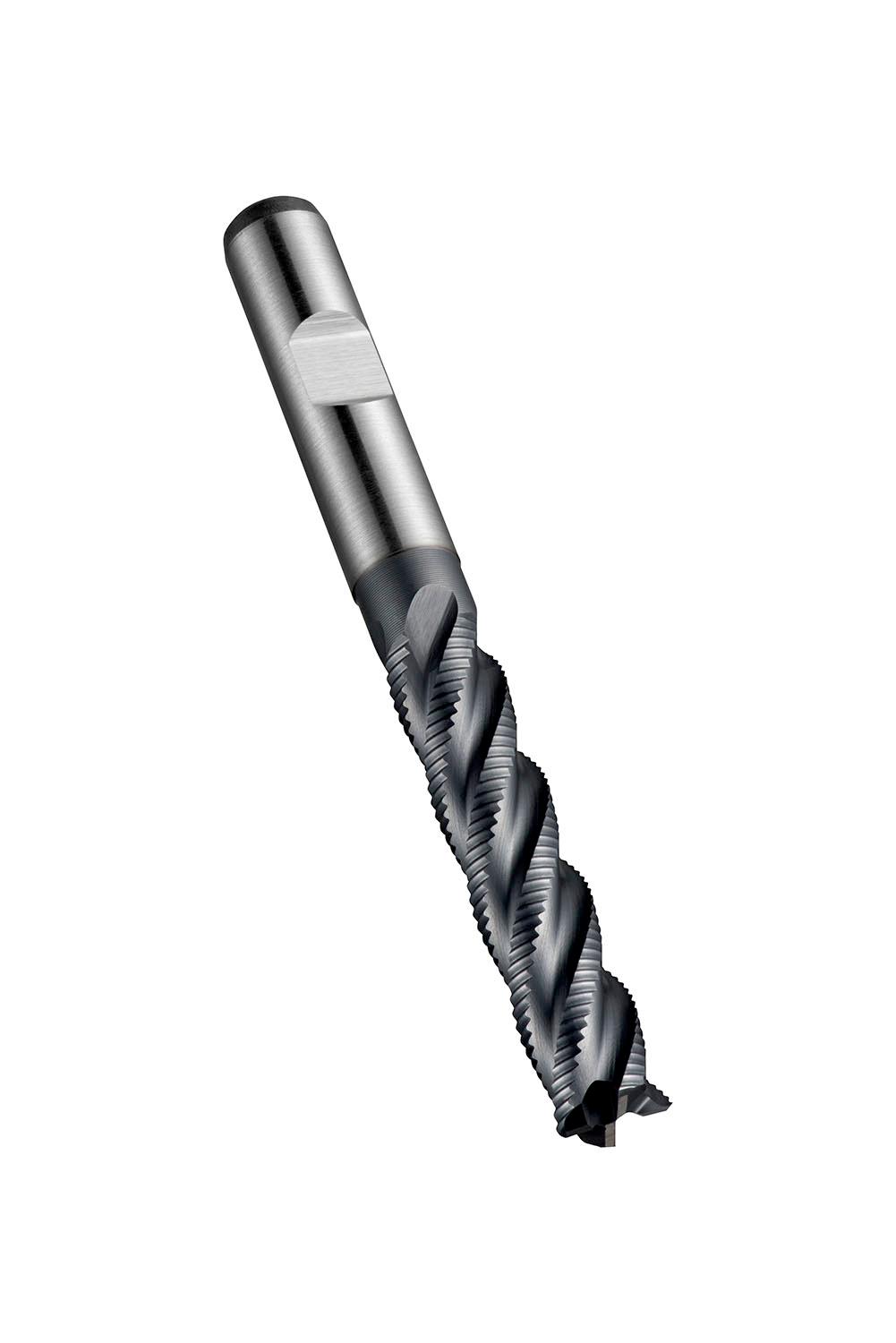

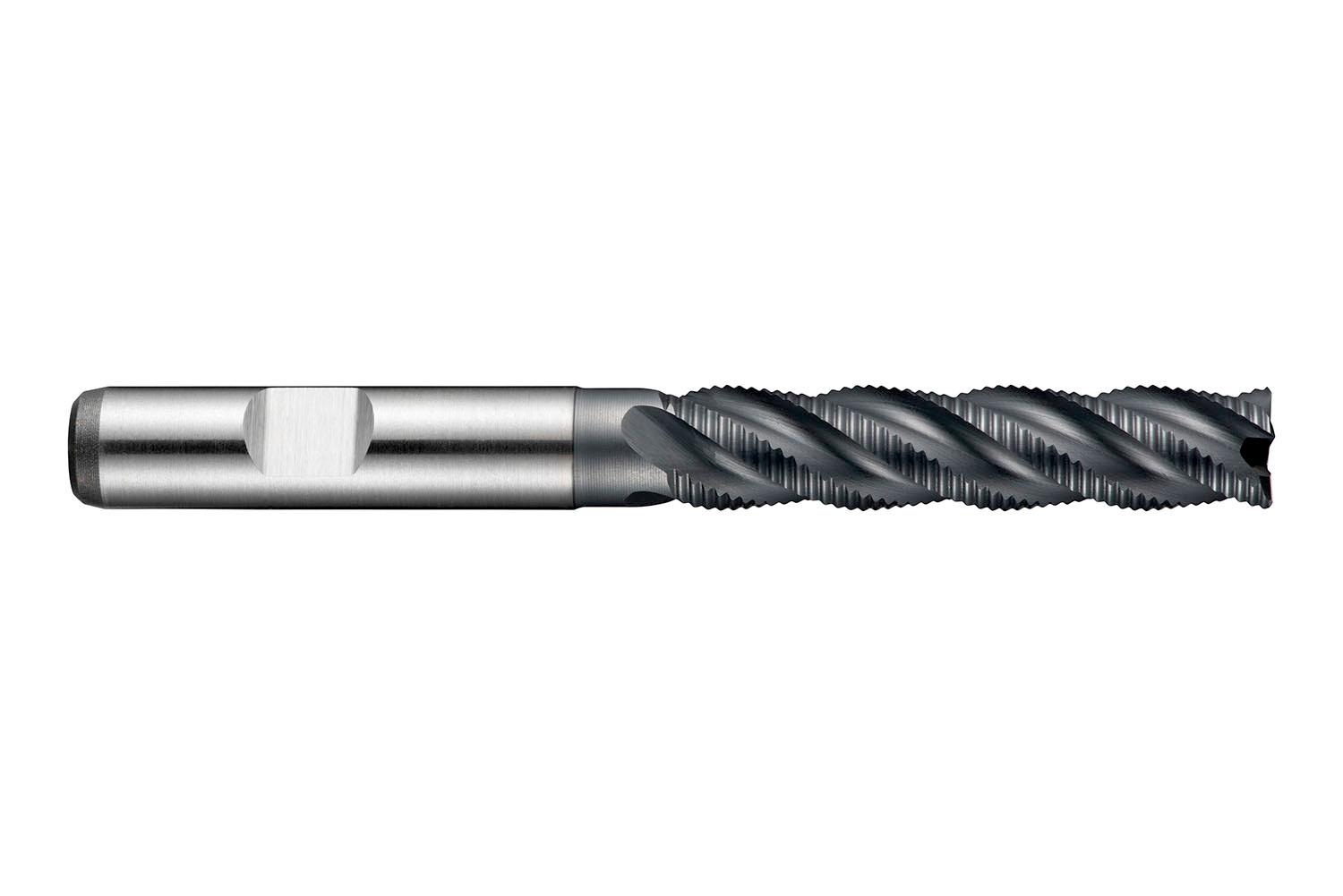

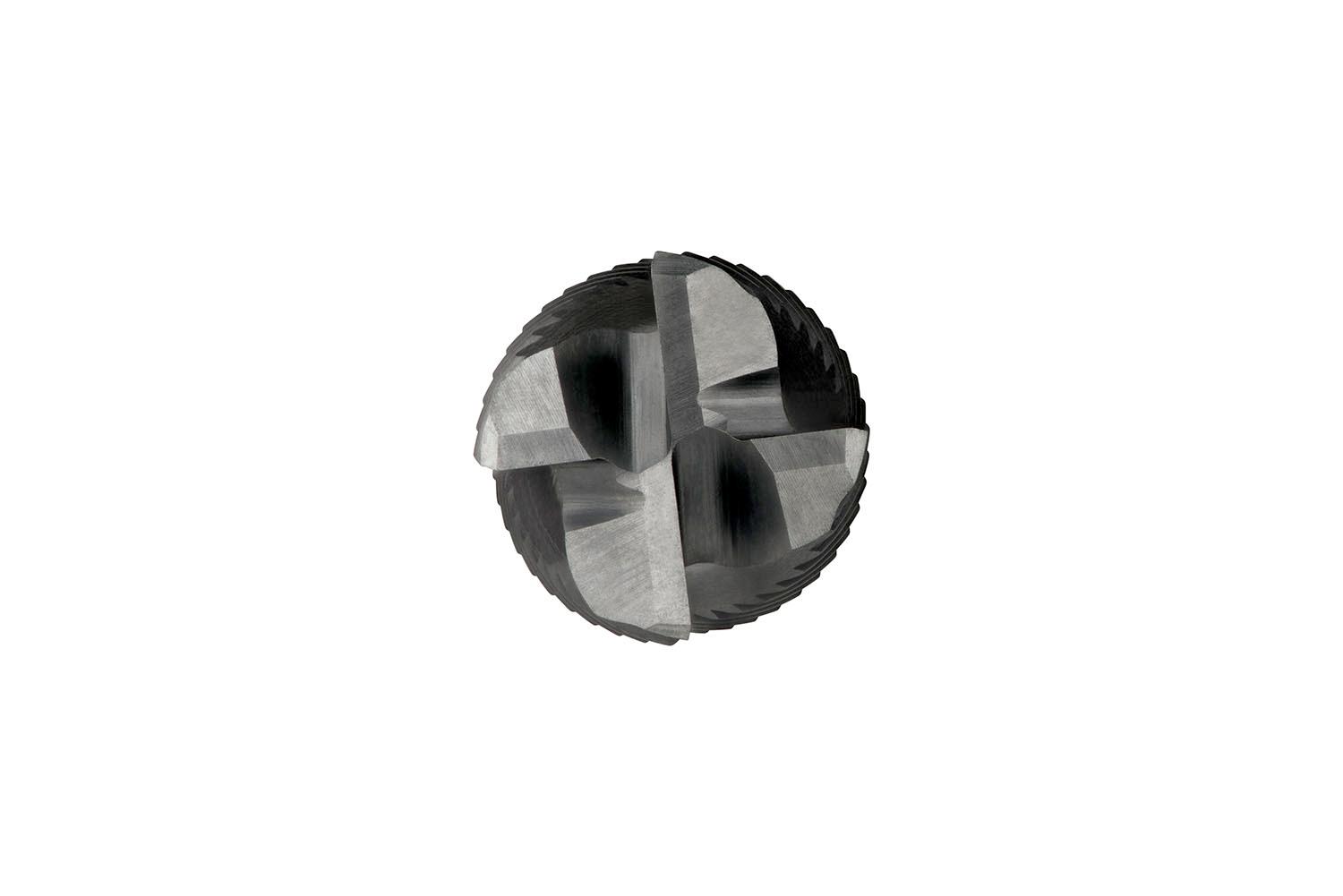

Long series roughing end mill with HRA asymetrical fine pitch profile and 3 flutes, diameter 6mm with 24mm length of cut and 68mm overall length, according to DIN 844 L standard with a 6mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling and slot milling in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys

Additional information

Weight 0.1342 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760388884
Product number (SAP): 86014105
Ordering code ANSI: C4926.0
Gross weight – grams: 15

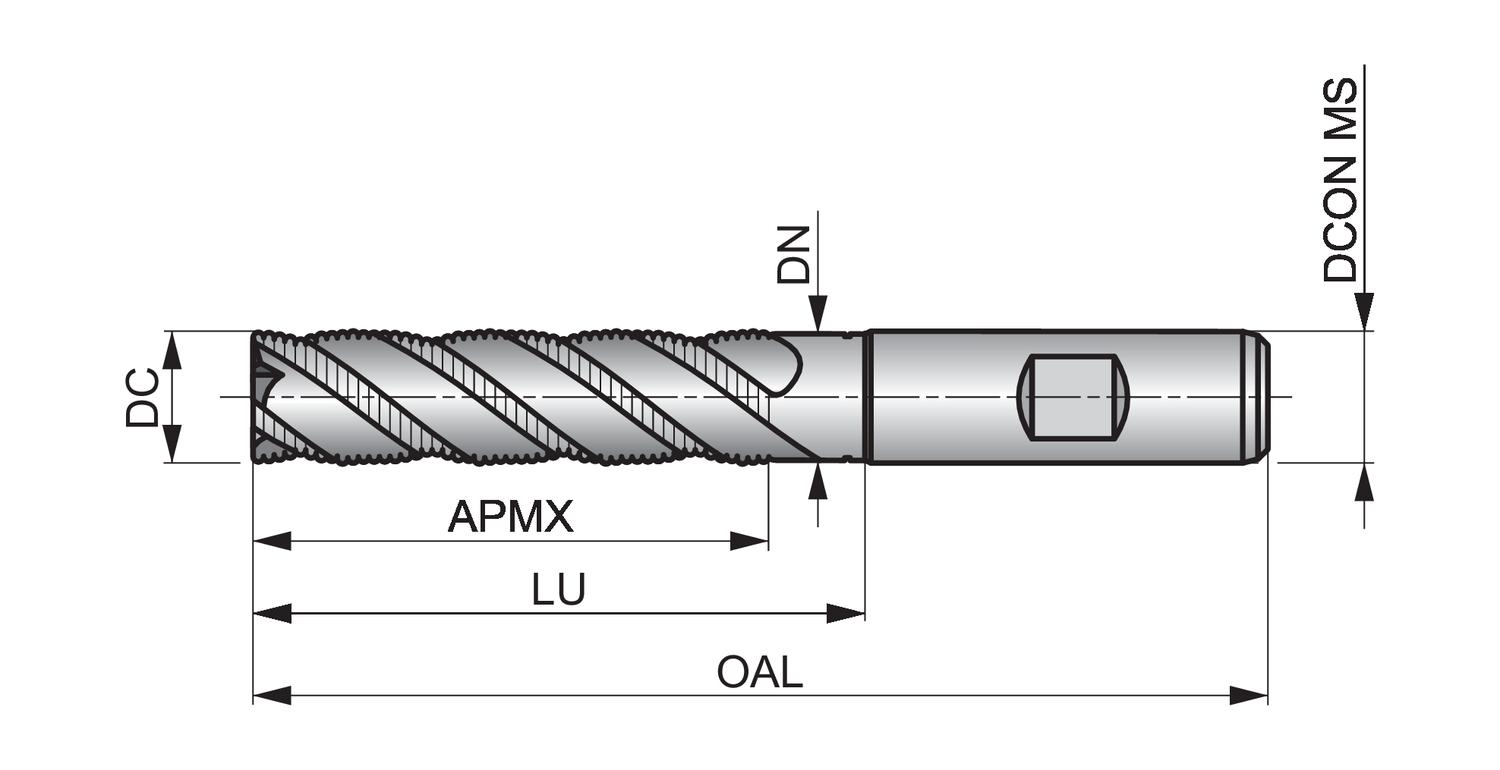

Cutting diameter – millimeter (DC): 6 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 24 mm
Overall length – millimeter (OAL): 68 mm
Flute count (NOF): 3
Neck diameter – millimeter (DN): 0 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C4926.0

Brand

DORMER
