DORMER C50012.0 HSCO Cutters

Product Code: C50012.0

$146.16$132.87 Ex. GST

Product Code: C50012.0 SKU C50012.0 Categories , ,
DORMER C50012.0 HSCO Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

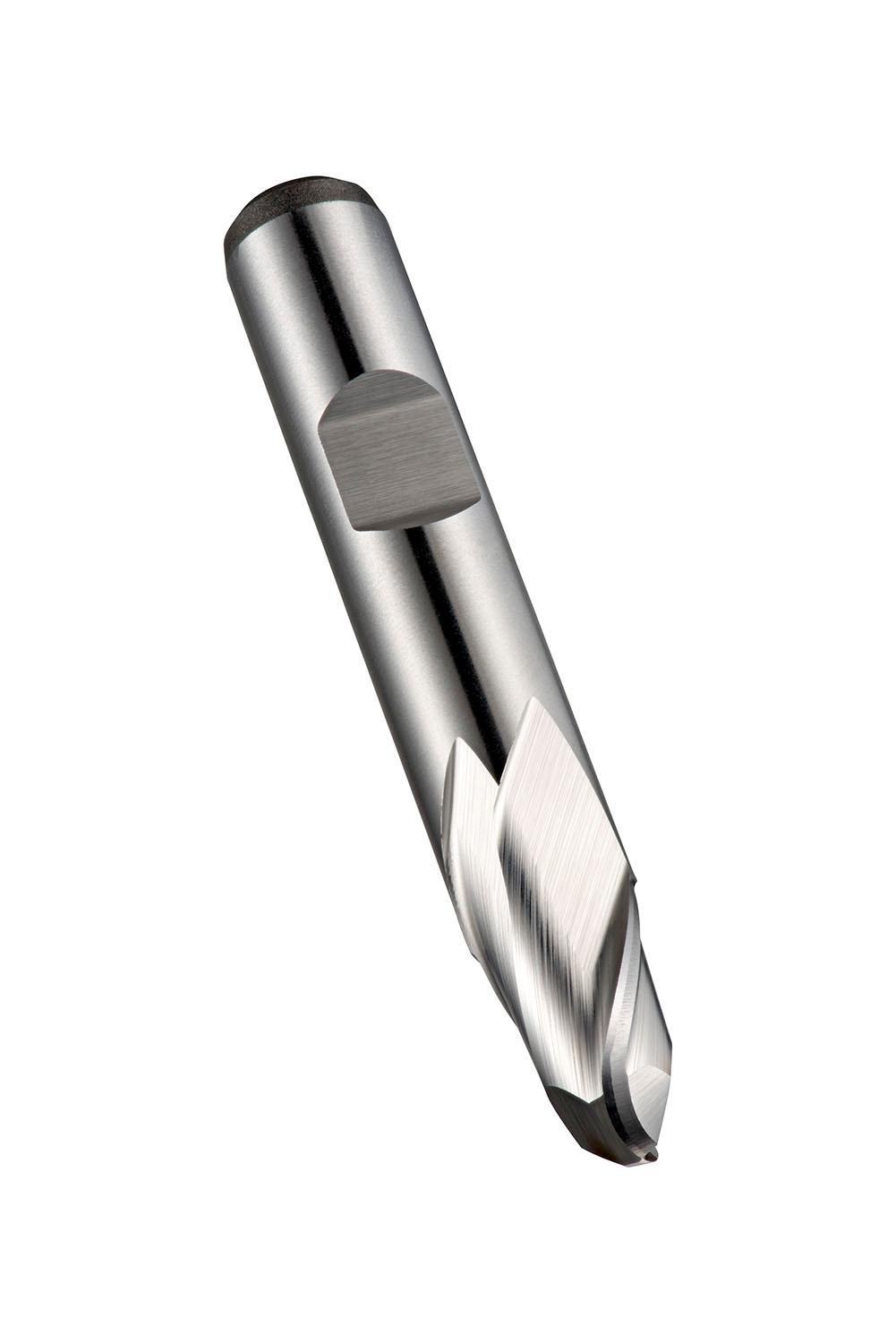

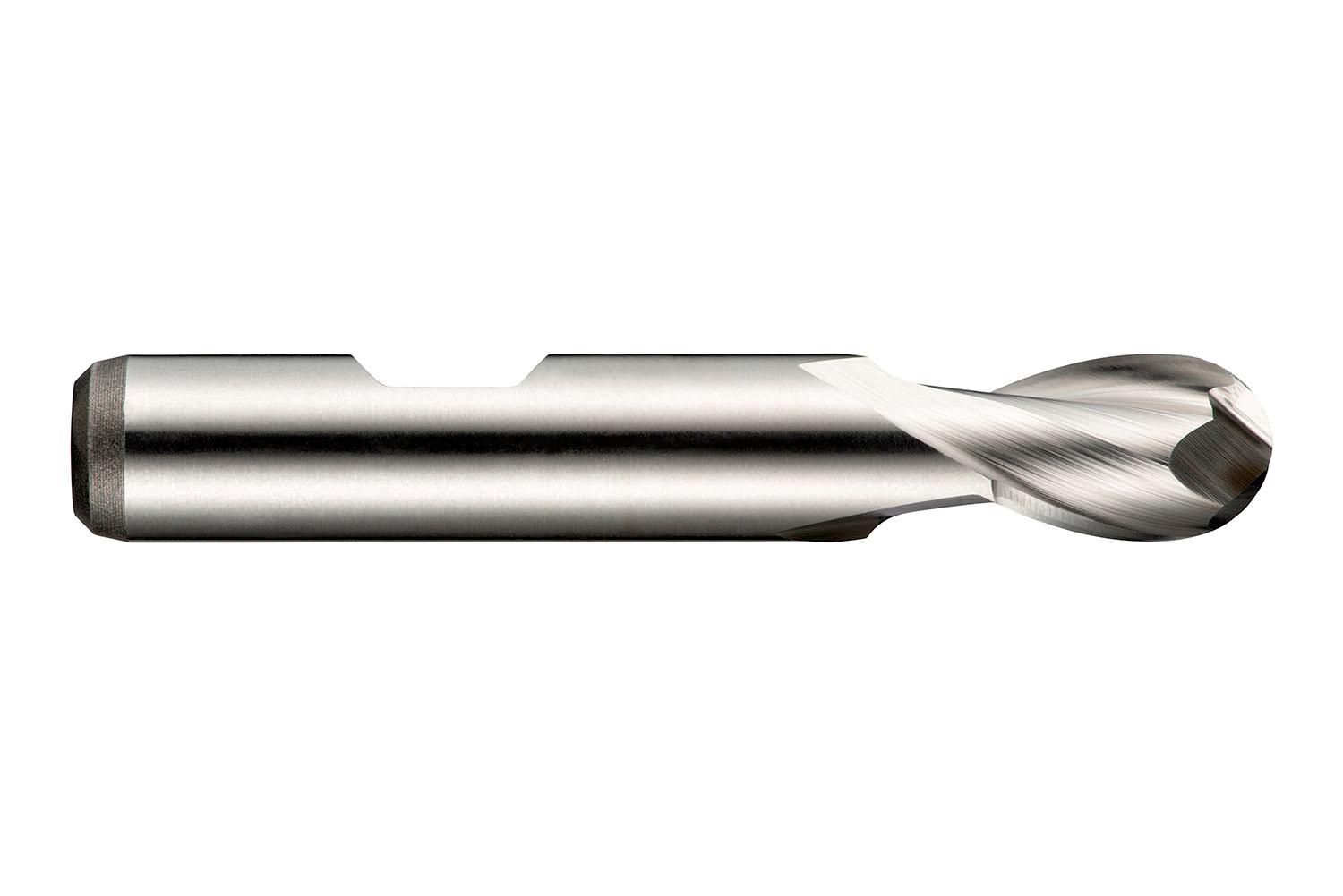

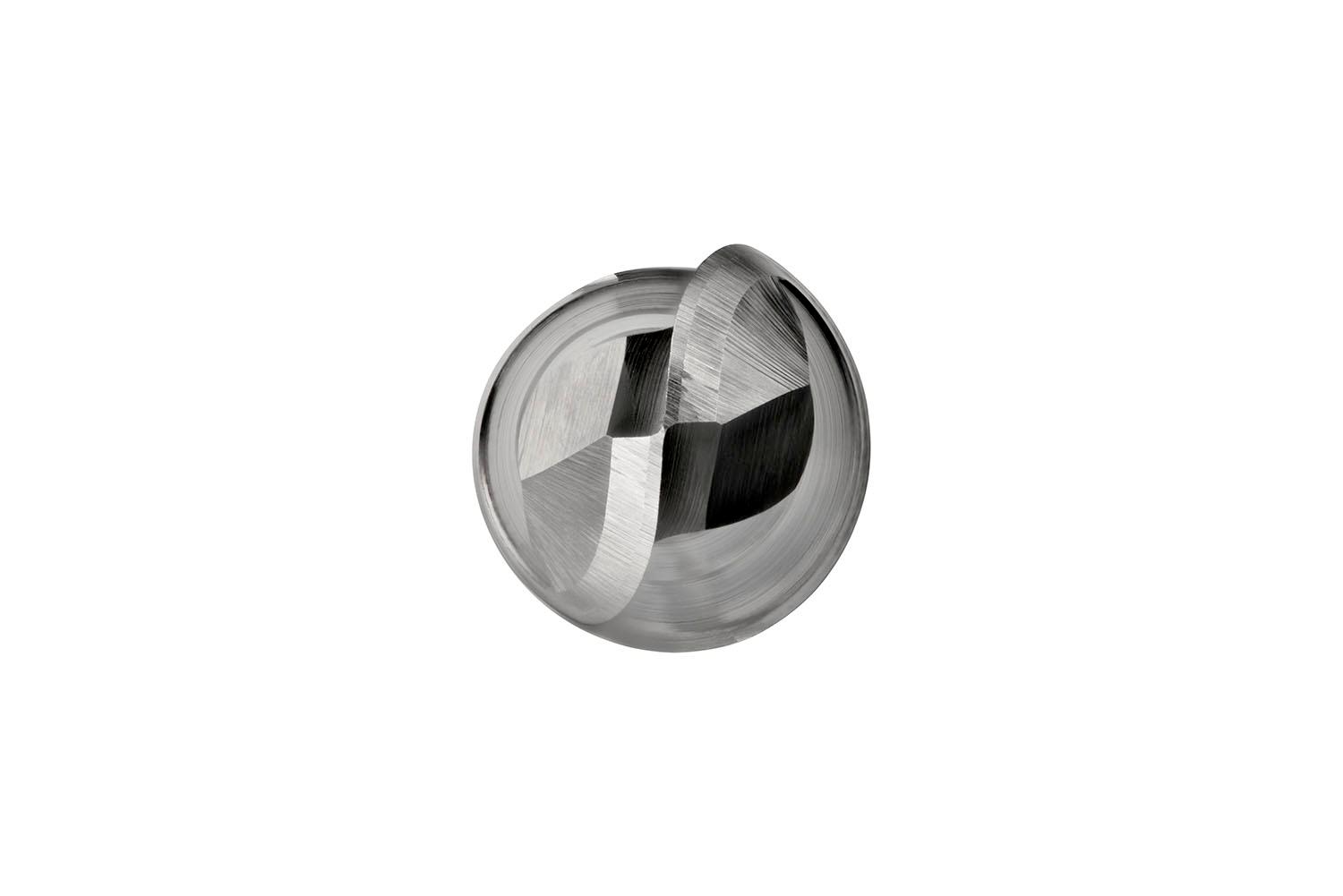

Extra short series ball-nose end mill with 2 flutes, diameter 12mm with 16mm length of cut, 73mm overall length and 6mm full profile radius, according to DIN 327 D standard with a 12mm Weldon shank, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for copy milling in free machining steel and copper or copper alloys

Additional information

Weight 0.1419 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760073155
Product number (SAP): 86014109
Ordering code ANSI: C50012.0
Gross weight – grams: 60.9

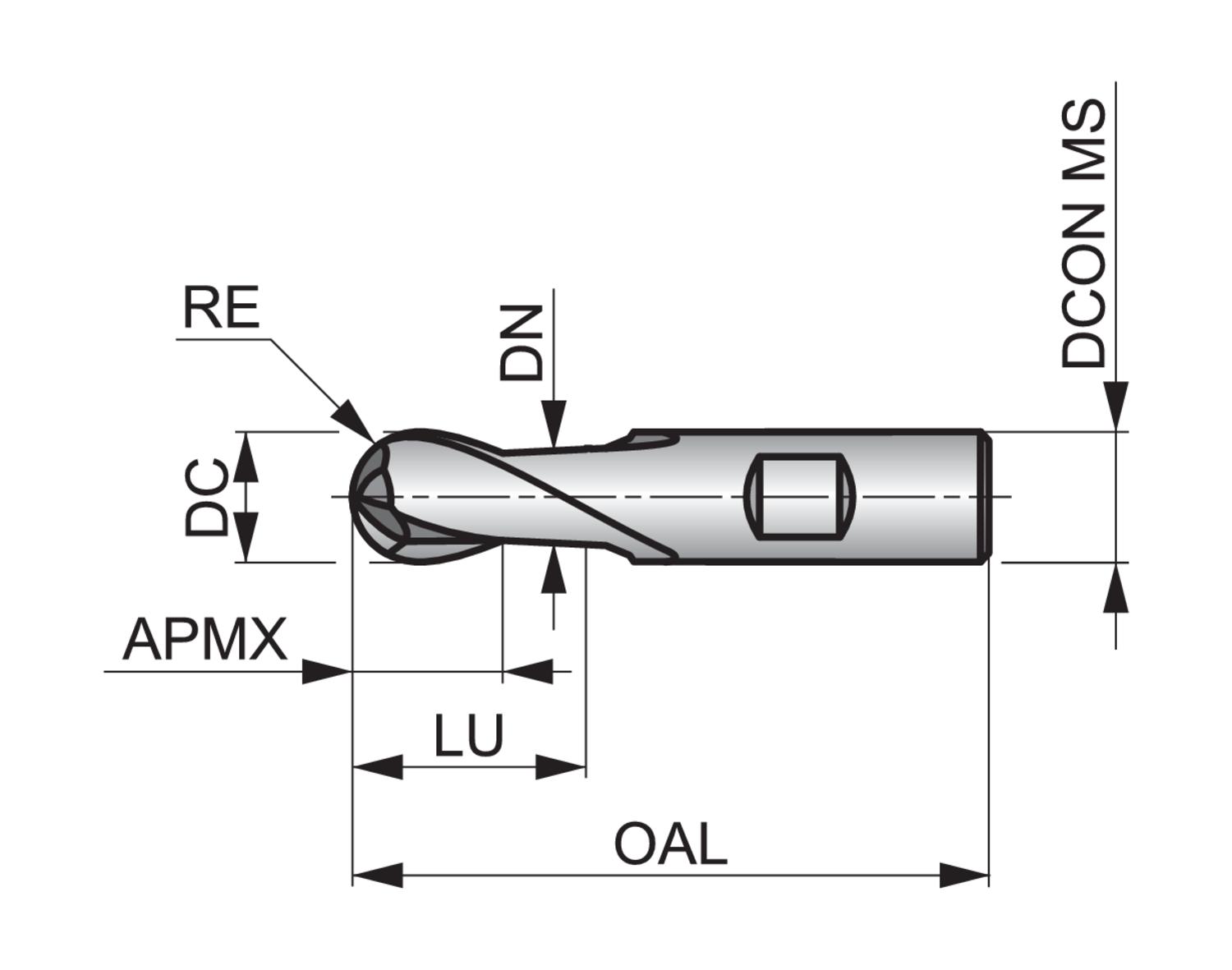

Cutting diameter – millimeter (DC): 12 mm
Corner radius – millimeter (RE): 6 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 16 mm
Overall length – millimeter (OAL): 73 mm
Flute count (NOF): 2
Radial rake angle (GAMF): 12
ISO: C50012.0

Brand

DORMER
