DORMER C50018.0 HSCO Cutters

Product Code: C50018.0

$249.26$226.60 Ex. GST

Product Code: C50018.0 SKU C50018.0 Categories , ,
DORMER C50018.0 HSCO Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

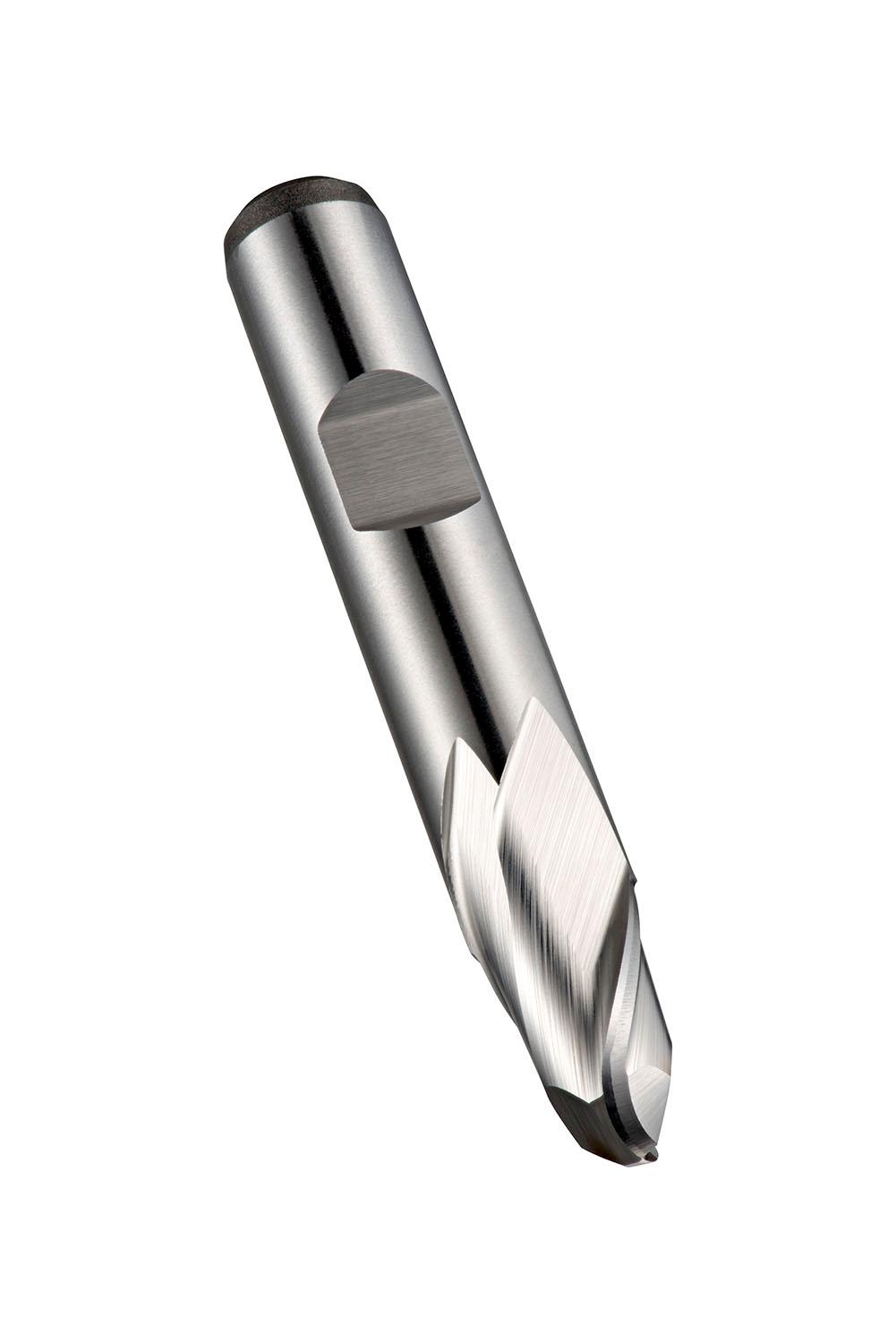

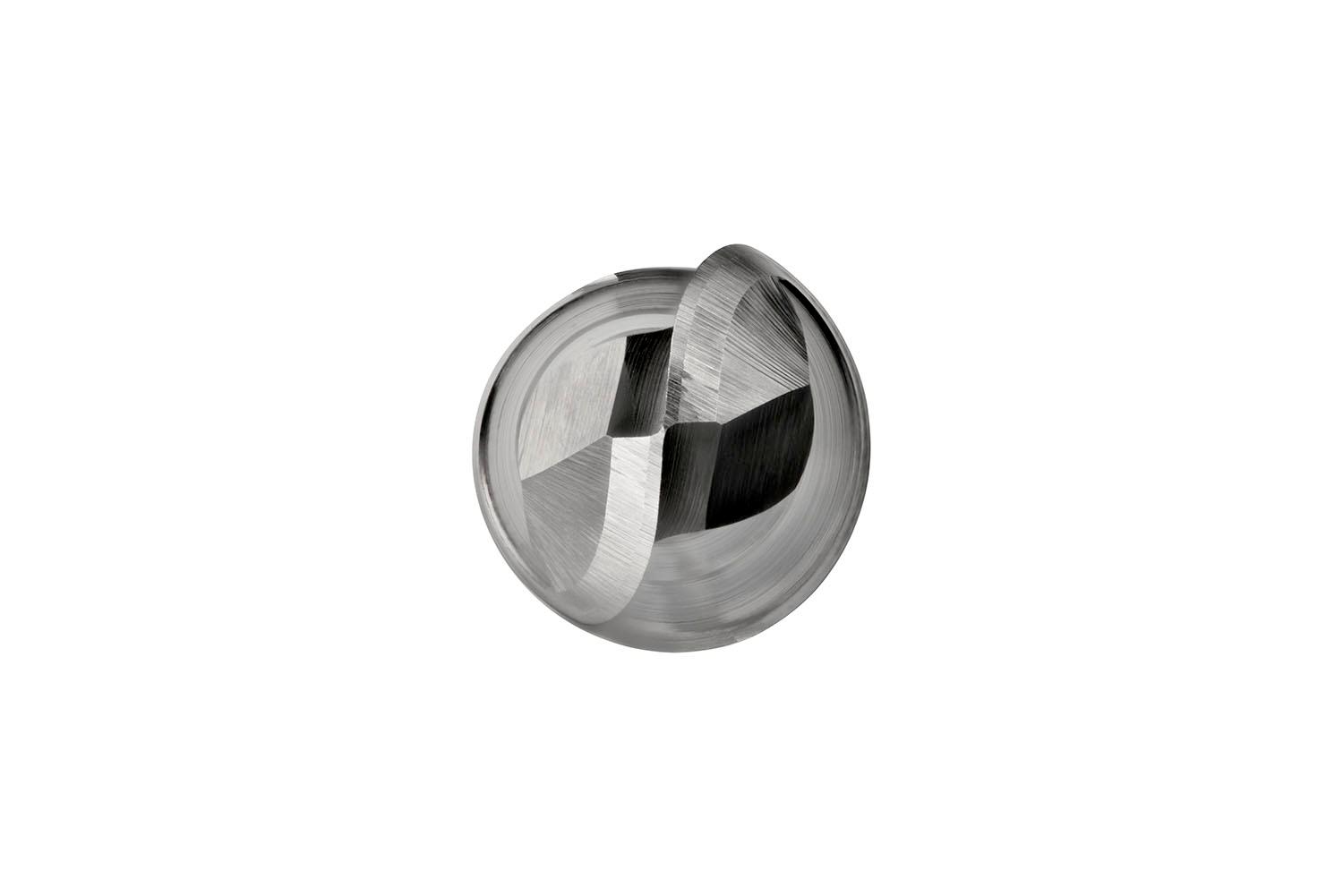

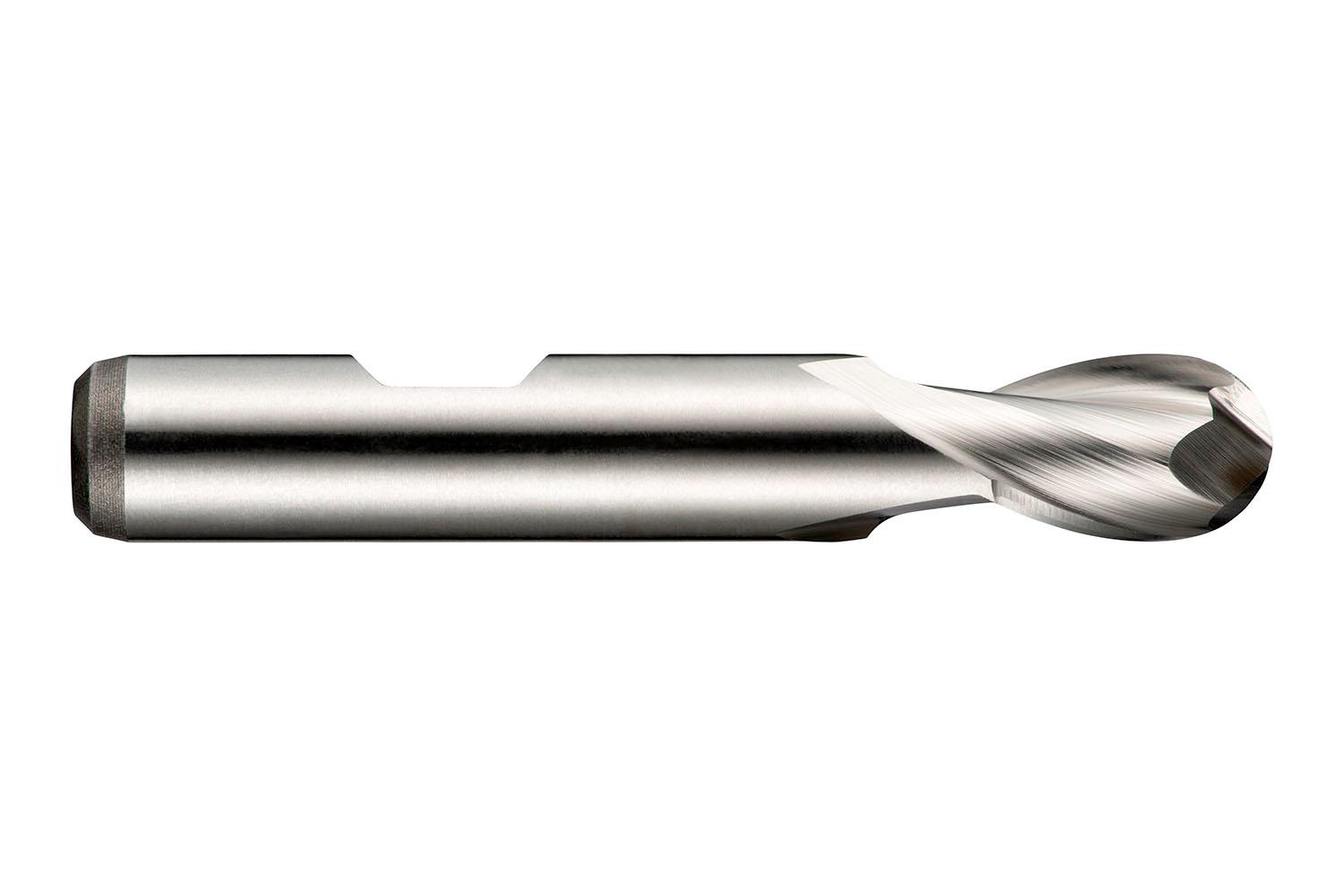

Extra short series ball-nose end mill with 2 flutes, diameter 18mm with 19mm length of cut, 79mm overall length, 30.5mm reach with neck relief and 9mm full profile radius, according to DIN 327 D standard with a 16mm Weldon shank, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for copy milling in free machining steel and copper or copper alloys

Additional information

Weight 0.2420 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760073186
Product number (SAP): 86014114
Ordering code ANSI: C50018.0
Gross weight – grams: 116.5

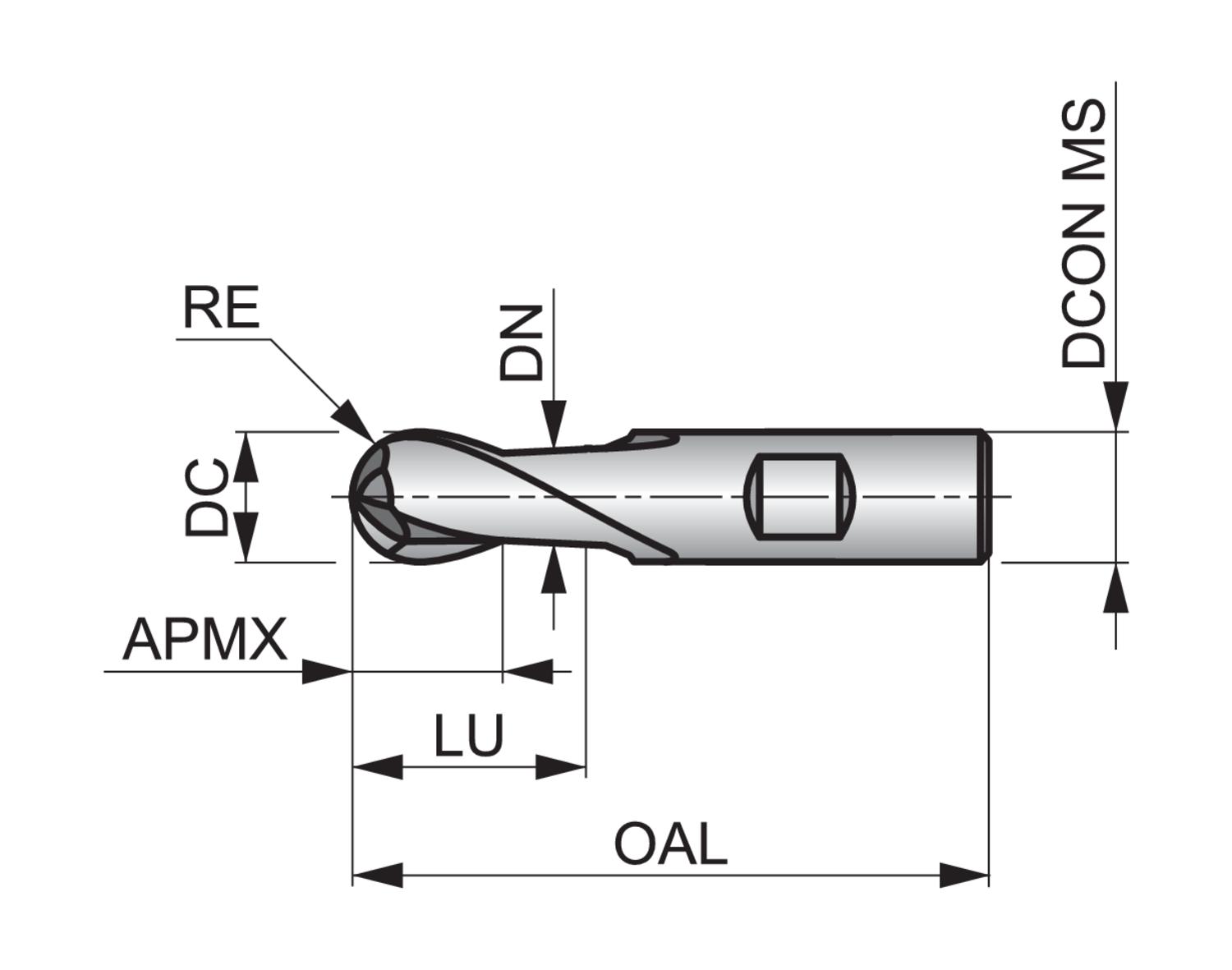

Cutting diameter – millimeter (DC): 18 mm
Corner radius – millimeter (RE): 9 mm
Connection diameter – millimeter (DCON MS): 16 mm
Depth of cut maximum – millimeter (APMX): 19 mm
Overall length – millimeter (OAL): 79 mm
Flute count (NOF): 2
Usable Length – millimeter (LU): 30.5 mm
Neck diameter – millimeter (DN): 15.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C50018.0

Brand

DORMER
