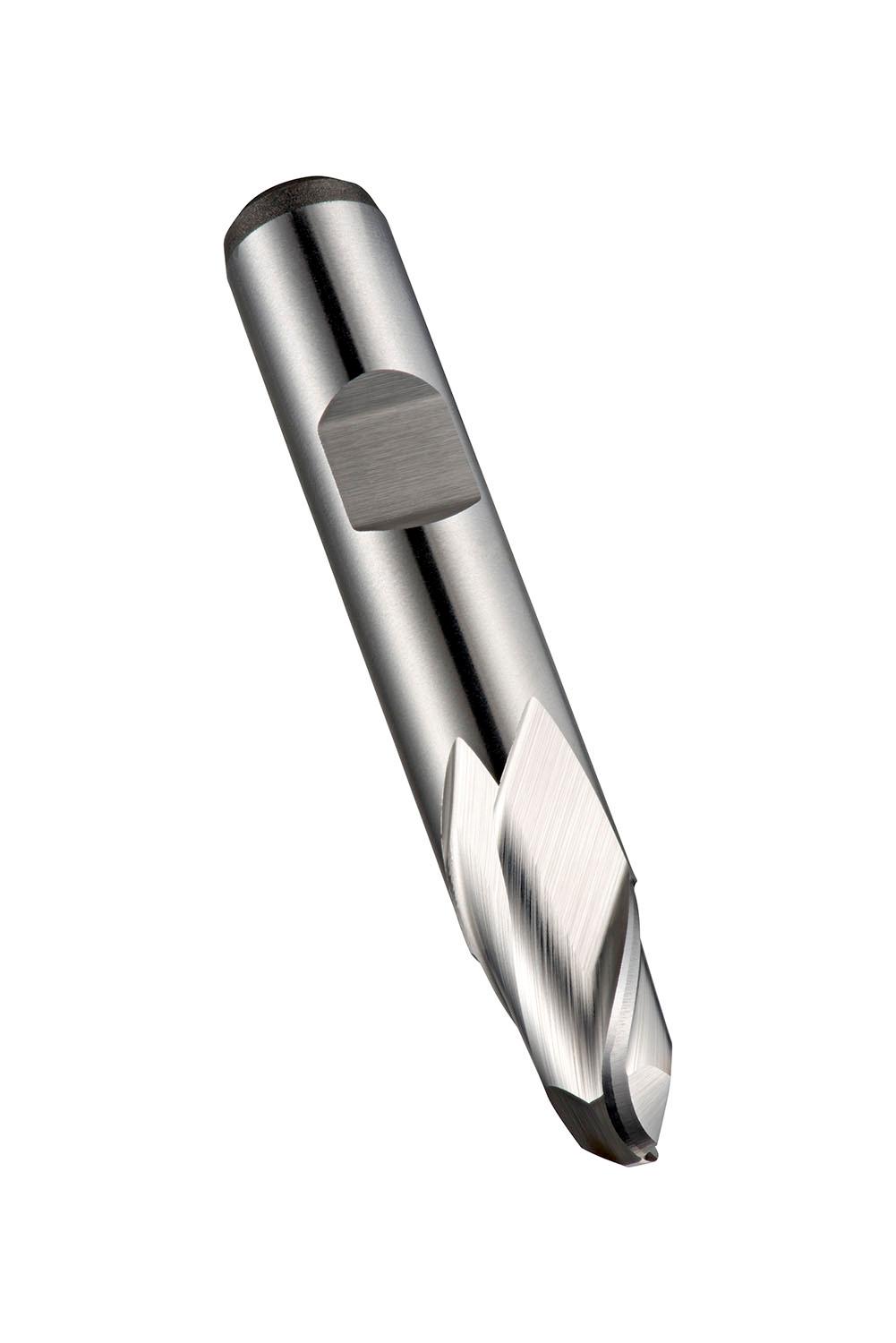

DORMER C5002.0 HSCO Cutters

Product Code: C5002.0

$95.17$86.52 Ex. GST

Product Code: C5002.0 SKU C5002.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

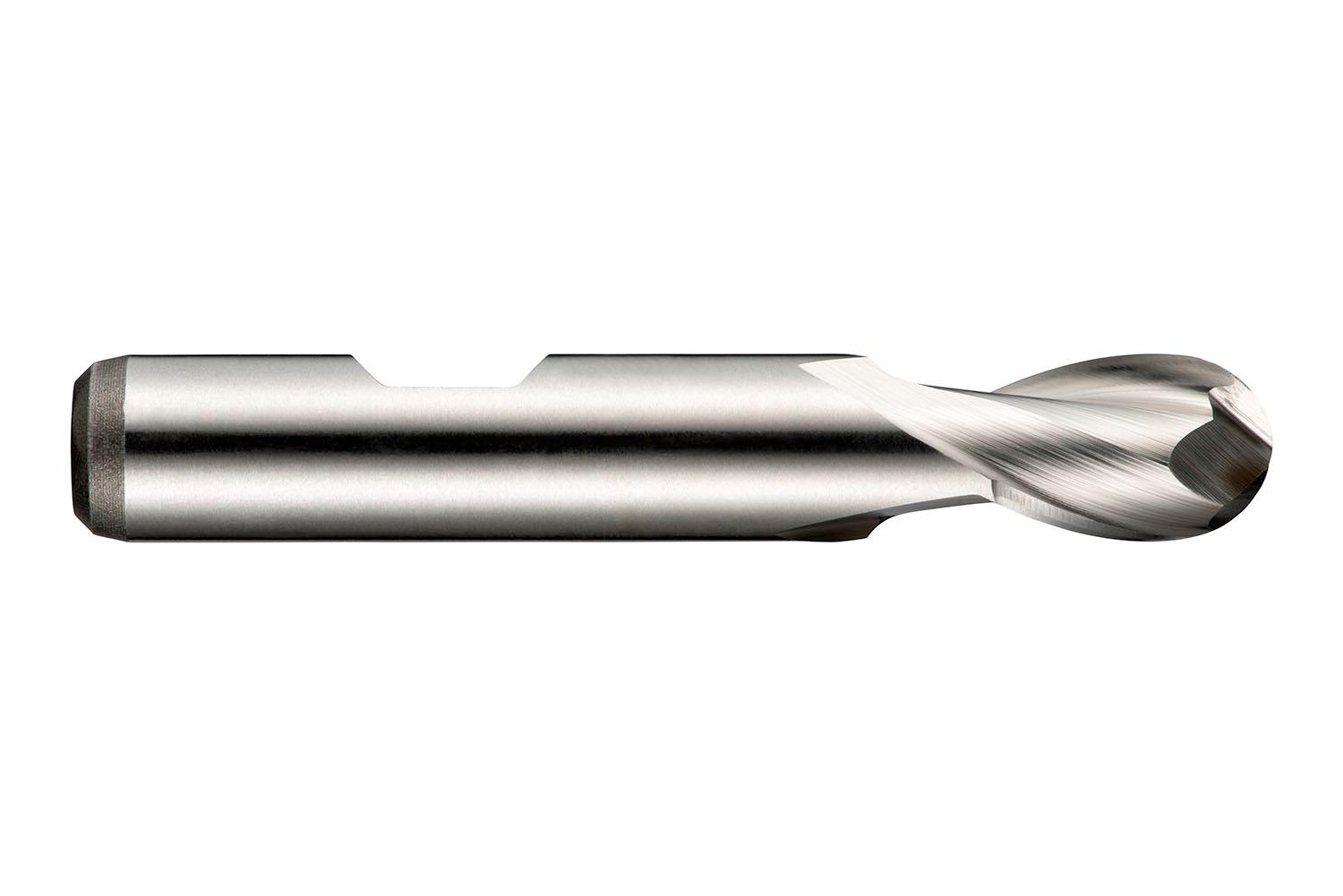

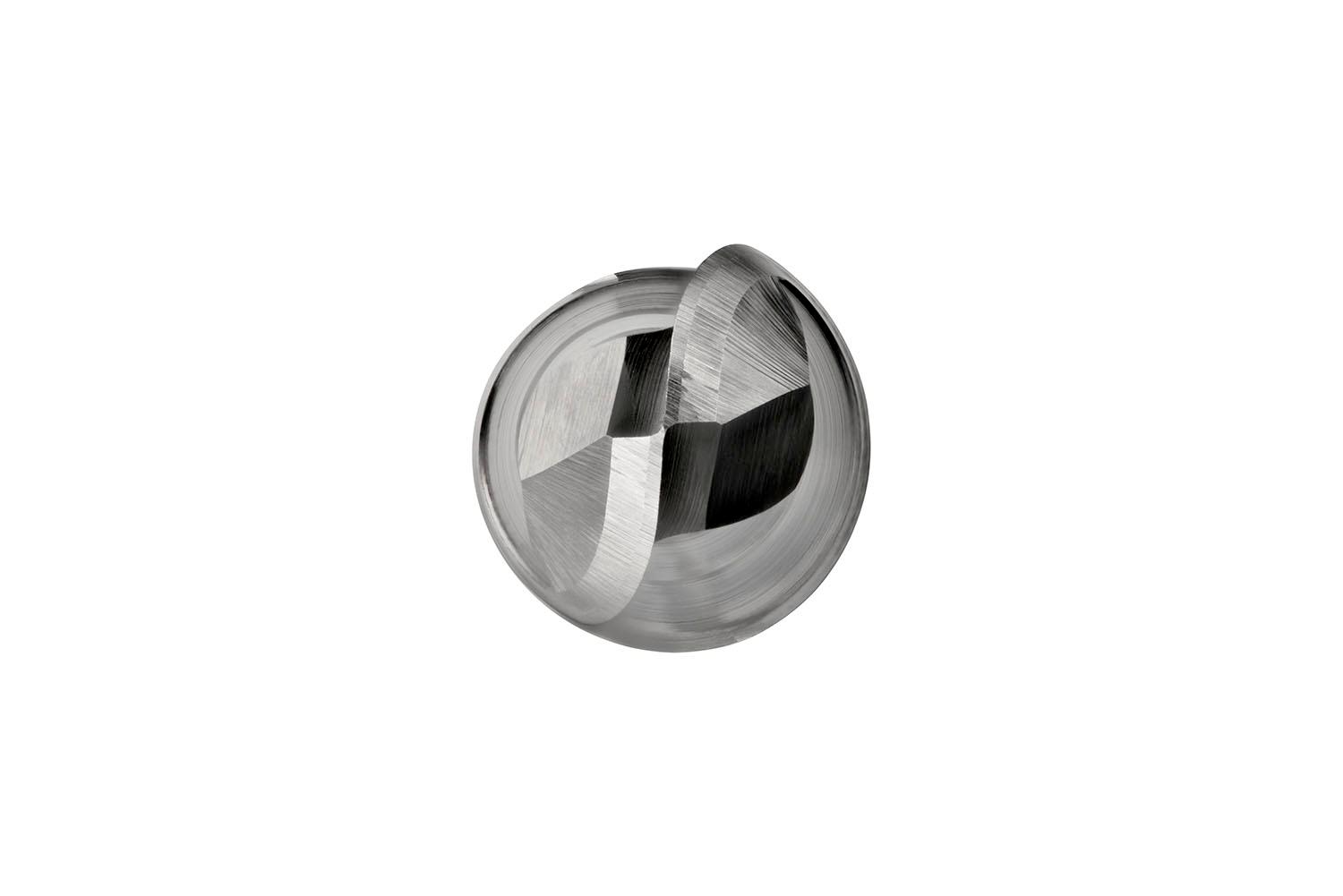

Extra short series ball-nose end mill with 2 flutes, diameter 2mm with 4mm length of cut, 48mm overall length and 1mm full profile radius, according to DIN 327 D standard with a 6mm Weldon shank, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for copy milling in free machining steel and copper or copper alloys

Additional information

Weight 0.0924 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760073193
Product number (SAP): 86014115
Ordering code ANSI: C5002.0
Gross weight – grams: 11

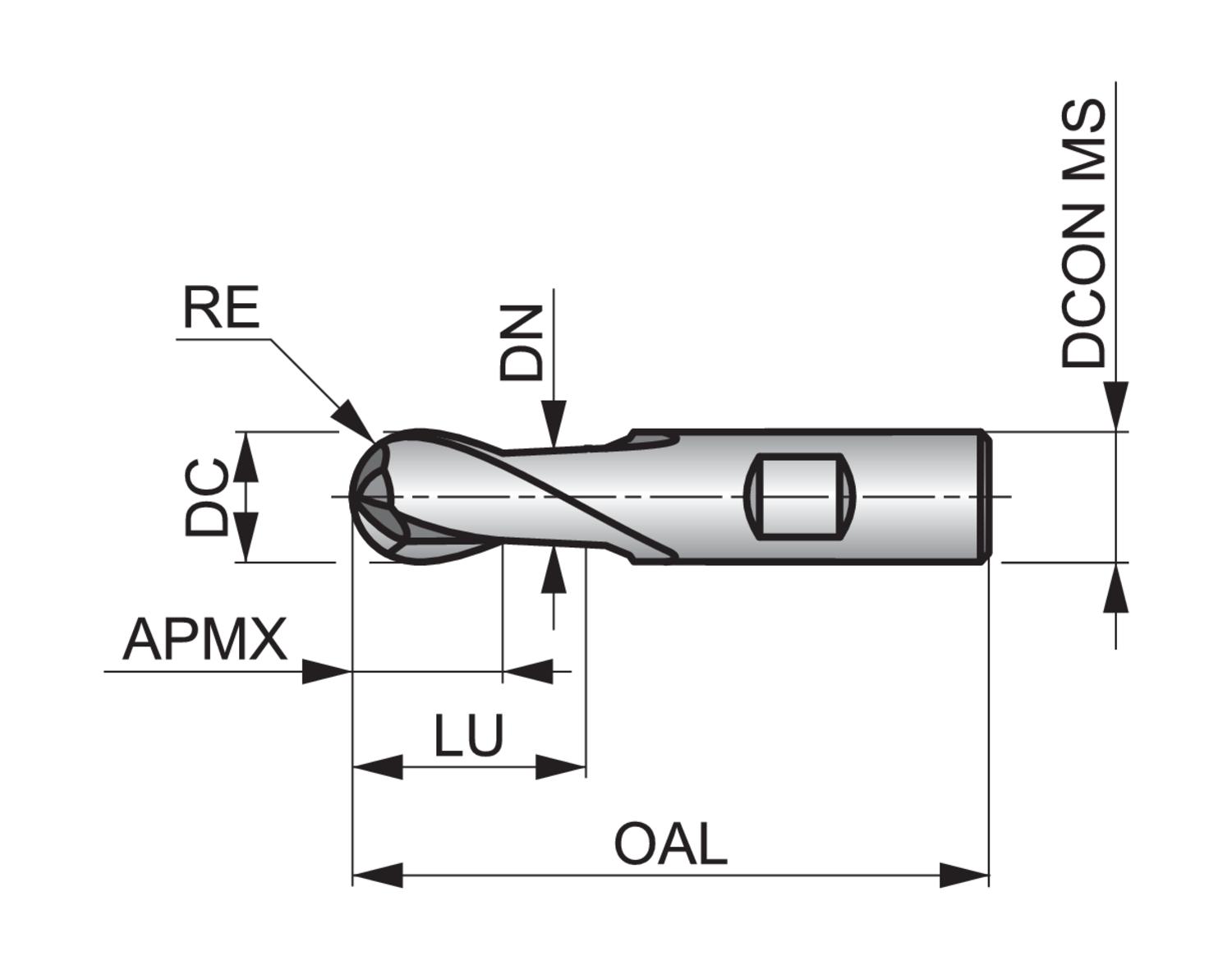

Cutting diameter – millimeter (DC): 2 mm
Corner radius – millimeter (RE): 1 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 4 mm
Overall length – millimeter (OAL): 48 mm
Flute count (NOF): 2
Neck diameter – millimeter (DN): 2 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C5002.0

Brand

DORMER
