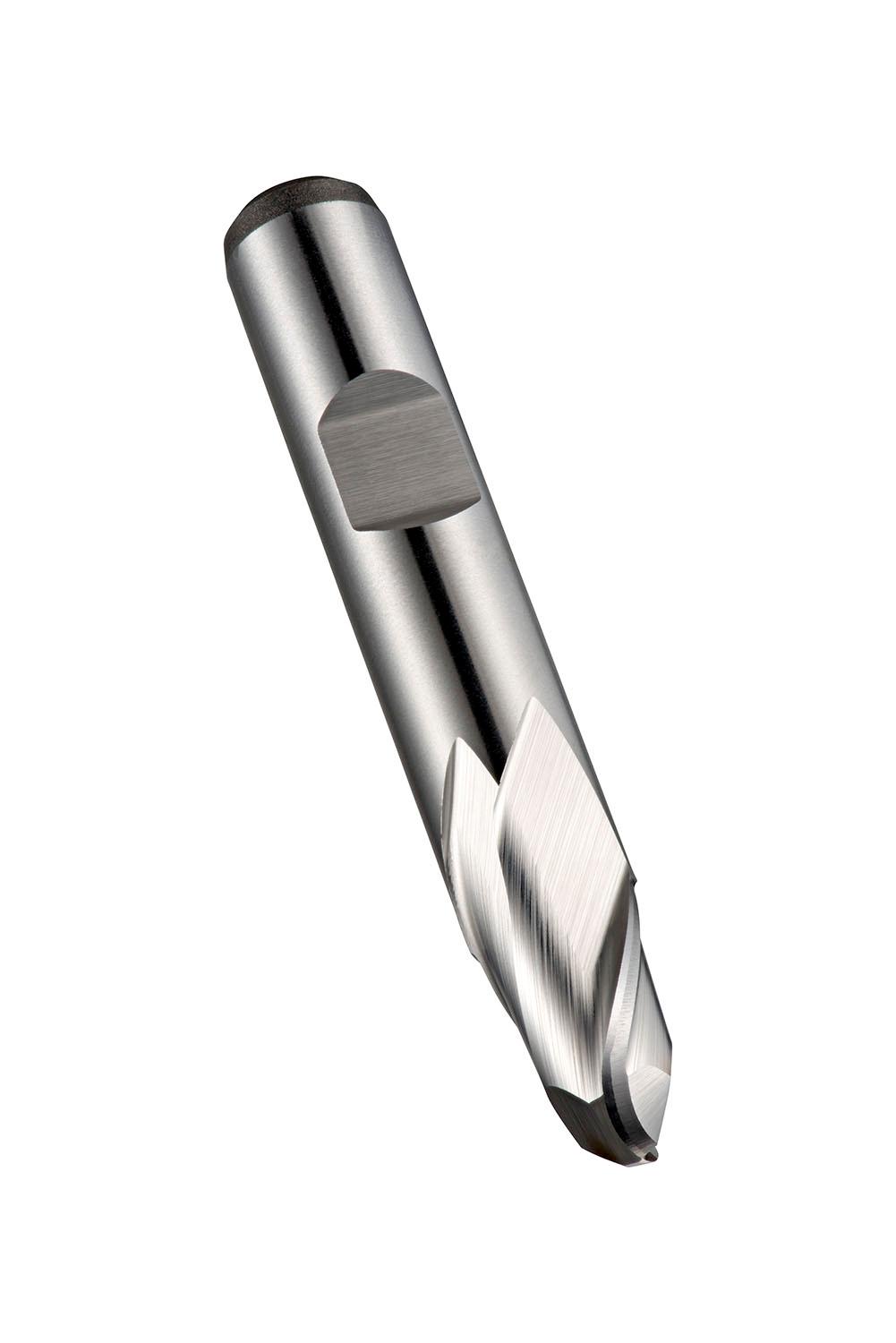

DORMER C5004.0 HSCO Cutters

Product Code: C5004.0

$90.08$81.89 Ex. GST

Product Code: C5004.0 SKU C5004.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

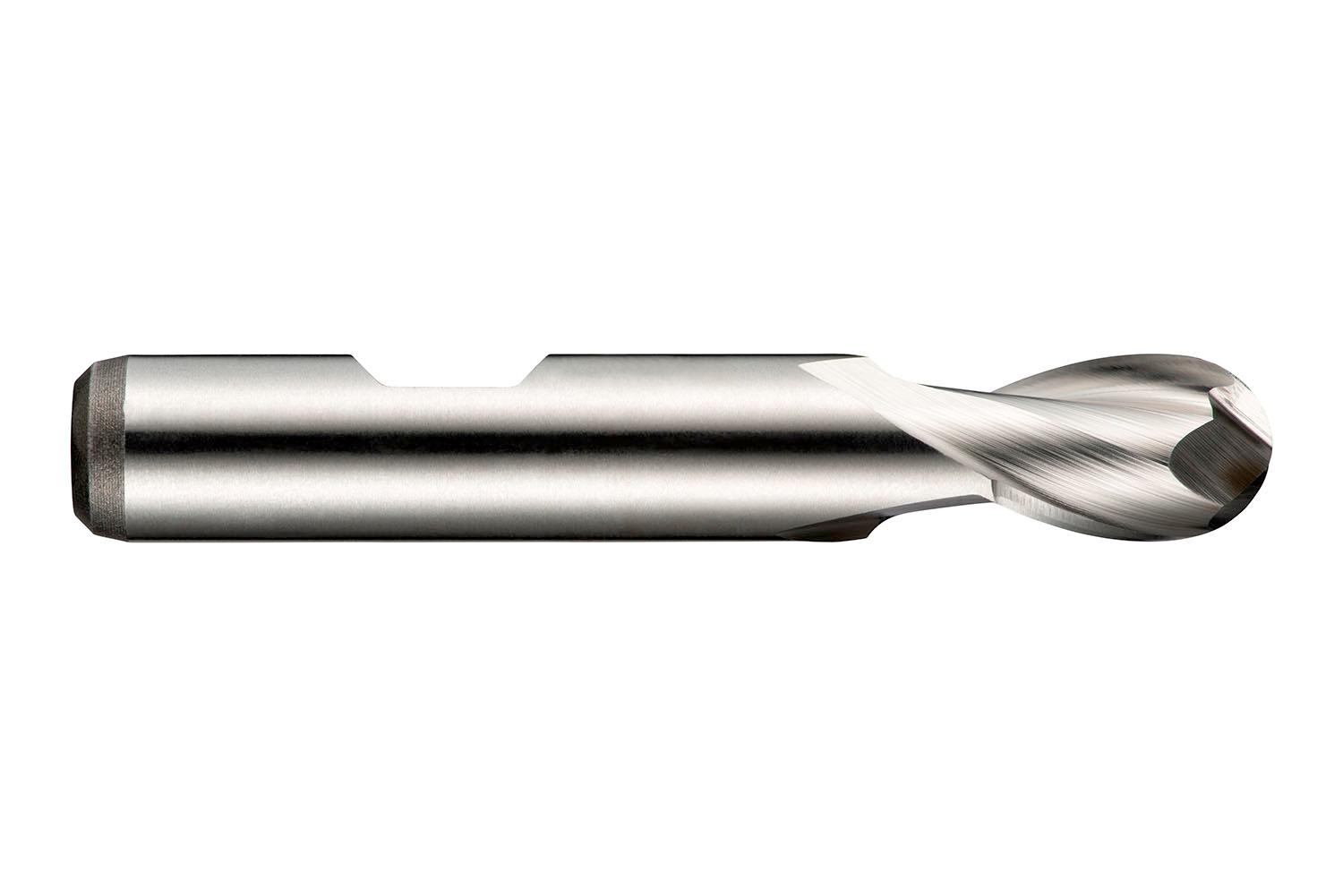

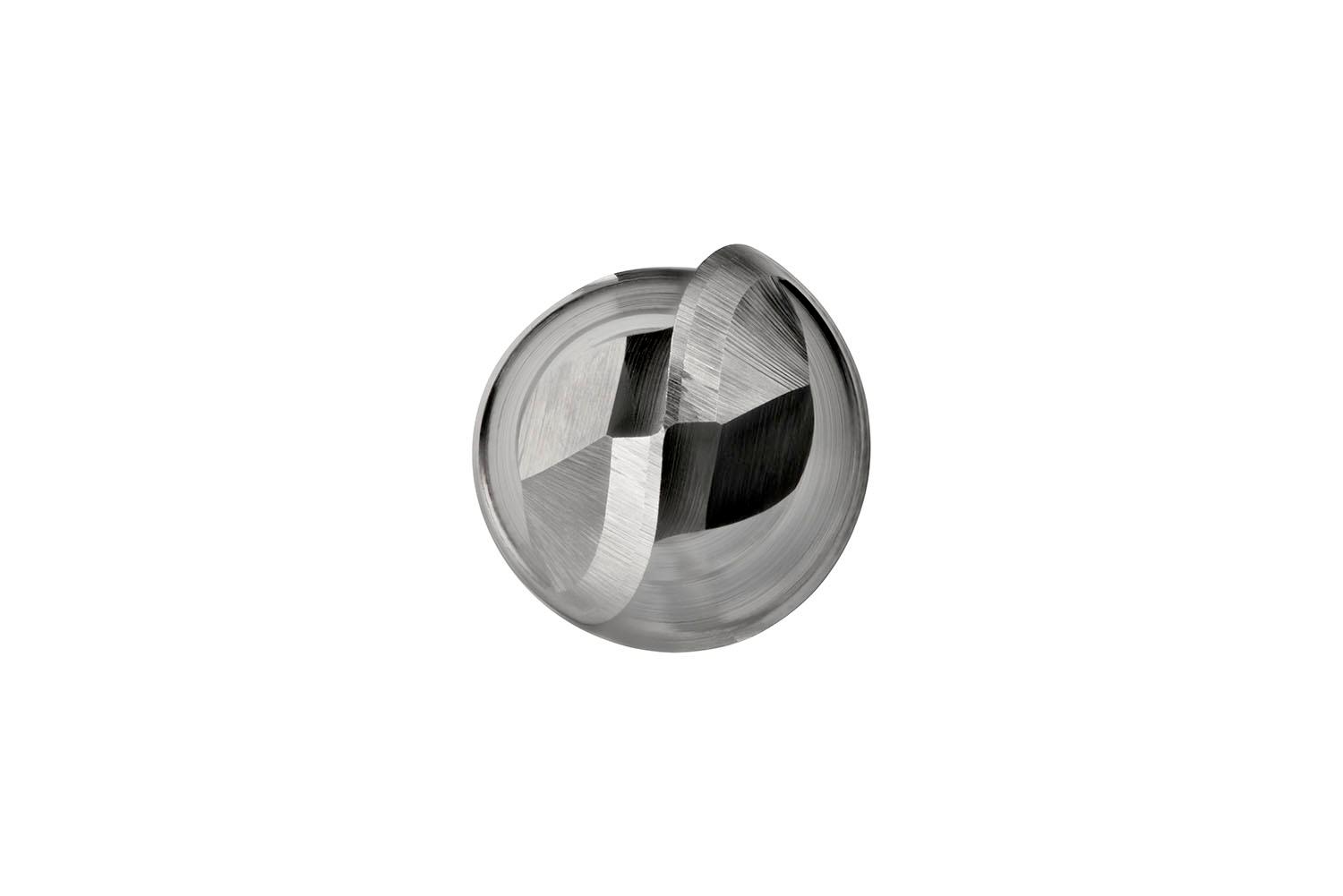

Extra short series ball-nose end mill with 2 flutes, diameter 4mm with 7mm length of cut, 51mm overall length and 2mm full profile radius, according to DIN 327 D standard with a 6mm Weldon shank, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for copy milling in free machining steel and copper or copper alloys

Additional information

Weight 0.0874 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760073230
Product number (SAP): 86014119
Ordering code ANSI: C5004.0
Gross weight – grams: 11.8

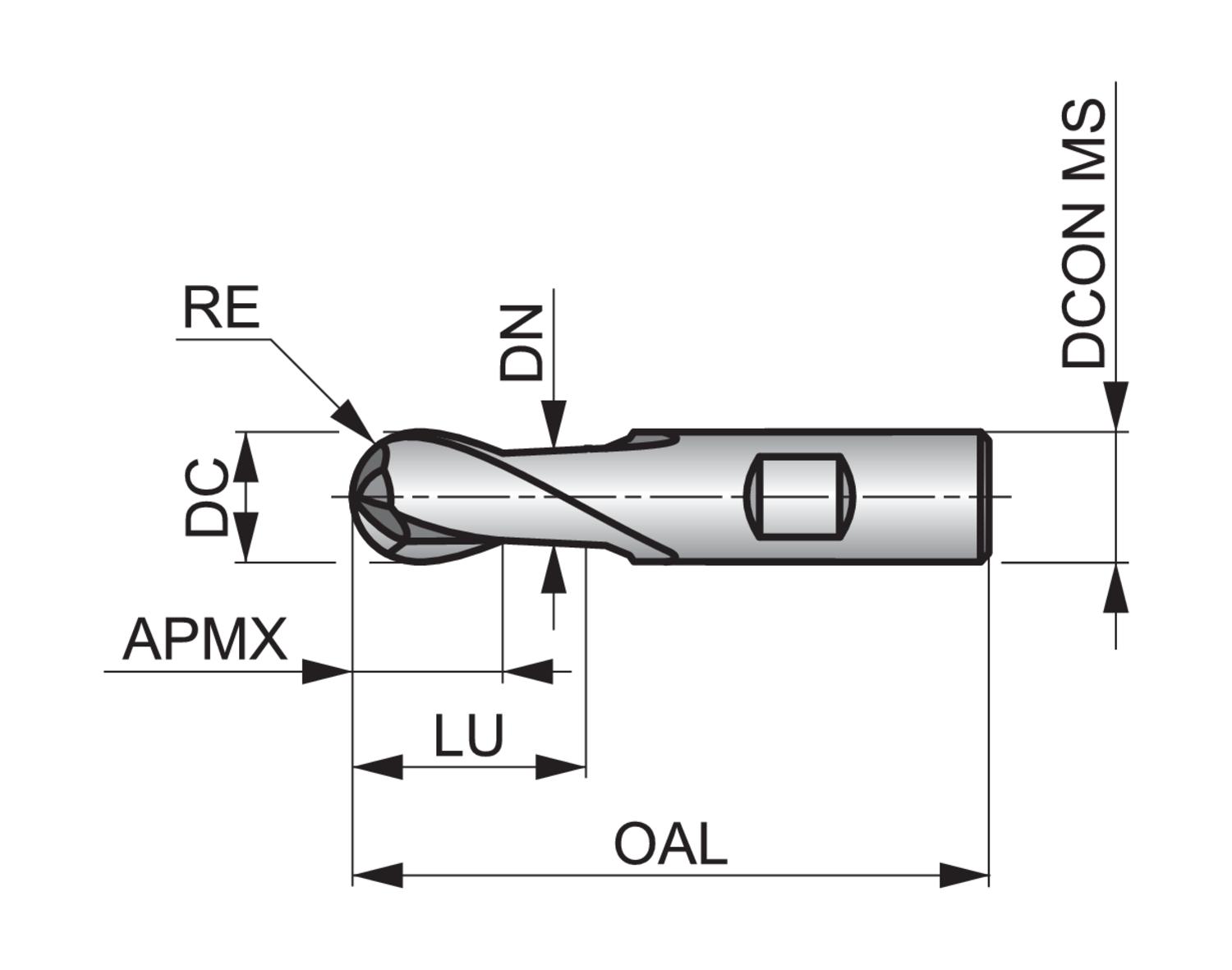

Cutting diameter – millimeter (DC): 4 mm
Corner radius – millimeter (RE): 2 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 7 mm
Overall length – millimeter (OAL): 51 mm
Flute count (NOF): 2
Neck diameter – millimeter (DN): 4 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C5004.0

Brand

DORMER
