DORMER C5006.0 HSCO Cutters

Product Code: C5006.0

$89.51$81.37 Ex. GST

Product Code: C5006.0 SKU C5006.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

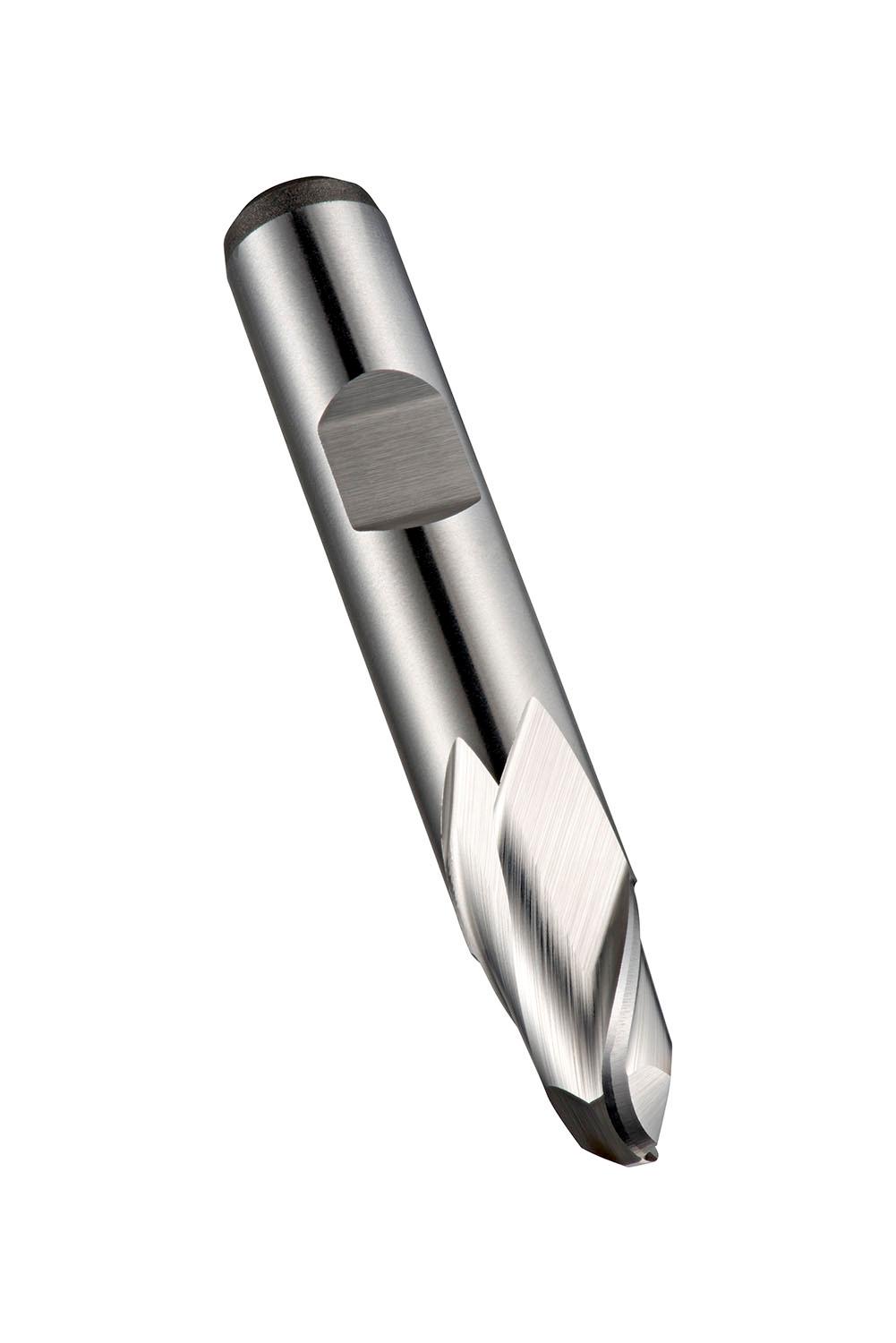

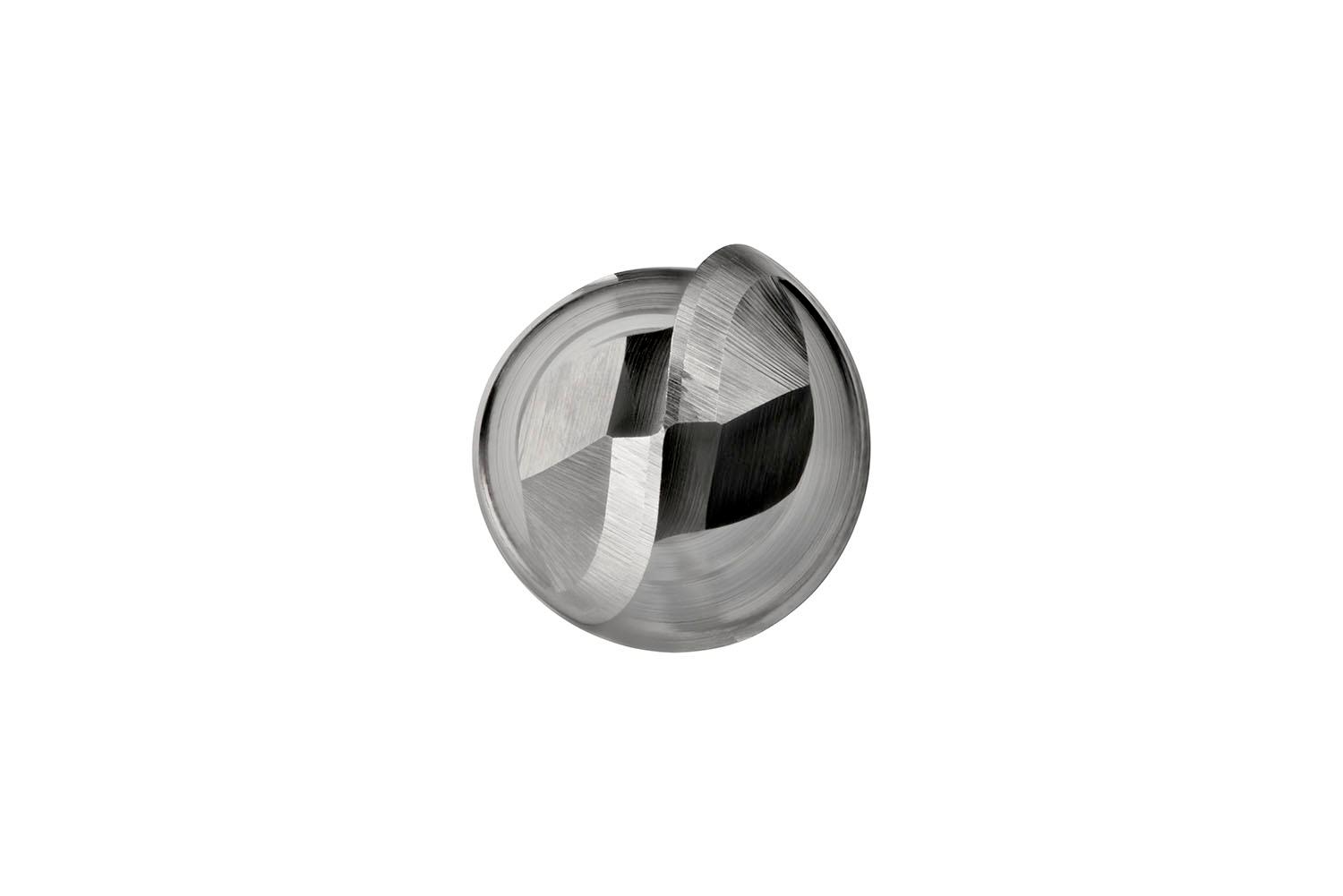

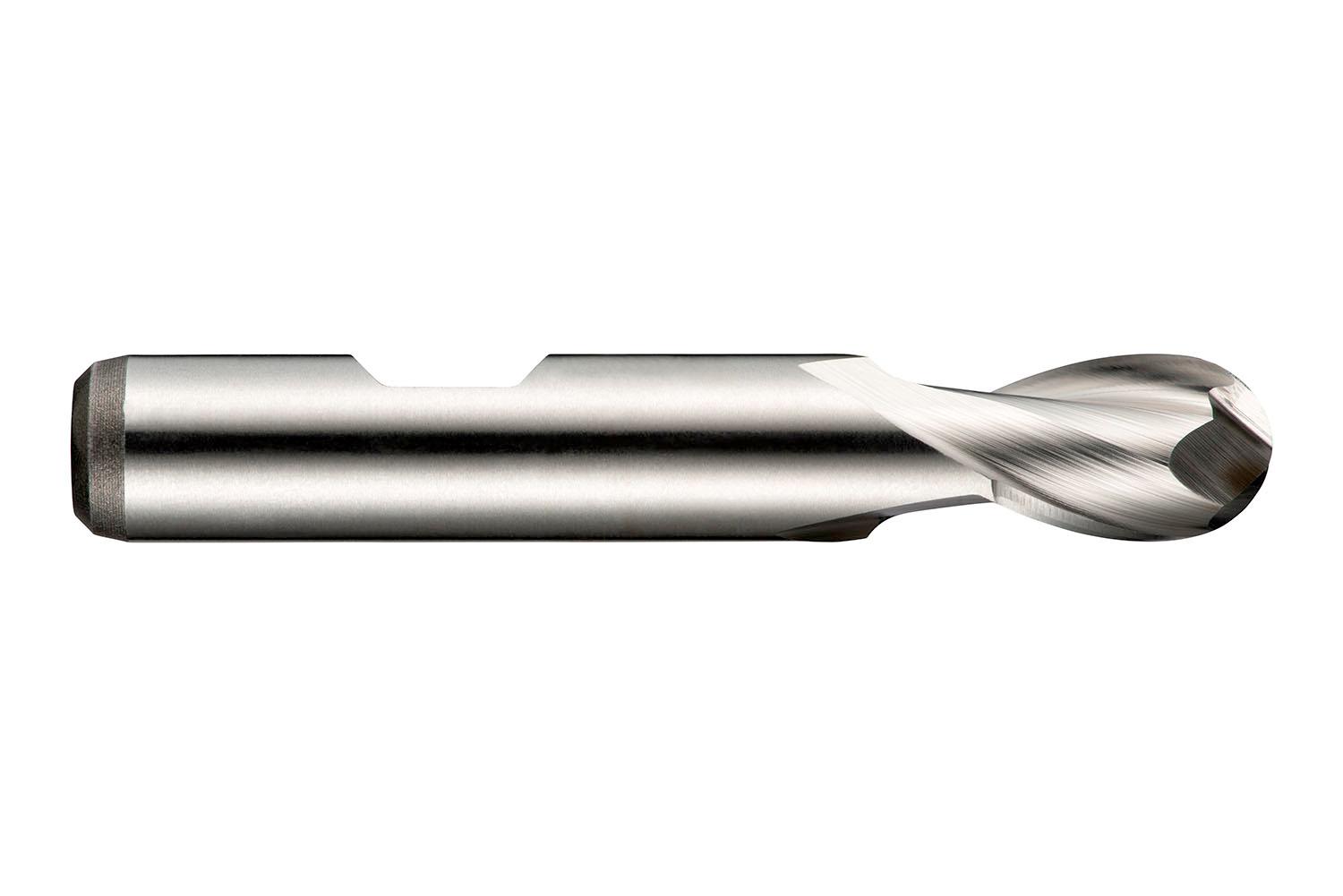

Extra short series ball-nose end mill with 2 flutes, diameter 6mm with 8mm length of cut, 52mm overall length and 3mm full profile radius, according to DIN 327 D standard with a 6mm Weldon shank, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for copy milling in free machining steel and copper or copper alloy

Additional information

Weight 0.0869 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760073254
Product number (SAP): 86014121
Ordering code ANSI: C5006.0
Gross weight – grams: 13

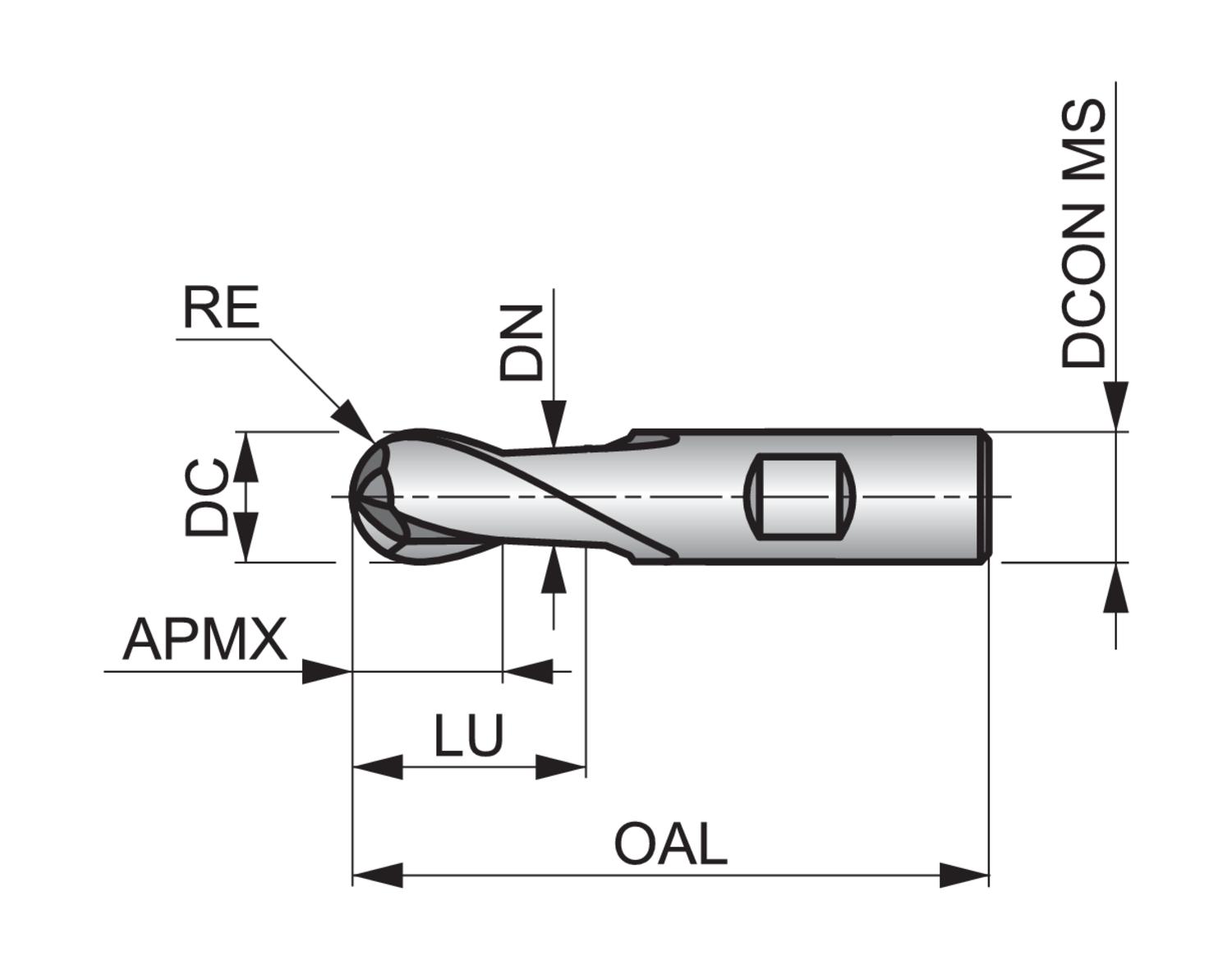

Cutting diameter – millimeter (DC): 6 mm
Corner radius – millimeter (RE): 3 mm
Connection diameter – millimeter (DCON MS): 6 mm
Depth of cut maximum – millimeter (APMX): 8 mm
Overall length – millimeter (OAL): 52 mm
Flute count (NOF): 2
Radial rake angle (GAMF): 12
ISO: C5006.0

Brand

DORMER
