DORMER C5008.0 HSCO Cutters

Product Code: C5008.0

$113.30$103.00 Ex. GST

Product Code: C5008.0 SKU C5008.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

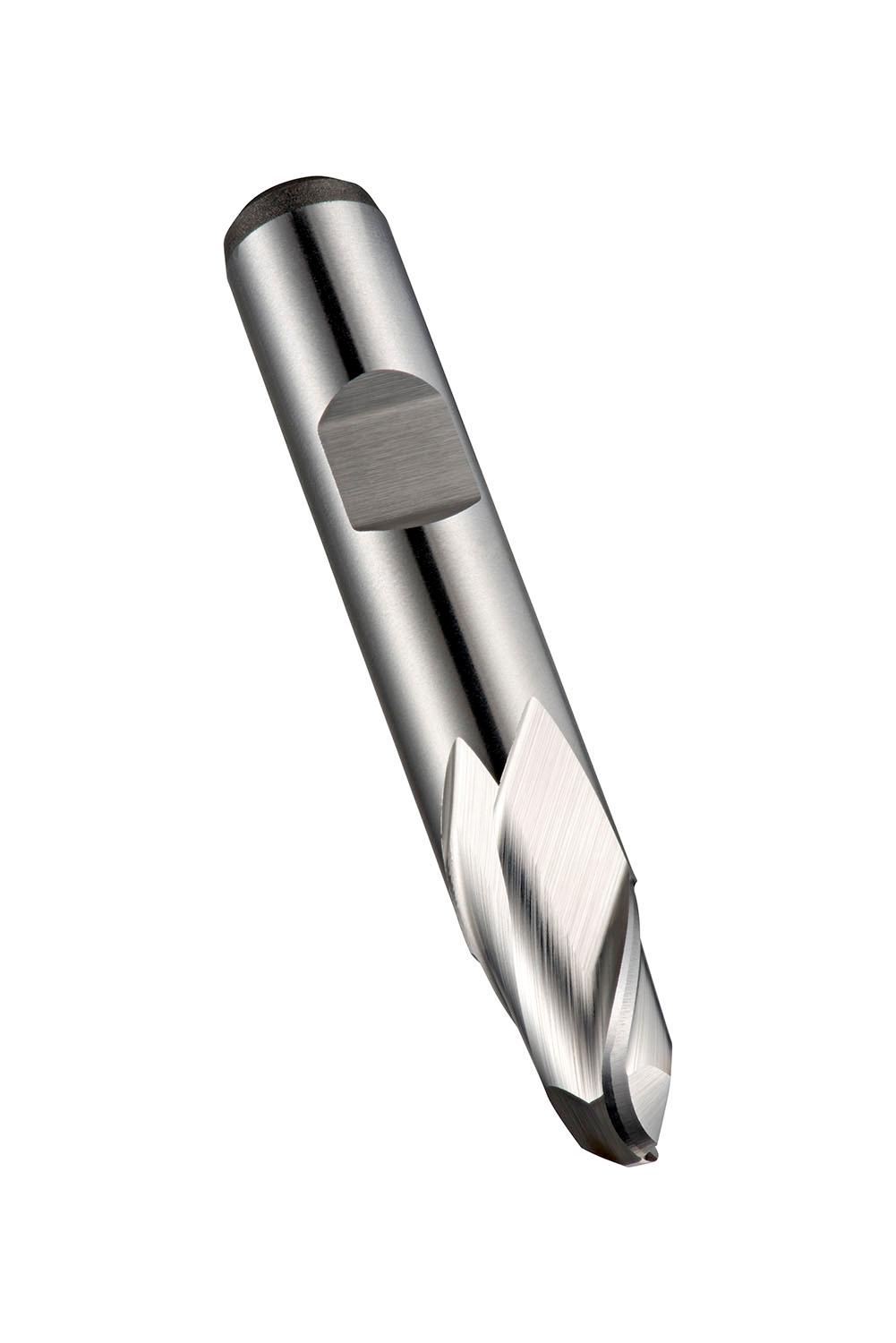

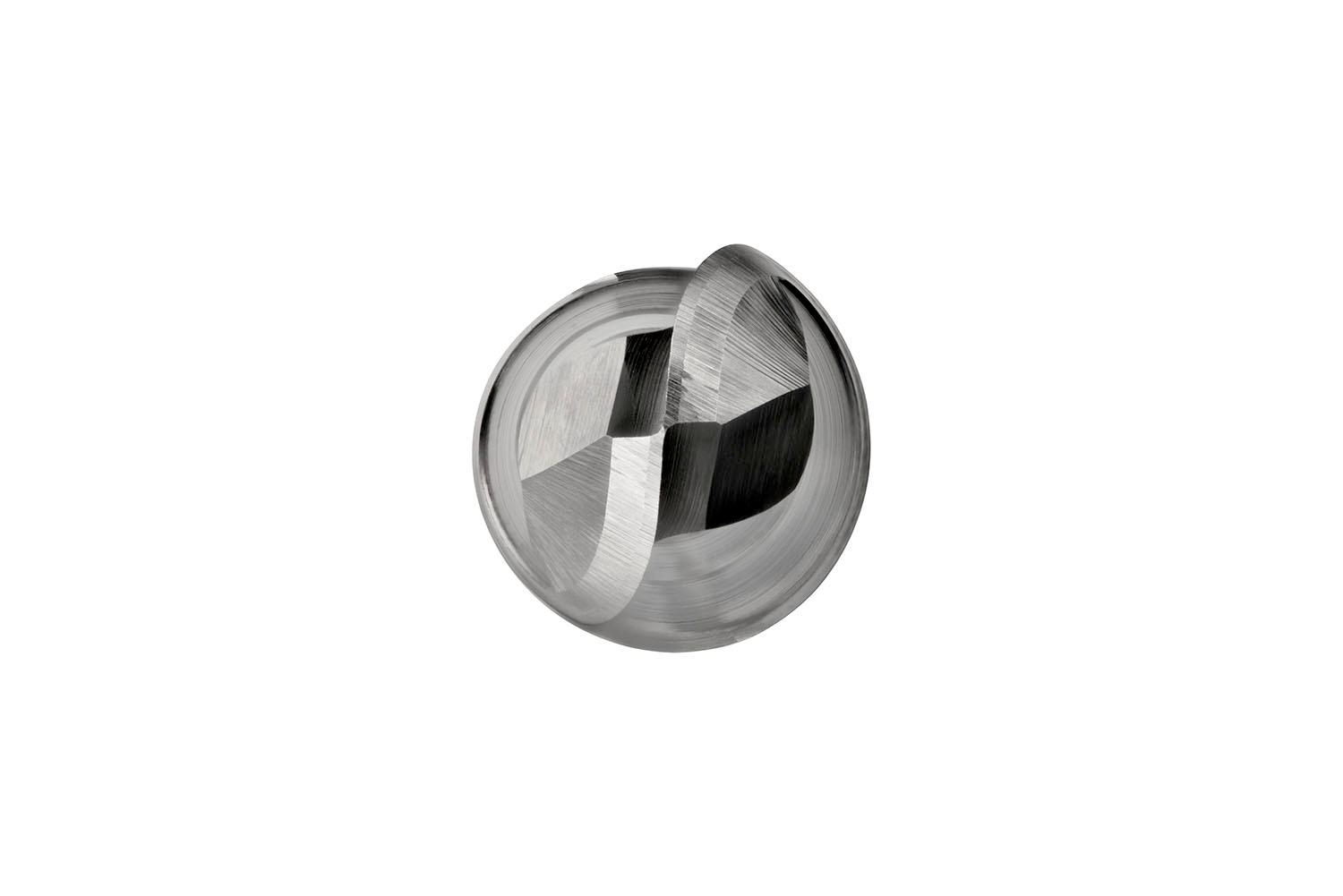

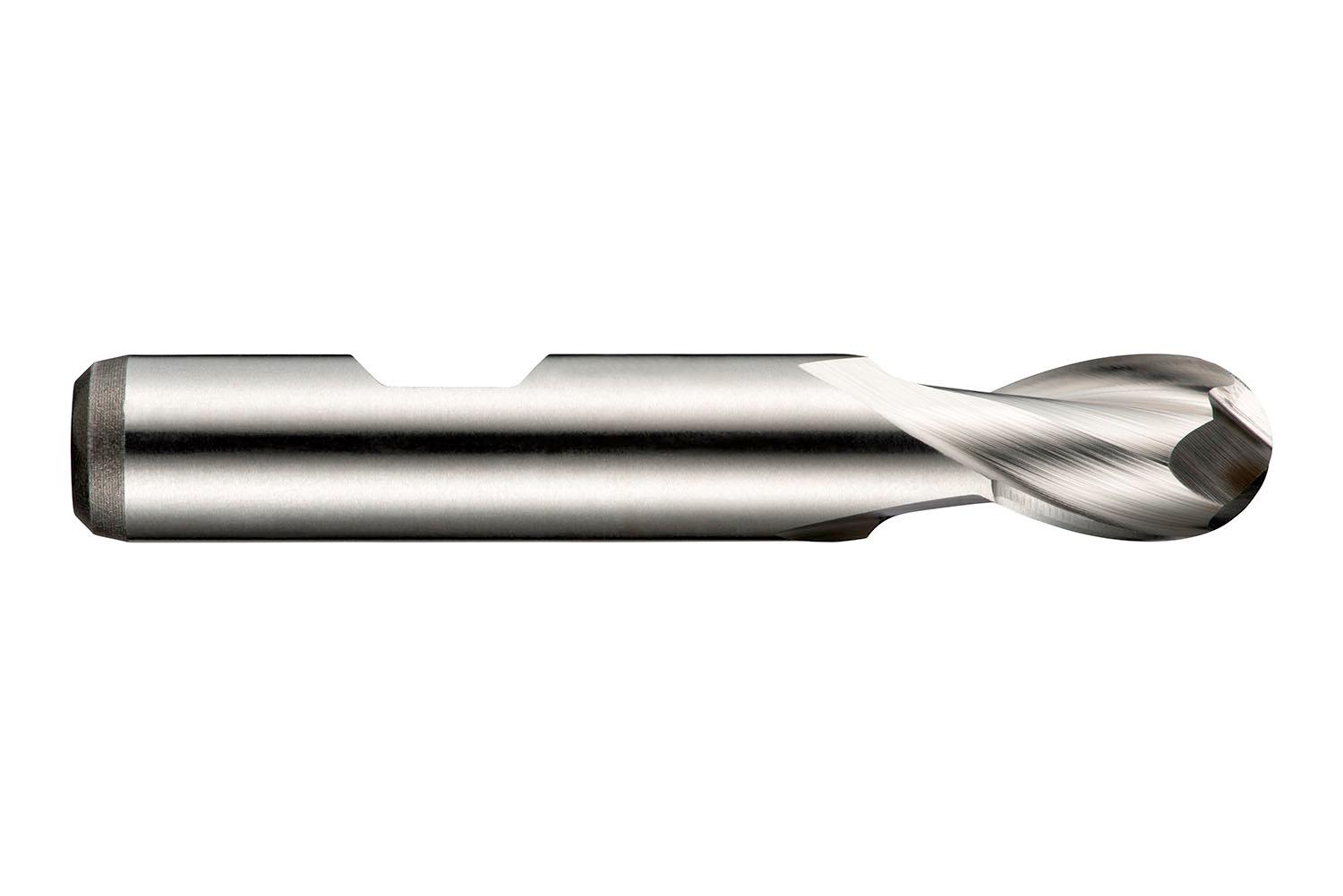

Extra short series ball-nose end mill with 2 flutes, diameter 8mm with 11mm length of cut, 61mm overall length and 4mm full profile radius, according to DIN 327 D standard with a 10mm Weldon shank, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for copy milling in free machining steel and copper or copper alloys

Additional information

Weight 0.1100 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760073278
Product number (SAP): 86014123
Ordering code ANSI: C5008.0
Gross weight – grams: 35

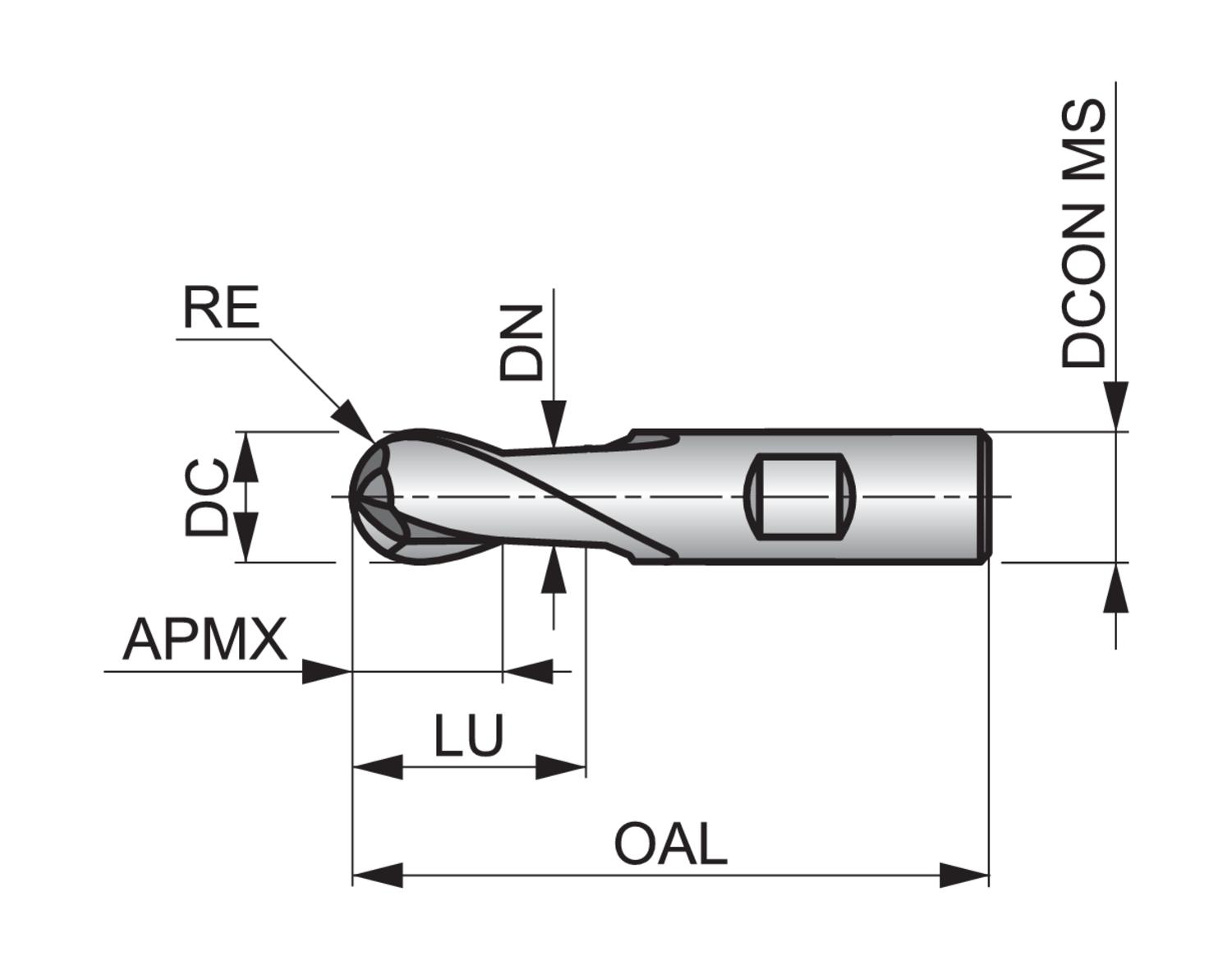

Cutting diameter – millimeter (DC): 8 mm
Corner radius – millimeter (RE): 4 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 11 mm
Overall length – millimeter (OAL): 61 mm
Flute count (NOF): 2
Neck diameter – millimeter (DN): 8 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C5008.0

Brand

DORMER
