DORMER C50510.0 HSCO Cutters

Product Code: C50510.0

$130.30$118.45 Ex. GST

Product Code: C50510.0 SKU C50510.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

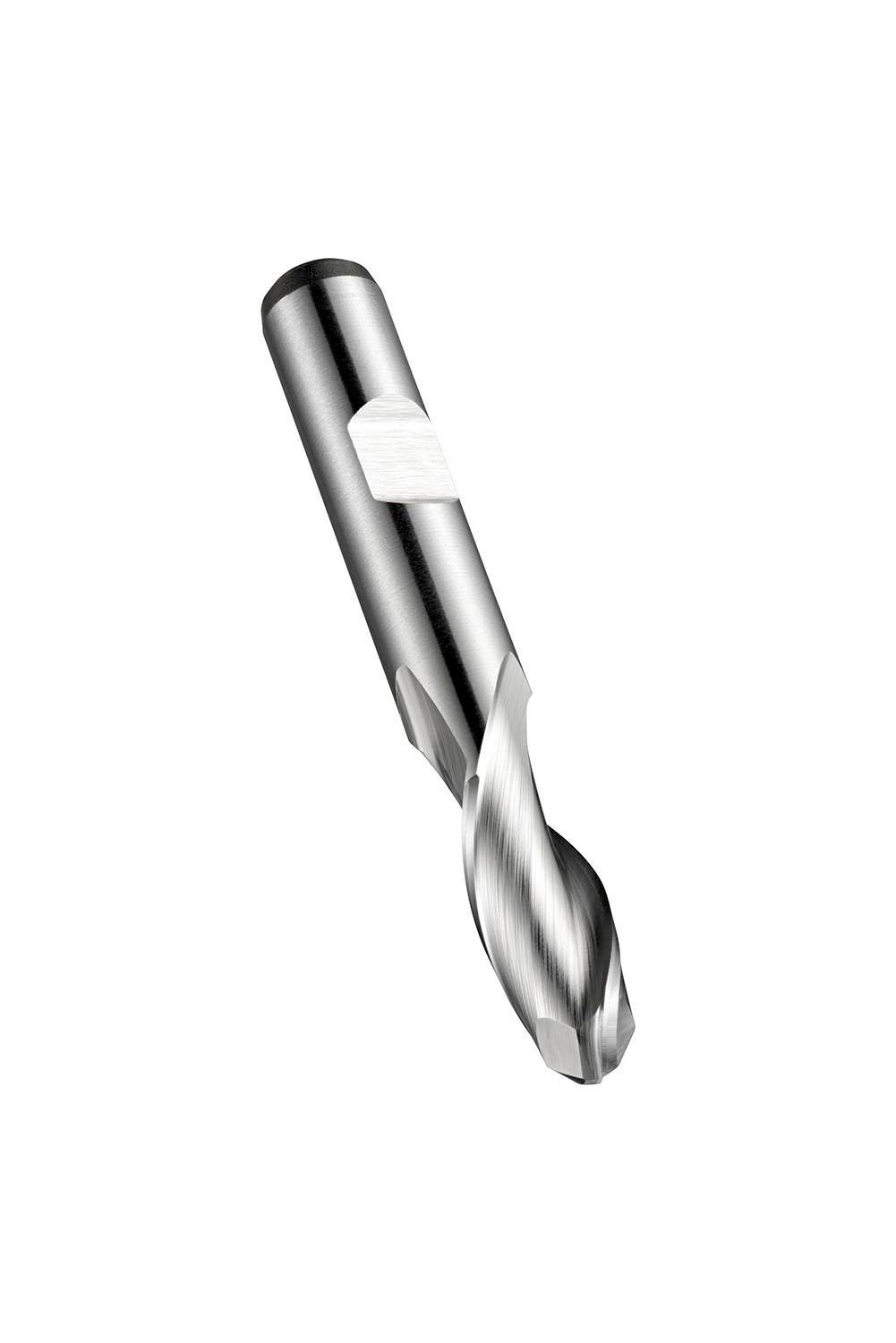

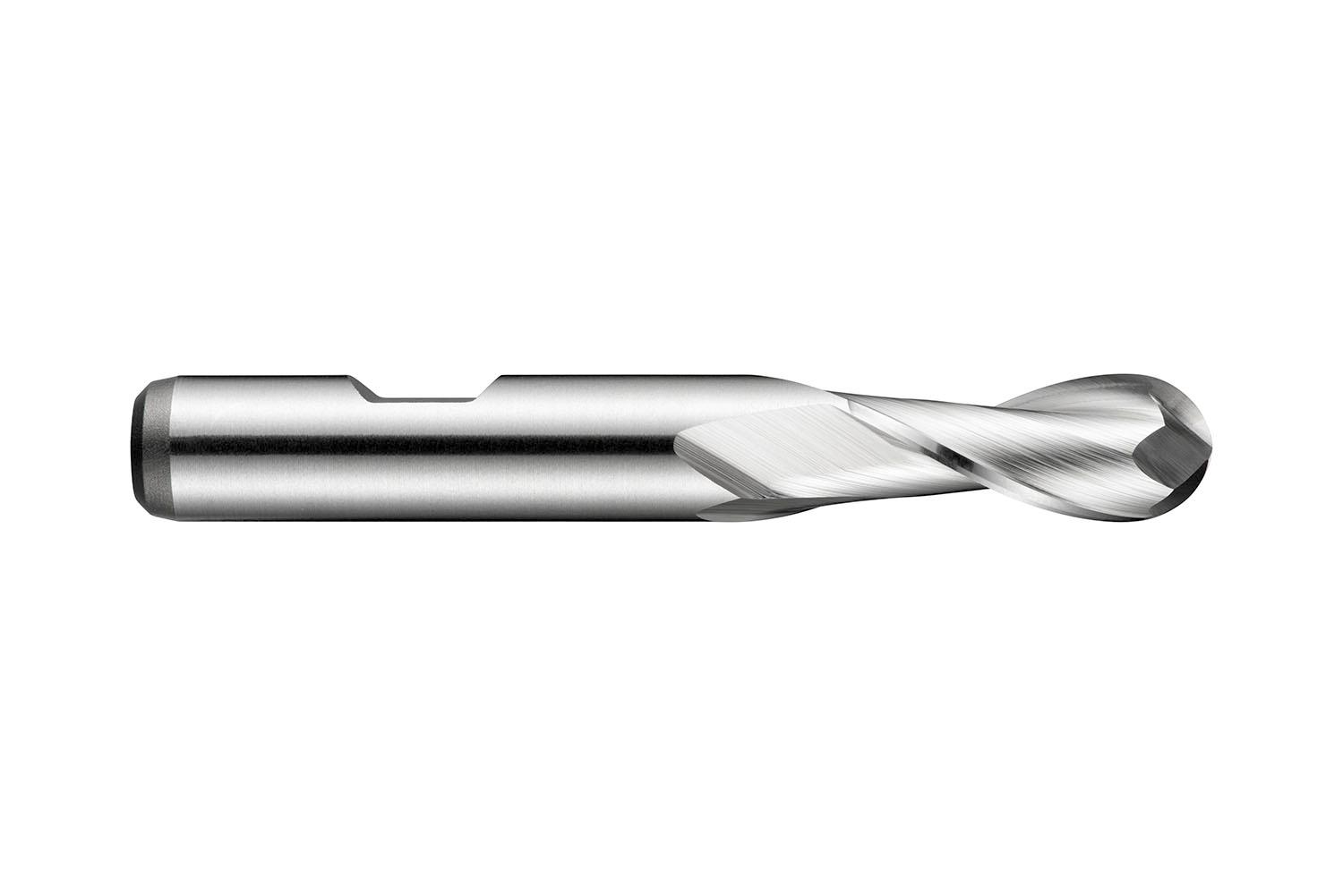

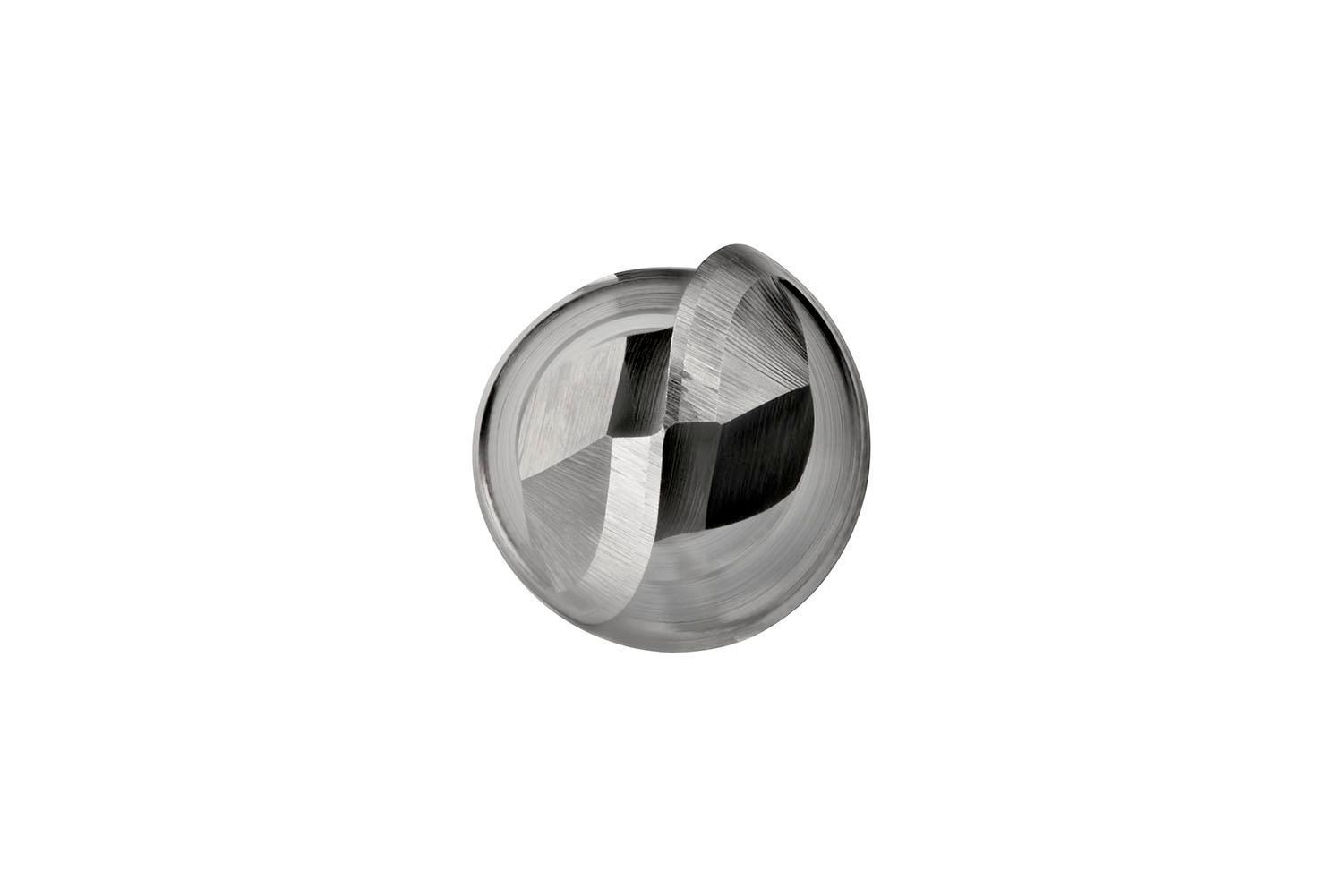

Short series ball-nose end mill with 2 flutes, diameter 10mm with 22mm length of cut, 72mm overall length and 5mm full profile radius, according to DIN 844 K standard with a 10mm Weldon shank, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for copy milling in free machining steel and copper or copper alloys

Additional information

Weight 0.1265 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760073520
Product number (SAP): 86014143
Ordering code ANSI: C50510.0
Gross weight – grams: 40.7

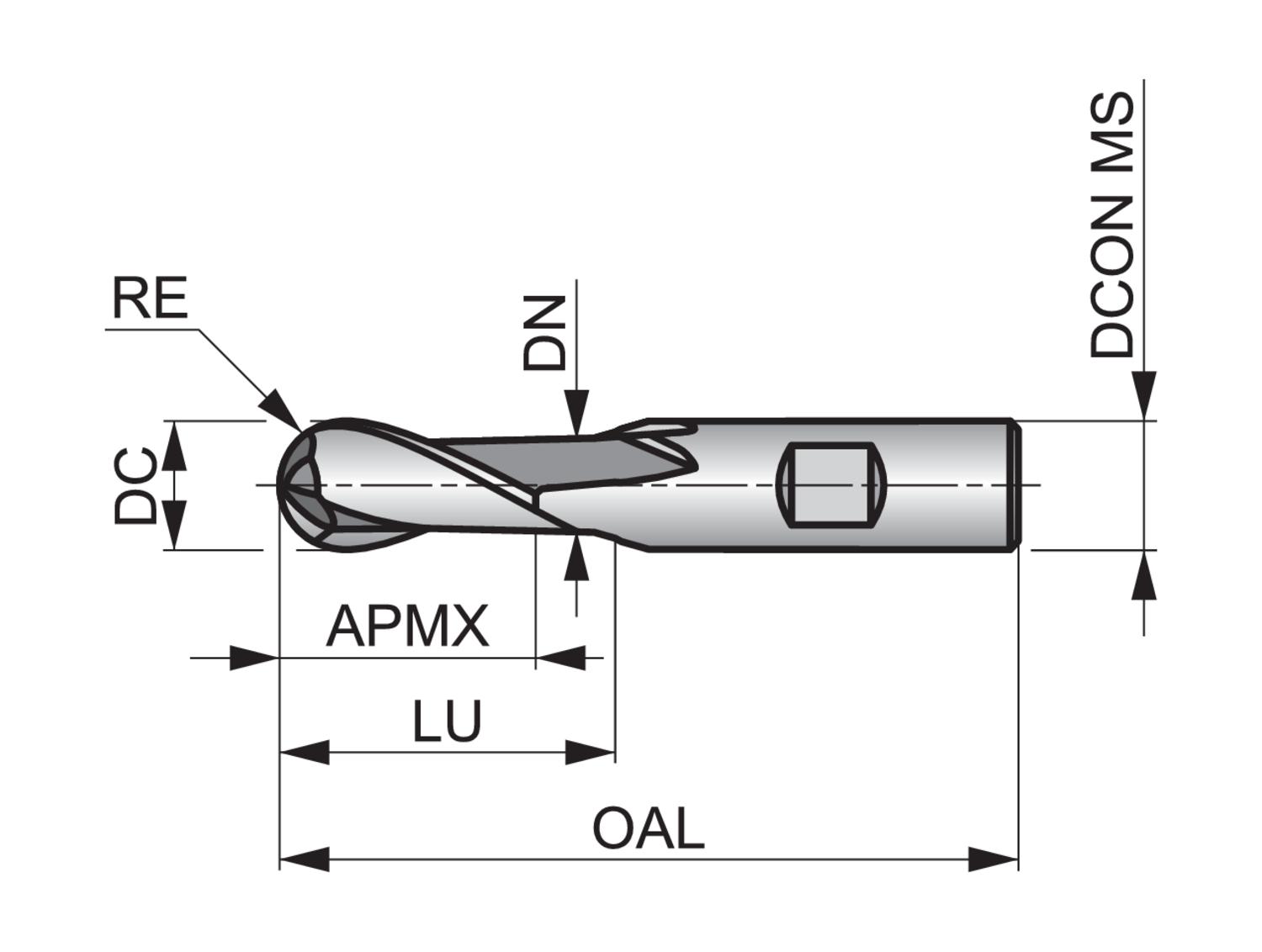

Cutting diameter – millimeter (DC): 10 mm
Corner radius – millimeter (RE): 5 mm
Connection diameter – millimeter (DCON MS): 10 mm
Depth of cut maximum – millimeter (APMX): 22 mm
Overall length – millimeter (OAL): 72 mm
Flute count (NOF): 2
Radial rake angle (GAMF): 12
ISO: C50510.0

Brand

DORMER
