DORMER C50514.0 HSCO Cutters

Product Code: C50514.0

$191.48$174.07 Ex. GST

Product Code: C50514.0 SKU C50514.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

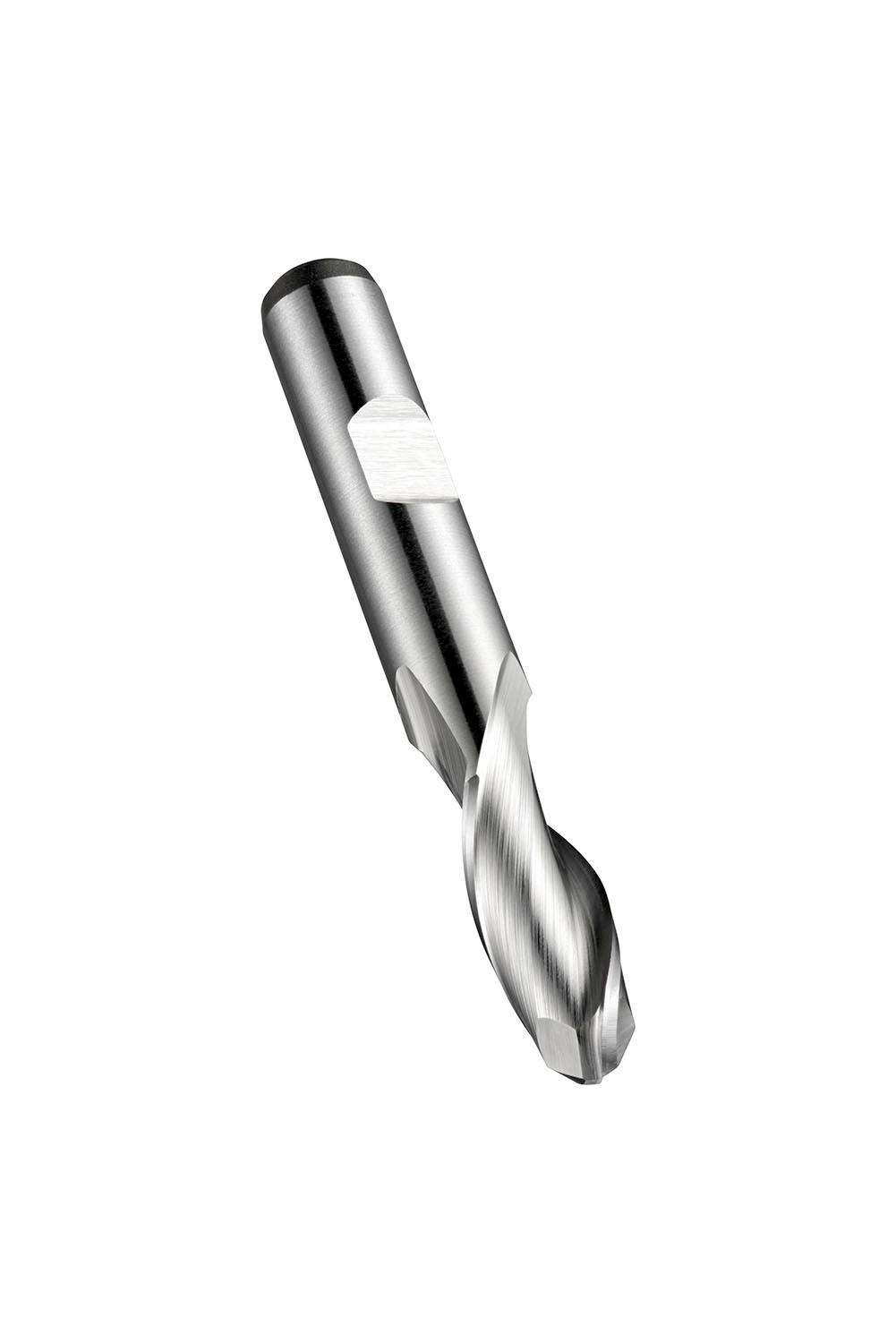

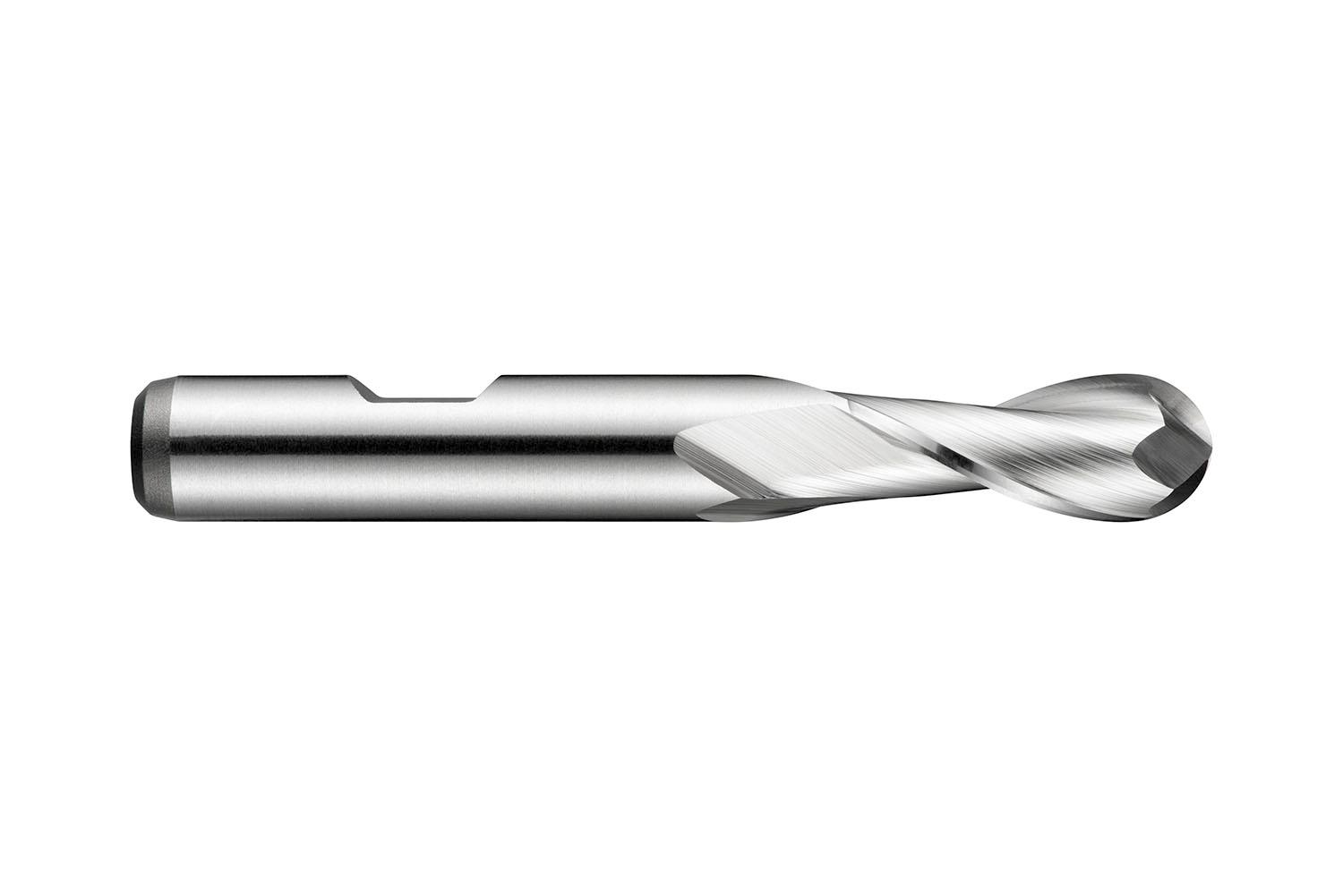

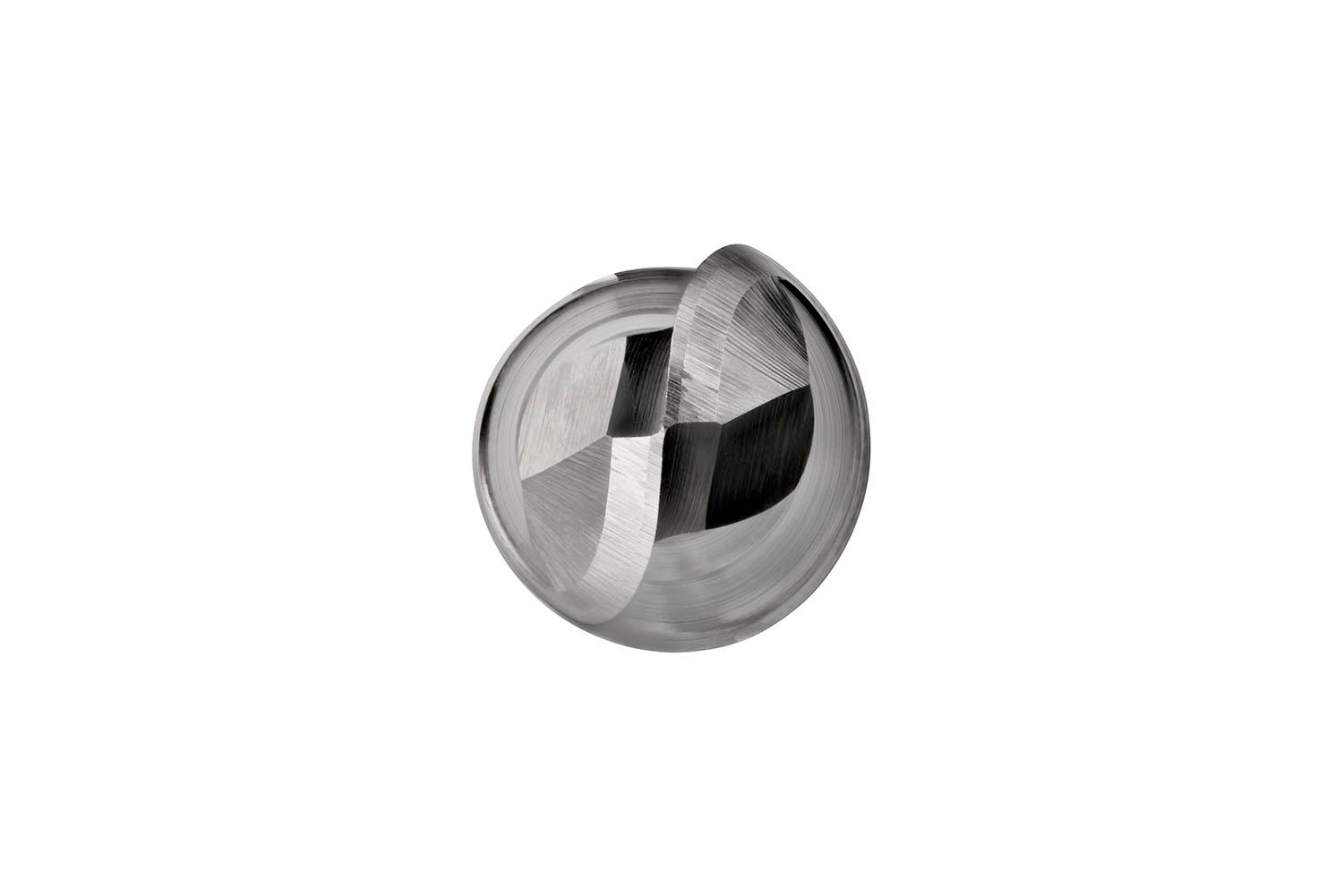

Short series ball-nose end mill with 2 flutes, diameter 14mm with 26mm length of cut, 83mm overall length, 37.5mm reach with neck relief and 7mm full profile radius, according to DIN 844 K standard with a 12mm Weldon shank, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for copy milling in free machining steel and copper or copper alloys

Additional information

Weight 0.1859 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760073544
Product number (SAP): 86014145
Ordering code ANSI: C50514.0
Gross weight – grams: 70.8

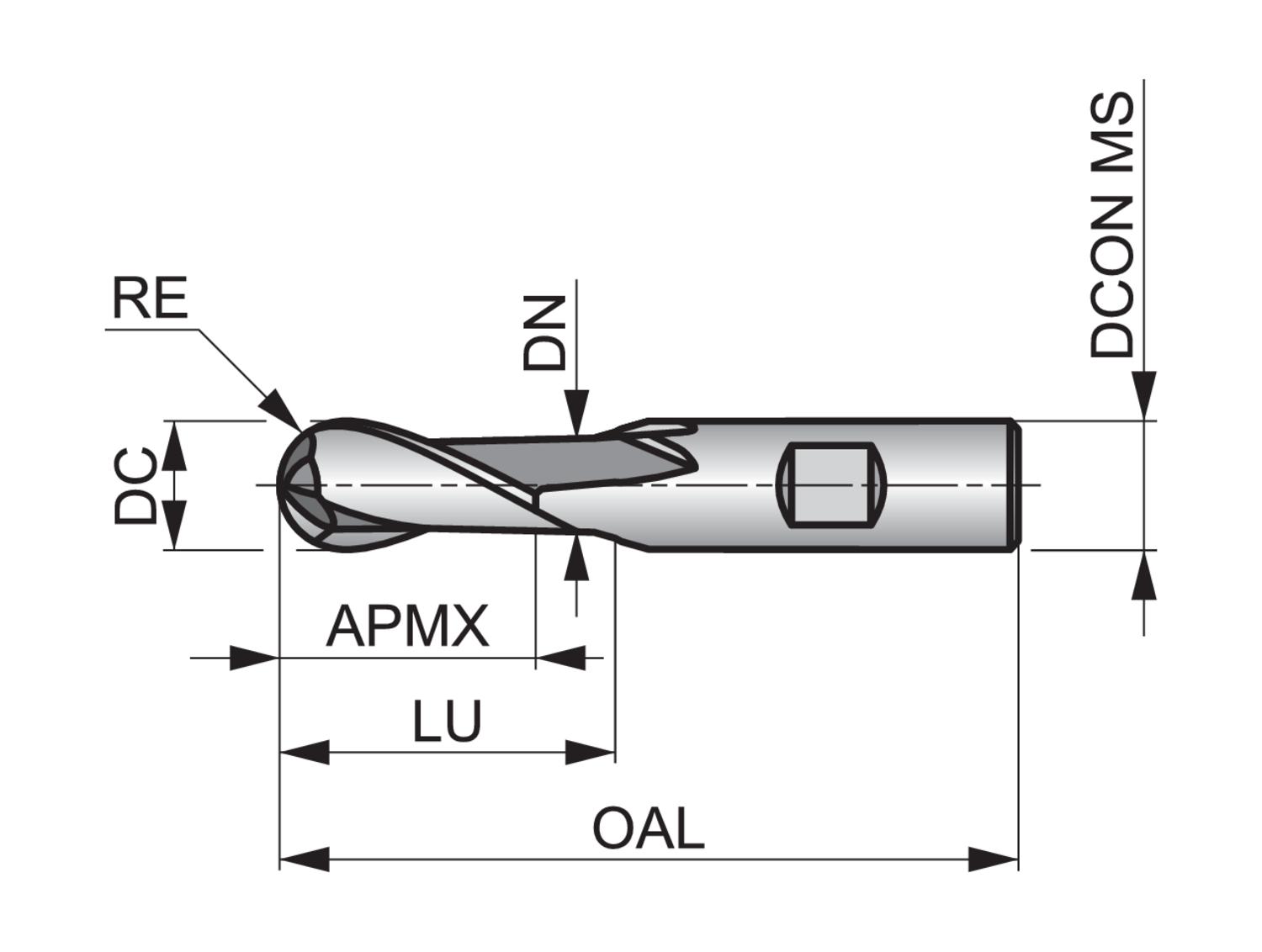

Cutting diameter – millimeter (DC): 14 mm
Corner radius – millimeter (RE): 7 mm
Connection diameter – millimeter (DCON MS): 12 mm
Depth of cut maximum – millimeter (APMX): 26 mm
Overall length – millimeter (OAL): 83 mm
Flute count (NOF): 2
Usable Length – millimeter (LU): 37.5 mm
Neck diameter – millimeter (DN): 11.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C50514.0

Brand

DORMER
