DORMER C50516.0 HSCO Cutters

Product Code: C50516.0

$230.00$209.09 Ex. GST

Product Code: C50516.0 SKU C50516.0 Categories , ,
DORMER C50516.0 HSCO Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

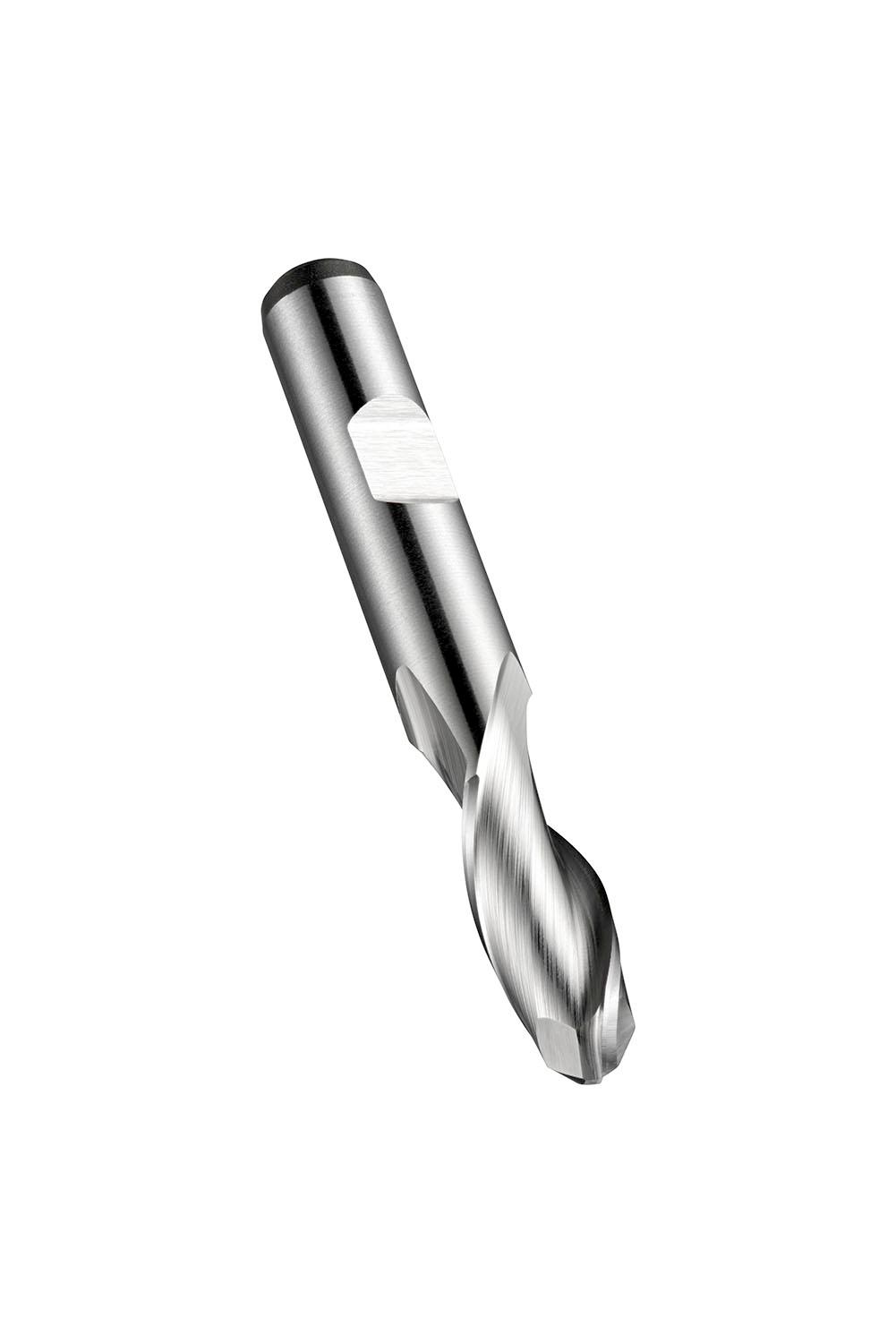

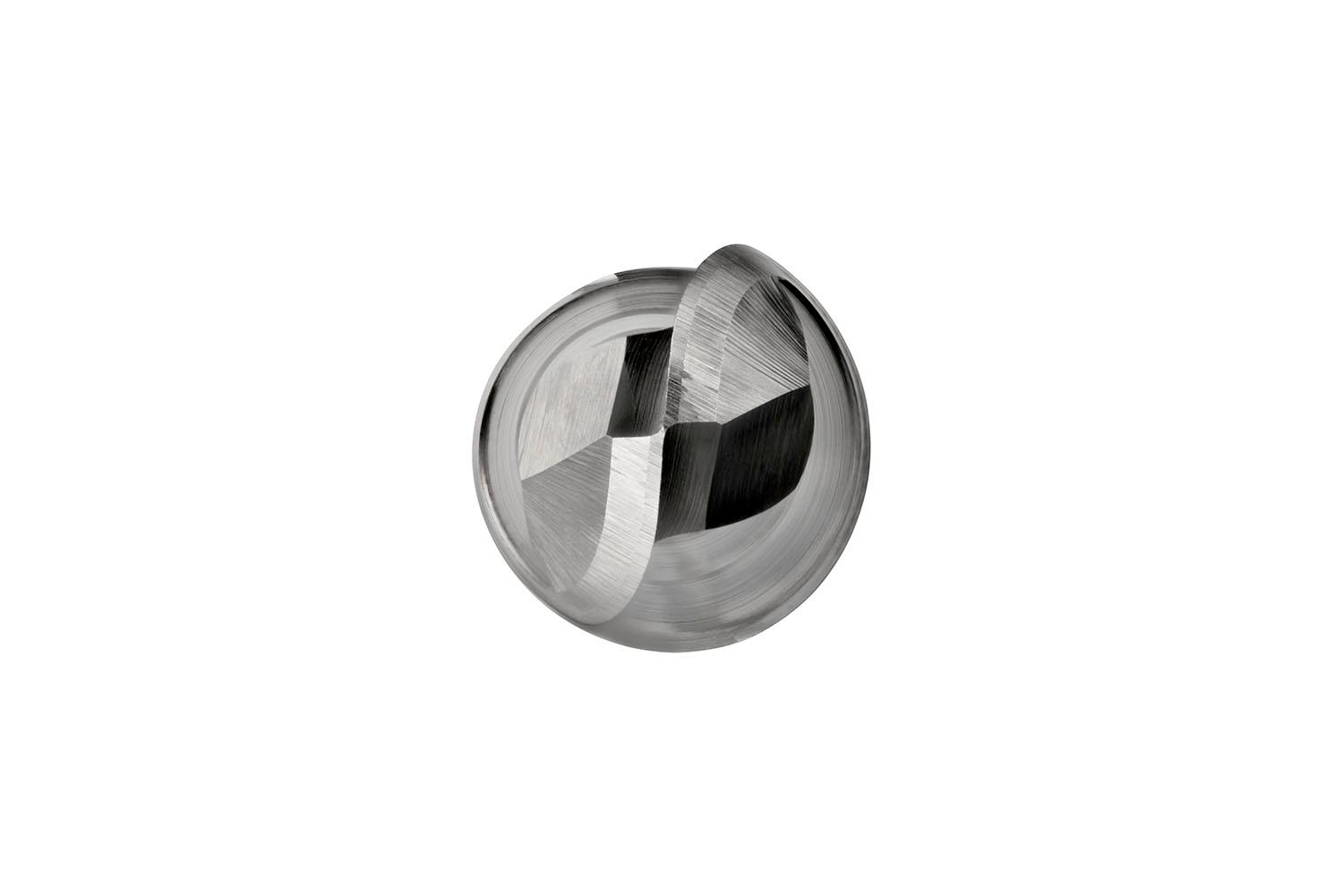

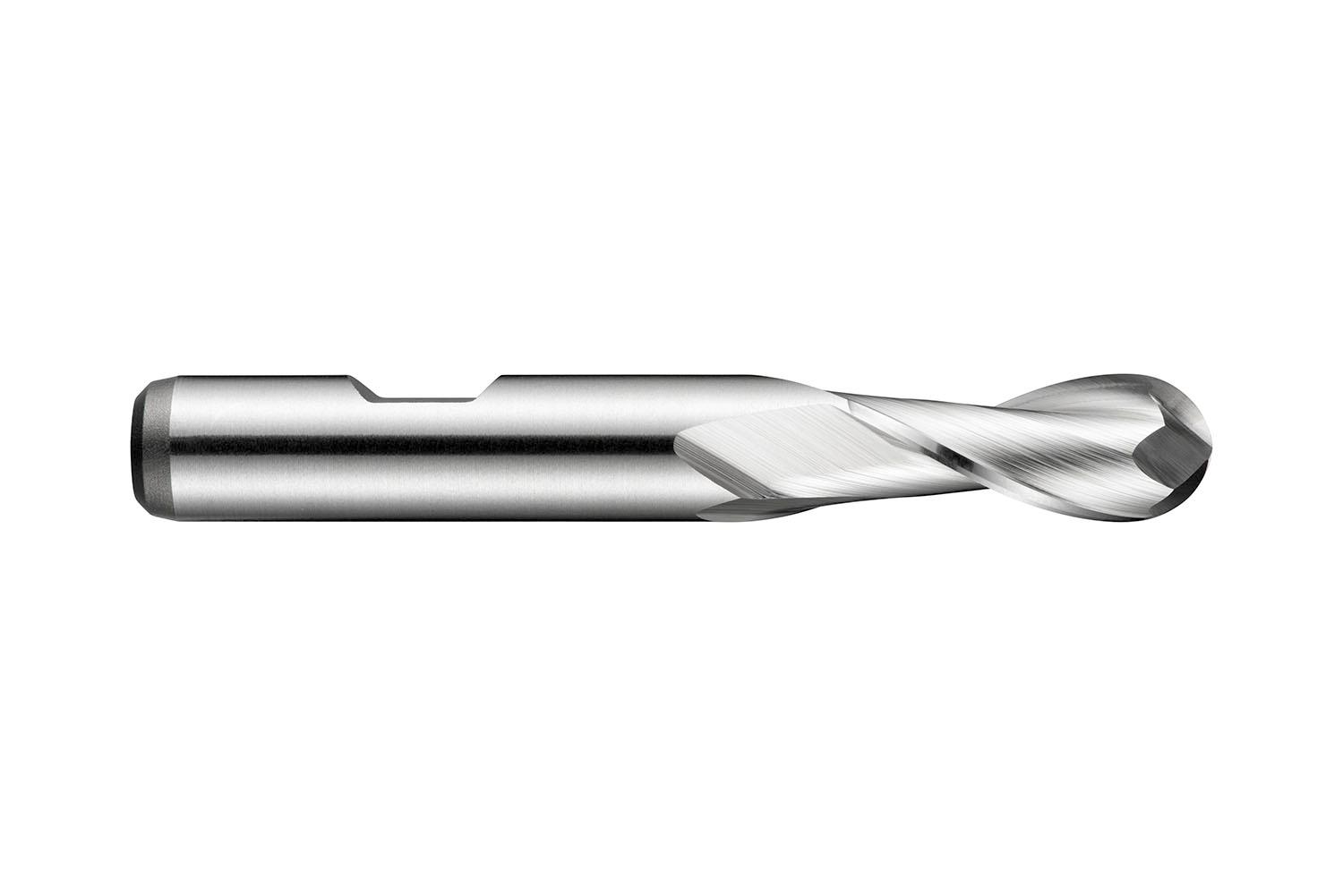

Short series ball-nose end mill with 2 flutes, diameter 16mm with 32mm length of cut, 92mm overall length, 43.5mm reach with neck relief and 8mm full profile radius, according to DIN 844 K standard with a 16mm Weldon shank, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for copy milling in free machining steel and copper or copper alloys

Additional information

Weight 0.2233 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760073551
Product number (SAP): 86014146
Ordering code ANSI: C50516.0
Gross weight – grams: 122.1

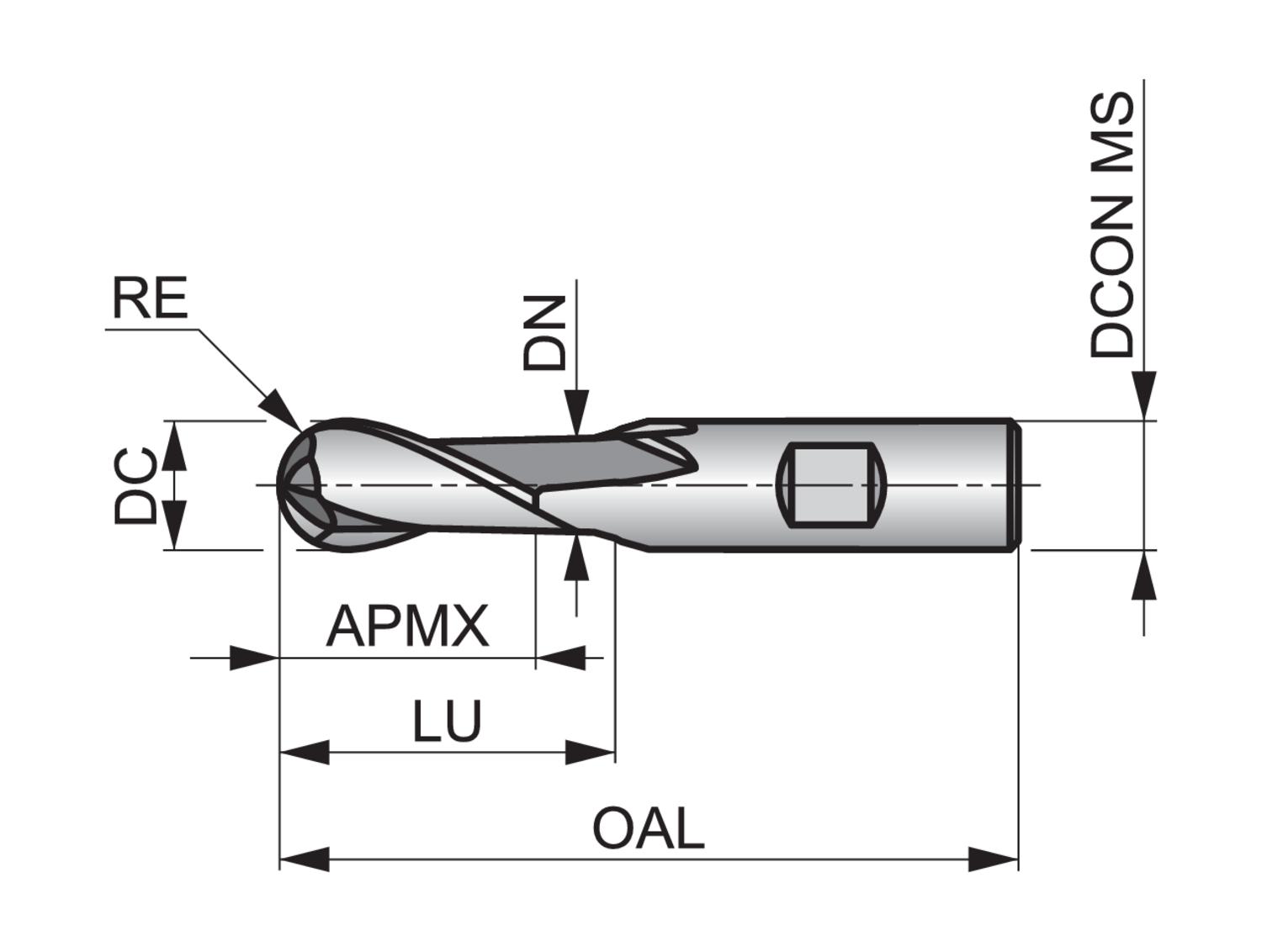

Cutting diameter – millimeter (DC): 16 mm
Corner radius – millimeter (RE): 8 mm
Connection diameter – millimeter (DCON MS): 16 mm
Depth of cut maximum – millimeter (APMX): 32 mm
Overall length – millimeter (OAL): 92 mm
Flute count (NOF): 2
Usable Length – millimeter (LU): 43.5 mm
Neck diameter – millimeter (DN): 15.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C50516.0

Brand

DORMER
