DORMER C70012.0 HSCO Cutters

Product Code: C70012.0

$448.67$407.88 Ex. GST

Product Code: C70012.0 SKU C70012.0 Categories , ,
DORMER C70012.0 HSCO Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

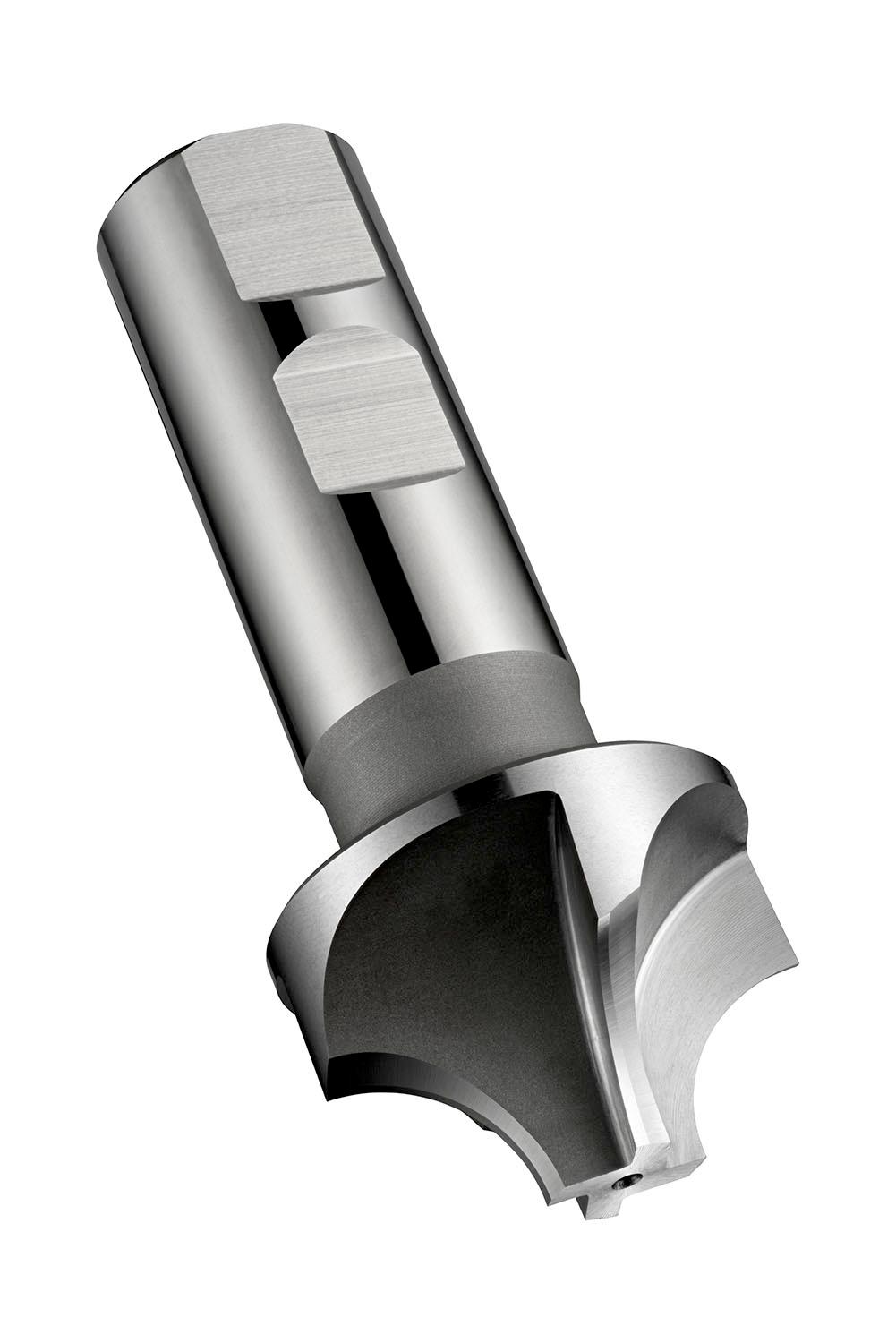

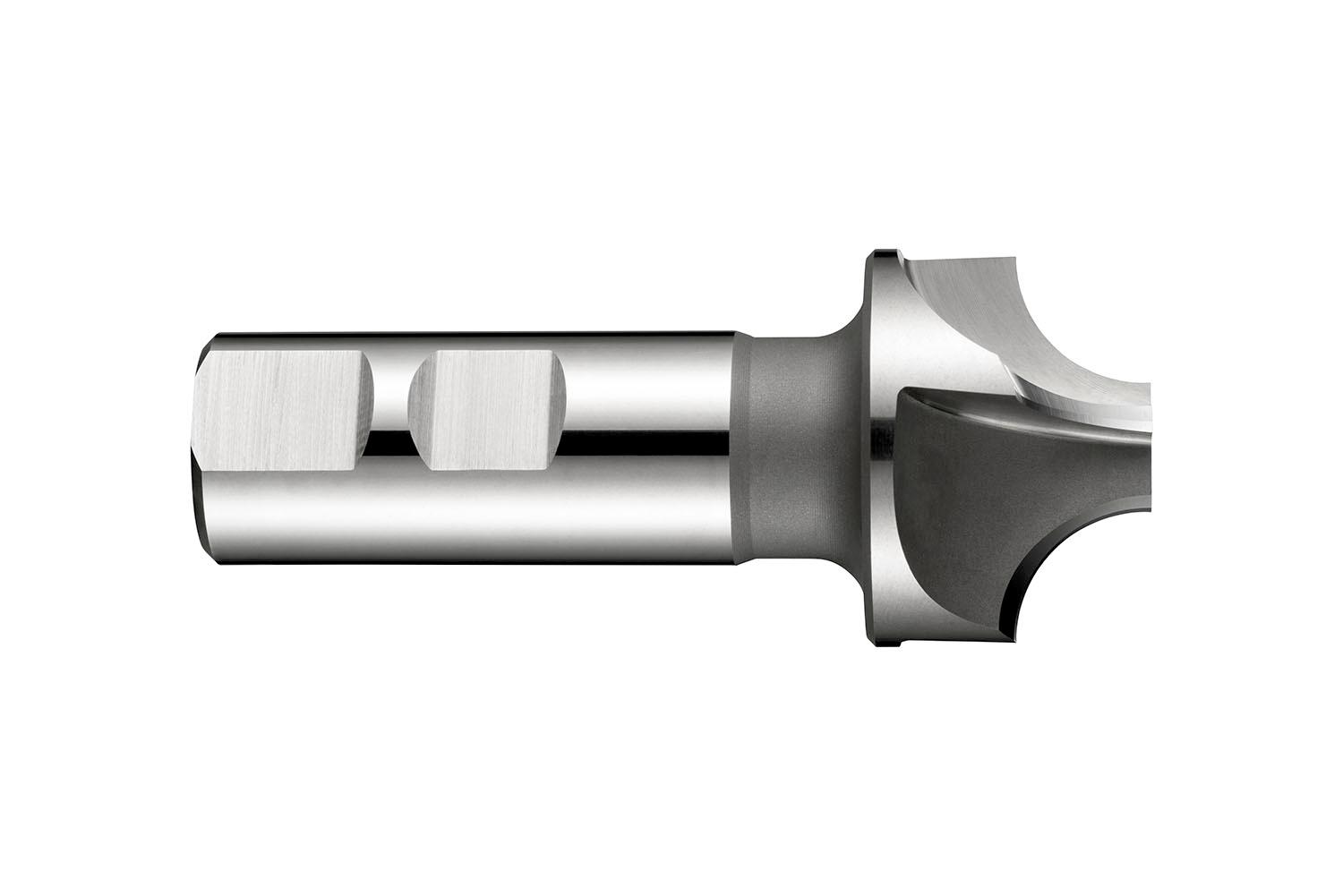

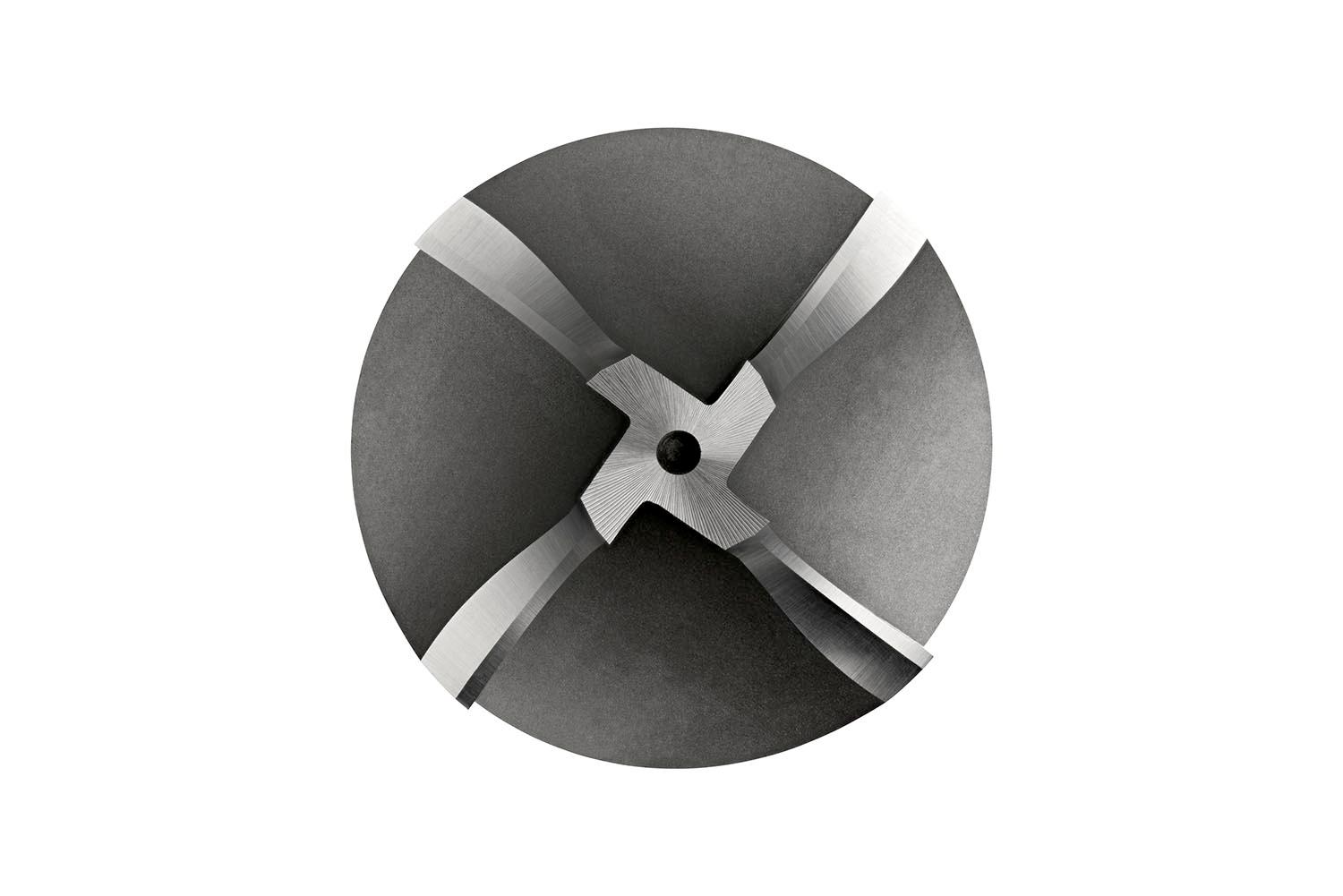

Extra short series corner rounding cutter with 4 flutes, diameter 35mm with 100mm overall length and 12mm profile radii, according to DORMER standard with a 20mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys

Additional information

Weight 0.4356 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760074312
Product number (SAP): 86014178
Ordering code ANSI: C70012.0
Gross weight – grams: 291.9

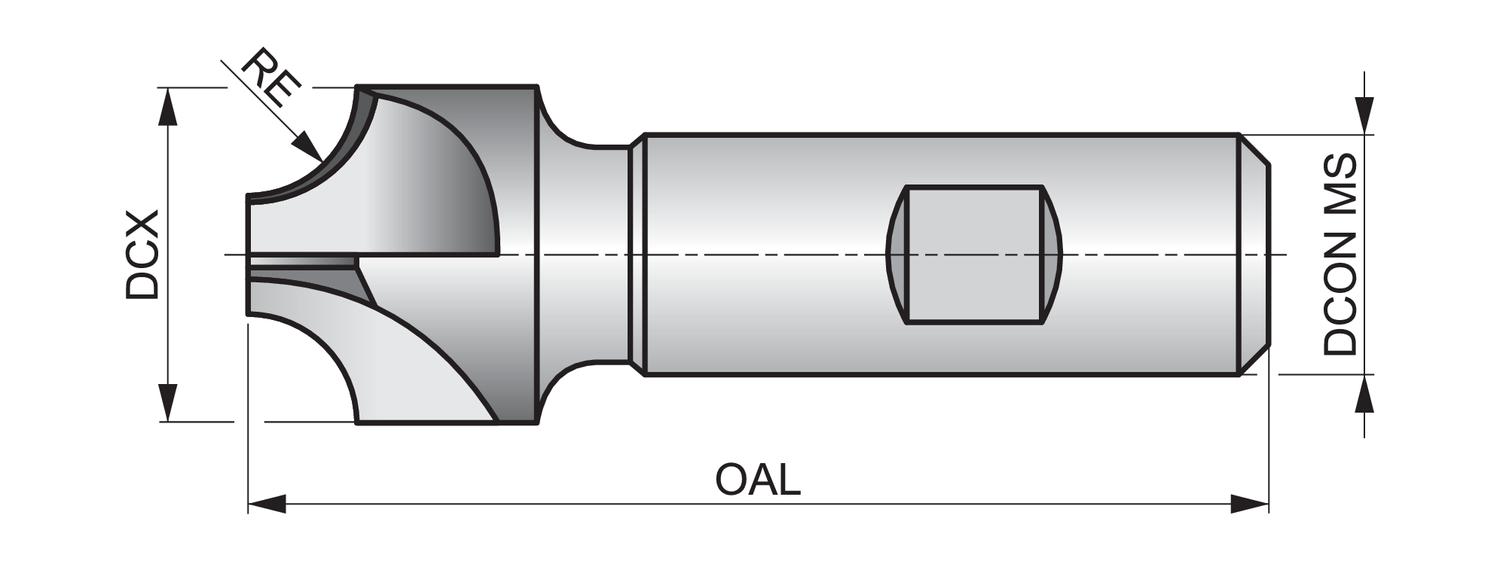

Corner radius – millimeter (RE): 12 mm
Cutting diameter maximum – millimeter (DCX): 35 mm
Connection diameter – millimeter (DCON MS): 20 mm
Overall length – millimeter (OAL): 100 mm
Flute count (NOF): 4
Radial rake angle (GAMF): 0
ISO: C70012.0

Brand

DORMER
