DORMER C7002.0 HSCO Cutters

Product Code: C7002.0

$141.63$128.75 Ex. GST

Product Code: C7002.0 SKU C7002.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

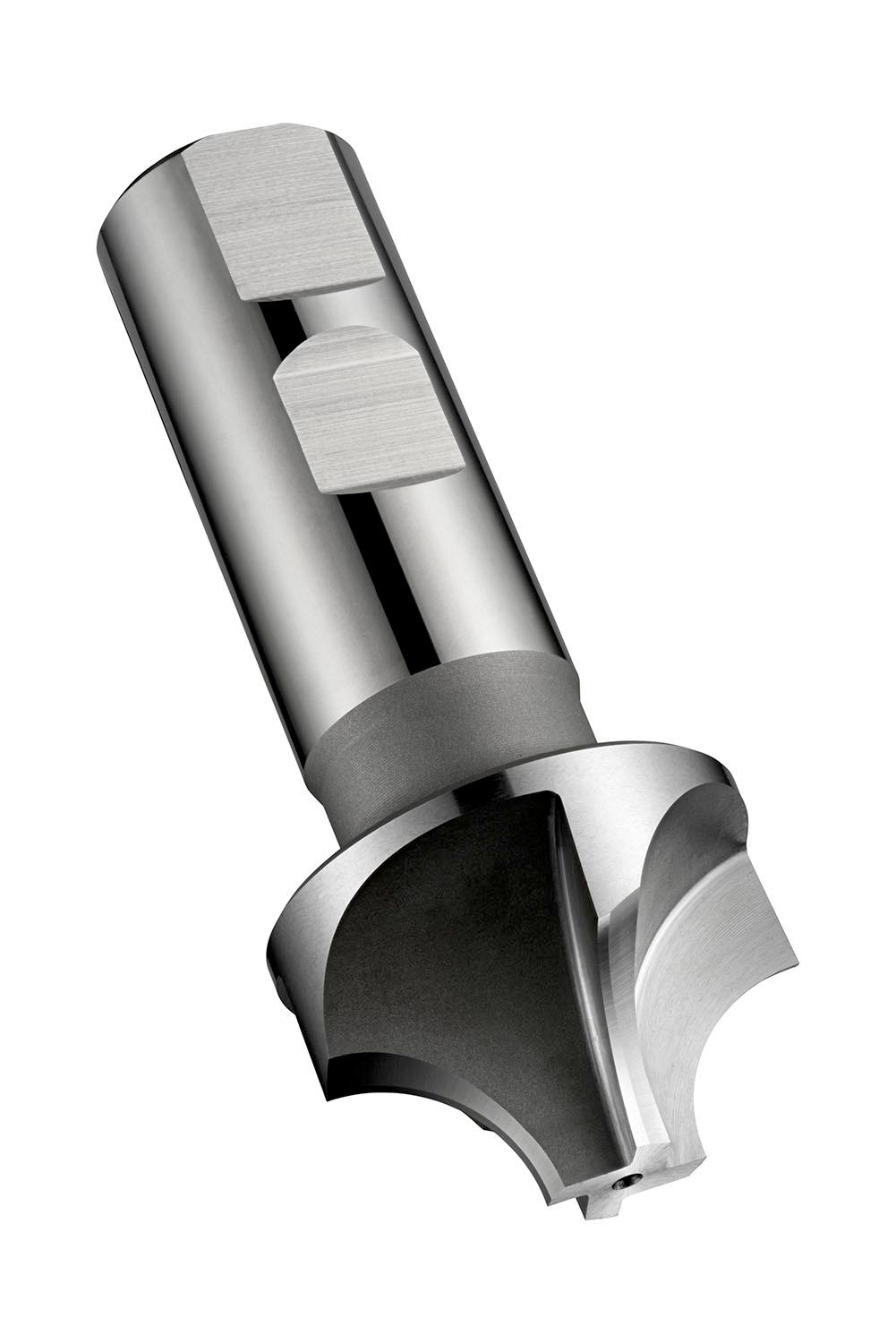

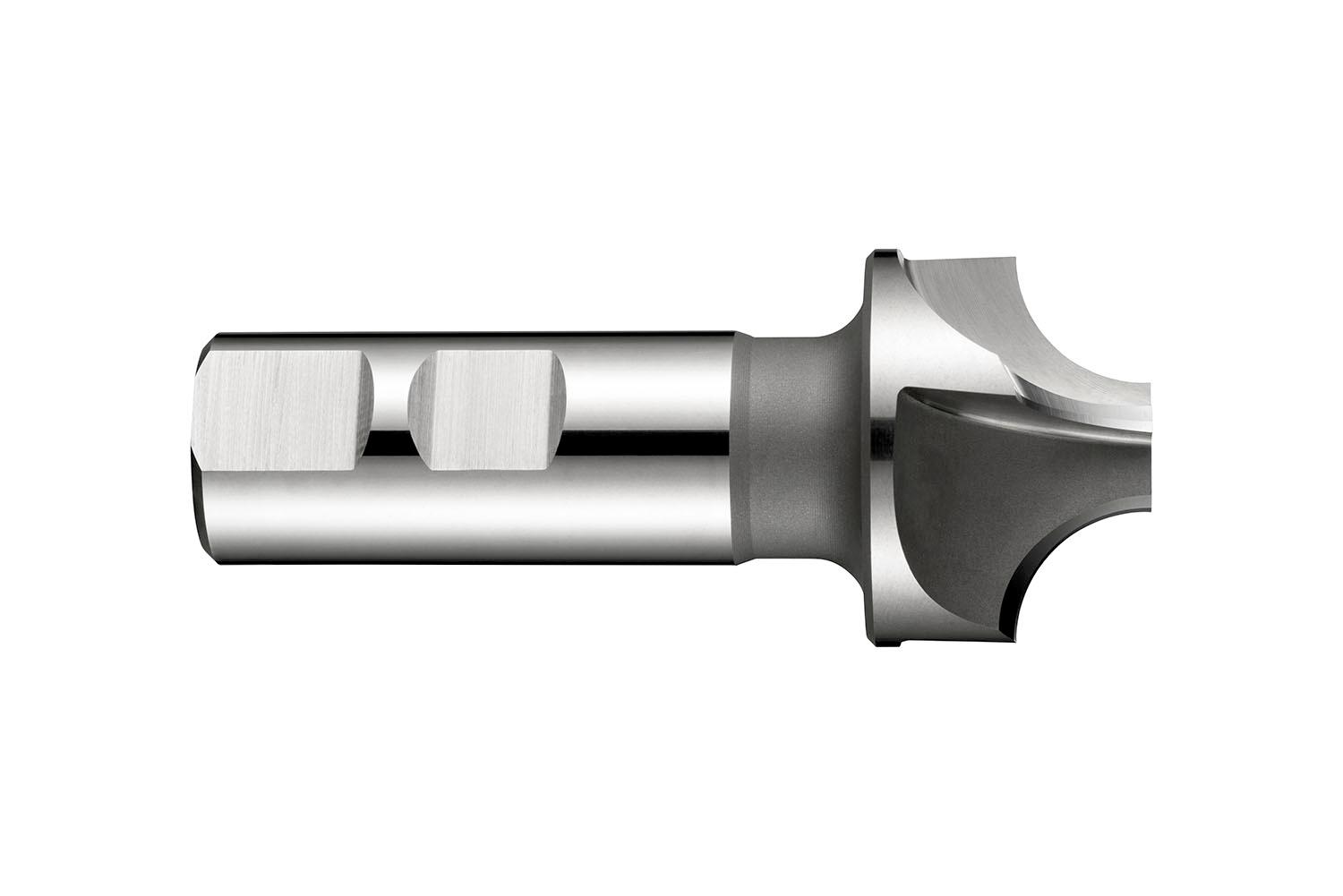

Extra short series corner rounding cutter with 4 flutes, diameter 10mm with 60mm overall length and 2mm profile radii, according to DORMER standard with a 10mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys

Additional information

Weight 0.1375 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760074343
Product number (SAP): 86014184
Ordering code ANSI: C7002.0
Gross weight – grams: 40.6

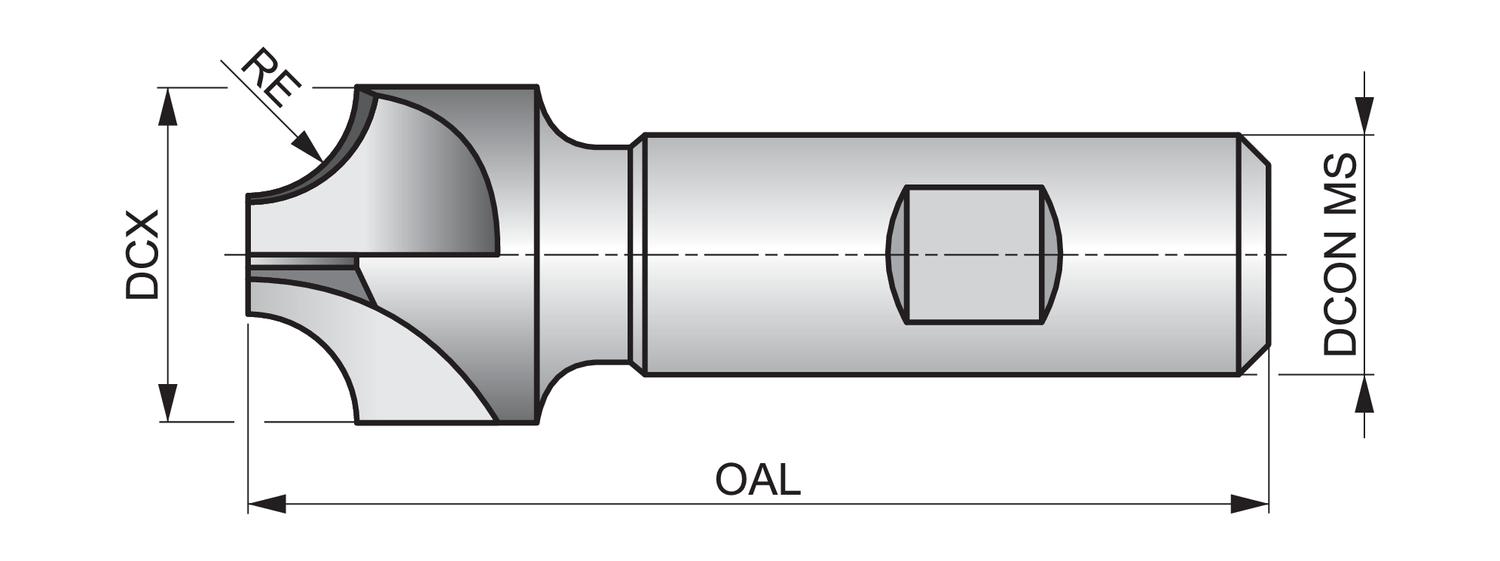

Corner radius – millimeter (RE): 2 mm
Cutting diameter maximum – millimeter (DCX): 10 mm
Connection diameter – millimeter (DCON MS): 10 mm
Overall length – millimeter (OAL): 60 mm

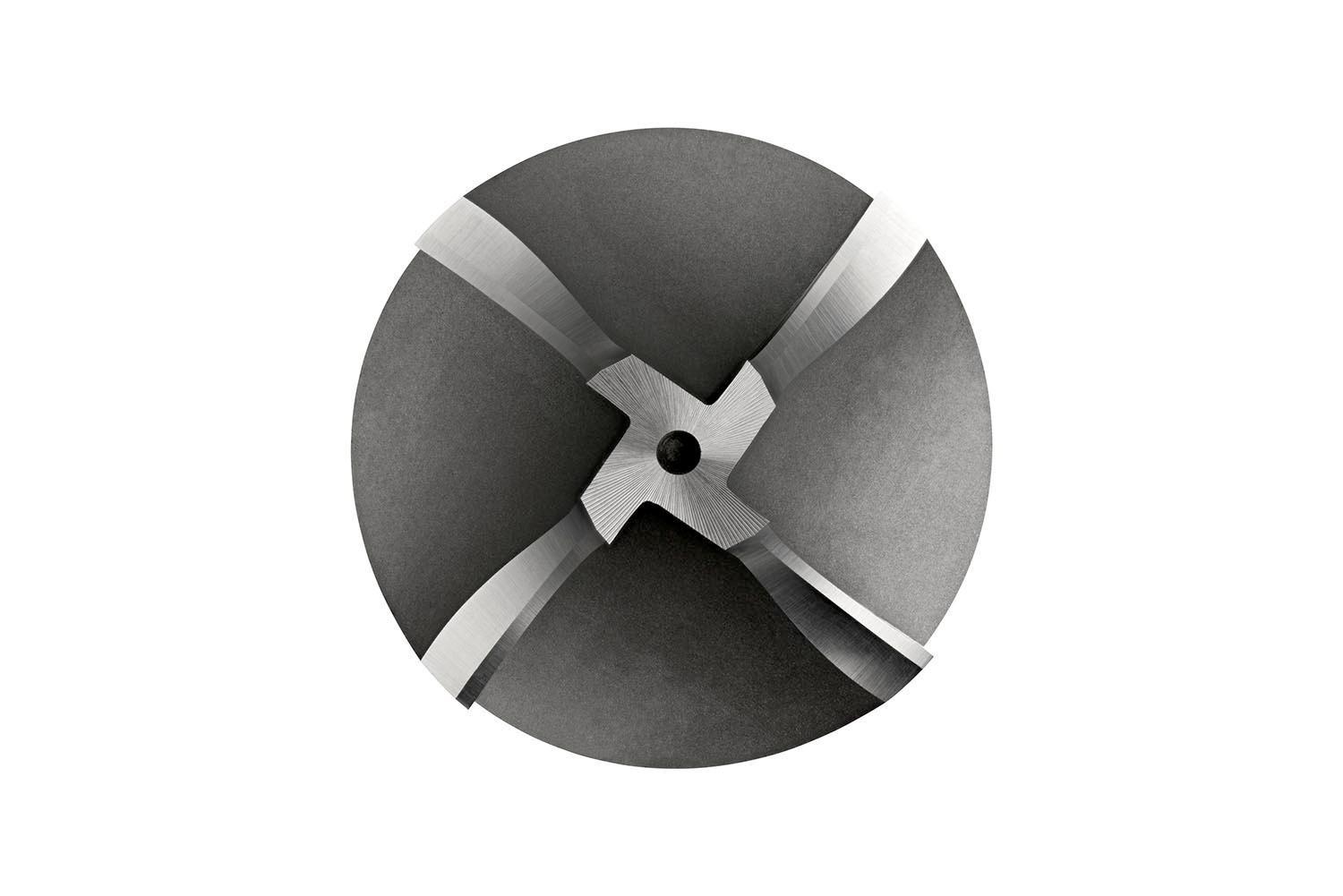

Flute count (NOF): 4
Radial rake angle (GAMF): 0
ISO: C7002.0

Brand

DORMER
