DORMER C7005.0 HSCO Cutters

Product Code: C7005.0

$246.99$224.54 Ex. GST

Product Code: C7005.0 SKU C7005.0 Categories , ,
DORMER C7005.0 HSCO Cutters

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

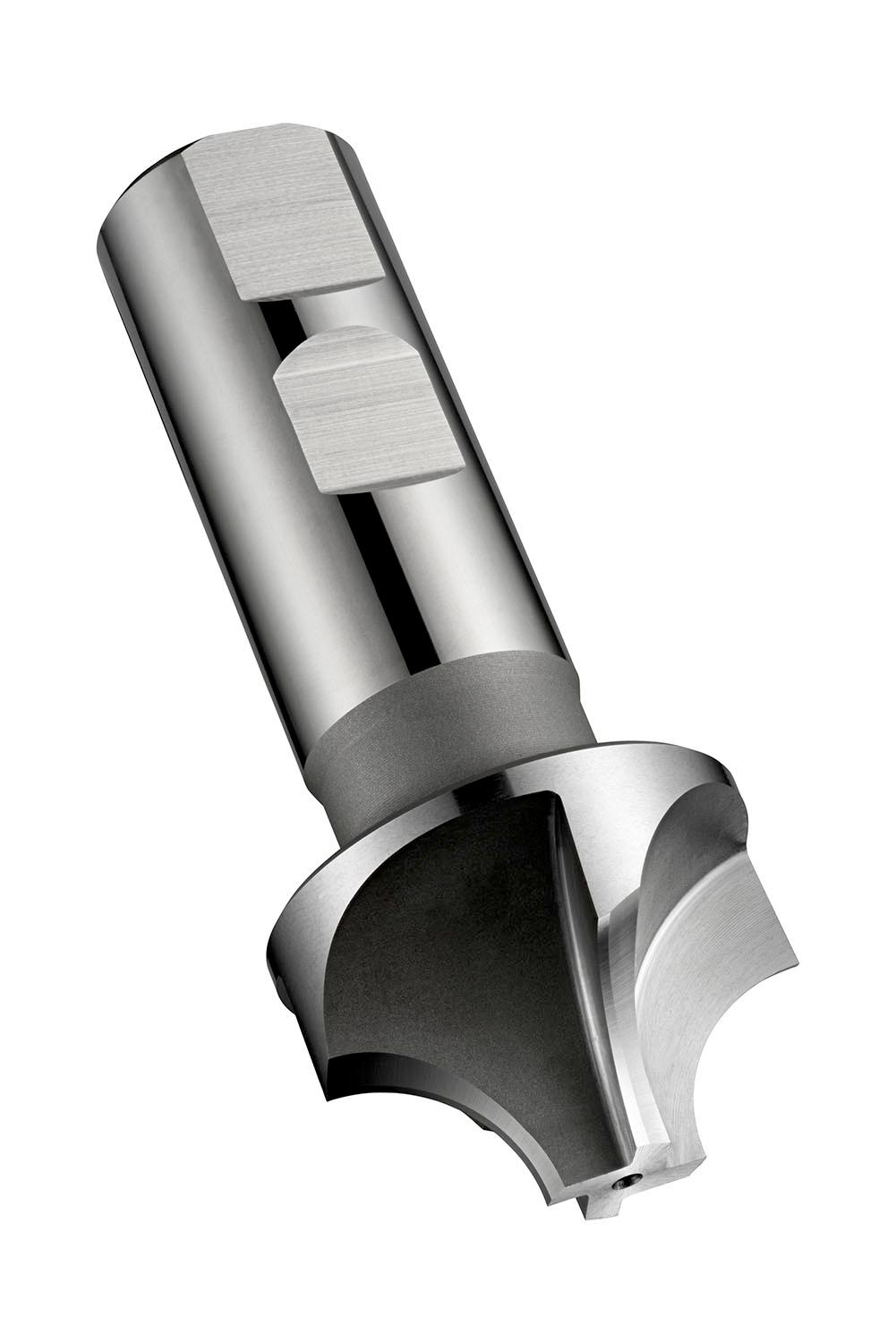

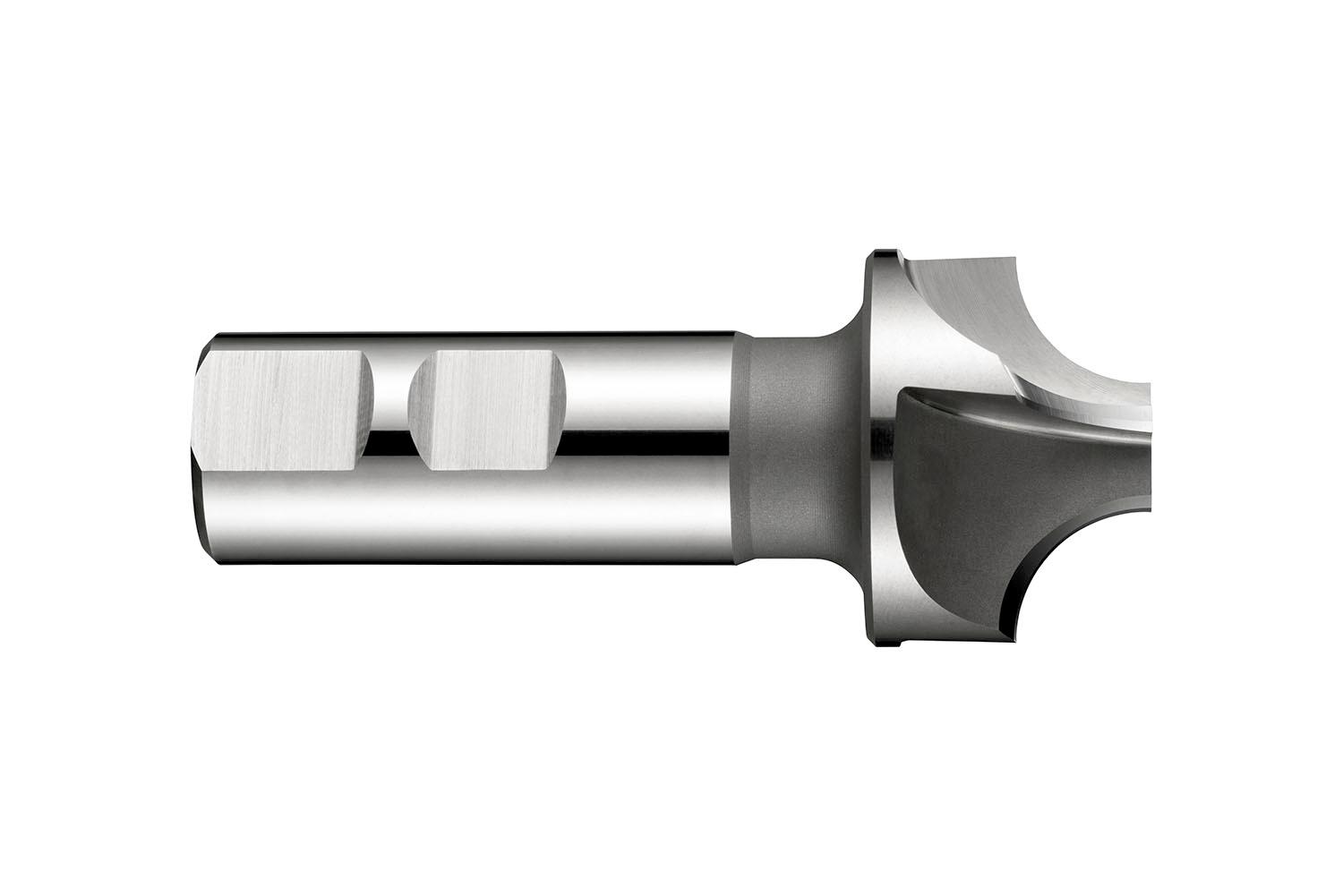

Extra short series corner rounding cutter with 4 flutes, diameter 18mm with 70mm overall length and 5mm profile radii, according to DORMER standard with a 16mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys

Additional information

Weight 0.2398 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760074398
Product number (SAP): 86014190
Ordering code ANSI: C7005.0
Gross weight – grams: 107.4

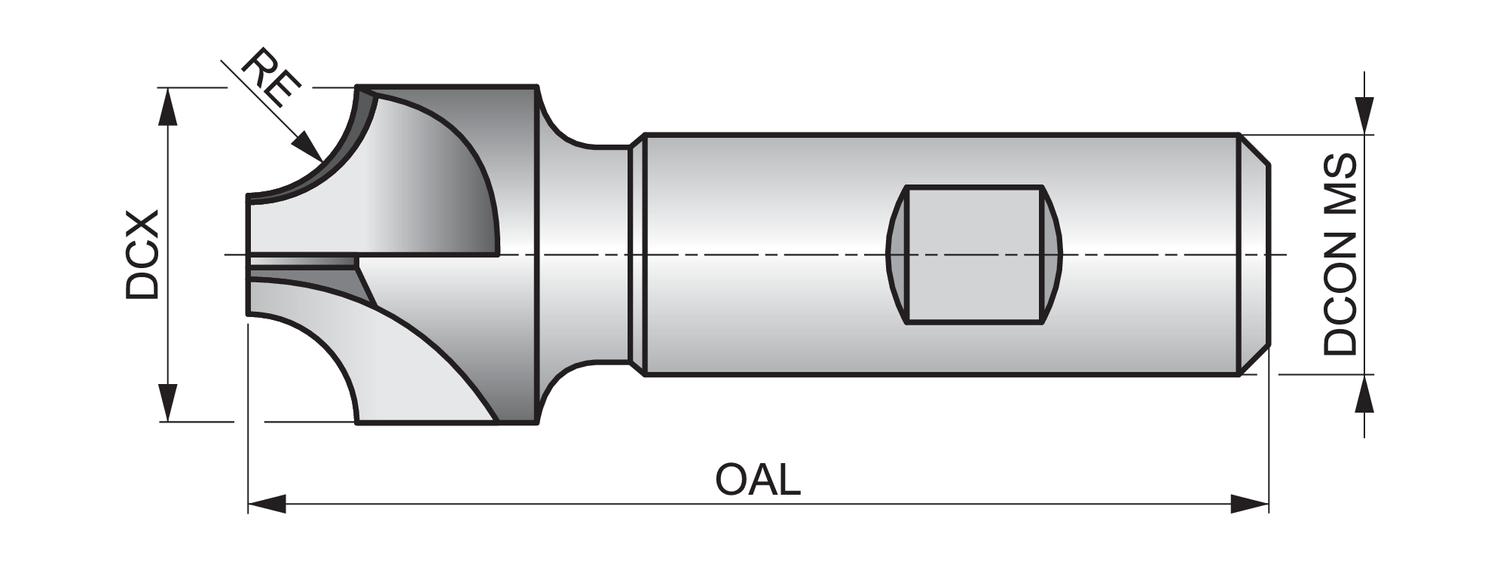

Corner radius – millimeter (RE): 5 mm
Cutting diameter maximum – millimeter (DCX): 18 mm
Connection diameter – millimeter (DCON MS): 16 mm
Overall length – millimeter (OAL): 70 mm

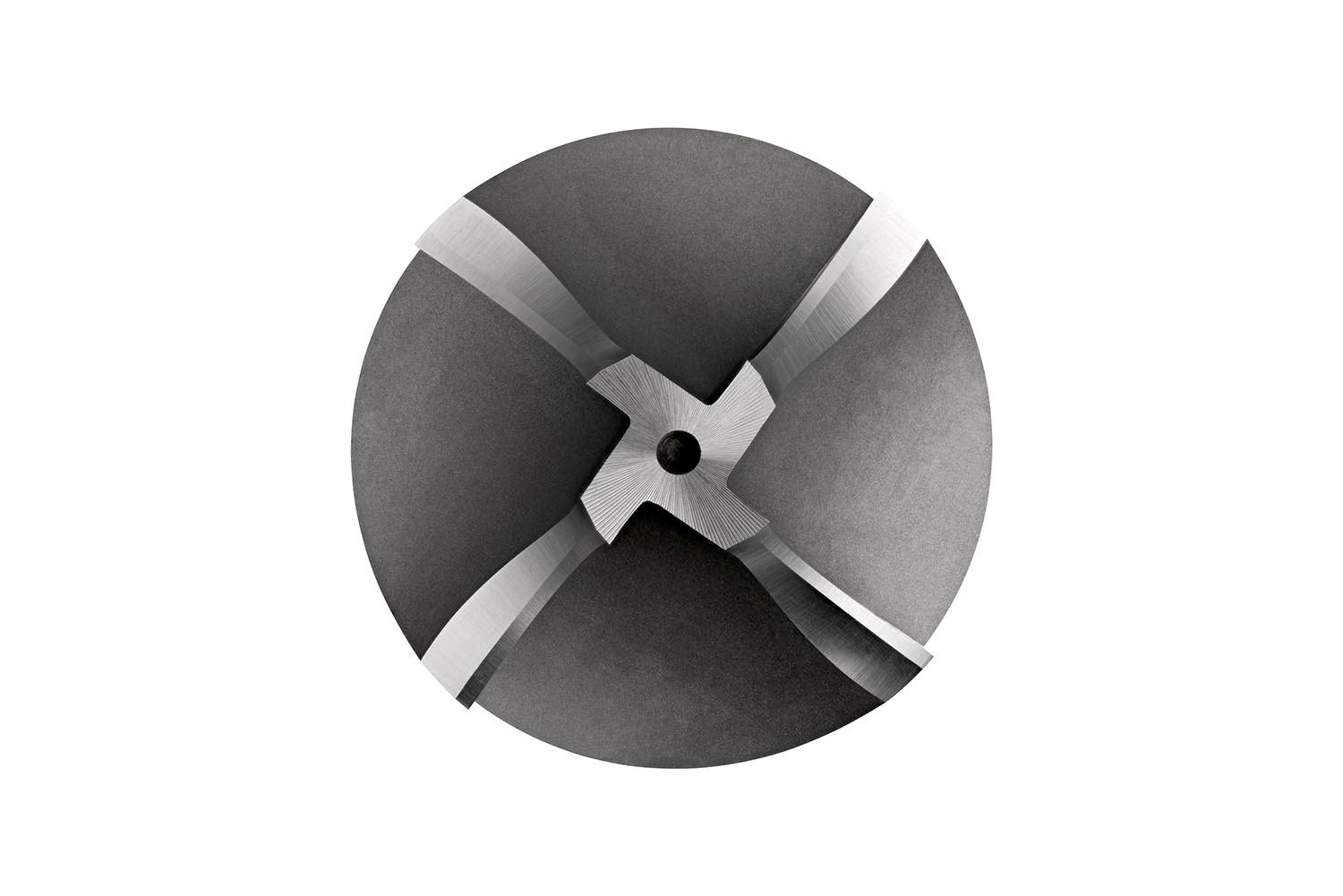

Flute count (NOF): 4
Radial rake angle (GAMF): 0
ISO: C7005.0

Brand

DORMER
