DORMER C7006.0 HSCO Cutters

Product Code: C7006.0

$293.45$266.77 Ex. GST

Product Code: C7006.0 SKU C7006.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

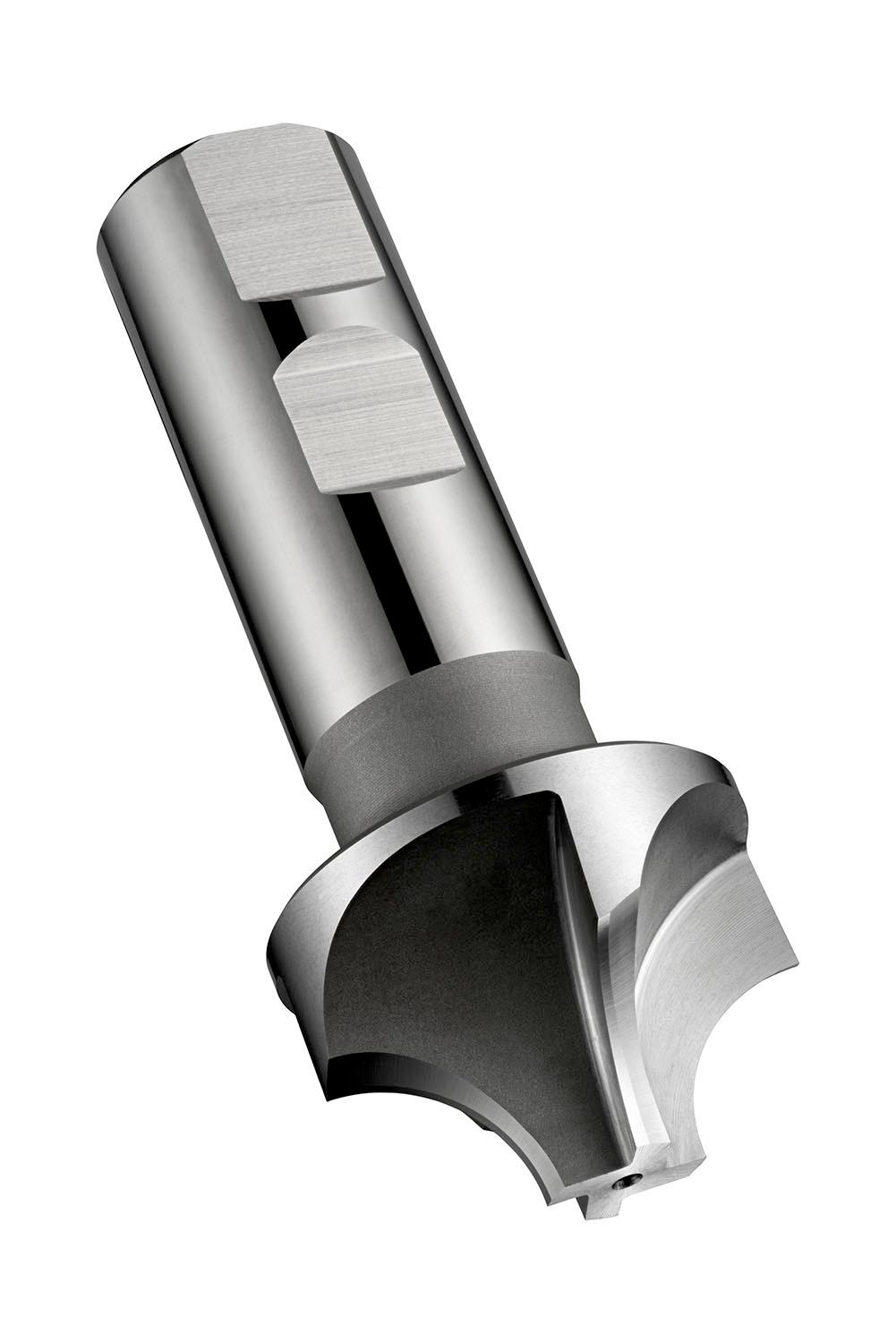

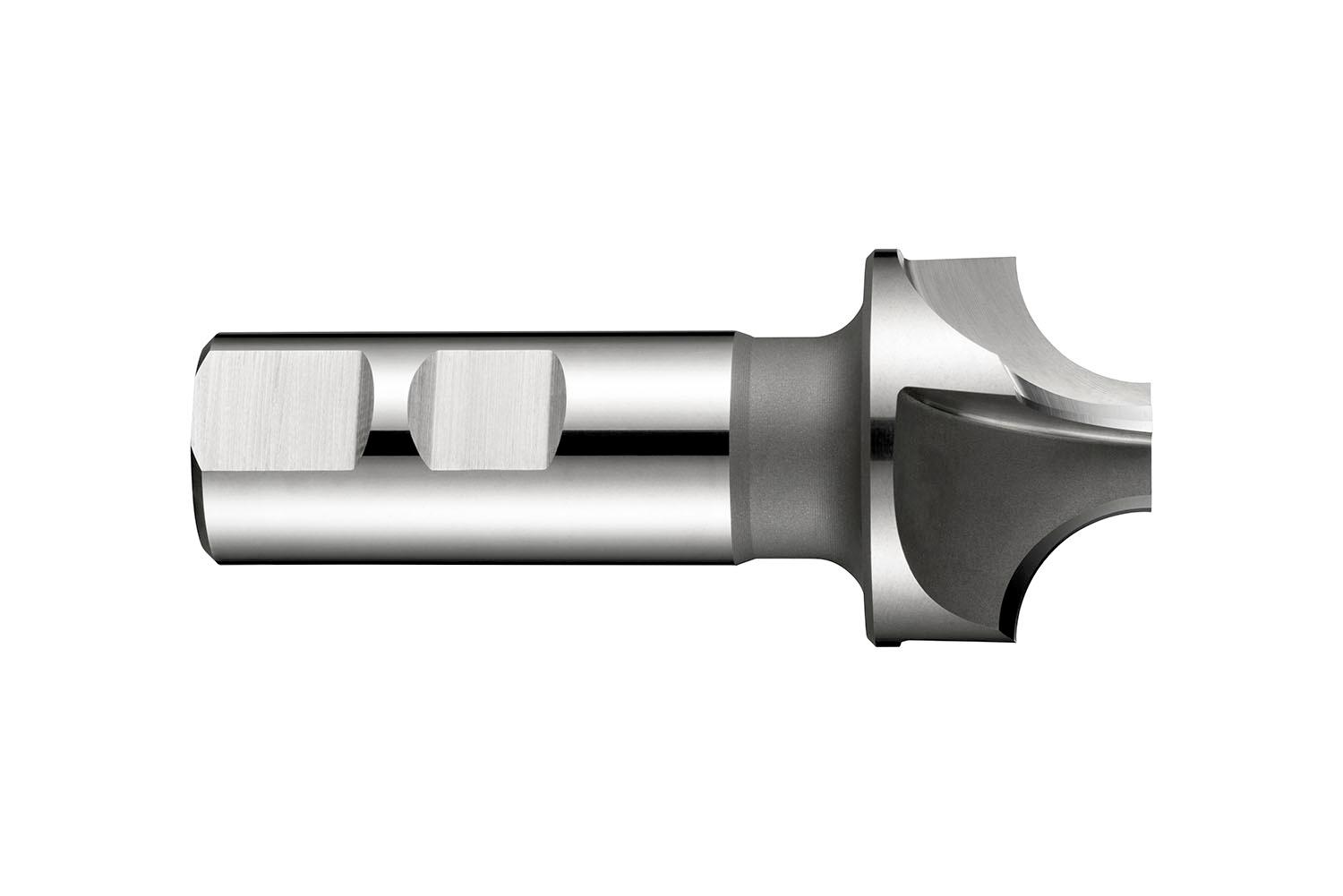

Extra short series corner rounding cutter with 4 flutes, diameter 21mm with 70mm overall length and 6mm profile radii, according to DORMER standard with a 16mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys

Additional information

Weight 0.2849 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760074404
Product number (SAP): 86014191
Ordering code ANSI: C7006.0
Gross weight – grams: 115

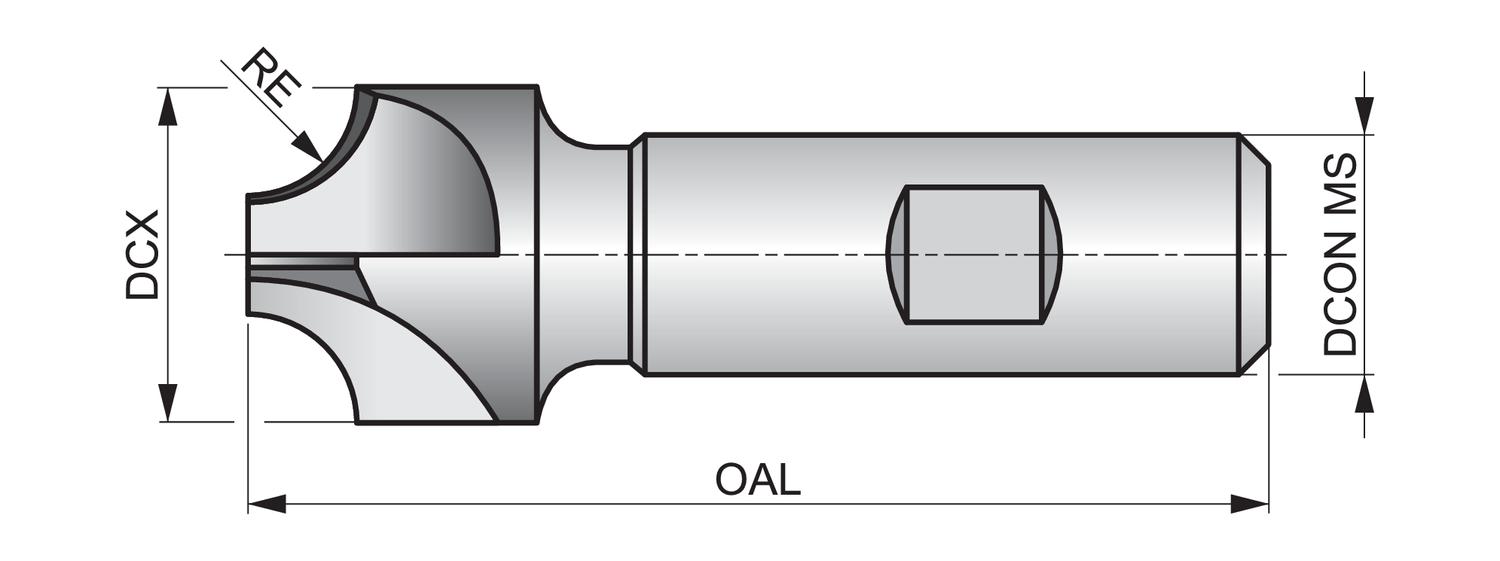

Corner radius – millimeter (RE): 6 mm
Cutting diameter maximum – millimeter (DCX): 21 mm
Connection diameter – millimeter (DCON MS): 16 mm
Overall length – millimeter (OAL): 70 mm

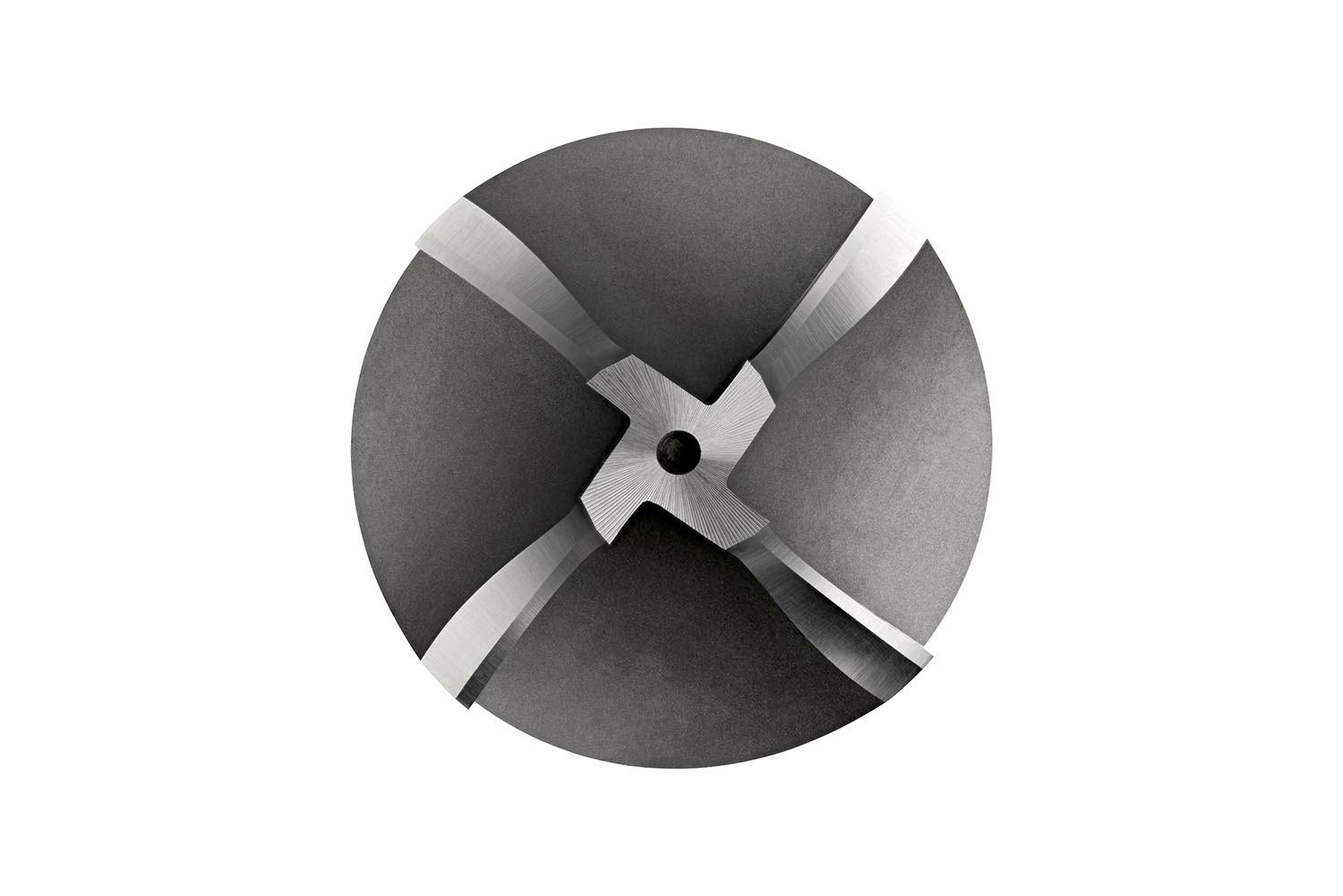

Flute count (NOF): 4
Radial rake angle (GAMF): 0
ISO: C7006.0

Brand

DORMER
