DORMER C7009.0 HSCO Cutters

Product Code: C7009.0

$361.43$328.57 Ex. GST

Product Code: C7009.0 SKU C7009.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

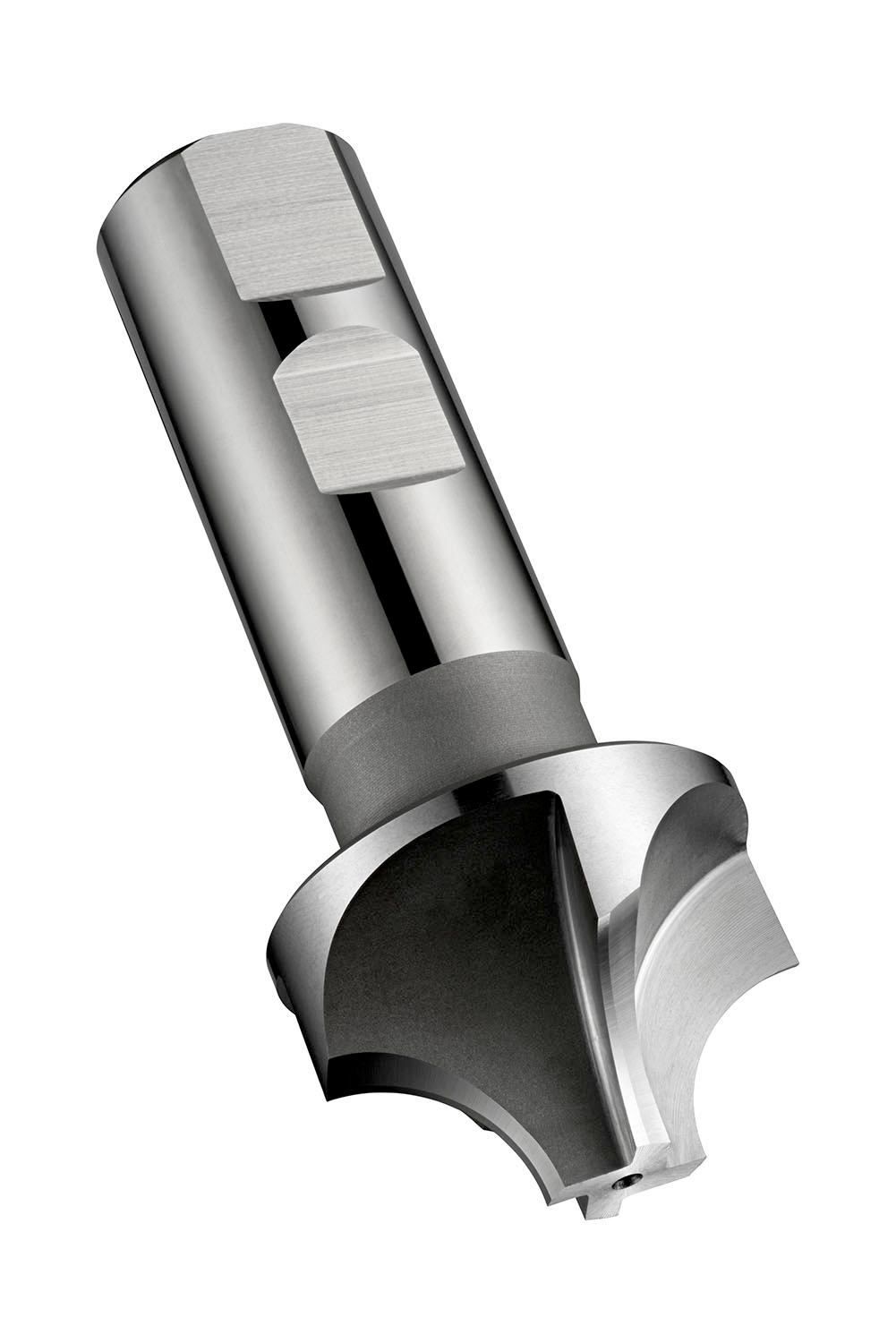

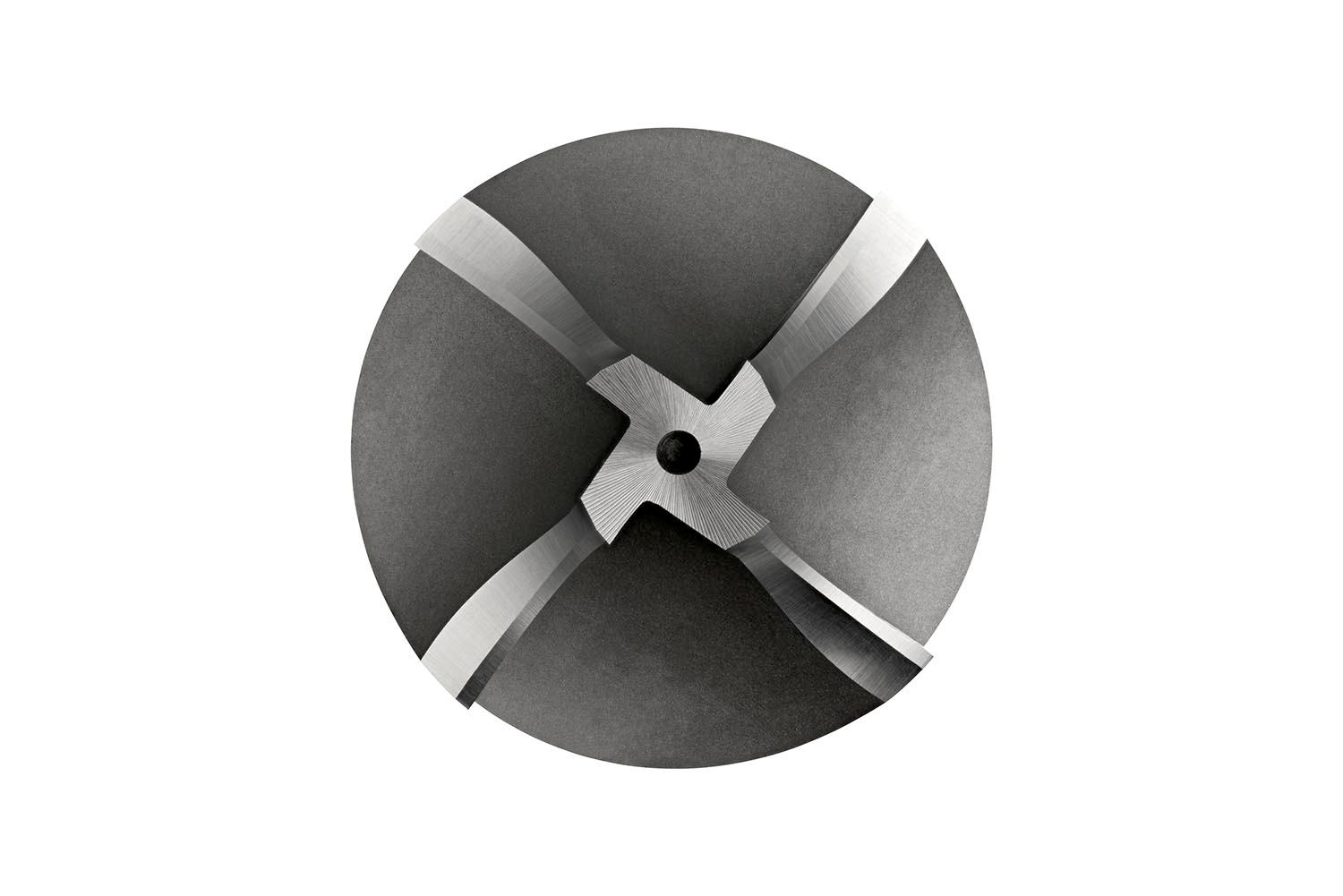

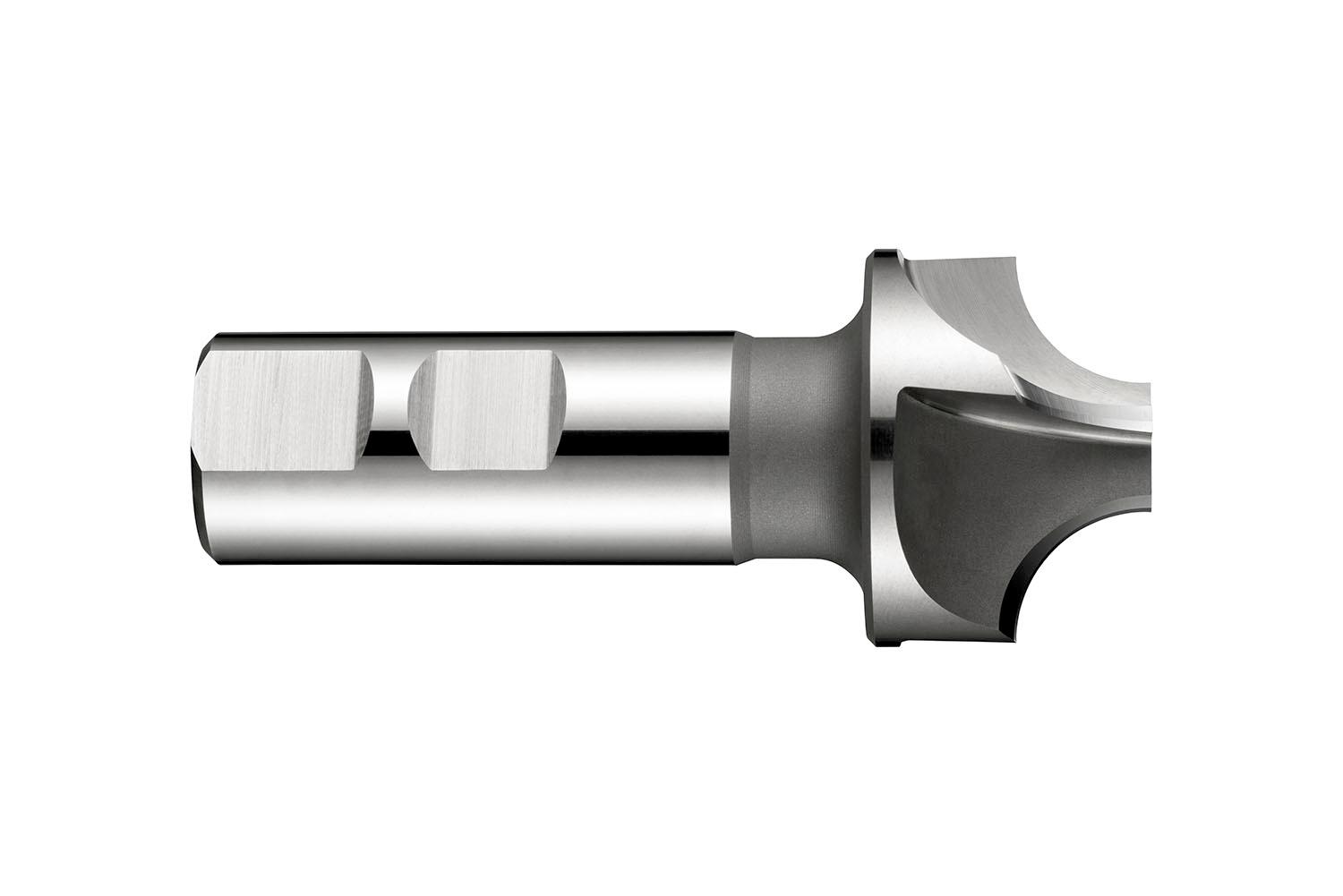

Extra short series corner rounding cutter with 4 flutes, diameter 28mm with 85mm overall length and 9mm profile radii, according to DORMER standard with a 20mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for chamfer milling in steel and cast steel, stainless steel, cast-iron, wrought, cast aluminium and copper or copper alloys and high-temperature alloys

Additional information

Weight 0.3509 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760127063
Product number (SAP): 86014194
Ordering code ANSI: C7009.0
Gross weight – grams: 240

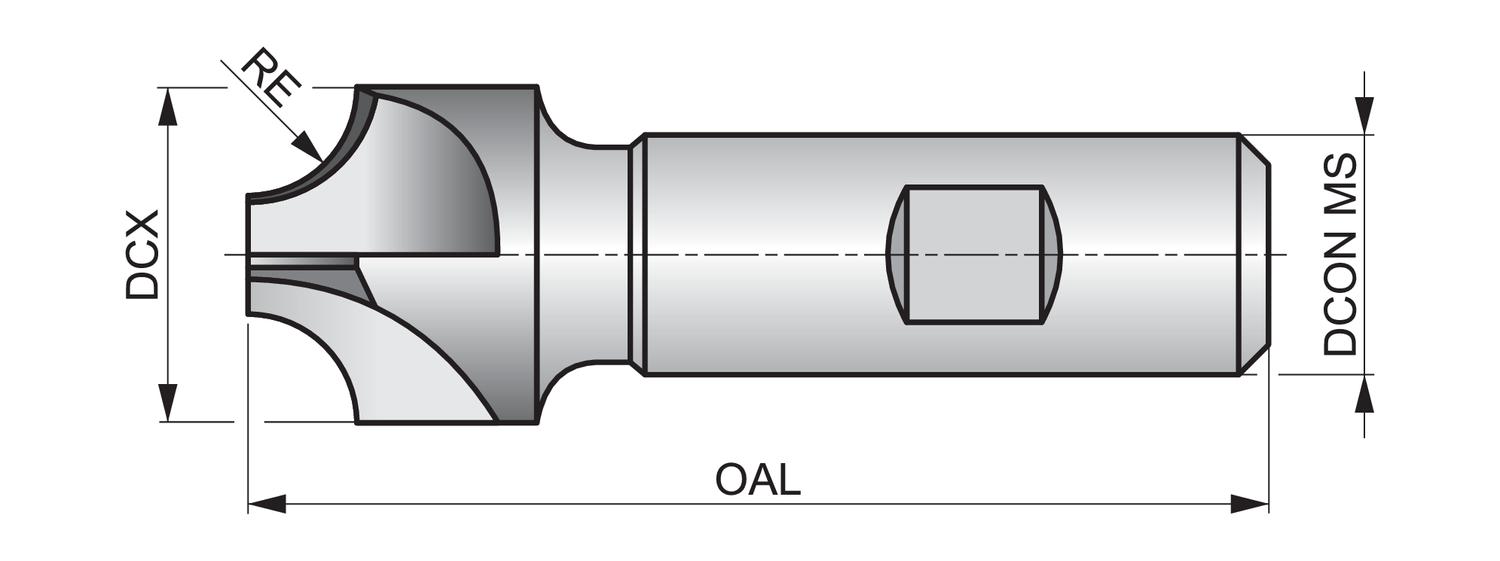

Corner radius – millimeter (RE): 9 mm
Cutting diameter maximum – millimeter (DCX): 28 mm
Connection diameter – millimeter (DCON MS): 20 mm
Overall length – millimeter (OAL): 85 mm
Flute count (NOF): 4
Radial rake angle (GAMF): 0
ISO: C7009.0
