DORMER C70110.0 Professional HSS Cutters

Product Code: C70110.0

$21.76$19.78 Ex. GST

Product Code: C70110.0 SKU C70110.0 Categories CUTTING TOOLS (HSS & Carbide), Milling

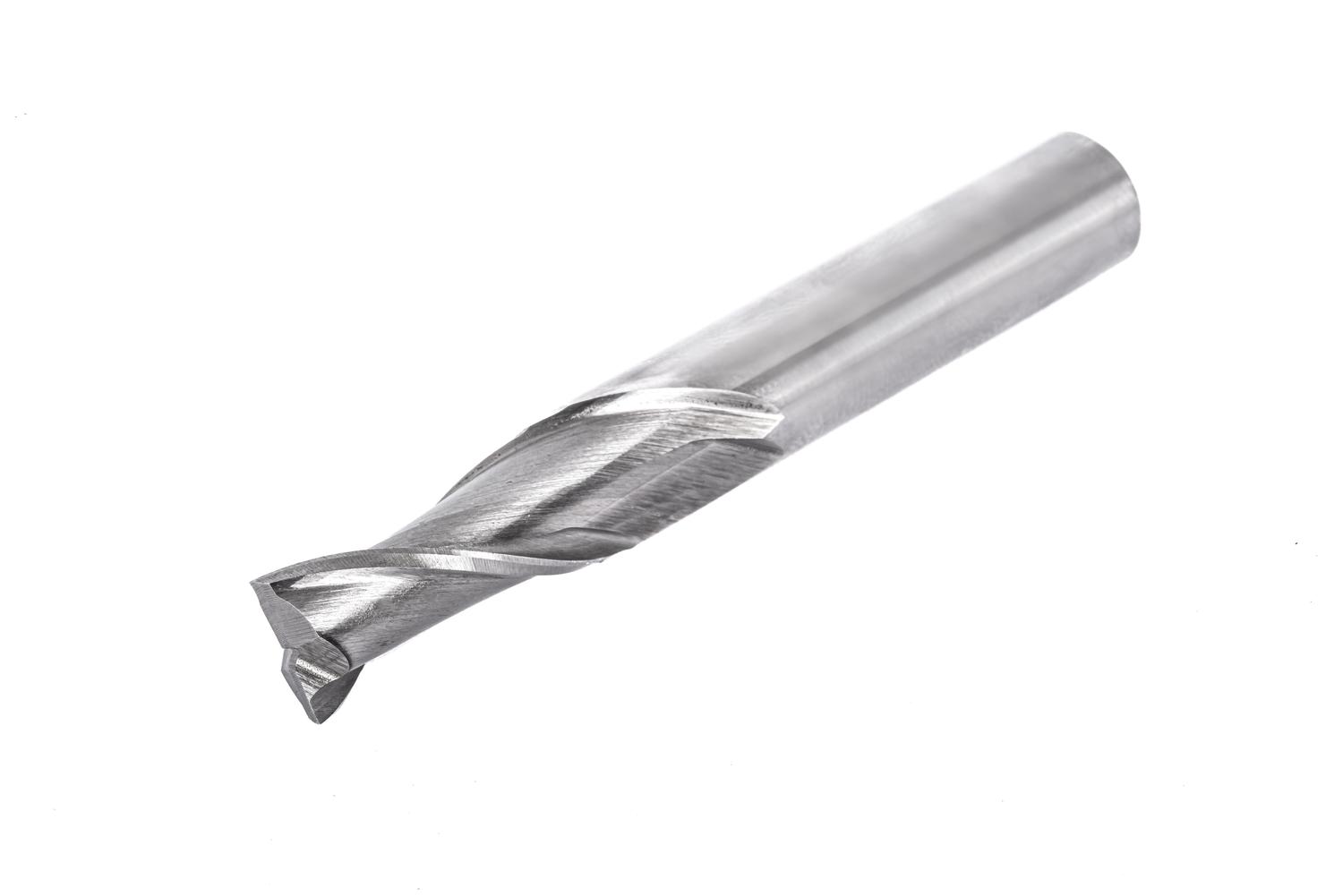

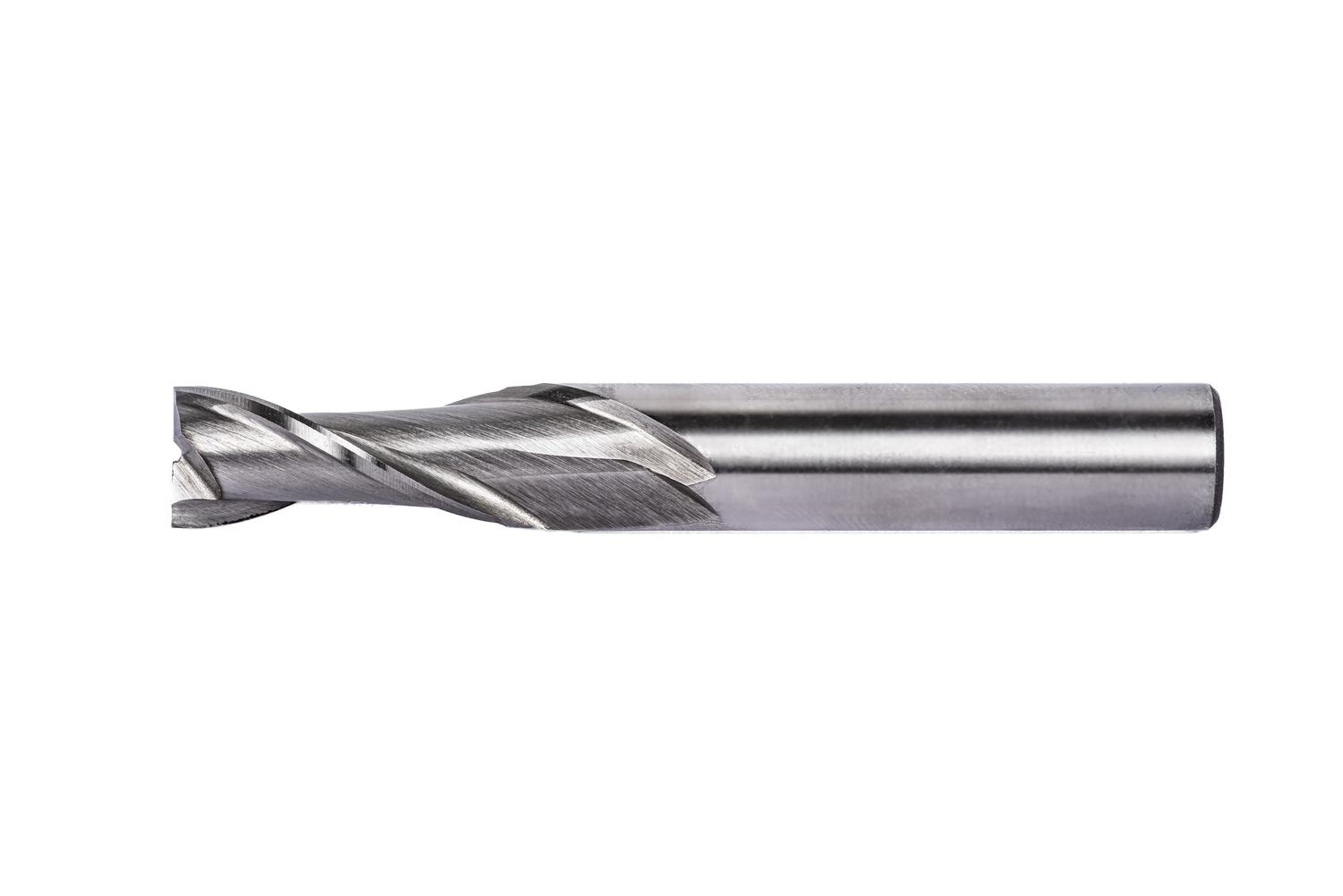

DORMER C70110.0 Professional HSS Cutters

DORMER C70110.0 Professional HSS Cutters - Image 2

DORMER C70110.0 Professional HSS Cutters - Image 3

DORMER C70110.0 Professional HSS Cutters - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short cut length, 2-flute design with centre cut provides high rigidity. Suitable for milling slots and ramping. These tools are designed for milling standard keyway slots. Versatile for general purpose applications.

Additional information

Weight	0.0336 kg
Dimensions
barcode	3603607152195

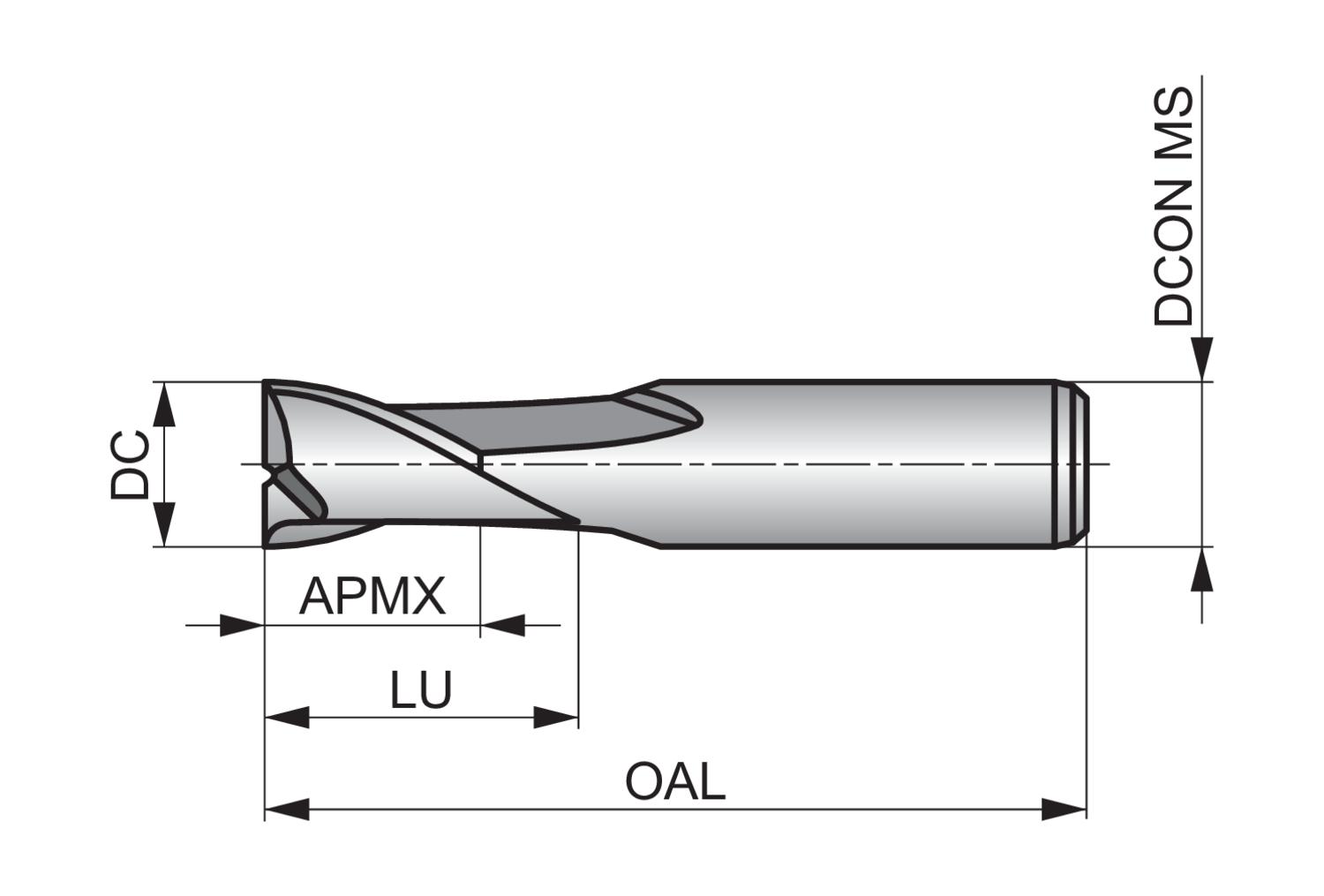

Additional Information	Description: Value Product name: C70110.0 Cutting diameter – millimeter (DC): 10 mm Connection diameter – millimeter (DCON MS): 10 mm Depth of cut maximum – millimeter (APMX): 22 mm Overall length – millimeter (OAL): 72 mm Flute count (NOF): 2 Radial rake angle (GAMF): 10
