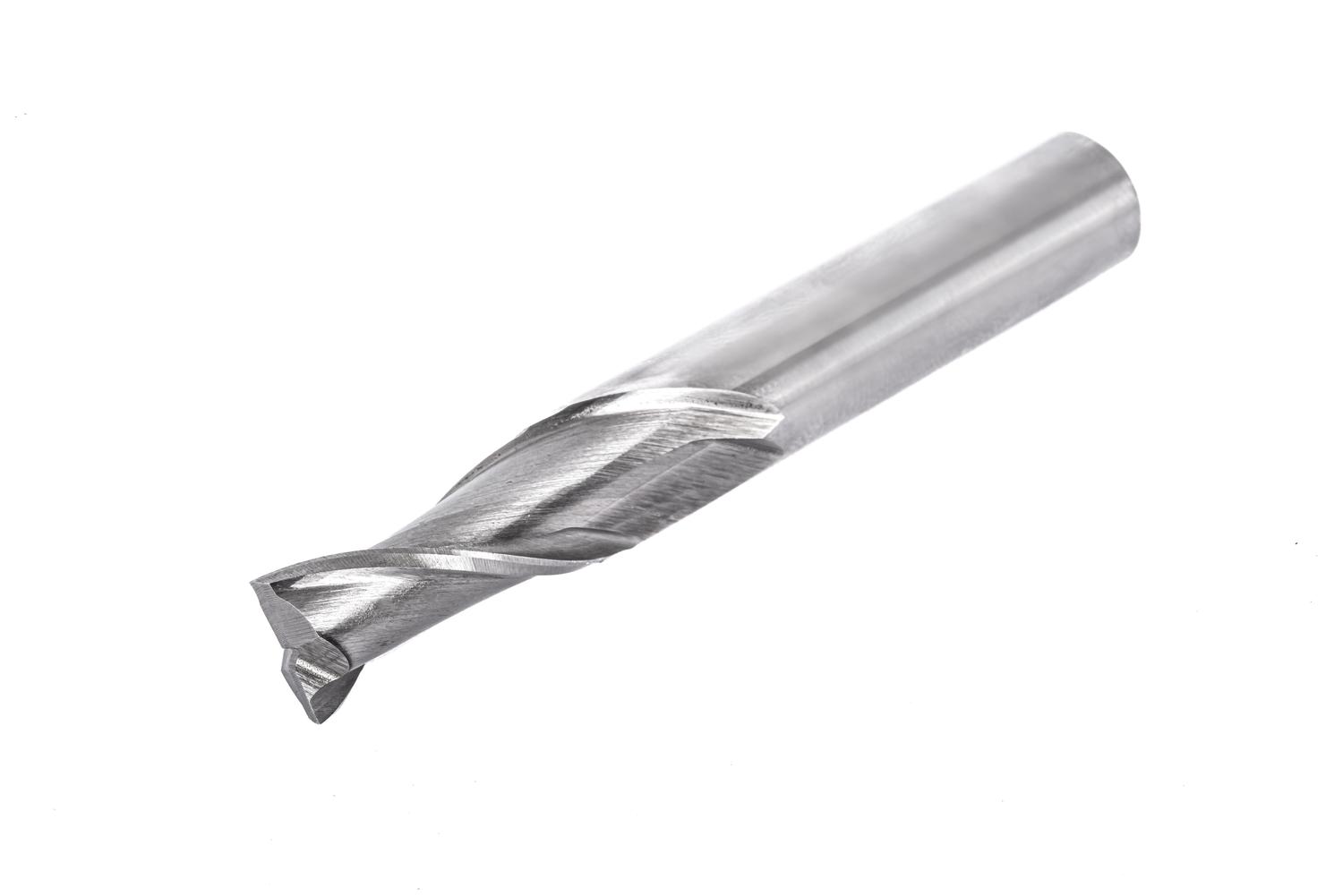

DORMER C7014.5 Professional HSS Cutters

Product Code: C7014.5

$15.52$14.11 Ex. GST

Product Code: C7014.5 SKU C7014.5 Categories CUTTING TOOLS (HSS & Carbide), Milling

DORMER C7014.5 Professional HSS Cutters - Image 2

DORMER C7014.5 Professional HSS Cutters - Image 3

DORMER C7014.5 Professional HSS Cutters - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short cut length, 2-flute design with centre cut provides high rigidity. Suitable for milling slots and ramping. These tools are designed for milling standard keyway slots. Versatile for general purpose applications.

Additional information

Weight	0.0063 kg
Dimensions
barcode	3603607152096

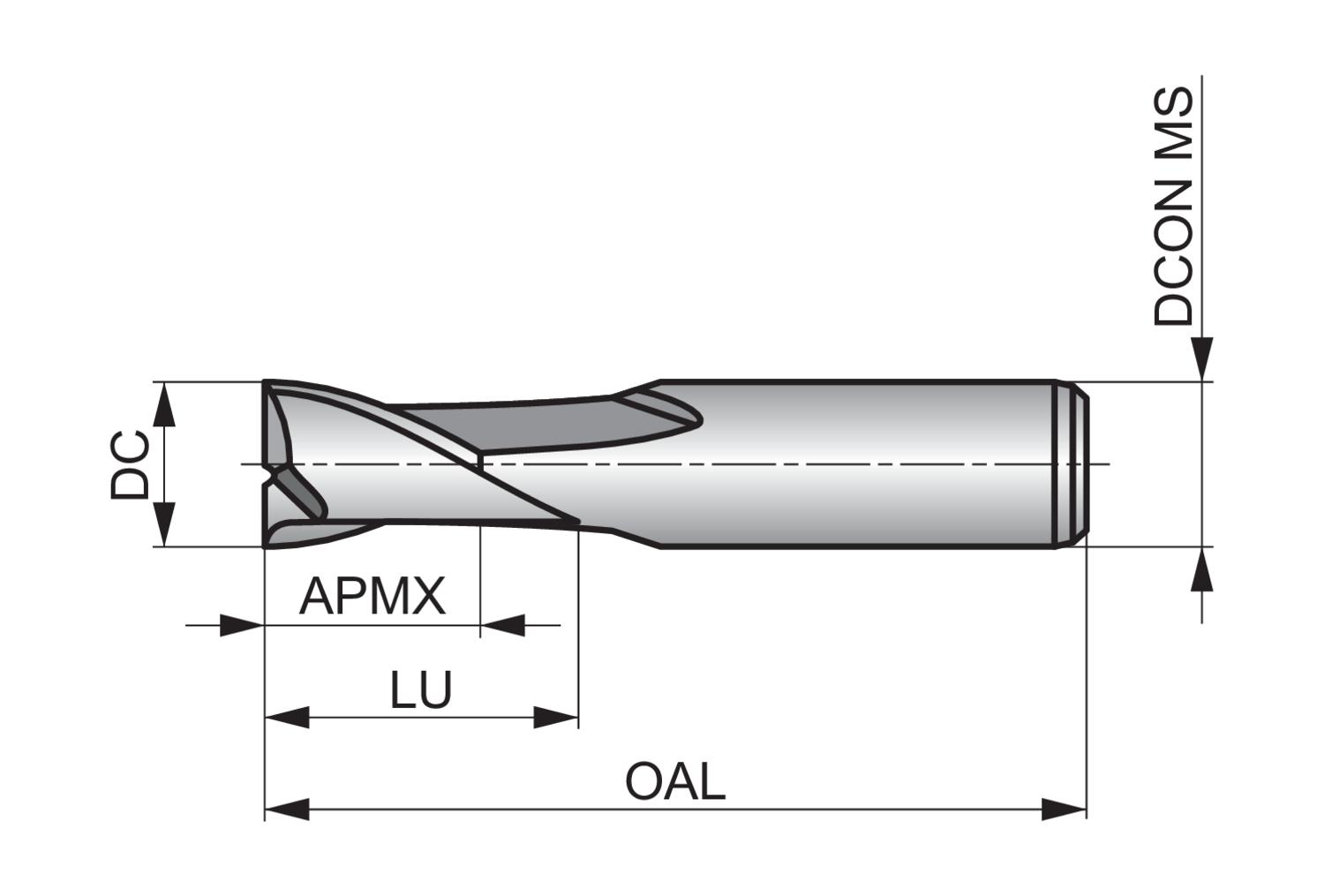

Additional Information	Description: Value Product name: C7014.5 Cutting diameter – millimeter (DC): 4.5 mm Connection diameter – millimeter (DCON MS): 5 mm Depth of cut maximum – millimeter (APMX): 11 mm Overall length – millimeter (OAL): 45 mm Flute count (NOF): 2 Radial rake angle (GAMF): 10
