DORMER C70220.0 Professional HSS Cutters

Product Code: C70220.0

$67.42$61.29 Ex. GST

Product Code: C70220.0 SKU C70220.0 Categories CUTTING TOOLS (HSS & Carbide), Milling

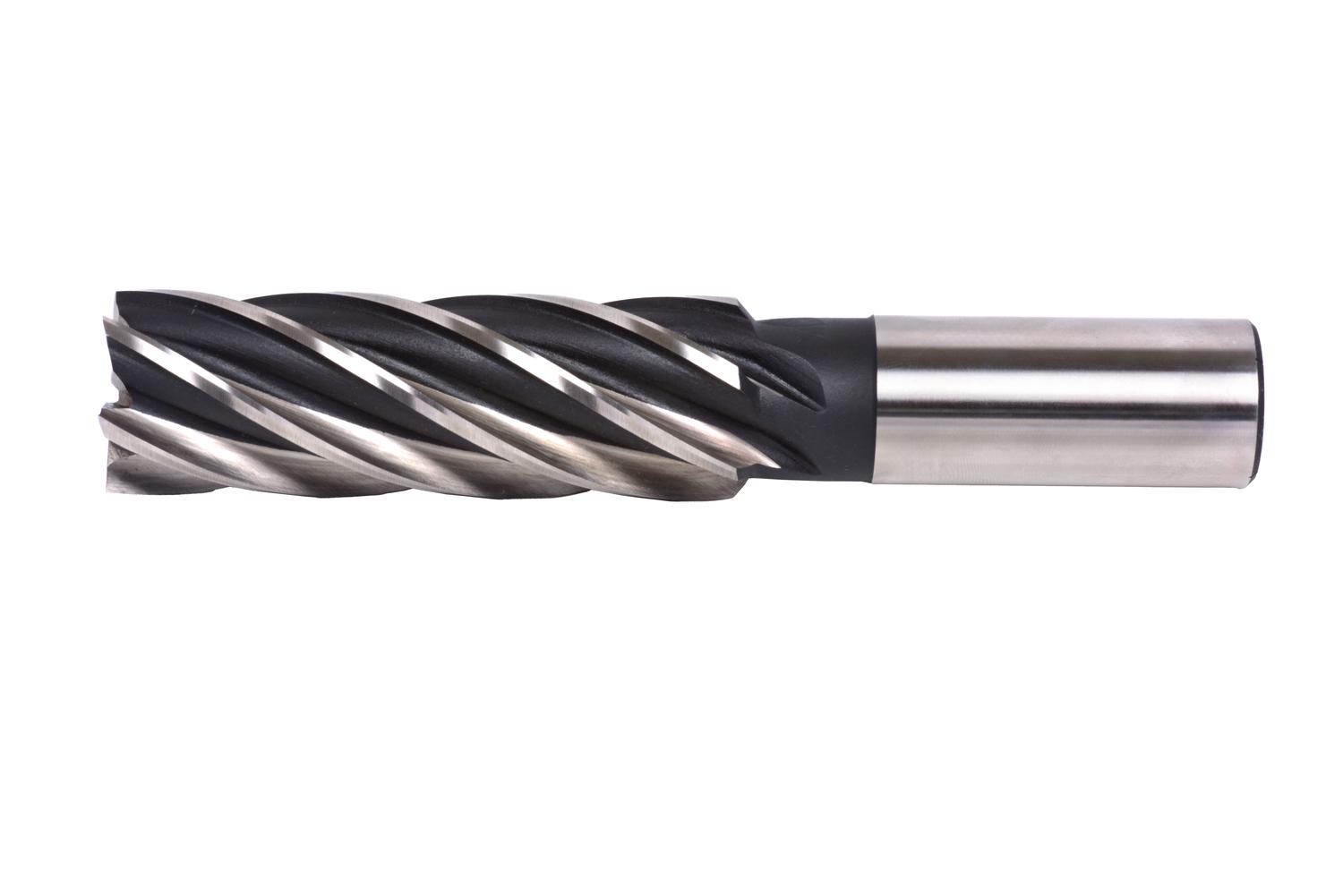

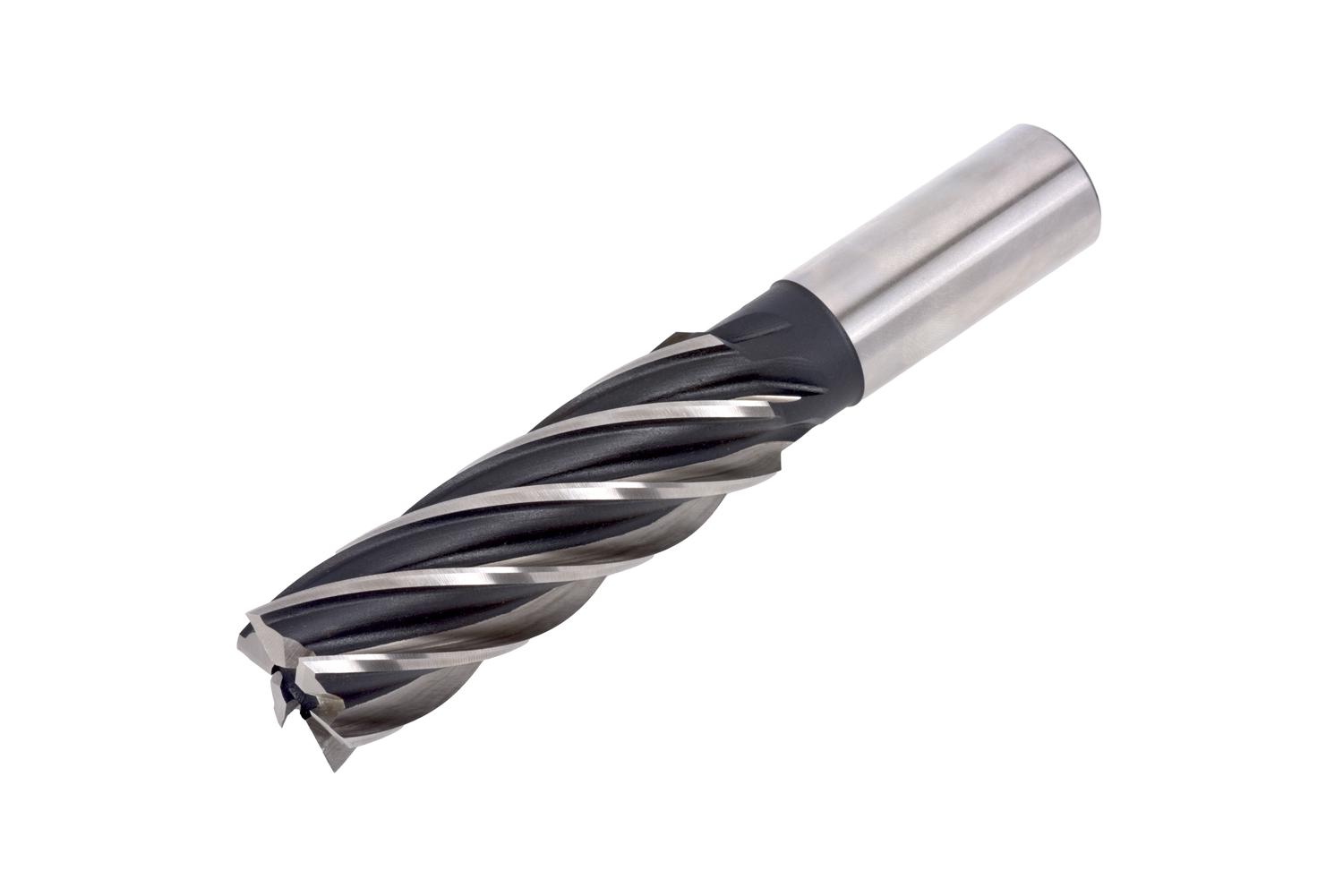

DORMER C70220.0 Professional HSS Cutters

DORMER C70220.0 Professional HSS Cutters - Image 2

DORMER C70220.0 Professional HSS Cutters - Image 3

DORMER C70220.0 Professional HSS Cutters - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

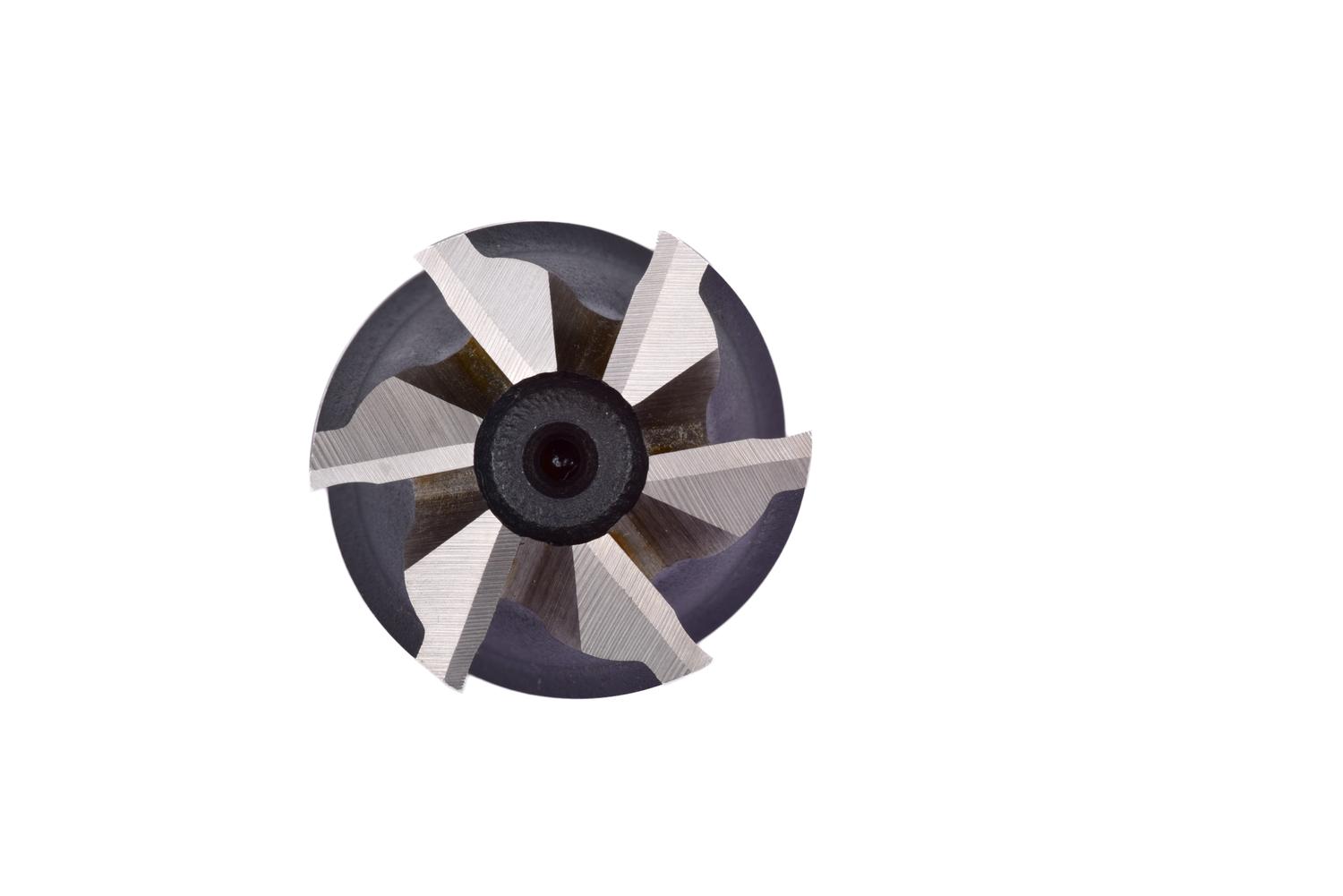

Short cut length, 4 or 6 flute design with centre cut provides high rigidity for general profile, pocketing and ramp milling applications. Versatile for general purpose applications.

Additional information

Weight	0.1871 kg
Dimensions
barcode	3603607152409

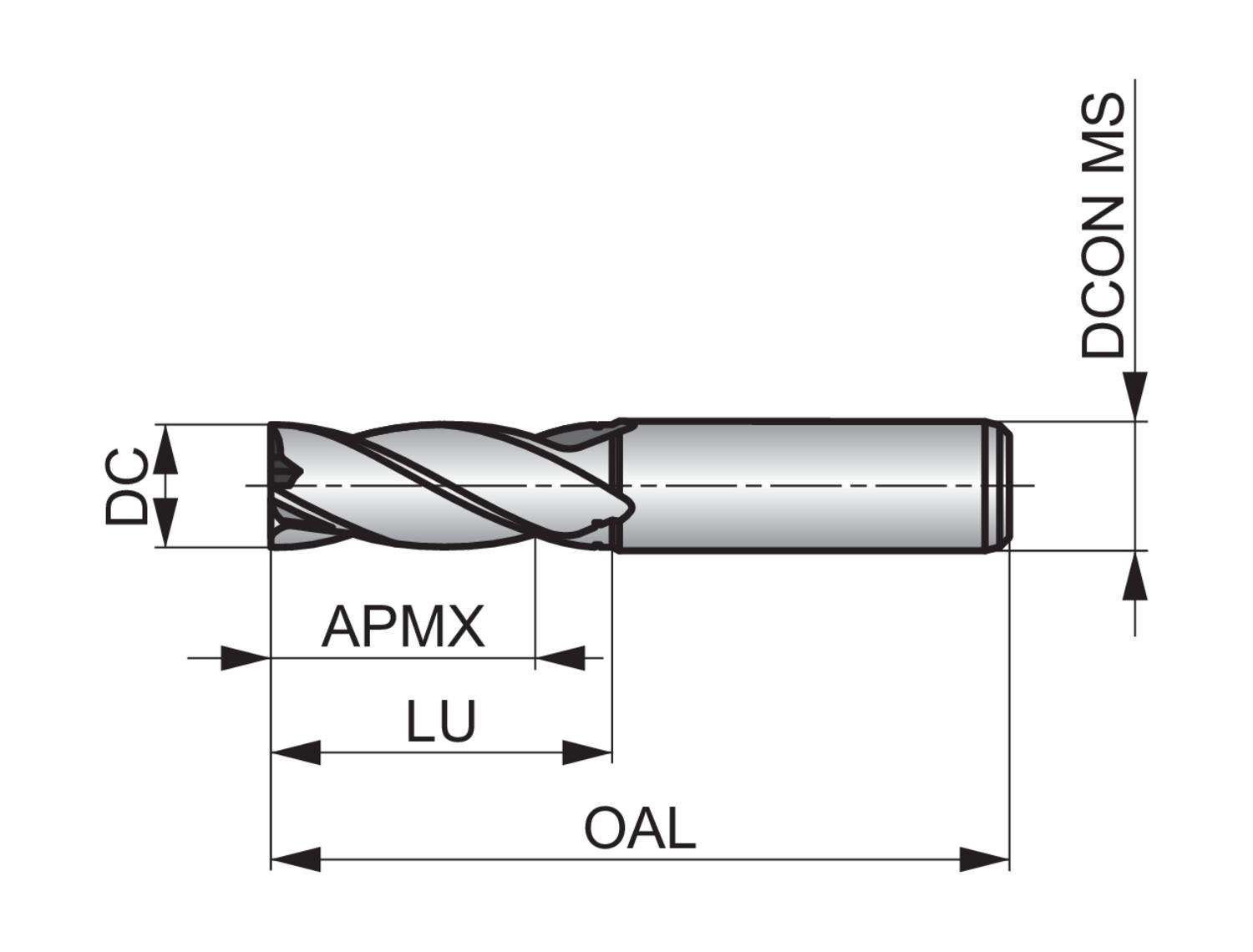

Additional Information	Description: Value Product name: C70220.0 Cutting diameter – millimeter (DC): 20 mm Connection diameter – millimeter (DCON MS): 20 mm Depth of cut maximum – millimeter (APMX): 38 mm Overall length – millimeter (OAL): 104 mm Flute count (NOF): 6 Radial rake angle (GAMF): 10
