DORMER C7025.0 Professional HSS Cutters

Product Code: C7025.0

$20.50$18.64 Ex. GST

Product Code: C7025.0 SKU C7025.0 Categories CUTTING TOOLS (HSS & Carbide), Milling

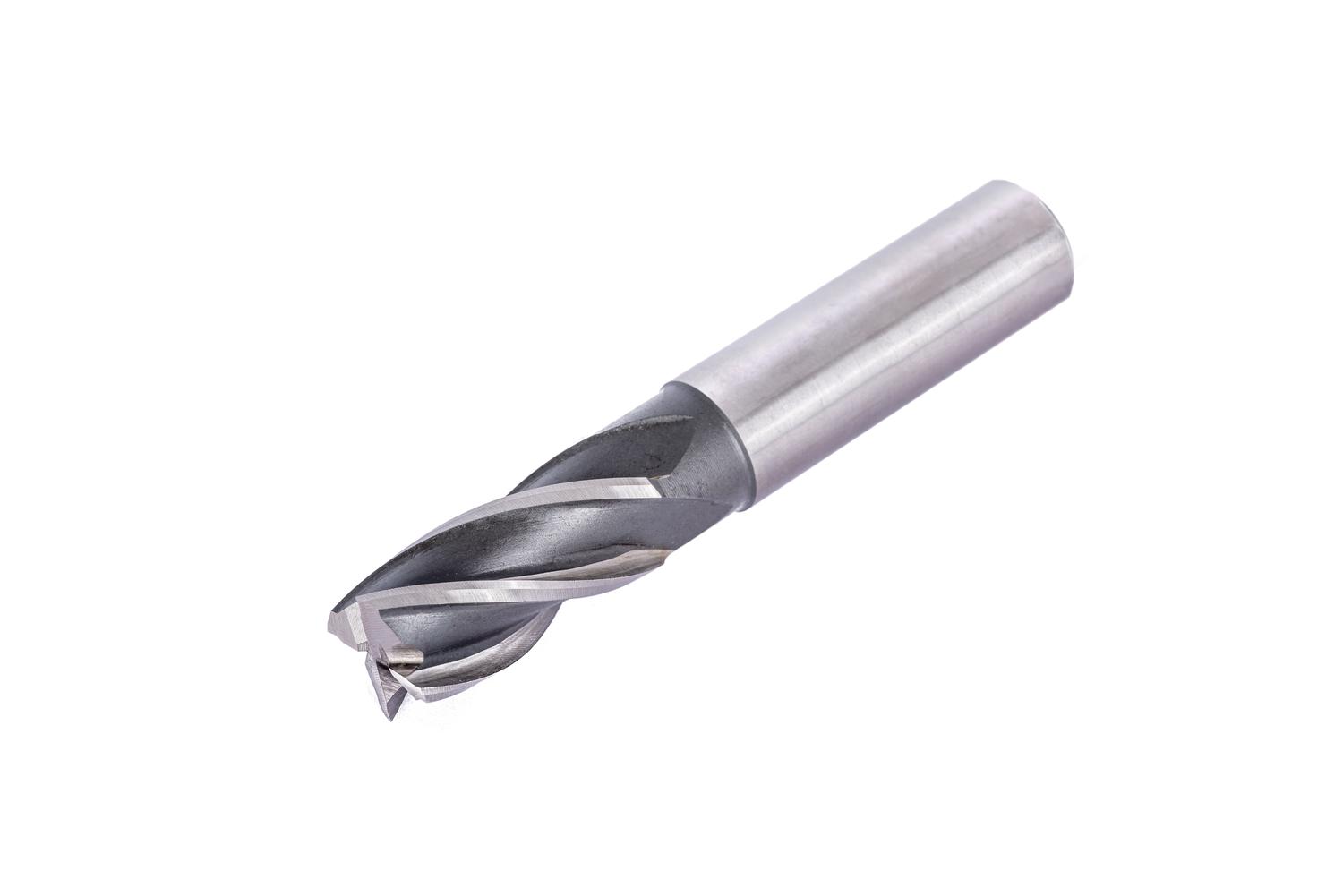

DORMER C7025.0 Professional HSS Cutters - Image 2

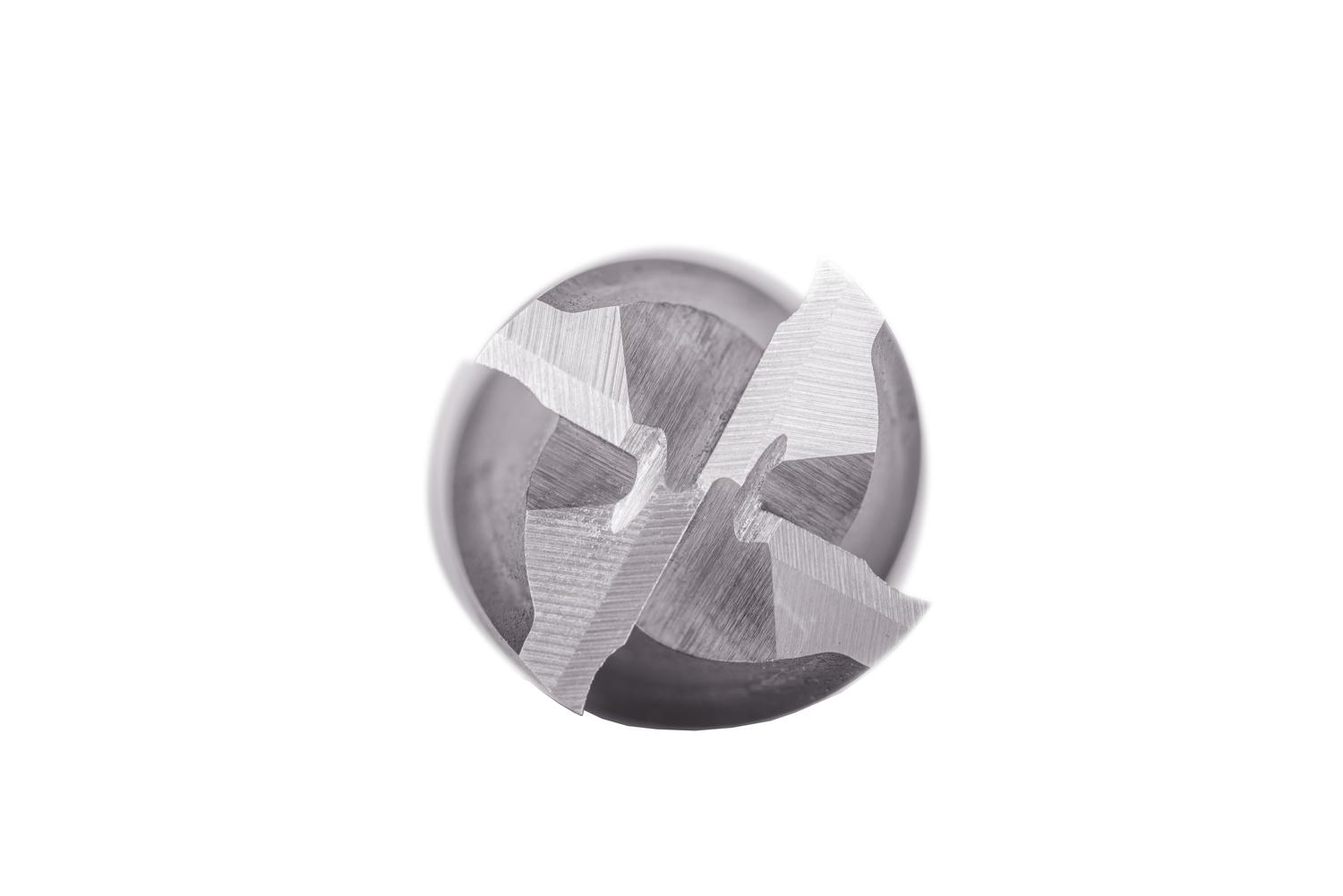

DORMER C7025.0 Professional HSS Cutters - Image 3

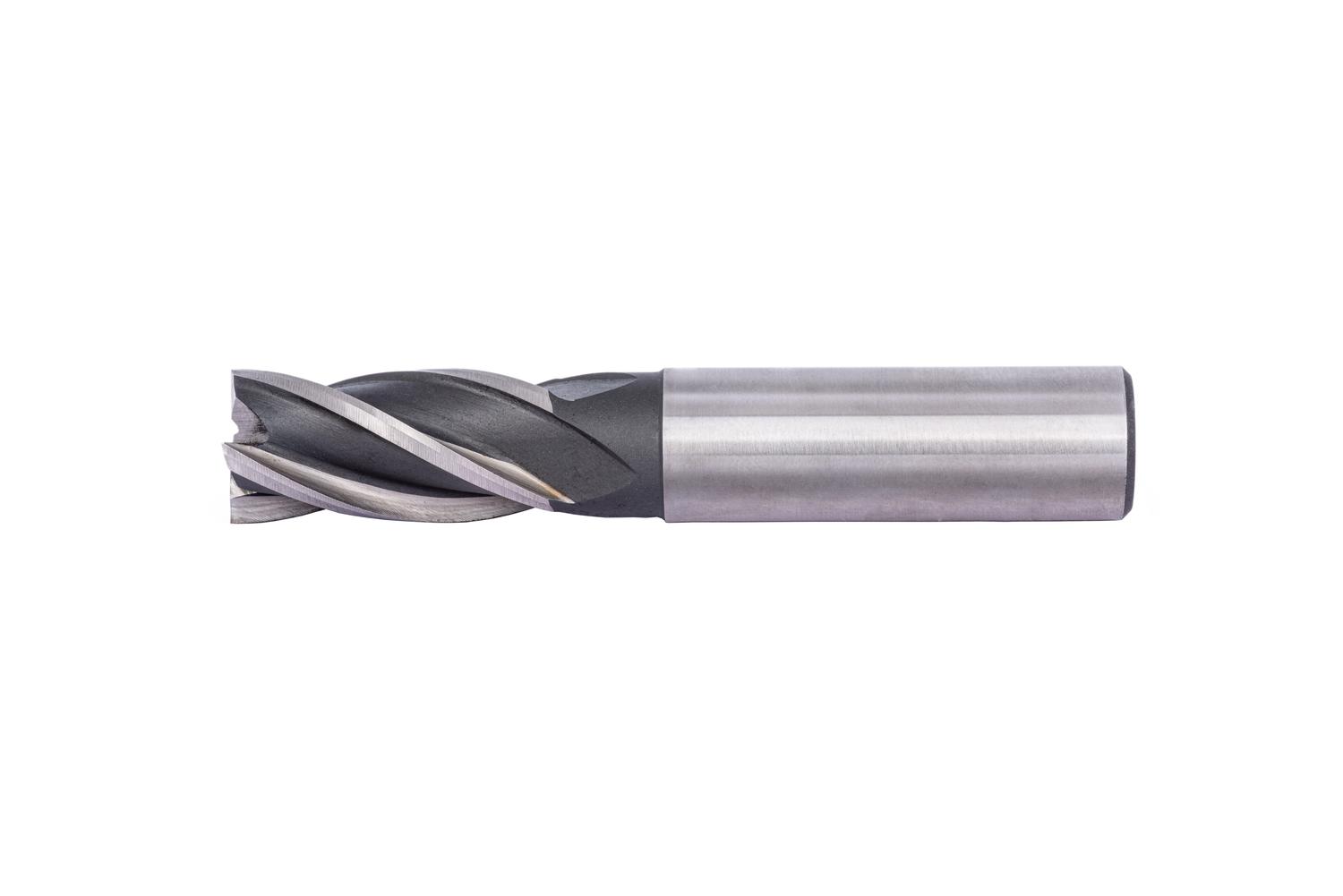

DORMER C7025.0 Professional HSS Cutters - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short cut length, 4 or 6 flute design with centre cut provides high rigidity for general profile, pocketing and ramp milling applications. Versatile for general purpose applications.

Additional information

Weight	0.0063 kg
Dimensions
barcode	3603607152263

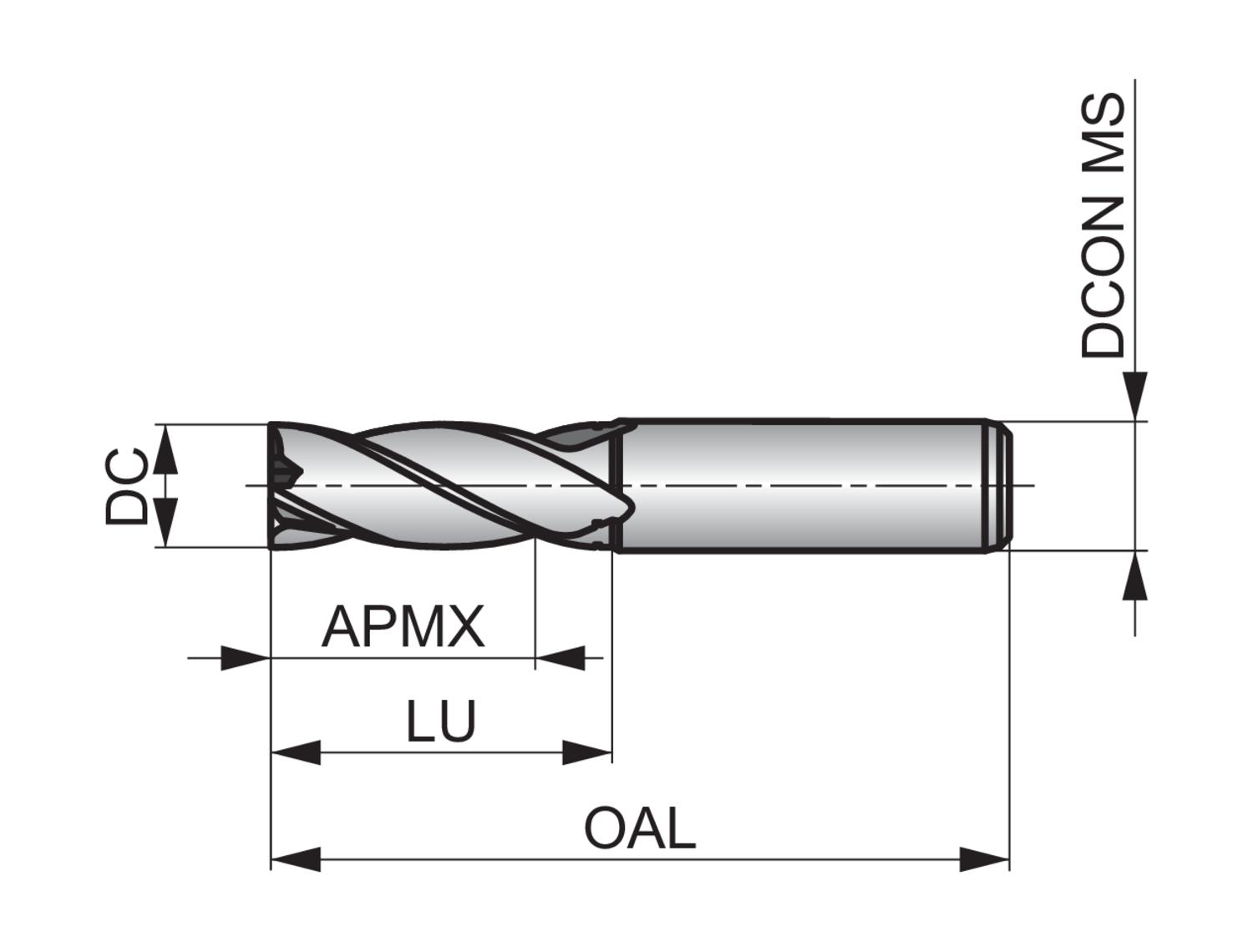

Additional Information	Description: Value Product name: C7025.0 Cutting diameter – millimeter (DC): 5 mm Connection diameter – millimeter (DCON MS): 5 mm Depth of cut maximum – millimeter (APMX): 13 mm Overall length – millimeter (OAL): 47 mm Flute count (NOF): 4 Radial rake angle (GAMF): 10
