DORMER C7049.5 Professional HSS Cutters

Product Code: C7049.5

$34.56$31.42 Ex. GST

Product Code: C7049.5 SKU C7049.5 Categories CUTTING TOOLS (HSS & Carbide), Milling

DORMER C7049.5 Professional HSS Cutters - Image 2

DORMER C7049.5 Professional HSS Cutters - Image 3

DORMER C7049.5 Professional HSS Cutters - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Short cut length, 4 flute design with non centre cut provides high rigidity for side milling, ramp milling applications. Versatile for general purpose applications.

Additional information

Weight	0.0336 kg
Dimensions
barcode	3603607152737

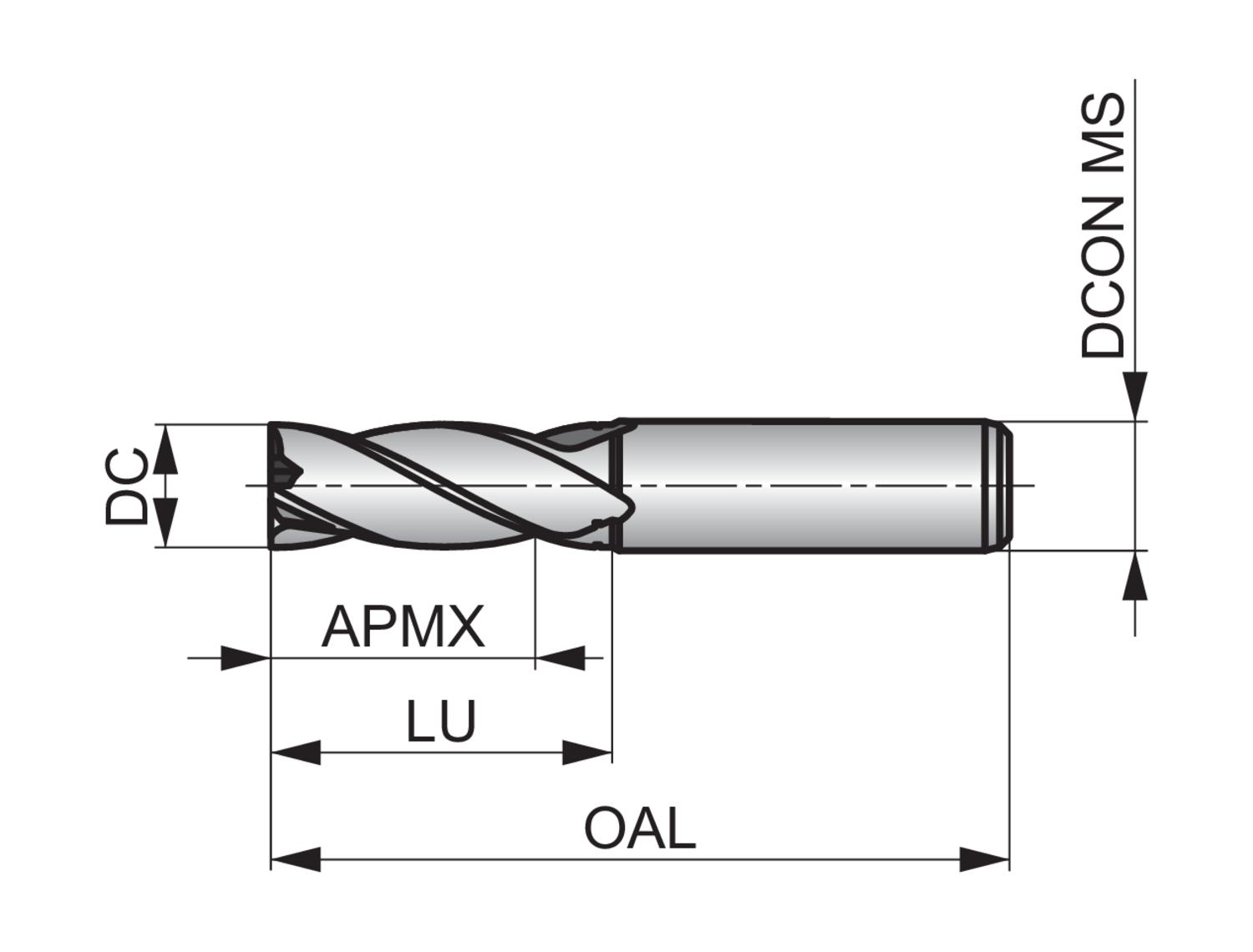

Additional Information	Description: Value Product name: C7049.5 Cutting diameter – millimeter (DC): 9.5 mm Connection diameter – millimeter (DCON MS): 10 mm Depth of cut maximum – millimeter (APMX): 22 mm Overall length – millimeter (OAL): 72 mm Flute count (NOF): 4 Radial rake angle (GAMF): 10
