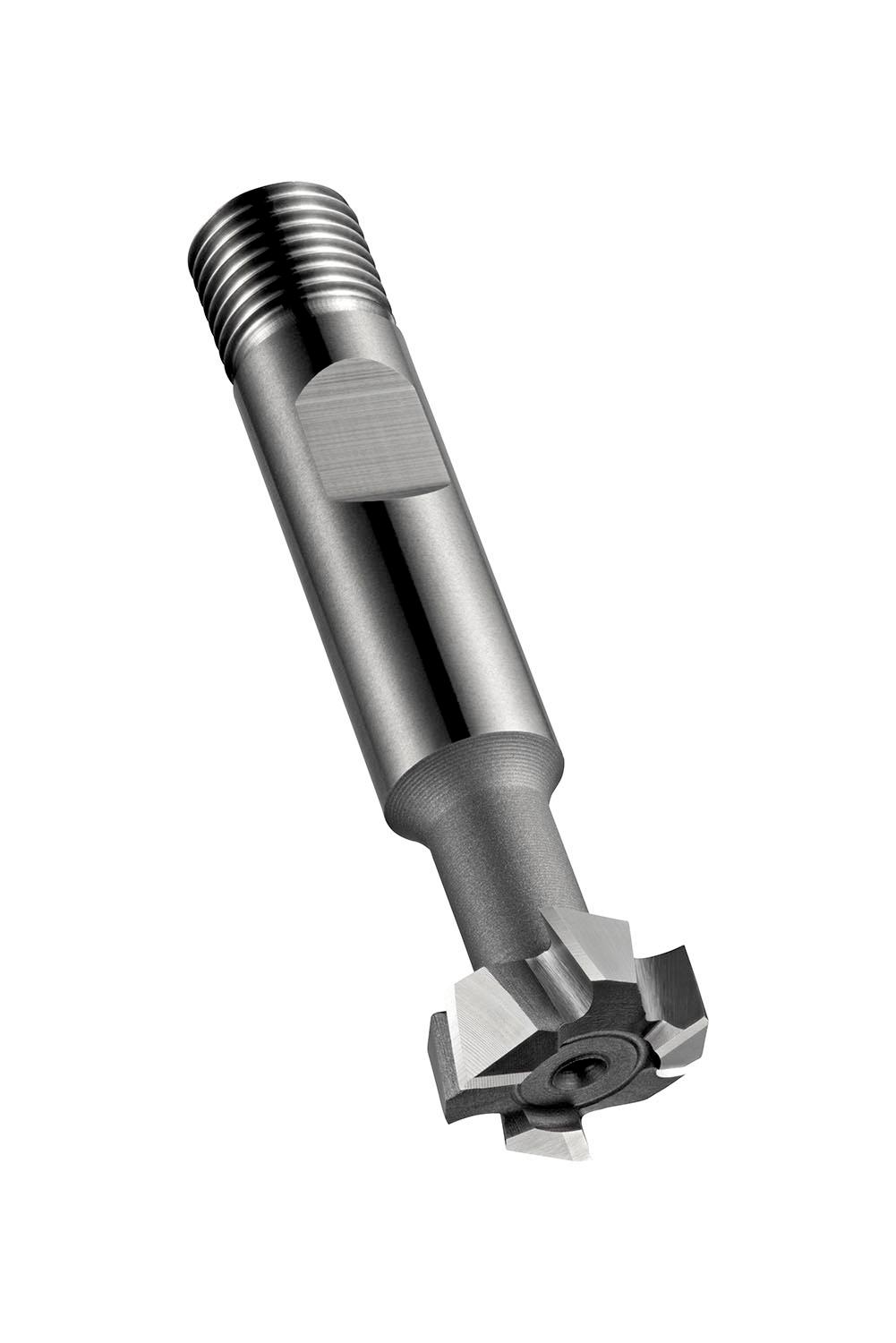

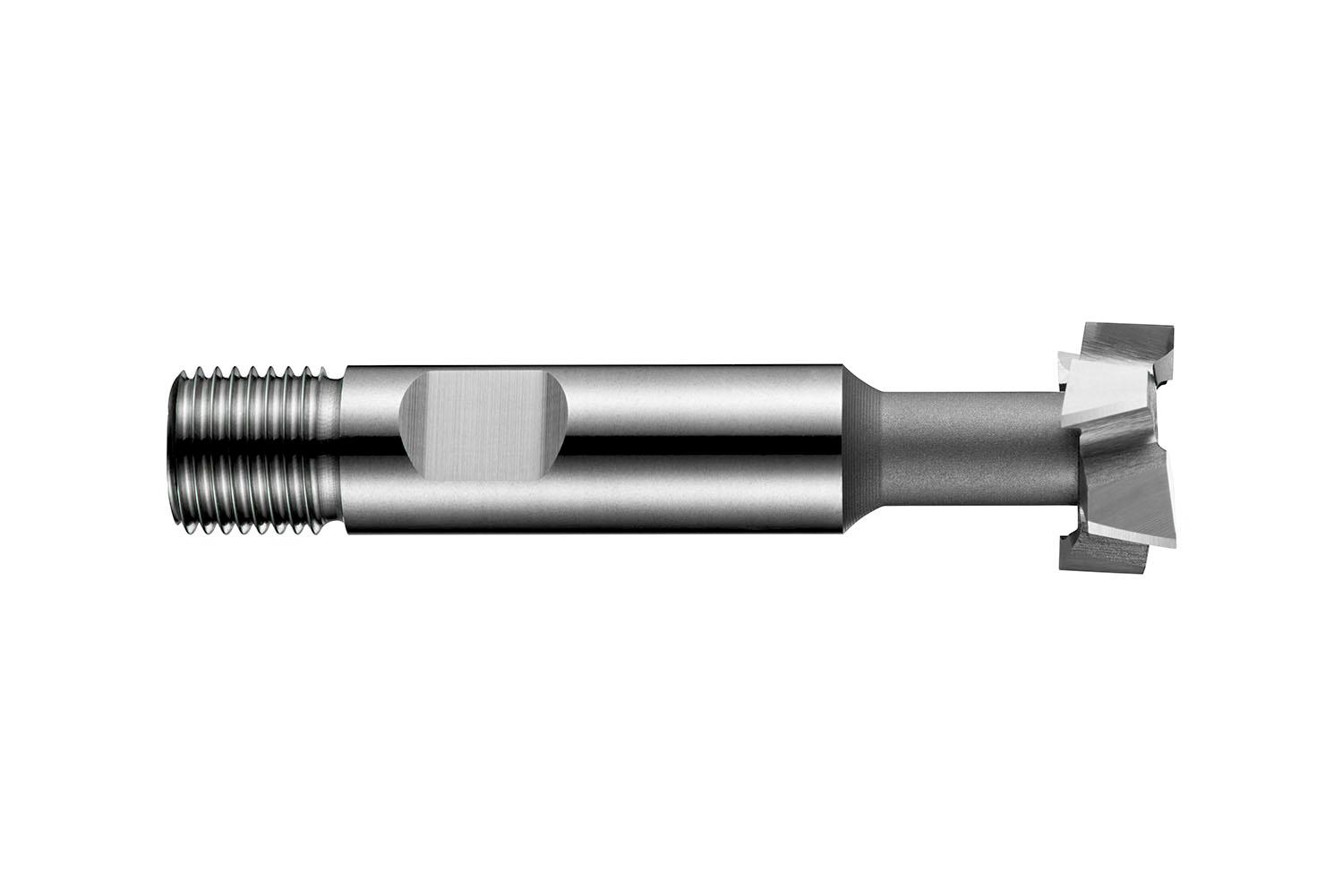

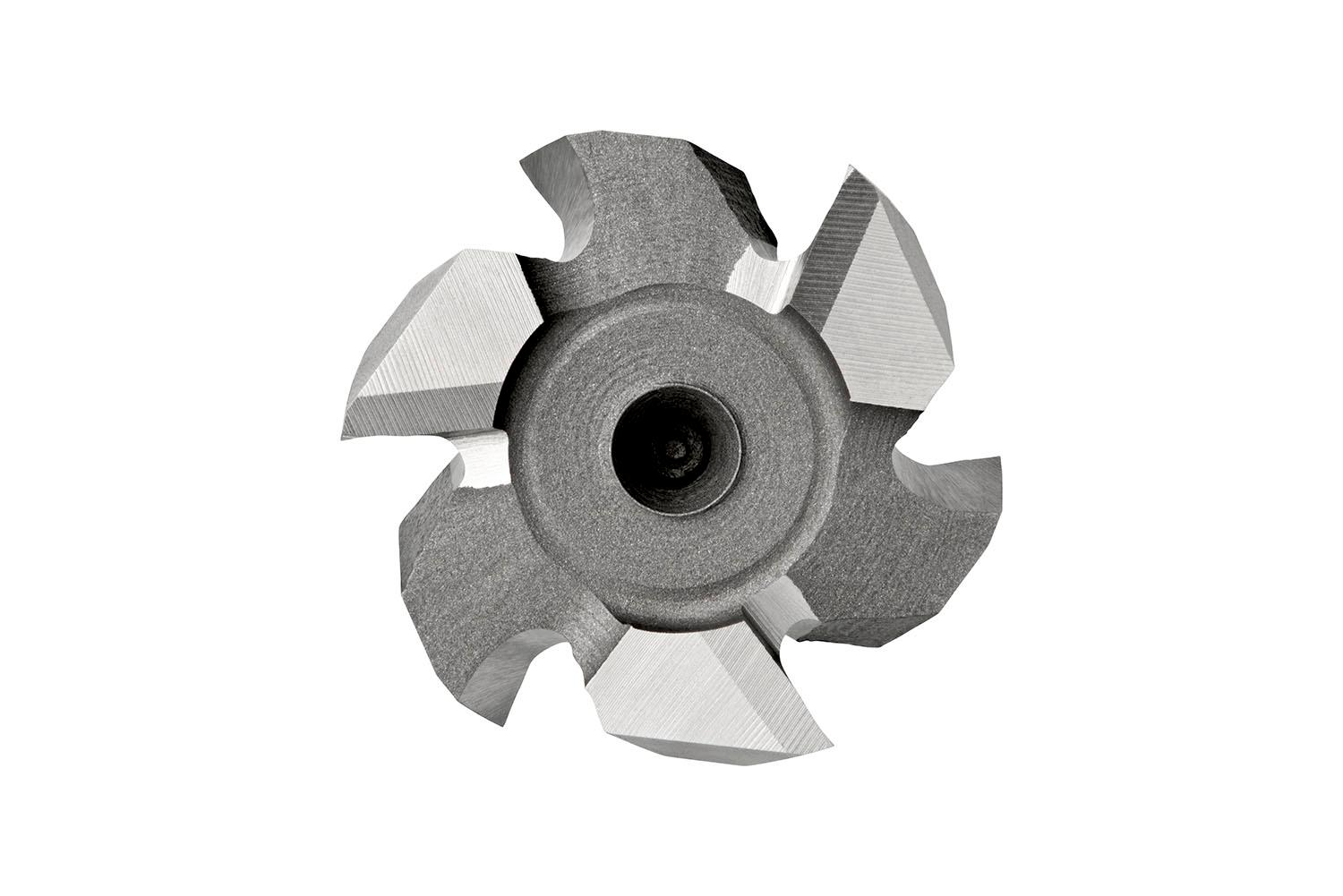

DORMER C80011.0X5.0 HSCO Cutters

Product Code: C80011.0X5.0

$319.51$290.46 Ex. GST

Product Code: C80011.0X5.0 SKU C80011.0X5.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

T-slot cutter with 6 teeth, diameter 11mm with 4mm depth of cut and 53.5mm overall length, according to DIN 851 standard with a 10mm combi shank with weldon flat and thread, cobalt based HSS-E with bright finish, 15° helix and 10° rake angle for T-slot milling in steel and cast steel, stainless steel, cast-iron, non-ferrous metals and high-temperature alloys

Additional information

Weight 0.3102 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760074435
Product number (SAP): 86014206
Ordering code ANSI: C80011.0X5.0
Gross weight – grams: 32.6

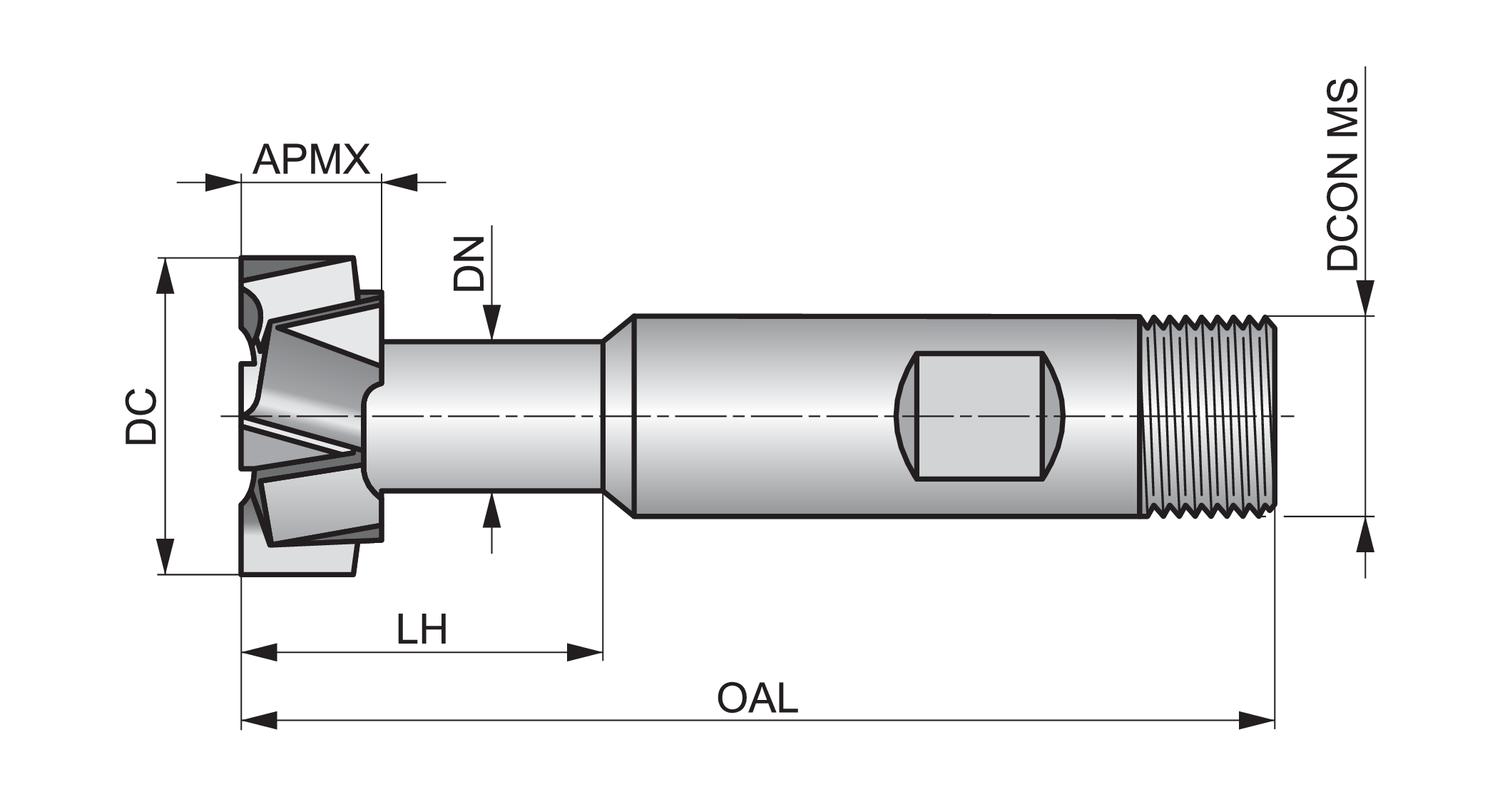

Depth of cut maximum – millimeter (APMX): 4 mm
Cutting diameter – millimeter (DC): 11 mm
DIN650 Size code: 5
Neck diameter – millimeter (DN): 4 mm
Head length – millimeter (LH): 10.5 mm
Overall length – millimeter (OAL): 53.5 mm
Connection diameter – millimeter (DCON MS): 10 mm
Flute count (NOF): 6
Radial rake angle (GAMF): 10
ISO: C80011.0X5.0

Brand

DORMER
